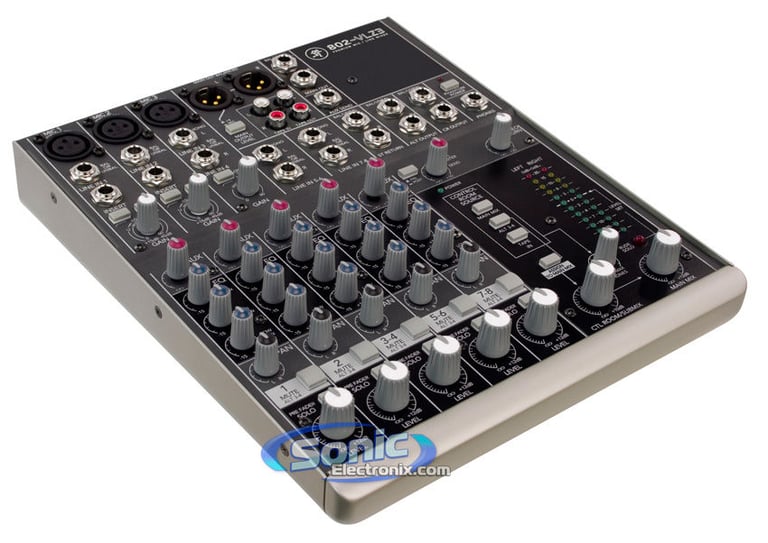

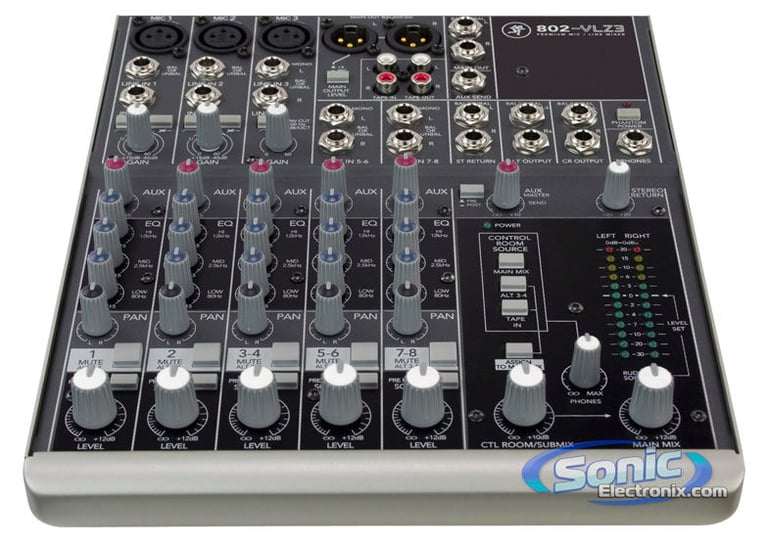

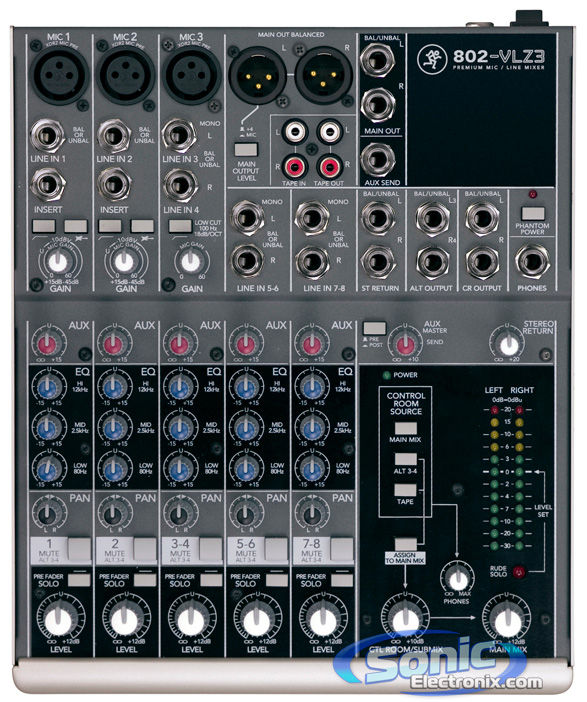

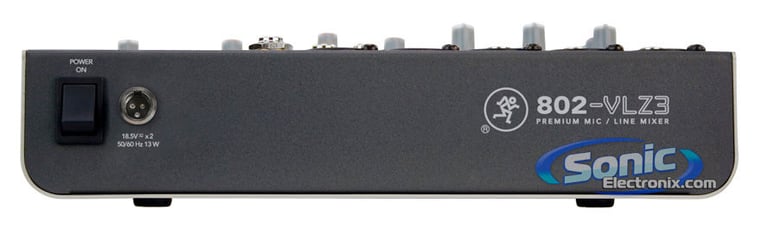

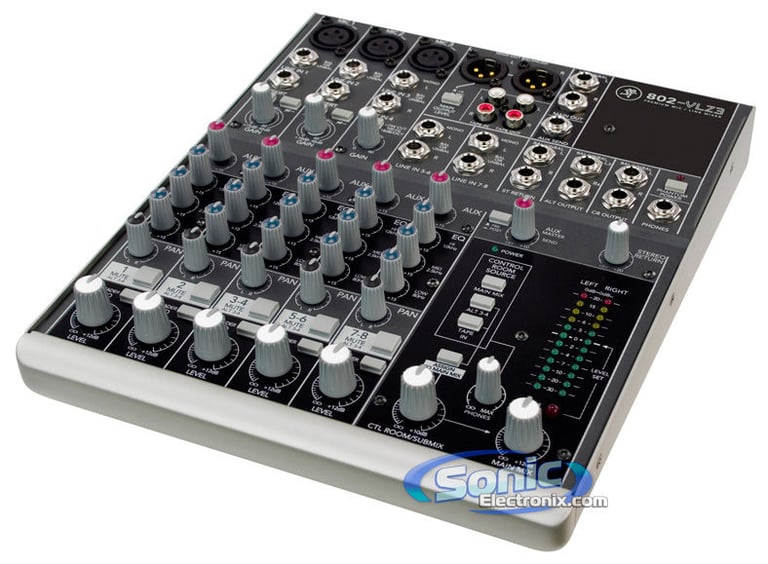

Mackie 802-VLZ3

8-Channel Mixer with 2-Band Active EQ and High-Headroom Design

Mackie
Shop all Mackie
highlight-star-icon

8-Channel • 8 High-Headroom Line Inputs • DC Pulse Transformer RF Rejection • 12-Segment Stereo Meters • 3-Band Active EQ • Sealed rotary Controls • Smooth, Tough Steel Chassis • Selectable Instrument Inputs

Learn more about the 802vlz3-int

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
HONK830 main

American International HONK830

Single DIN or Double DIN Stereo Dash Kit for select 1990-2012 vehicles from Honda, Acura, Isuzu

2
-41.05%

$22.99

List price $39.00

HA08BCB main

Scosche HA08BCB Wiring Harness

Install a new car stereo in select 1998-2019 vehicles from Honda, Acura

4
-16.74%

$9.95

List price $11.95

HO6 main

PAC HO6

Install a New Car Stereo and Retain the Factory Antenna in select 2003-2016 vehicles from Honda, Mazda, Acura

-70.83%

$7.00

List price $24.00

99-7819 main

Metra 99-7819

Single DIN and Double DIN Stereo Dash Kit for select 2006-2008 Pilot

1
-47.37%

$39.99

List price $75.99

99-7861 main

Metra 99-7861 Dash Kit

Install a new Single-DIN car stereo in select 2003-2008 Pilot

1
-53.14%

$14.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


Mackie brand icon

Authorized dealer

Free Studio Microphone and Headphone Combo Kit with Purchase!
Headphone Extension Cable and Adapter Included!

Product Features:
  • Mackie 802-VLZ3 8-Channel Mixer
  • 3 studio-grade XDR2 Extended Dynamic Range mic preamps:
    • Ultra-wide 60dB gain range
    • 130dB dynamic range
    • +22dBu line input handling
    • Extended low frequency response
    • THD (Total Harmonic Distortion) under 0.0007%
    • Phantom power for studio condenser mics
  • 8 high-headroom line inputs
  • Advanced DC pulse transformer RF rejection
  • Auxiliary send, level, pan and PFL solo on each channel
  • Selectable Instrument inputs on first two channels (no DI box needed)
  • Control Room/Phones source matrix
  • ALT 3/4 stereo bus for added versatility
  • Stereo Return for connecting effects processor or other stereo source
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls to resist dust and grime
  • Smooth, tough steel chassis
  • 1-year Manufacturer's warranty
Product Specifications:
  • 3-Band Active EQ (80, 2500, 12,000 Hz)
  • Lo-Cut filter on Mic input channels (100 Hz @ 18dB/octave)
  • THD (Total Harmonic Distortion): 0.001%
  • Power Consumption: 13 Watts
  • Dimensions: 1-13/16"D x 8-15/16"W x 10-3/4"H
  • Frequency Response:
    • 30-30,000 Hz, mic input to any output @ 60dB
    • 10-100,000 Hz, mic input to any output @ unity gain
  • Maximum Levels:
    • Mic In: +21 dB
    • Tape In: +22 dB
    • All other inputs: +22 dB
    • Main mix XLR output: +28 dB
    • All other outputs: +22 dB
  • EQ:
    • High Shelving: +15 dB @ 12,000 Hz
    • Mid Peaking: +15 dB @ 2500 Hz
    • Low Shelving: +15 dB @ 80 Hz
  • Weight:
    • With power supply: 5.5 lbs
    • Without power supply: 4.5 lbs
