Name: Image Dynamics Speakers + JBL Amp and Sound Processor Combo
Brand: Image Dynamics
SKU: ms8_2-xs65_msa1004
Price: 2256.00 USD
Availability: Discontinued

by Image Dynamics

About
Similar Products
Reviews
Recently Viewed
Related Searches

EXCLUSIVE

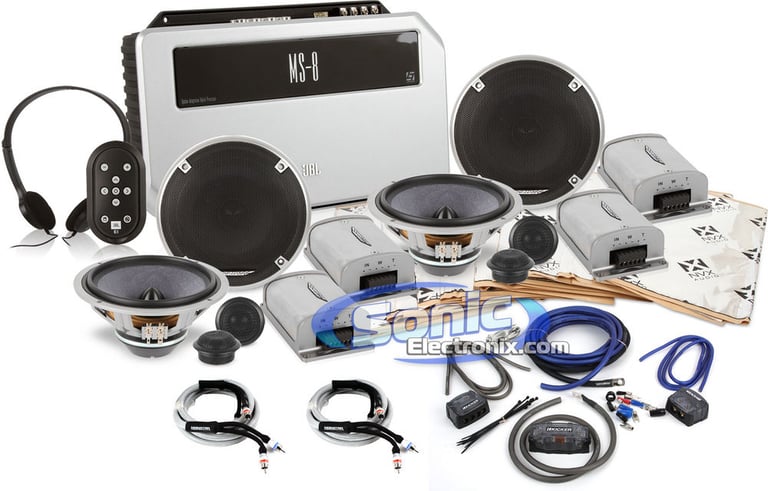

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 1 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 2 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 3 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 4 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 5 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 6 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 7 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 8 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 9 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 10 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 11 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 12 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 13 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 14 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 15 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 16 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 17 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 18 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 19 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 20 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 21 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 22 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 23 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 24 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 25 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 26 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 27 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 28 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 29 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 30 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 31 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 32 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 33 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 34 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 35 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 36 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 37 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 38 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 39 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 40 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 41 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 42 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 43 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 44 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 45 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 46 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 47 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 48 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 49 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 50 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 51 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 52 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 53 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Image Dynamics Speakers + JBL Amp and Sound Processor Combo Image 54 — Image Dynamics Speakers + JBL Amp and Sound Processor Combo

Product highlights

Pair of 6-1/2" XS Series 2-Way Car Component System • MS Series 4-Channel Class D Car Amplifier • System Integration Digital Sound Processor • 1 Meter XLN+ XTREME Audio Interconnect Cable • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material

Learn more about the ms8_2-xs65_msa1004

NVX - Worth the Envy - Direct to Consumer Car Audio

Other Audi TT Quattro owners bought

Description

Authorized dealer

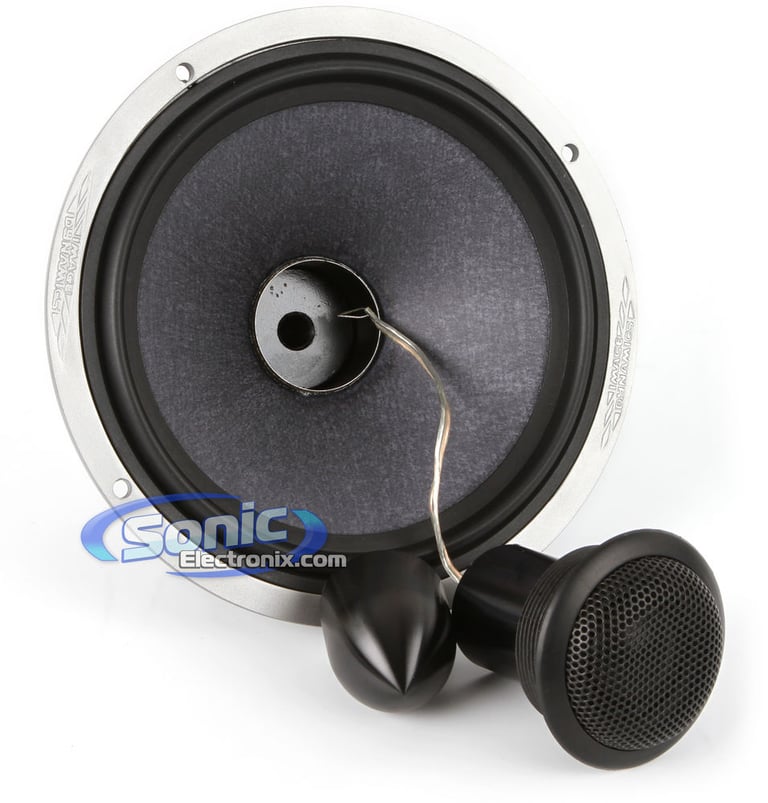

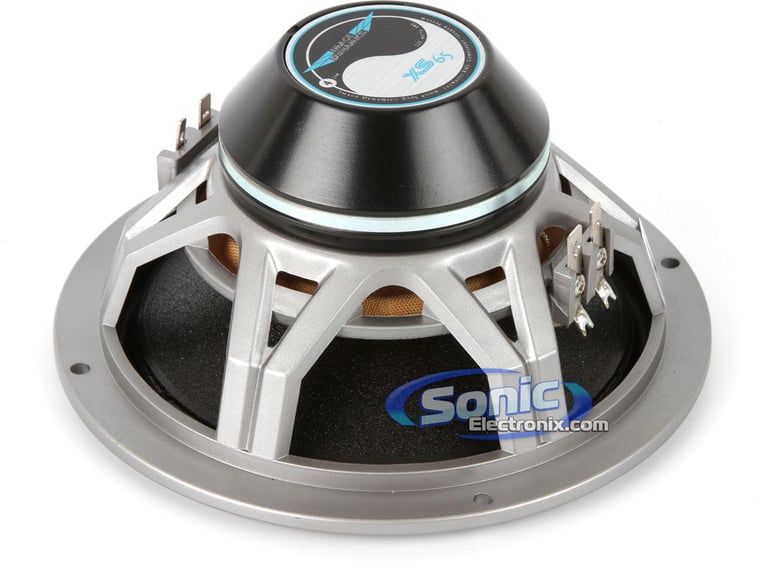

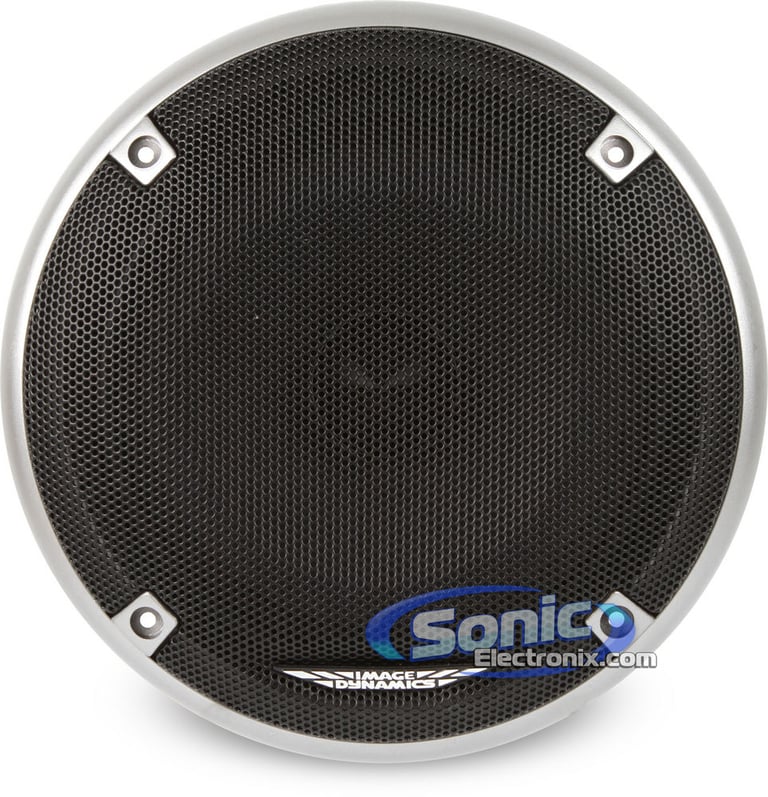

Image Dynamics XS-65

6-1/2" XS Series 2-Way Convertible Component Car Speaker
Quantity: 2 pair

6-1/2" XS Series 2-Way Car Component System
Convertible mounting system allows for coaxial or separate speaker installation
Power Handling:
- Peak: 500 watts per set / 250 watts each side
- RMS: 250 watts per set / 125 watts each side
- Recommended Power Range: 15-125 watts each side
Multi layer ceramic fiber and Rohacell composite cones
Parabolic rubber surround
28mm (1-1/8") Soft silk dome tweeter
Nomex spider with a progressive roll
Fiberglass composite non–resonant basket eliminates reflective distortion
4 ohm impedance
High temperature and high power voice coil
Neodymium Magnet structure
Top-mount depth: 3"
Sensitivity: 92 dB
Frequency Response: 55-25,000 Hz
Authorized Internet Dealer
1-year Manufacturer's Warranty

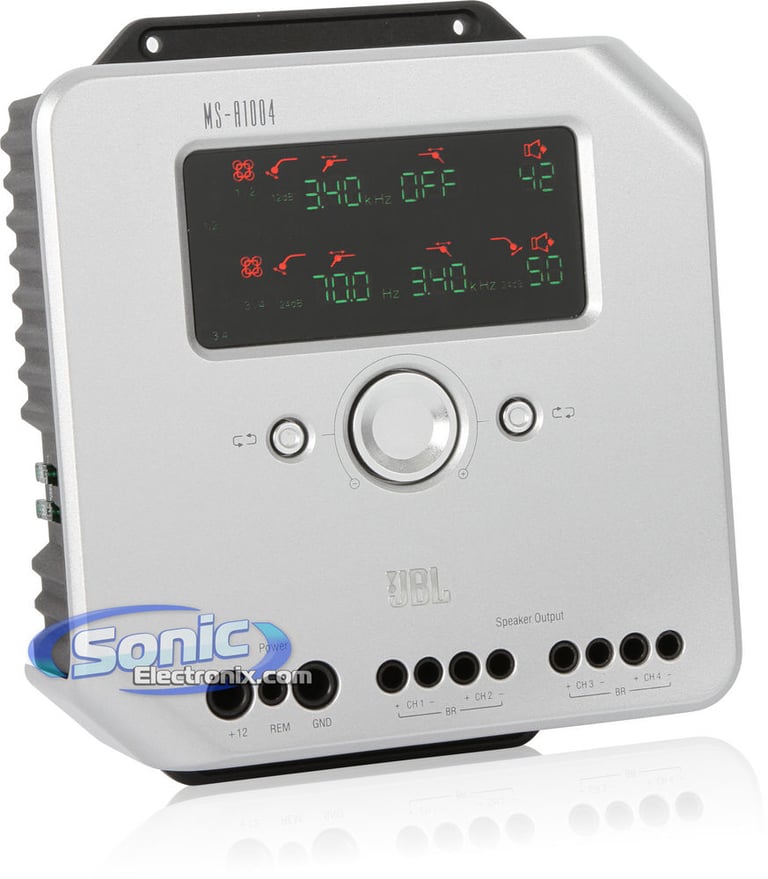

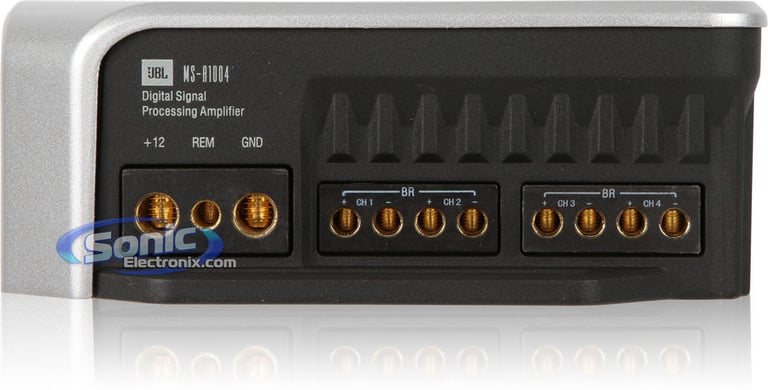

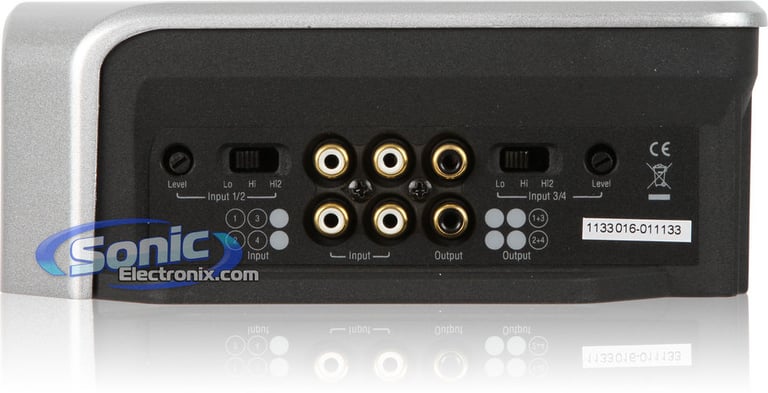

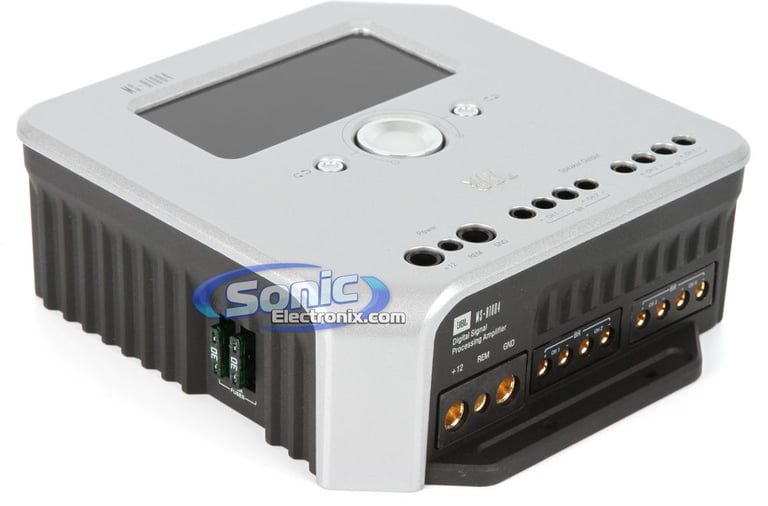

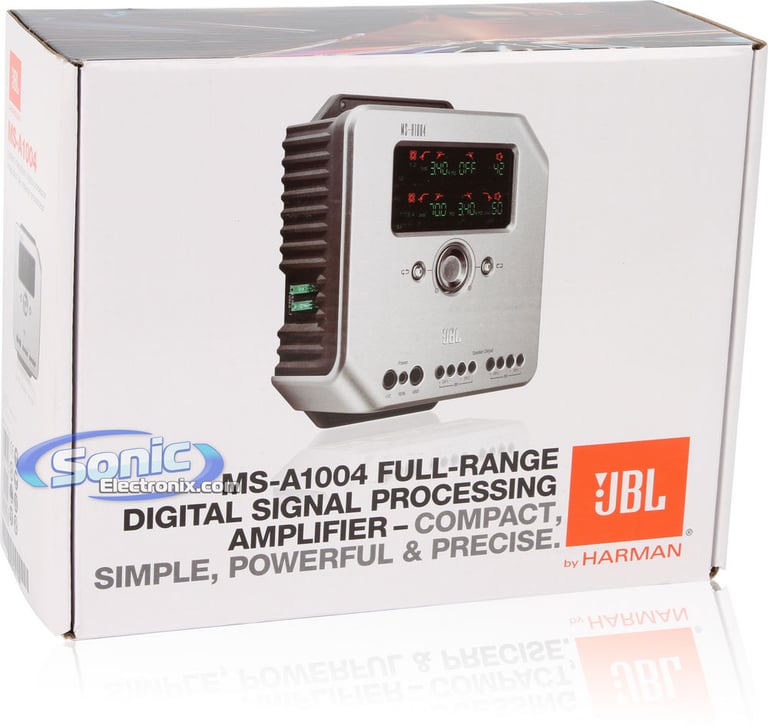

JBL MS-A1004

4-Channel Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

MS Series 4-Channel Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 100 watts x 4 chan.
- 2 ohm: 100 watts x 4 chan.
- Bridged, 4 ohm: 200 watts x 2 chan.
Digital signal processing amplifier
Pulse Width Modulated MOSFET power supply
Wireless Remote bass level input (MS-WBC remote level control sold separately)
Built-in display shows tone and gain settings
Soft Start Turn-on
4/3/2 channel operation
"Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Digital input-mixer control eliminates the need for Y adapters
Heavy duty aluminum alloy heatsink for extreme heat dissipation
CD for system setup included
Gold-plated RCA level inputs
Gold-plated screw terminals
Input sensitivity:
- Level: 100mV-15V
Variable high-pass filter (20-20,000 Hz, 6, 12, or 24 dB/octave)
Variable low-pass filter (20-20,000 Hz, 6, 12, or 24 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-27,000 Hz
Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
1-year Manufacturer's warranty

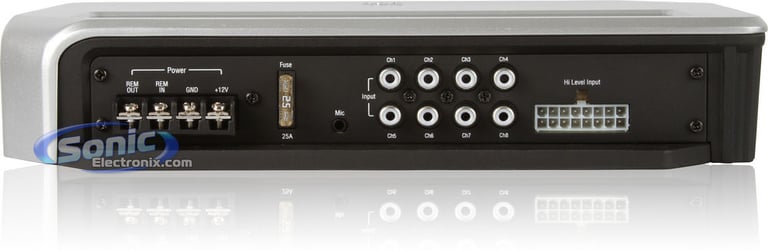

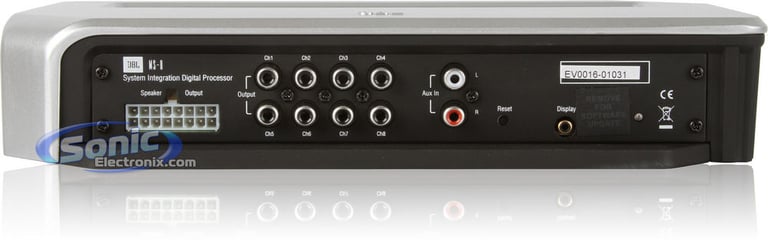

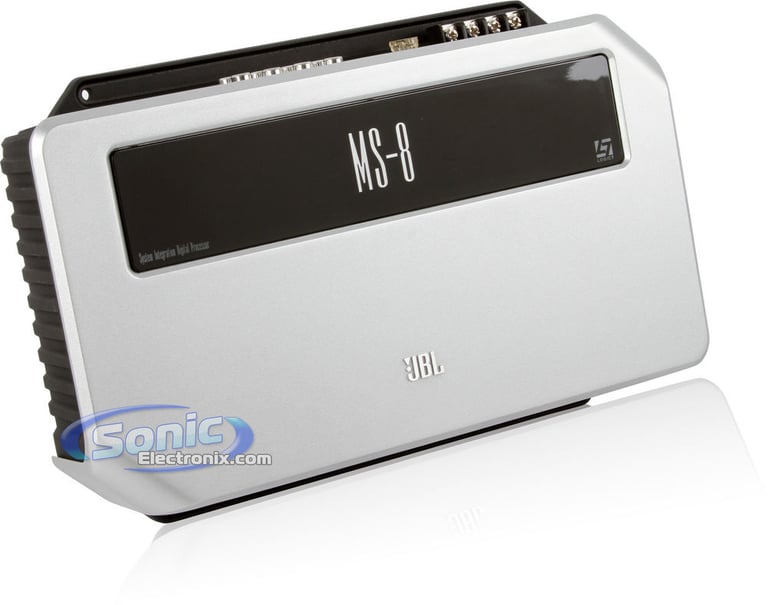

JBL MS-8

System Integration Digital Sound Processor
Quantity: 1

RMS Power Rating:
- 4 ohm: 18 watts x 8 chan.
Max Power Rating:
- 4 ohm: 30 watts x 8 chan.
System Integration Digital Sound Processor
Compatible with both factory and aftermarket systems
Incredible performance improves every measure of audio performance including frequency response, bass performance, dynamics, clarity, detail and stereo imaging
Simple, step-by-step set-up with the menu-driven calibration based on detailed input from binaural headset microphone
Perfect for up to 8 channels of audio by producing a flat-response, full-bandwidth signal from up to eight input sources
Built-in DSP Equalization improves the overall tonal accuracy by automatically compensating for the sonic characteristics of the speakers, electronics and vehicle interior
Automatic DSP Time Correction ensures that the sound from all speakers arrives at the listener’s ears simultaneously, resulting in the best sound possible
Sophisticated Crossover Functions give precise, user-selectable crossover points and crossover slopes for up to eight separate outputs
Logic 7 Surround Processing creates a realistic 5.1 or 7.1 channel surround experience from 2-channel source material
31-Band graphic equalizer lets you tune the system to your personal taste
Preamplifier controls enable complete control over the system volume, subwoofer volume, left/right balance, front/rear fader, bass/mid/treble tone controls, override DSP equalization, time correction, as well as the Logic 7 processing
Stores up to five custom pre-sets in a favorites setting for easy one-button recall
The five-line LCD display shows setup menus and the current operation status
Includes a wireless RF remote to control the menu navigation, volume, as well as mute functions
CEA-2006 Compliant
Also found as: JBL MS8, MX8
Frequency Response: 20–20,000 Hz
Signal to Noise Ratio (Line-in/Line out): >90dB
Signal to Noise Ratio (Line-in/Speaker out): >85dB
Maximum Input Voltage (Speaker-Level Input): 15V
Maximum Input Voltage (Line Input): 2.8V
Maximum Output Voltage (Line Output): 2.8V
Maximum Current Draw: 16A
Stand-by Current Draw: <0.01A
Dimensions: 8-3/8"D x 11-1/2"W x 2-3/16"H
Authorized Internet Dealer
1-year Manufacturer's warranty

Package Contains:

JBL MS-8 Digital System Processor

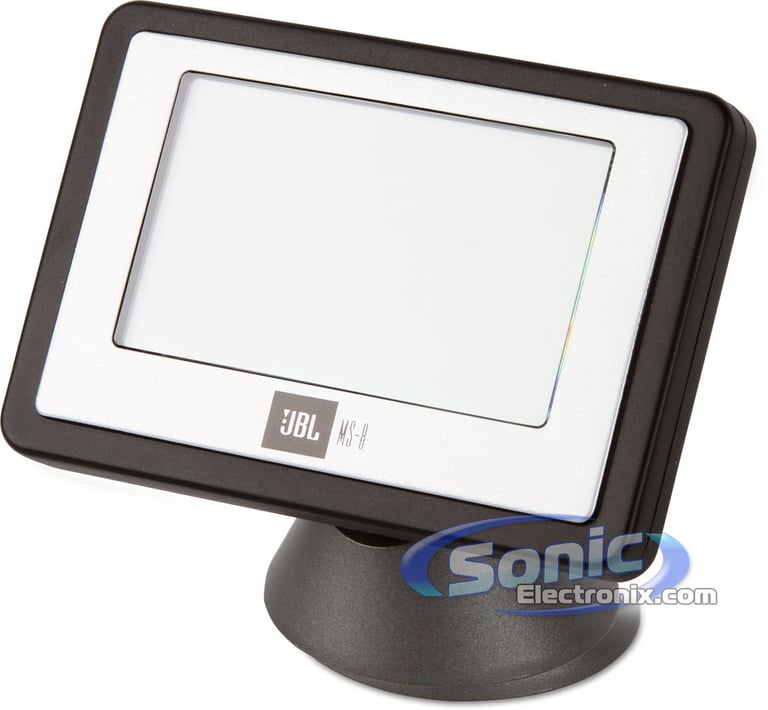

5-line LCD Display
Display Mounting Bracket
LCD Display Cable

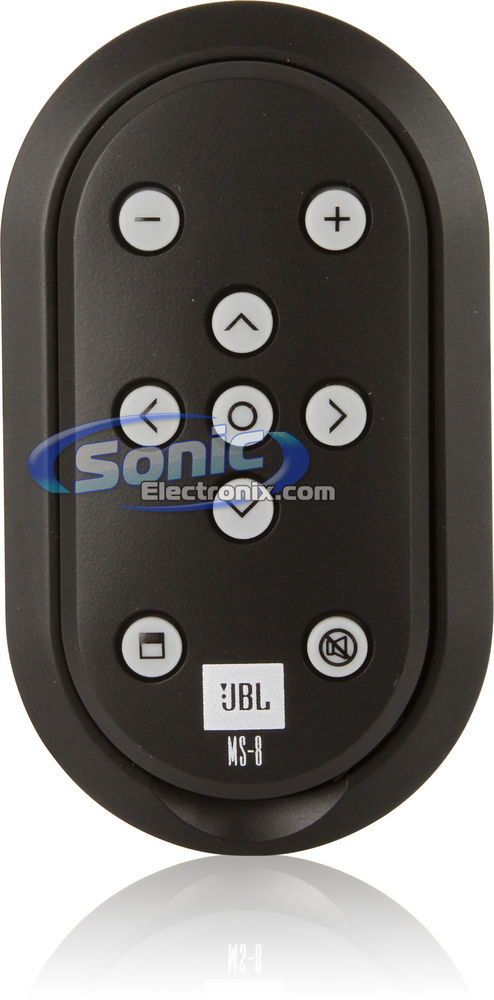

Wireless Remote Control

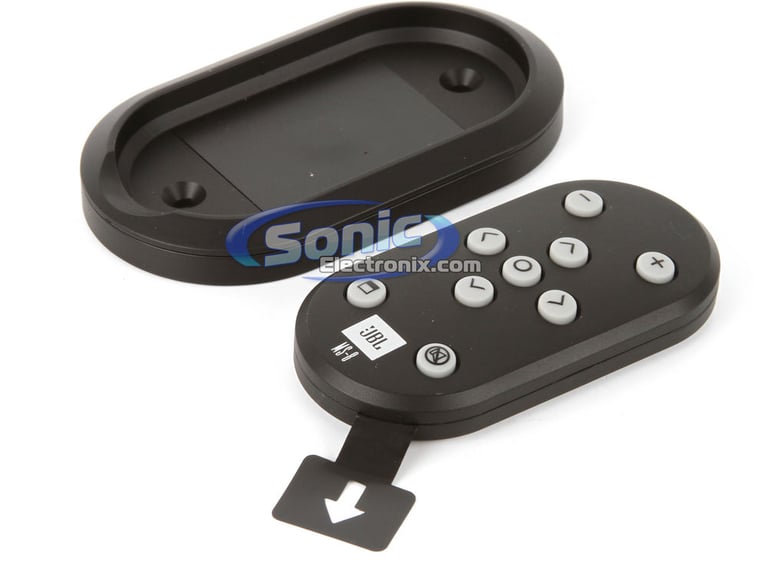

Flush and Surface Mount hardware for wireless remote

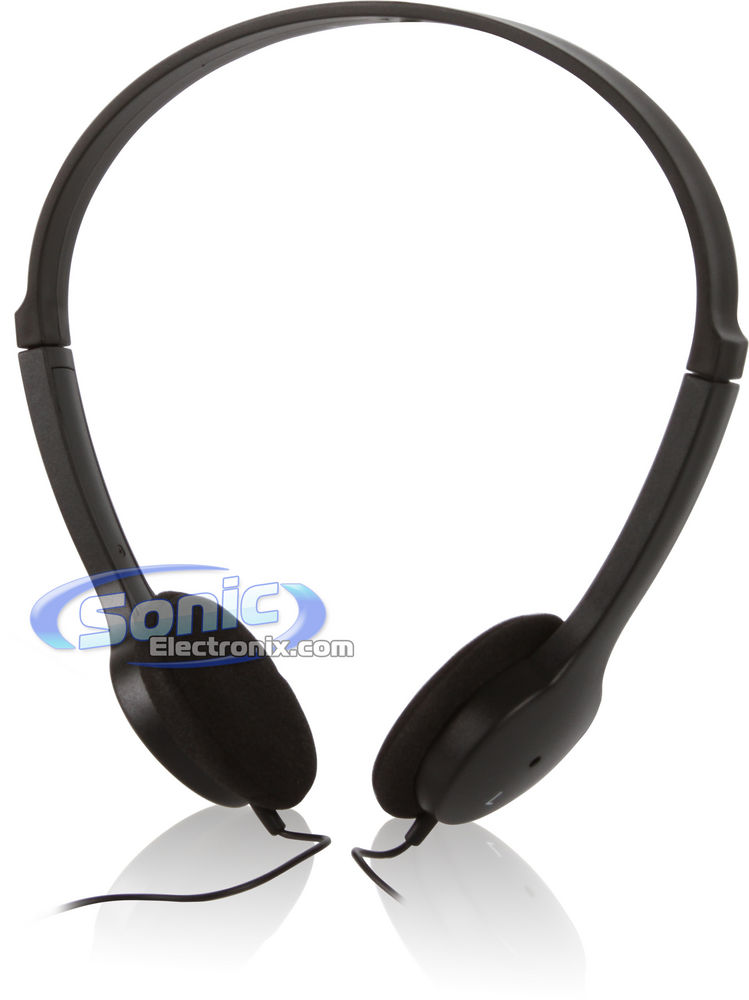

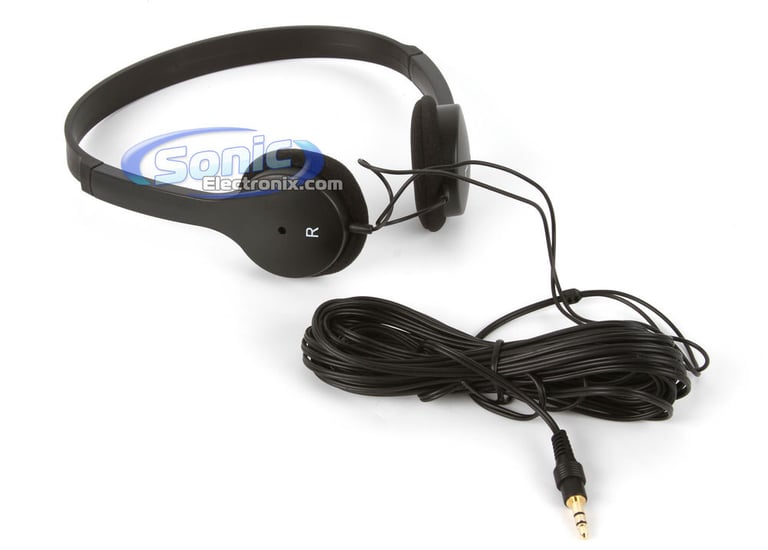

Bi-aural Microphone Headset

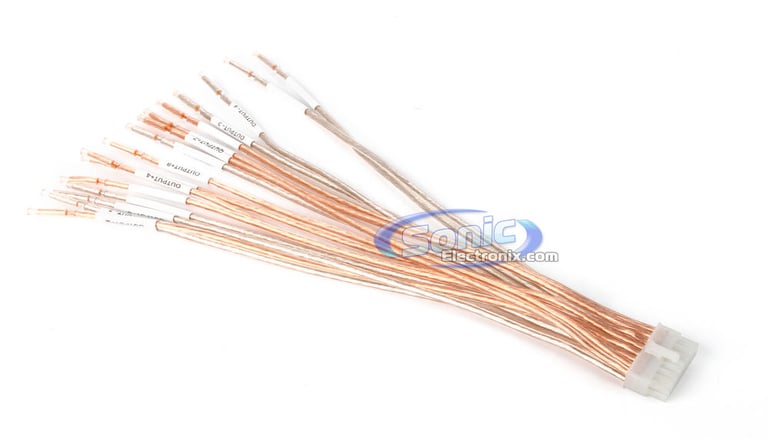

Speaker input/ouput harnesses

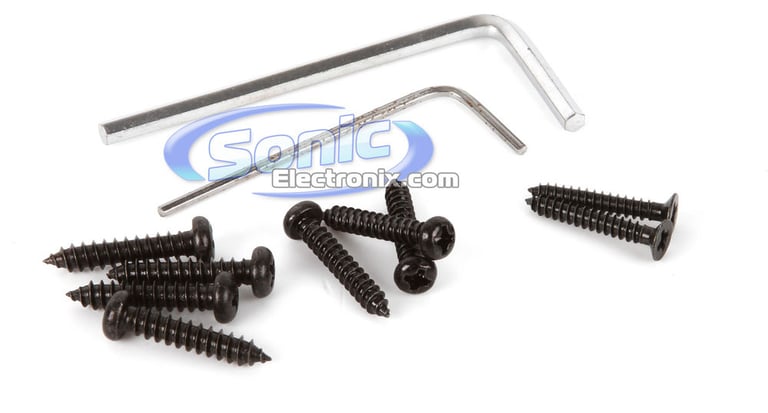

Various Mounting Screws

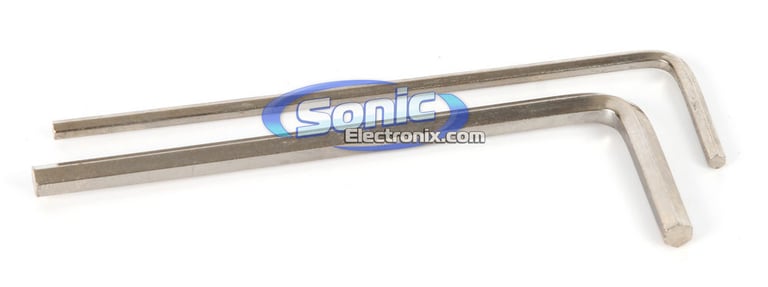

Hex-keys for Mounting Screws
Dual-Sided Self-Adhesive Pads
Alcohol Prep Pads
Setup and Owner's Manual CD
Quick Start Guide in 16 languages

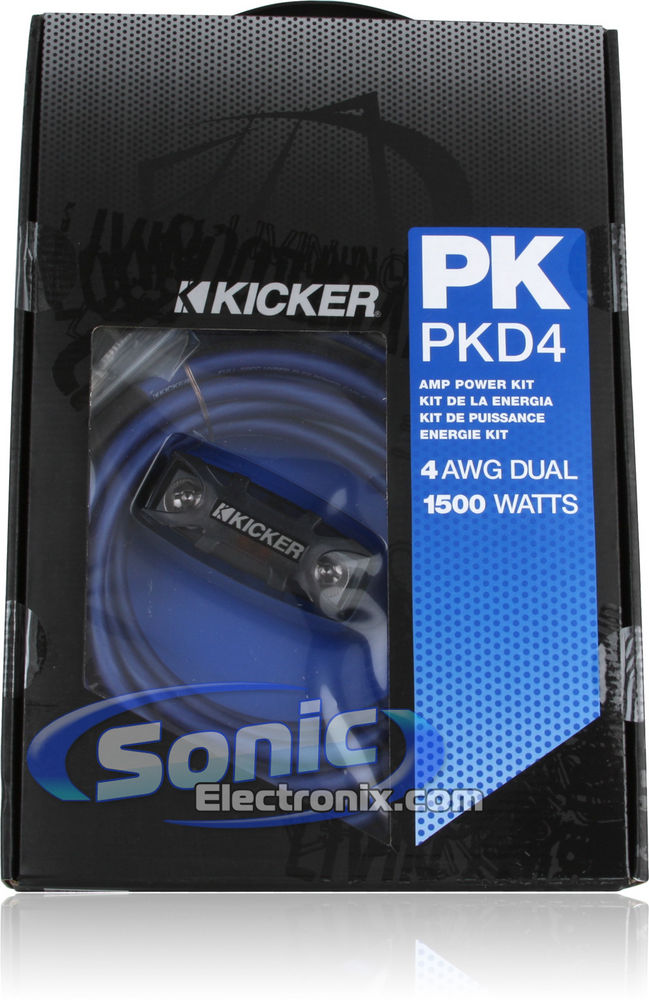

Kicker PKD4

Dual 1/0 Gauge Power Amplifier Installation Kit
Quantity: 1

Dual 4 Gauge Power Amplifier Installation Kit
Designed specifically for car audio systems up to 1500 watts
Premium power and ground wire provides optimal power transfer
Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
Twisted-pair technology eliminates noise for crystal clear sound
ANL Fuse holder offers ideal protection for high powered systems
Hyper-flex cable and wire
20ft(6.1m) Blue 4AWG power wire
3ft(0.9m) Black 4AWG ground wire
5ft(1.5m) Blue 8AWG power wire
5ft(1.5m) Blue 8AWG ground wire
20ft(6.1m) Blue 18AWG remote lead wire
1 Kicker 09FHS Fuse holder with 150 amp AFS fuse

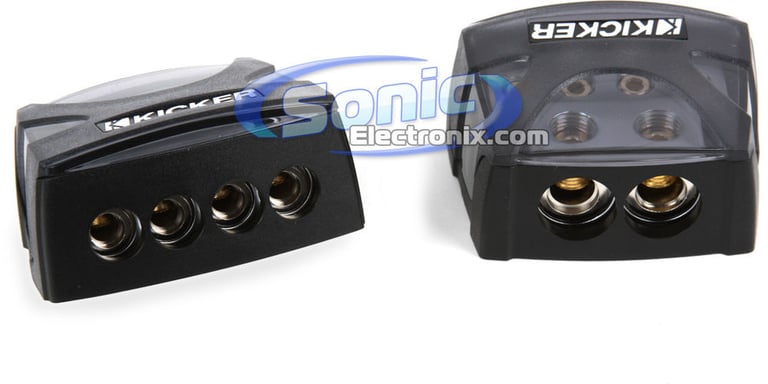

2 Kicker 09DB1448 Distribution blocks
Black rubber firewall grommet

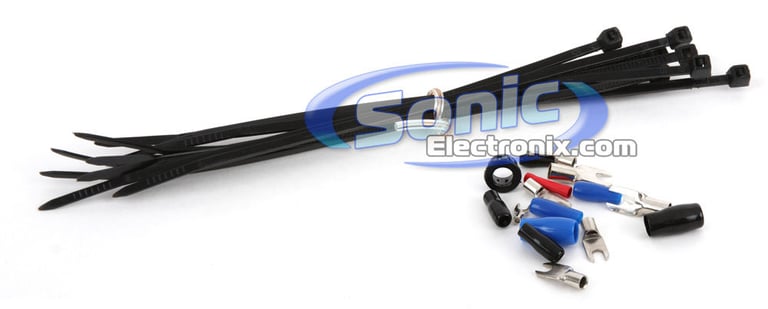

2 4AWG Spade terminals
4 8AWG Spade terminals
1 18AWG Spade terminal
Black zip ties
Red butt connector
Authorized Internet Dealer
1-year Manufacturer's warranty

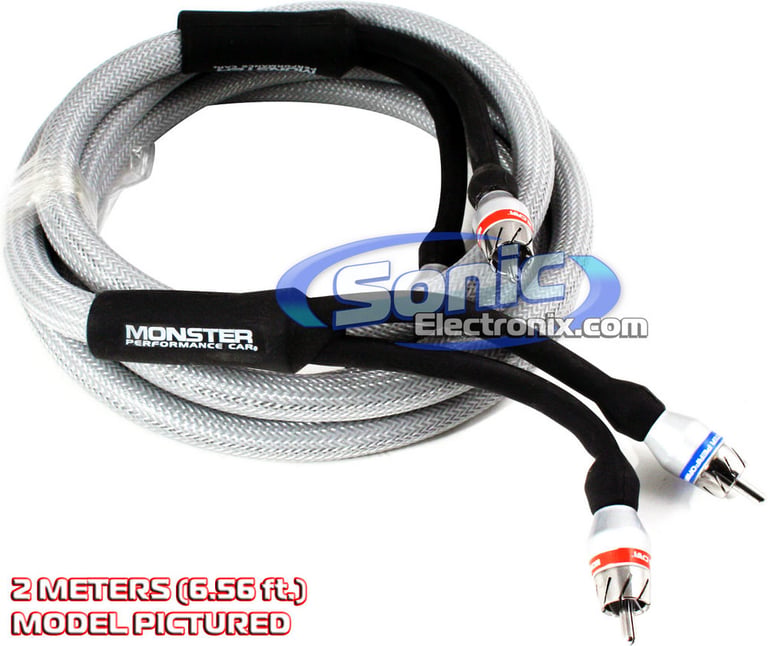

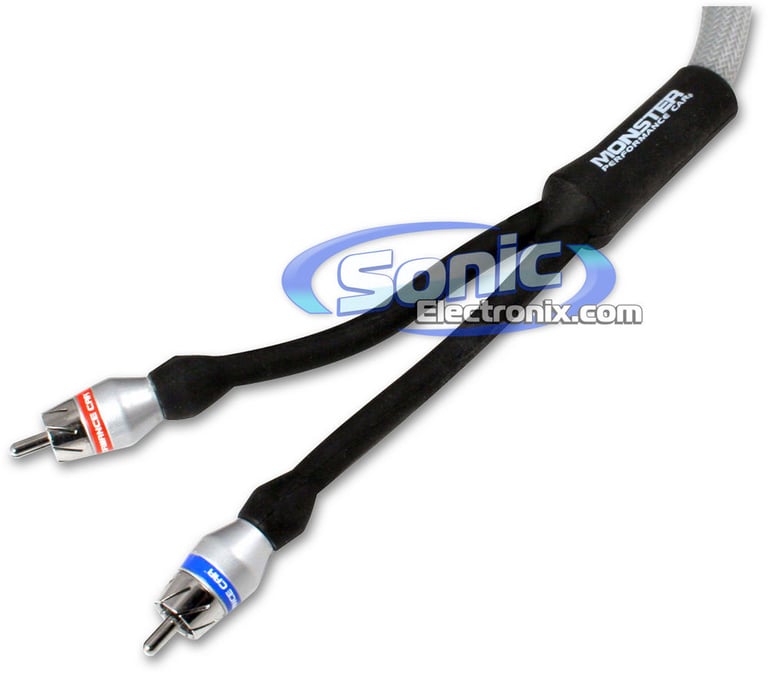

Monster Cable MPC I402 2C-1M

3.28 ft. (1 meter) of 402 XLN+ XTREME Audio Interconnect Cable
Quantity: 2

Split-Tip Center Pin improves contact pressure and lowers distortion, giving you a clearer signal transfer
8-Cut Turbine Ultra-Polished MirrorChrome Connectors maximize surface area and creates higher contact mass for precision signal transfer.
Ultra-Low Profile Stubby Connector Design for easy installation
3-Way Time Correct Windings improve clarity and accurately reproduce amplitude and phase response
MicroFiber Dielectric isolates individual wire networks for faster transfer
PEX Dielectric Prevents signal loss and provides more accurate signal transfer
Duraflex Hexmesh Protective Jacket minimizes friction for easy install
XLN Xtreme Construction provides protection against interference up to 80dB
Cable Length: 3.28 ft. (1 meter)
Color: Silver/Gray
Authorized Internet Dealer
1-year Manufacturer's Warranty

Cache CBM

Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
Quantity: 1

Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
Eliminates road noise
Quiets vibrations
Stops rattles
Increases SPL
Reduces heat
Easy to form aluminum conforms to desired area of vehicle with ease
Four step peel and stick design for easy installation
Increases sound quality and output of car audio system
Up to 30% thicker than the leading competitors
40 Square feet total
Dimensions (each piece): 18"L x 32"W

Other products for your Audi TT Quattro

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254

-33.36%

$79.96

List price $119.99

Add to cart

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

-27.29%

$79.95

List price $109.95

Add to cart

Limited time!

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

-28.58%

$99.95

List price $139.95

Add to cart

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214

-9.16%

$109.00

List price $119.99

Add to cart

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

-10.53%

$84.99

List price $94.99

Add to cart

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$49.99

List price $59.99

Add to cart

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

-35.19%

$69.99

List price $107.99

Add to cart

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

-5.90%

$319.00

List price $339.00

Add to cart

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

$119.95

Add to cart

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

-14.89%

$999.99

List price $1175.00

Add to cart

Similar Products

Best selling similar products

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

(39)

$1456.96

List price $2074.96

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

(9)

$1473.96

List price $2143.96

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

(39)

$1605.96

List price $2254.96

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

(39)

$1348.96

List price $1973.96

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2013-2022 vehicles from Ram, Jeep, Dodge
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1883.97

List price $2228.97

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1913.97

List price $2509.97
