JBL MS-12SD4 (Open Box)

12" Dual 4 ohm MS Series Car Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

12" MS Series Subwoofer • Dual 4 ohm • 1800W Peak • 450W RMS • Polypropylene Cone • Polyurethane/Fabric Surround • Sealed and Vented Enclosures • Aluminum Frame • 56 oz. Barium Ferrit Magnet

Learn more about the LS-ms12sd4-OB

We apologize

This item has been discontinued

Product Highlights


12" MS Series Subwoofer • Dual 4 ohm • 1800W Peak • 450W RMS • Polypropylene Cone • Polyurethane/Fabric Surround • Sealed and Vented Enclosures • Aluminum Frame • 56 oz. Barium Ferrit Magnet

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

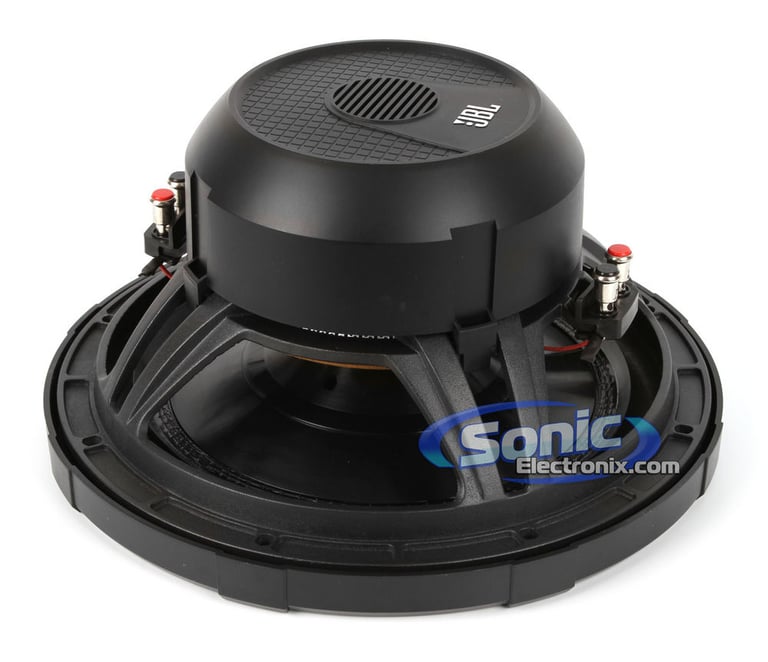

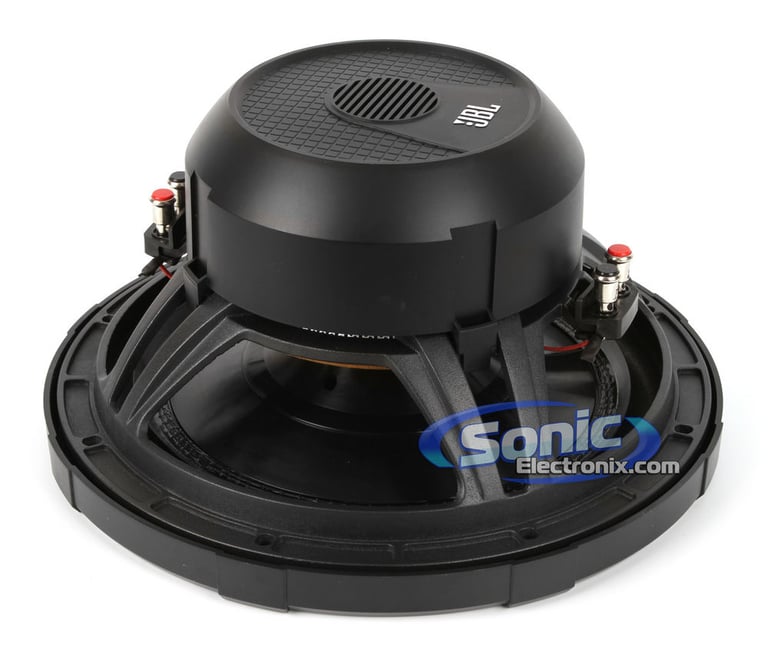

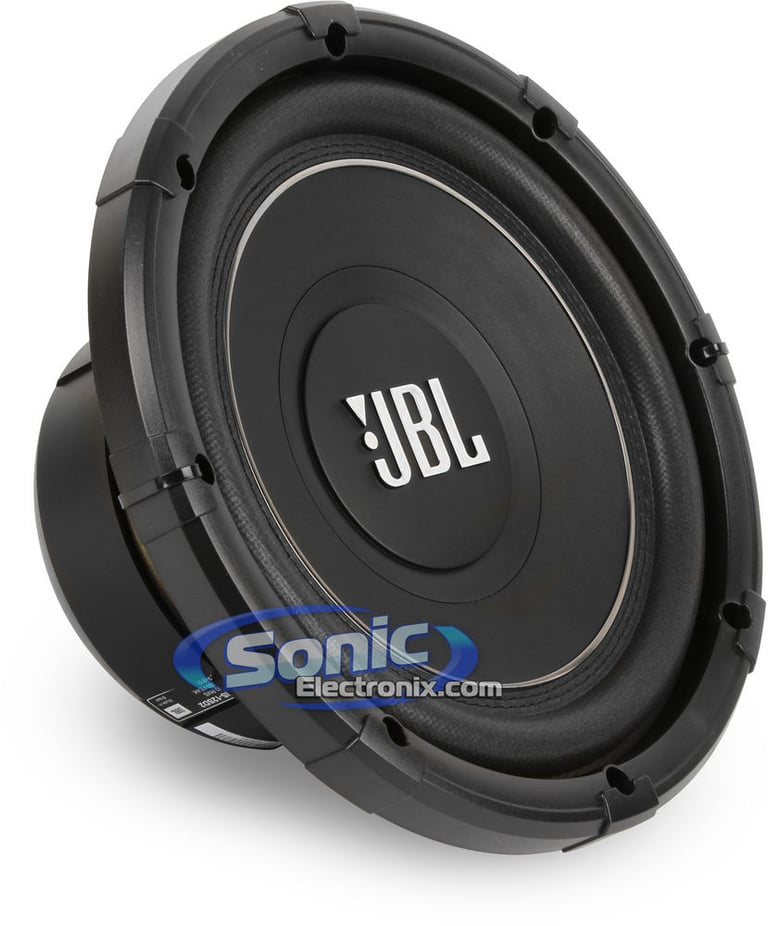

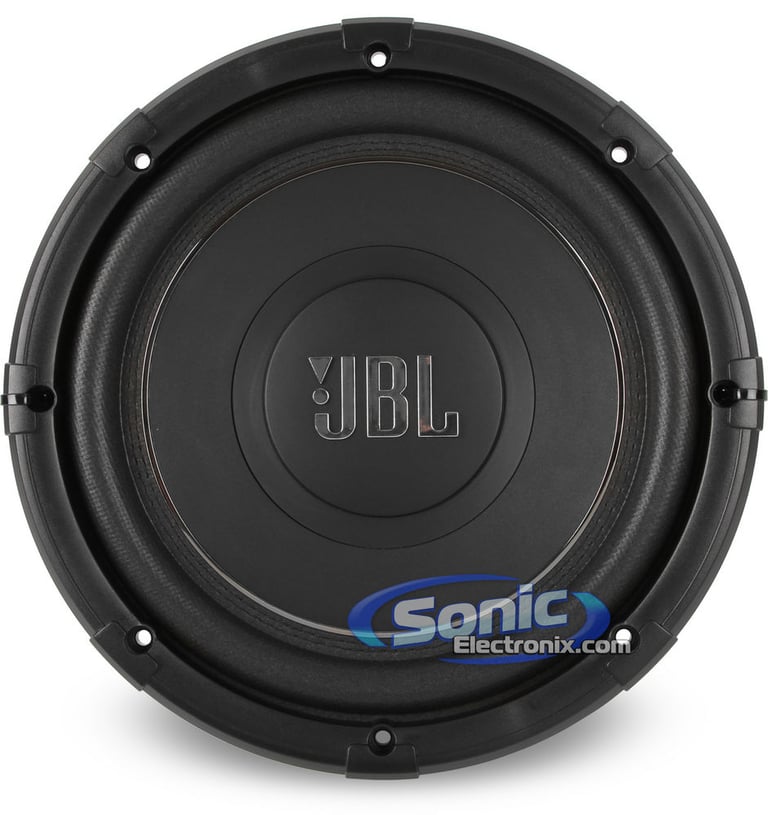

The New Sound of JBL: MS Series Subwoofers

Introducing the JBL MS-12SD4 car subwoofer. This MS series subwoofer from JBL is brand new for 2011 and offers an excellent balance of value and performance. As can be expected with any audio product boasting the JBL name, the MS-12SD4 is dedicated to high performance sound. The subwoofer has been carefully engineered and constructed with the right materials. The face of the subwoofer features a polypropylene cone attached to a laminated polyurethane/fabric surround with adhesive and two sets of stitching. The aluminum basket is light and nonferrous, which dedicates more magnetic power to the motor assembly. The dual voice coils offer greater flexibility and wiring options. This MS series subwoofer is the perfect solution for both sealed and ported boxes. Get higher quality bass with JBL!

  • 12" Dual 4 ohm MS Series Subwoofer
  • Item Condition: Open Box
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 450 watts*
  • Impedance: Dual 4 ohm

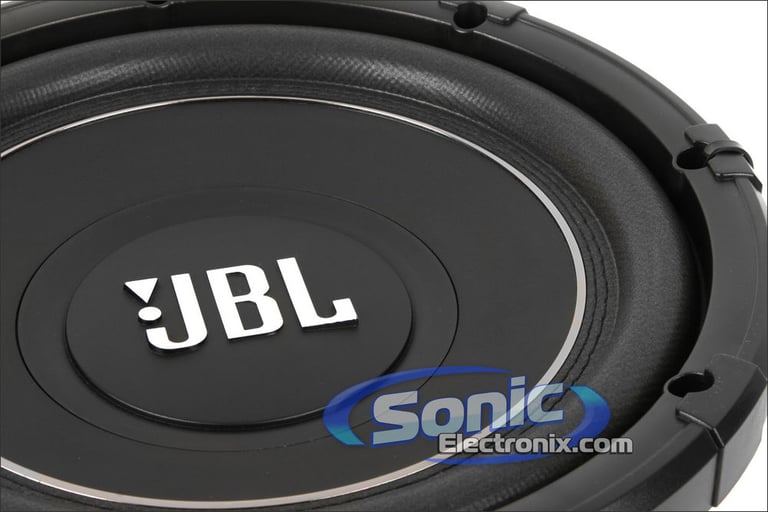

  • Polypropylene cone material
  • Laminated polyurethane and fabric surround
  • Vented pole piece
  • Designed for both sealed and vented enclosures
  • Aluminum frame with black epoxy coating
  • 2-1/2" Copper voice coil with Kapton former
  • 56 oz. Barium ferrit magnet structure

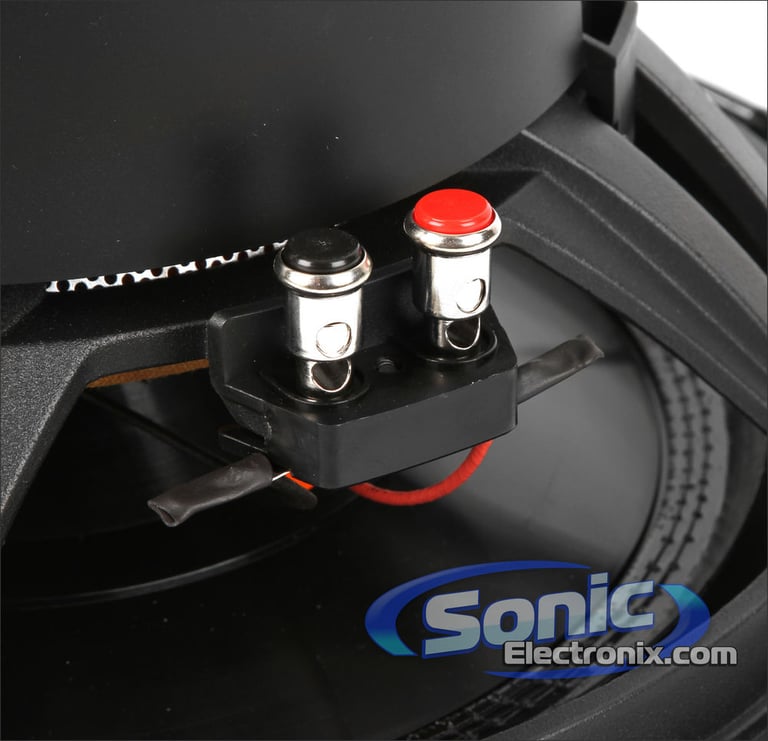

  • Silver-plated push terminals
  • Frequency response: 30-400 Hz
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL MS-12SD4 (Open Box) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL MS-12SD4 (Open Box) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL MS-12SD4 (Open Box) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JBL MS-12SD4 (Open Box) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
MS Series
Subwoofer Size
12"
Peak Power Handling
1800 watts
RMS Power Handling
405 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 400 Hz
Sensitivity
87 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Poly Coated Cloth
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.95 cubic feet
Maximum Sealed Box Volume
0.95 cubic feet
Minimum Ported Box Volume
1.7 cubic feet
Maximum Ported Box Volume
1.7 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
10-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
37 Hz
Equivalent Compliance (Vas)
47 liters
Total Speaker Q Value (Qts)
0.86
Electrical Q Value (Qes)
0.93
Electrical Resistance of Voice Coil (Re)
7.7 ohm
Mechanical Q Value (Qms)
10.45
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

MS-12SD4-OB

Weight:

14.00lbs

Internal SKU:

LS-ms12sd4-OB

Internal Product ID:

52173
