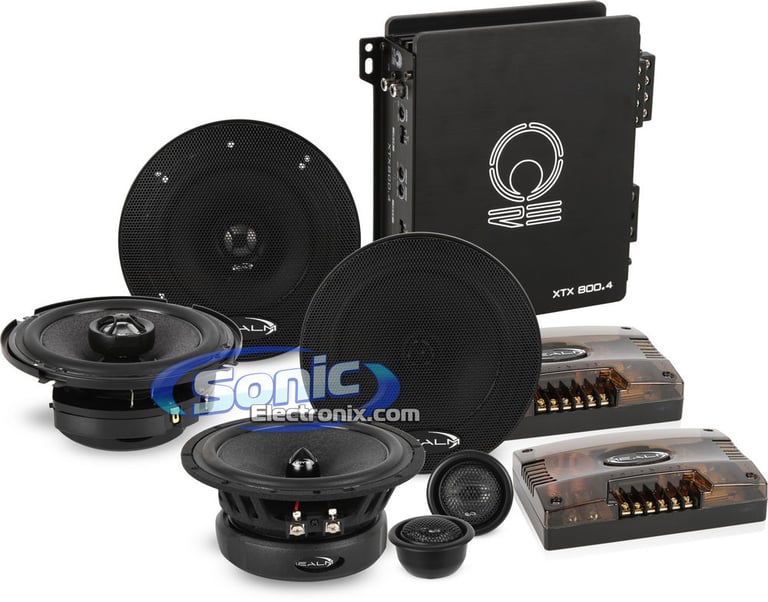

Realm LS6c + LS6cx LS Speakers + RE Audio XTX 800.4 Amplifier

6-1/2" Component and 6-1/2" Coaxial LS Series Speakers + RE Audio XTX 4-Channel Amplifier

Realm
Shop all Realm
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 6-1/2" LS Series 2-Way Car Component System Speakers • Pair of 6-1/2" LS Series 2-Way Car Coaxial Speakers • XTX Series 4-Channel Full Range Digital Car Amplifier; MOSFET Power Supply • Variable High/Low-Pass Filters

Learn more about the ls6c_ls6cx_xtx8004

We apologize

This item has been discontinued

Product Highlights


Pair of 6-1/2" LS Series 2-Way Car Component System Speakers • Pair of 6-1/2" LS Series 2-Way Car Coaxial Speakers • XTX Series 4-Channel Full Range Digital Car Amplifier; MOSFET Power Supply • Variable High/Low-Pass Filters

Description


Realm brand icon

Authorized dealer

Realm and RE Audio: The Perfect Match

The best things in life are bass-filled, and that is exactly what you will be receiving with this speaker package. By purchasing Realm LS6c component speakers and Realm LS6cx coaxial speakers, Sonic Electronix will include an RE Audio XTX800.4 4-channel amplifier. If you are planning on doing a complete upgrade of all four speakers in your vehicle, why not get the amplifier for as well? This Sonic exclusive package is the perfect way to get that rich and full Realm by Scosche sound without breaking the bank.

Realm by Scosche and RE Audio Speaker Package

This Sonic Electronic Exclusive Speaker Package showcases 6-1/2" Realm component speakers along with 6-1/2" Realm coaxial speakers. Both set of speakers feature a nomex composite cone woofer and butyl rubber surround for rigidity and enhanced power handling. Both sets of speakers also feature a 3/4" inverted titanium dome tweeter for superb sound reproduction. The included RE Audio XTX800.4 4-channel amplifier features a 2-way system protection circuitry for added safety, and variable high and low-pass filters for complete control of all frequencies to finer tune your car audio system.

These Realm LS series Audiophile component and coaxial speakers require a significant amount of power to function in the best way possible. The included RE Audio XTX800.4 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power to each of the four channels. This speaker package is a perfect solution for anyone looking to enhance their sound reproduction in a whole new way and with an amplifier you will have all you need to get your audio system up and running.

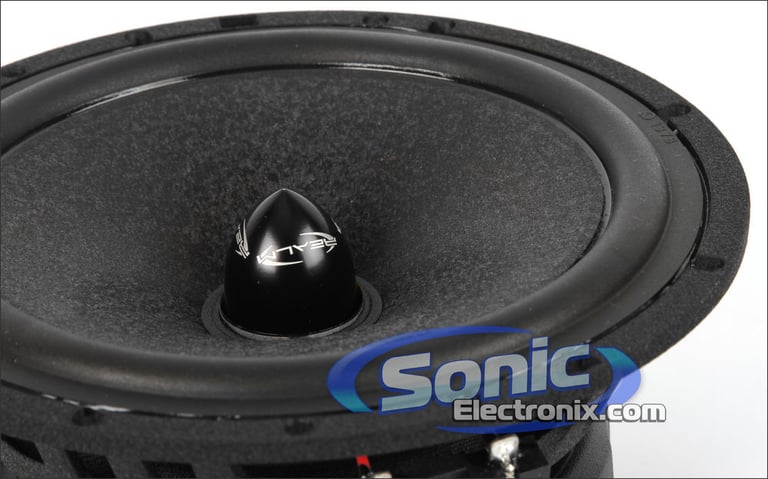

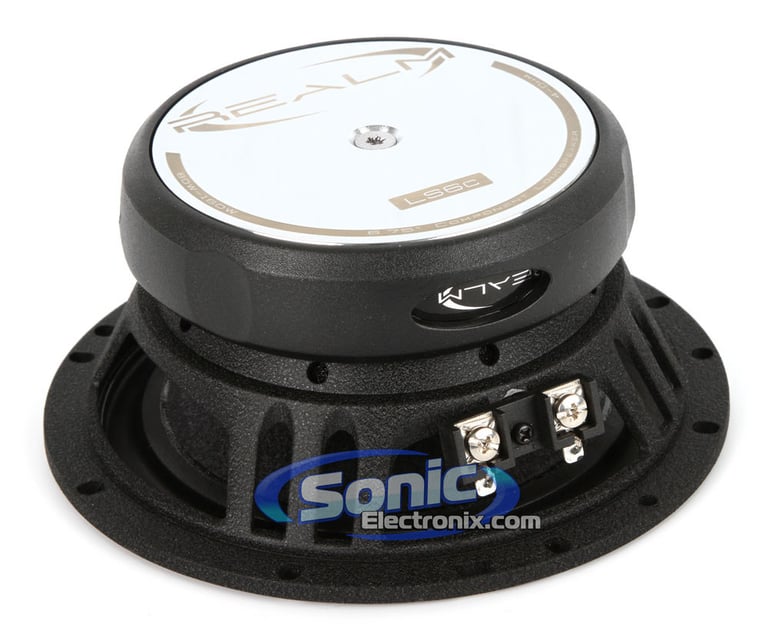

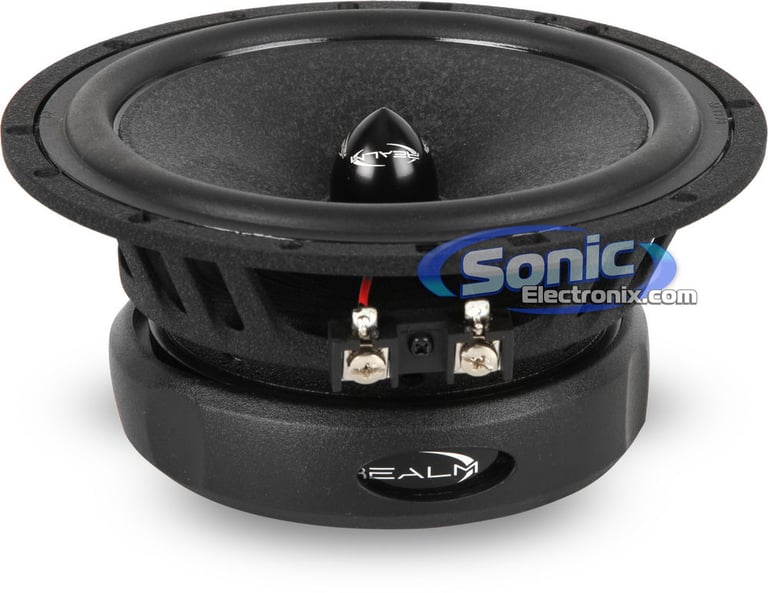

Realm LS6c

6-1/2" (or 6-3/4" Mountable) LS Series Audiophile Component Speaker System
Quantity: 1 Set

  • 6-1/2" LS Series 2-Way Car Component System
  • Power Handling:
    • Peak: 320 watts per set / 160 watts each side
    • RMS: 160 watts per set / 80 watts each side
  • Nomex composite cone
  • Butyl rubber surround

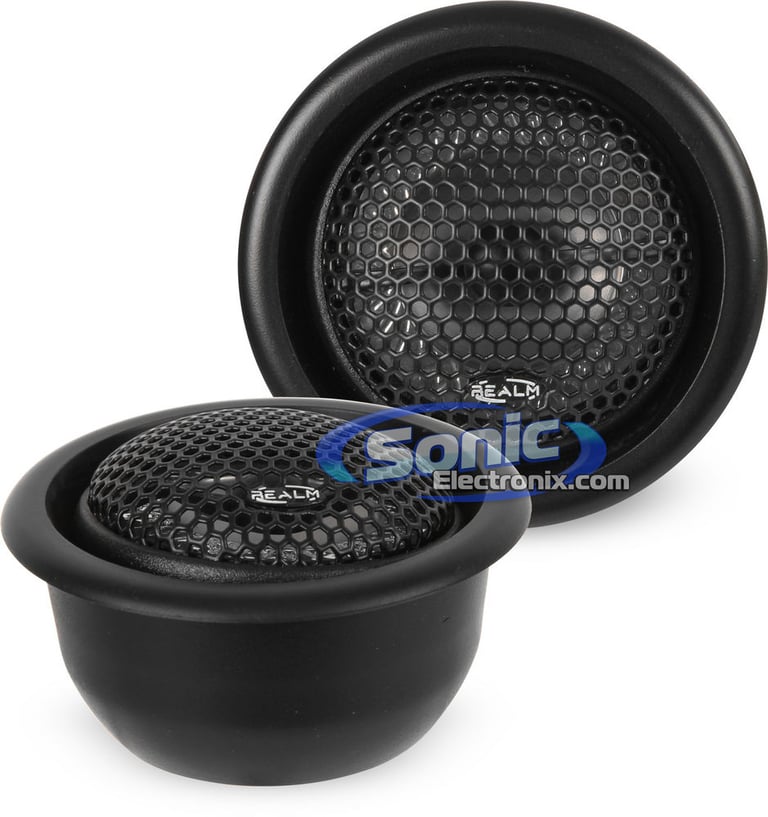

  • 3/4" (20mm) Inverted titanium dome tweeter
  • Aluminum phase plug
  • Secure screw terminals
  • Cast aluminum frame
  • 4 ohms impedance
  • Top-mount depth: 2-9/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

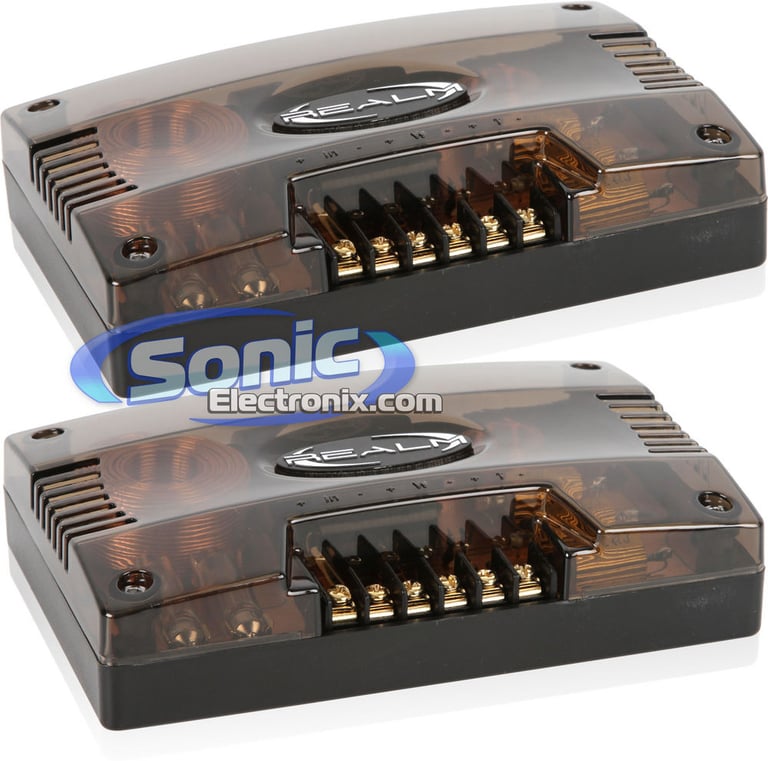

Crossover Features:
  • Asymmetrical Reference Grade Crossover
  • 6dB Low Pass / 12dB High Pass
  • Vented, Smoked Polycarbonate Case
  • Audiophile Grade Mylar Capacitors
  • Large Gauge Air Core Inductor
  • Aluminum Shrouded 1% Resistor
  • Impedance Compensation Network
  • 3 Position Tweeter Attenuation w/ Oversized Jumper
  • DC Voltage Tweeter Protection

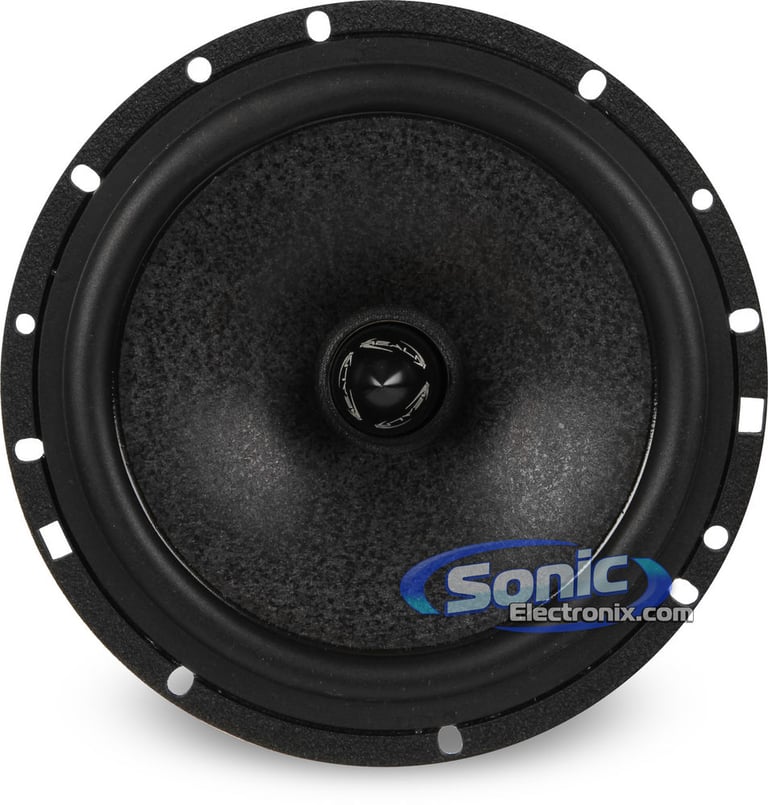

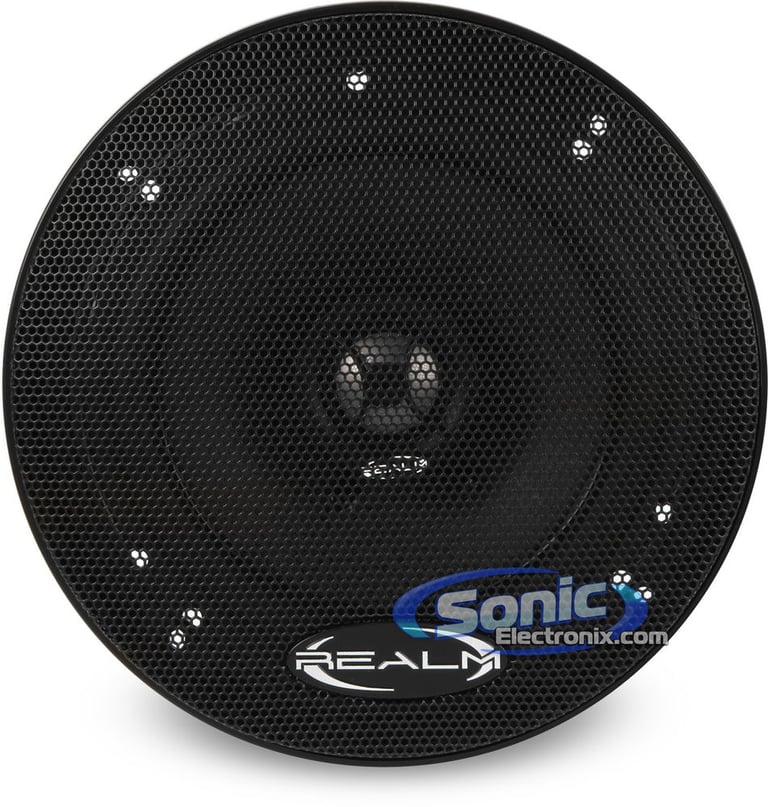

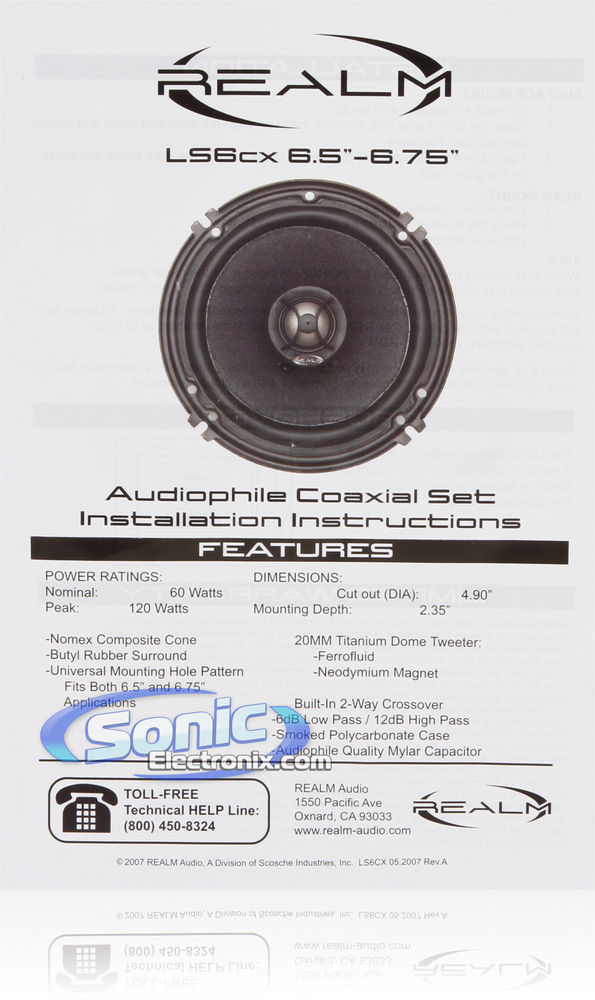

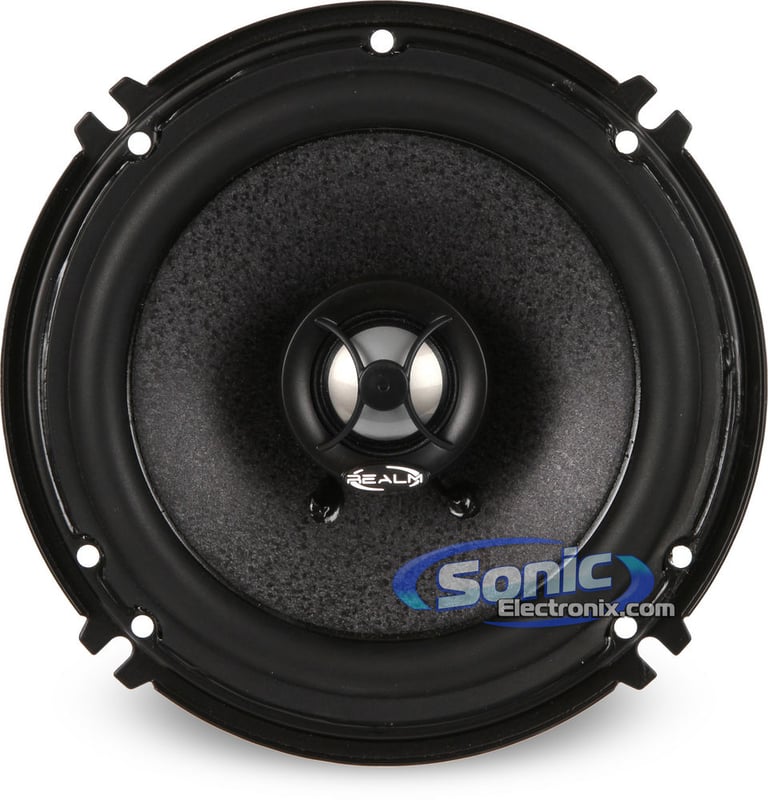

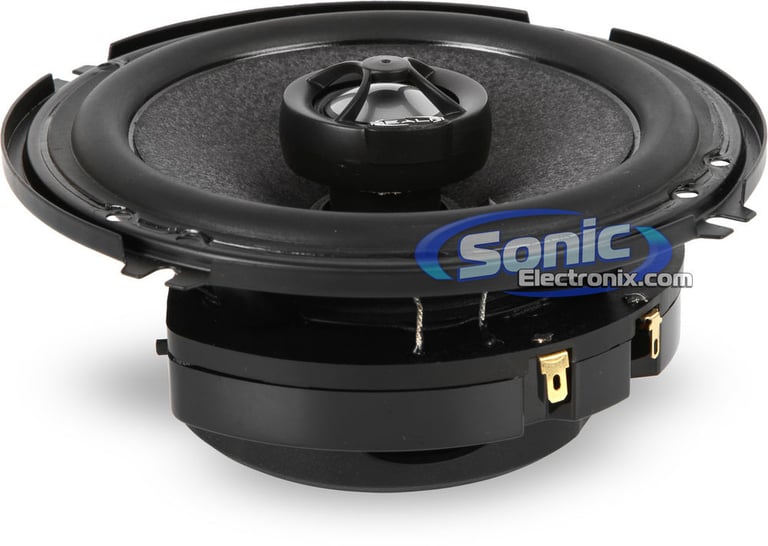

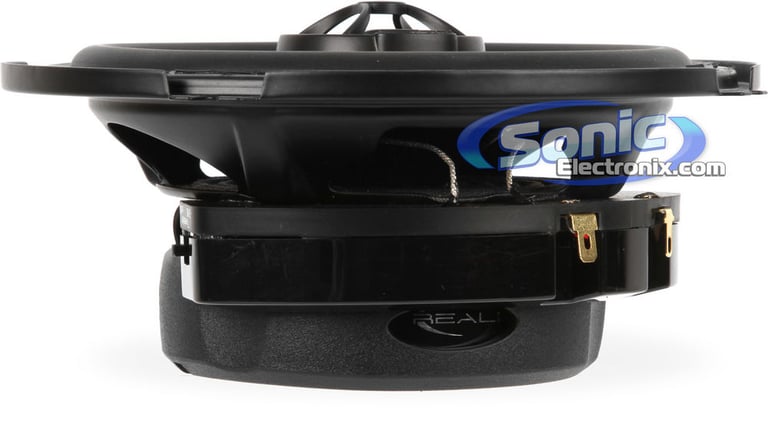

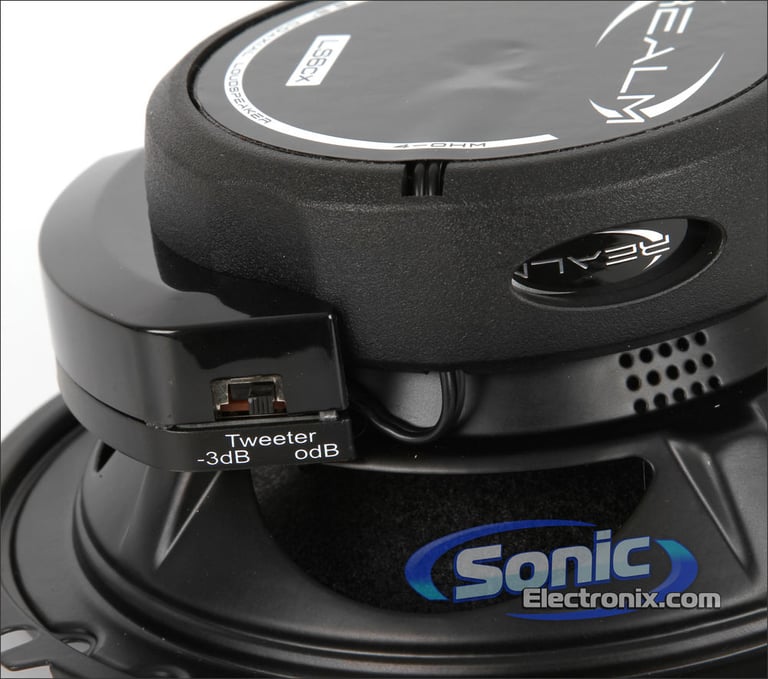

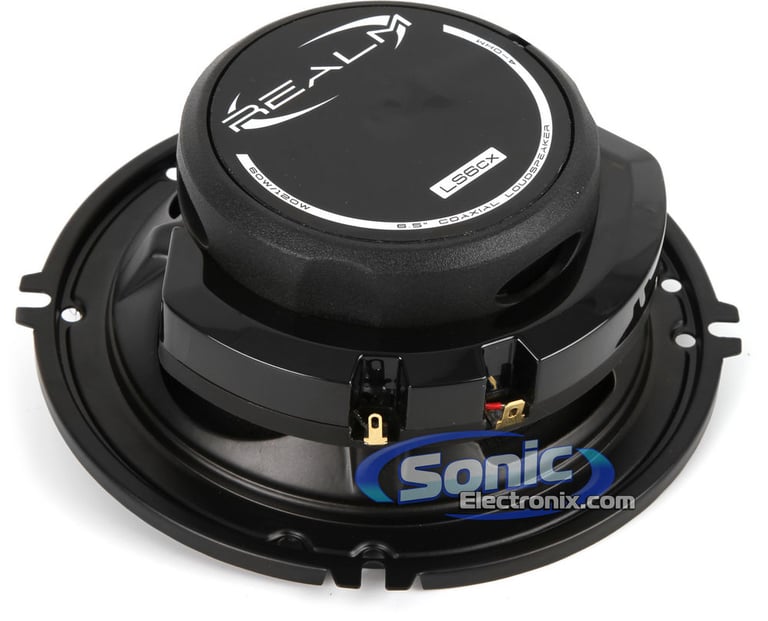

Realm LS6cx

6-1/2" (or 6-3/4" Mountable) LS Series Audiophile Coaxial Speakers
Quantity: 1 Set

  • 6-1/2" LS Series 2-Way Car Coaxial Speakers
  • Power Handling:
    • Peak: 240 watts per pair / 120 watts each
    • RMS: 120 watts per pair / 60 watts each
  • Nomex composite cone
  • Butyl rubber surround
  • 3/4" (20mm) Inverted titanium dome tweeter
  • Built-In 2-Way Crossover:
    • 6dB Low Pass / 12dB High Pass
    • Smoked Polycarbonate Case
    • Audiophile Grade Mylar Capacitors
  • 4 ohms impedance
  • Top-mount depth: 2-3/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

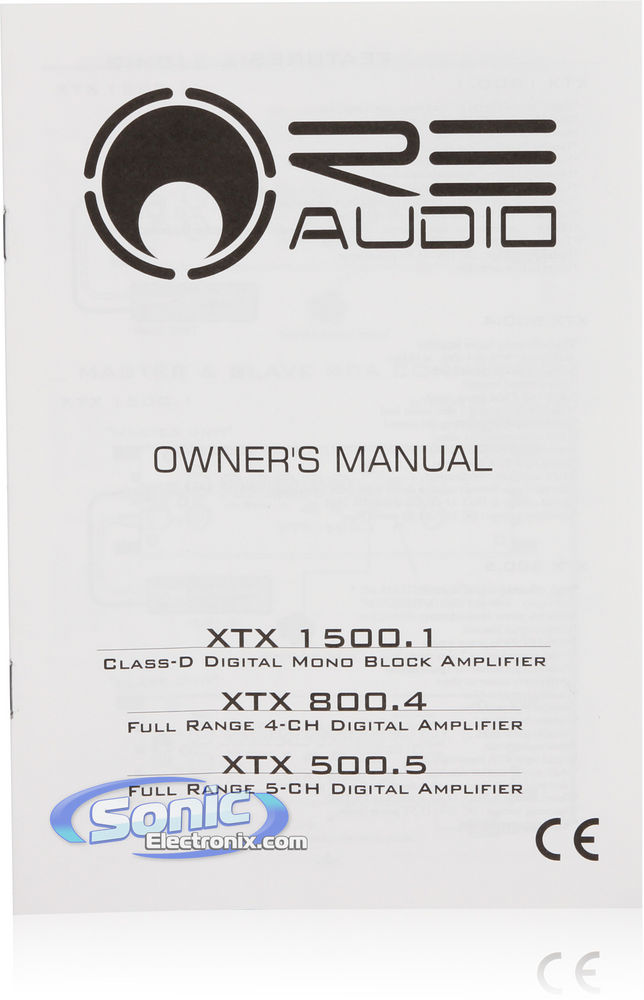

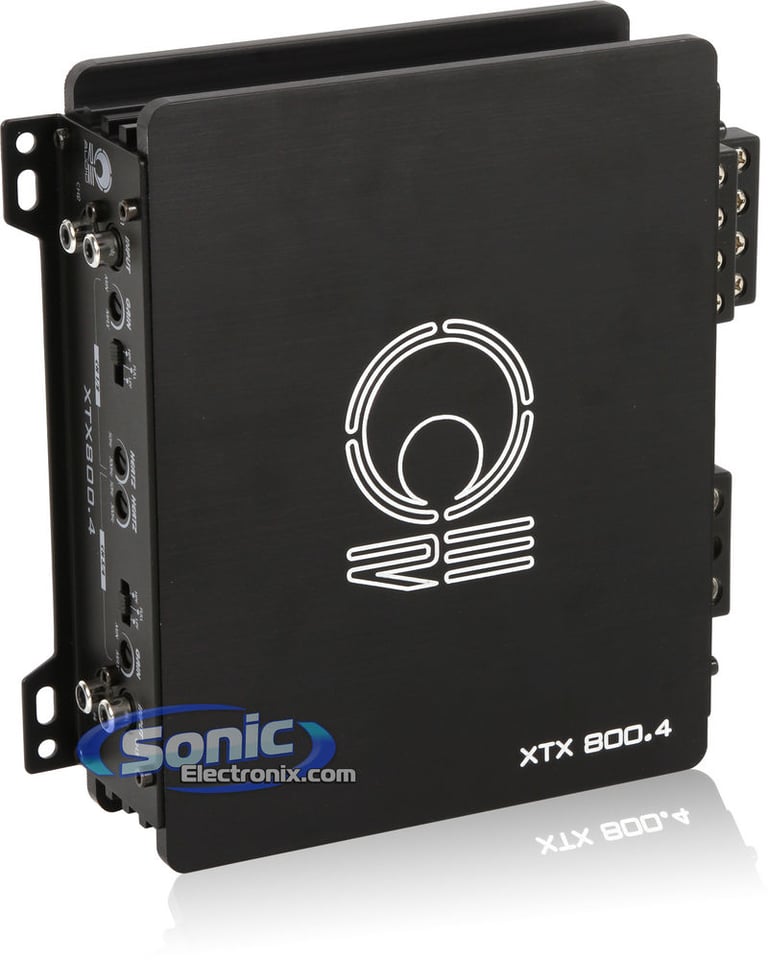

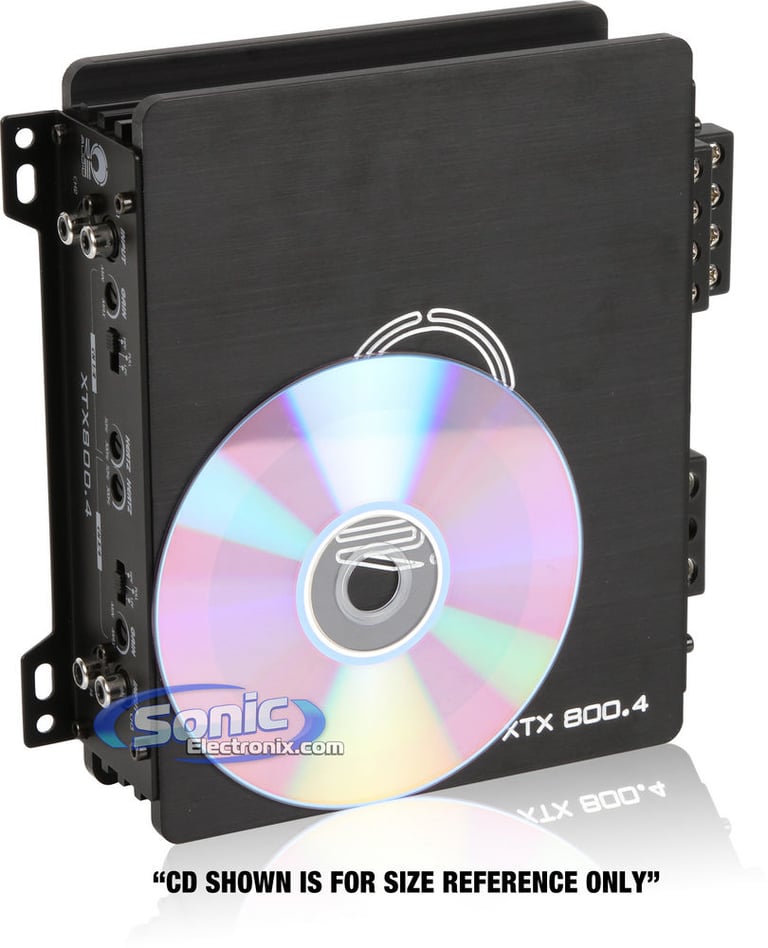

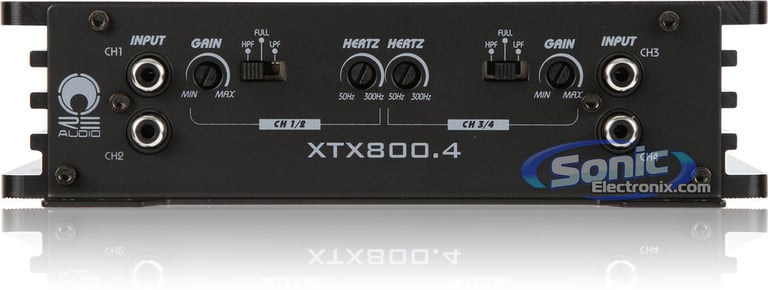

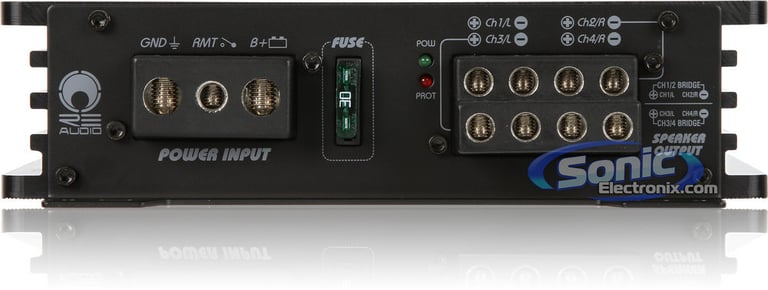

RE Audio XTX800.4

4-Channel Full Range Digital XTX Series Car Amplifier
Quantity: 1

  • XTX Series 4-Channel Full Range Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohms: 60 watts x 4 chan.
    • 2 ohms: 90 watts x 4 chan.
    • Bridged, 4 ohms: 180 watts x 2 chan.
  • Dynamic power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/3/2 channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable high-pass filter (50-300 Hz, 24 dB/octave)
  • Variable low-pass filter (50-300 Hz, 24 dB/octave)
  • Signal to noise ration: 90dB
  • Frequency response: 10-30,000 Hz
  • Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications & Details


Front Speaker Specifications
Speaker Size
6-1/2" (also mounts in 6-3/4" w/ included brackets)
Design
2-way Component System
Shallow Mount Installation
No
Tweeter Design
Inverted Dome
Tweeter Composition
Titanium
Woofer Composition
Nomex
Woofer Surround
Butyl Rubber
Peak Power Handling
160 watts
RMS Power Handling
80 watts
Sensitivity
89.31 dB
Impedance (Per Voice Coil)
4 ohms
Top-Mount Depth (Mounting Depth)
2-3/4"
Cutout Dimensions
5-3/4 x 5-3/4
Speaker Grilles
Yes
Rear Speaker Specifications
Speaker Size (Rear)
6-1/2" (also mounts in 6-3/4" with included brackets)
Design
2-way
Shallow Mount Installation
No
Tweeter Design
Inverted Dome
Tweeter Composition
Titanium
Woofer Composition
Nomex
Woofer Surround
Butyl Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Impedance (per voice coil)
4 ohms
Top Mount Depth
2-3/8"
Cutout Dimensions
4-15/16" x 4-15/16"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Peak Power Output
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 300 Hz
Low-Pass Crossover Frequency
50 - 300 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS6c_LS6cx_XTX800.4

Weight:

24.94lbs

Internal SKU:

ls6c_ls6cx_xtx8004

Internal Product ID:

39513

Product and How-to Videos


Customer Ratings & Reviews



5 star
60%
4 star
20%
3 star
10%
2 star
10%
1 star
0%



Durability
4.1
Value
4.5
Features
4.2
Design
4.4
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good amp

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

Very small so it can fit almost anywhere but don't let the size fool you it packs a big punch.

By Jacob on August 24, 2011

23

found this helpful.

Low cost big value.

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

Good amp for the money. Not the cleanest sound but does a great job for the price.

By brett on June 21, 2013

15

found this helpful.

For the price of this little amp can't beat it

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

I only have two Re xxx 6x9 and tweeter s but thay rock

By brian on December 15, 2014

14

found this helpful.

Better than expected

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

This little amp didn't look like much, but it drove the 6.5 infinitiy's I had cleanly, and it ran cool. Small size and it works great.

By Shade on October 18, 2012

13

found this helpful.

Sweet!!!

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

Picked this up for my wife's truck. Looks and sounds great!!

By danny on March 9, 2014

11

found this helpful.

so so.

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

the RE 800.4 was powering 6 speakers x2 6-9, x4 6.5. amp delivered good sound and enough power to all my speakers. all my speakers r Rockford power series.

the RE amp did have a short life only 5 months! it did not burn out the fuses never went out. I just don't know?

price for this amp is good, but you get what you pay for.

ill say save a bit more to get a better 4ch amp.
will not go back to RE audio.
my opinion.

By fred on November 4, 2013

12

found this helpful.

tiny, but powerful

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

I expected this amp to be small, but i was still surprised. Its about the size of my hand. Great for space savers. The sound i get from this thing is amazing and very clear. No audible distortion or anything. It is powering three sets of RE speakers, and still has enough power to keep up with my subwoofers. The amp itself is surprisingly heavy for its size, and seems very well built. As for the power and price, this is probably one of the best quality amps you can find. Also isn't bloated with features you don't need or shouldn't use. I went from a 1,000 watt four channel from a cheap brand, to this and there is a Huge difference in the clarity, and this one gets just as loud. If only it were linkable to run two of them, it'd be the perfect amp.

By mike on April 13, 2014

10

found this helpful.

Don't bother!

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

I had 2 pairs of 5-way 6x9 Kenwood speakers in my Camry. They sounded good with my Kenwood Nav unit, but when I added this amp, the amp distorted a lot when turned up passed half way. I had the amp gains all the way down with the same result. I switched them with some MB Quart equipment for about the same price.

By Nick on January 4, 2013

9

found this helpful.

5 stars so far!!!!!

The following review is for XTX-800.4, which is a part of the bundle you are viewing.

I was looking for a small amp to install in the stock location of my 00 Maxima in place of the Bose system. I wanted to install the cheapest possible audio system since the car is almost 15 yrs old. I installed Powerbass 6.5 comps in the front doors and 5.25 in the rear door. $60 for both sets. For any 5th Gen Max w/Bose owners, I was able to use the stock speaker mounts without modification. I'm using 2 Sundown E8v3's in a 1.4 cf box tuned to 34 hz powered by an Audiotechnix AT800.1 at 1 ohm. I'm running everything off a Kenwood Excelon receiver. The Re amp produces the power i was looking for in a small package at a great price. This isn't the 1st Re product I have purchased. I still have a Re SSX 12 that is still beating strong and getting angry looks after 5 yrs. I'm considering buying 2nd one since it is such a great price!!!

By Semrod on July 21, 2014

7

found this helpful.

The following review is for XTX-800.4, which is a part of the bundle you are viewing.
By Anonymous Shopper on September 7, 2023

5

found this helpful.
