1000W JL Audio Subwoofers + MB Quart Amplifier Bass Bundle

Pair of JL Audio 12WX-4 12" WX Series Subs + MB Quart FX1.400 Monoblock Amplifier + Kit + Enclosure

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

Pair of 12" Single 4 ohm WX Series Subwoofers • 1000W Max • 400W RMS • Formula Series Monoblock Car Amplifier • PWM MOSFET Power Supply • Variable Bass Boost • 8 Gauge Complete Amplifier Installation Kit • 2" Dual Universal Sealed Enclosure

Learn more about the 2-12wx4_fx1400

We apologize

This item has been discontinued


Loading...
98-8999 main

Metra 98-8999 Dash Kit

Install a new Double-DIN with Single-DIN car stereo in select 1993-2012 vehicles from Subaru, Mitsubishi

13
-42.12%

$21.99

List price $37.99

70-8901 main

Metra 70-8901 Wiring Harness

Install a new car stereo in select 1990-2013 vehicles from Subaru

12
-30.03%

$6.99

List price $9.99

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


JL Audio brand icon

Authorized dealer

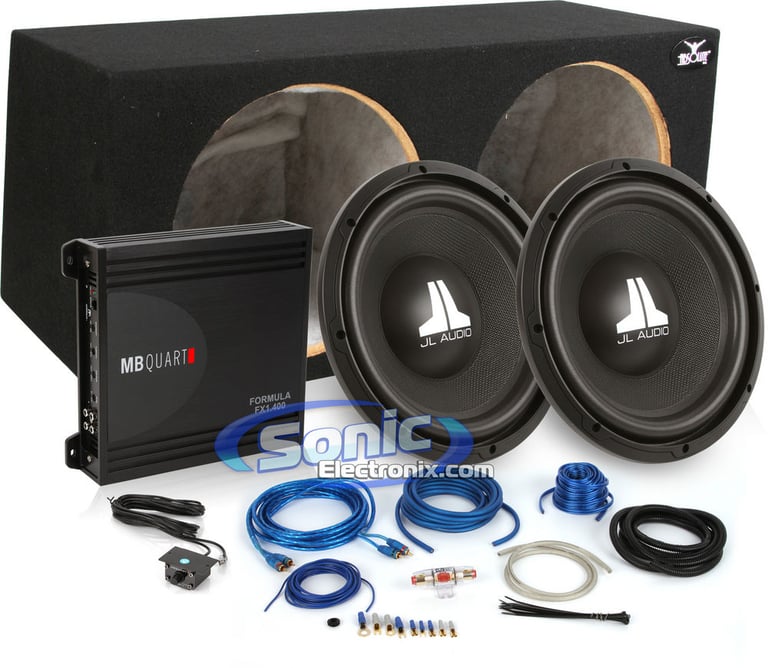

JL Audio and MB Quart Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a MB Quart FX1.400 Amplifier along with a pair of 12" WX series JL Audio subwoofers. This excellent bass package pushes 400 watts of clean, continuous RMS power. The JL Audio subwoofers have a Single 4 ohm voice coil; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These JL Audio 12WX-4 WX series subwoofers require 400 watts of RMS power. The included MB Quart FX1.400 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes an 8 gauge amplifier kit which is perfect to supply power to the amplifier. Also included will be a dual 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the JL Audio subwoofers, MB Quart amplifier, dual sealed enclosure, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

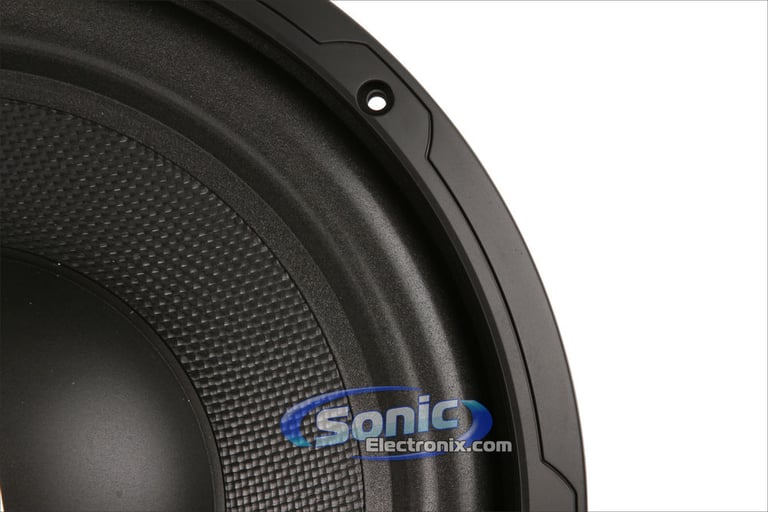

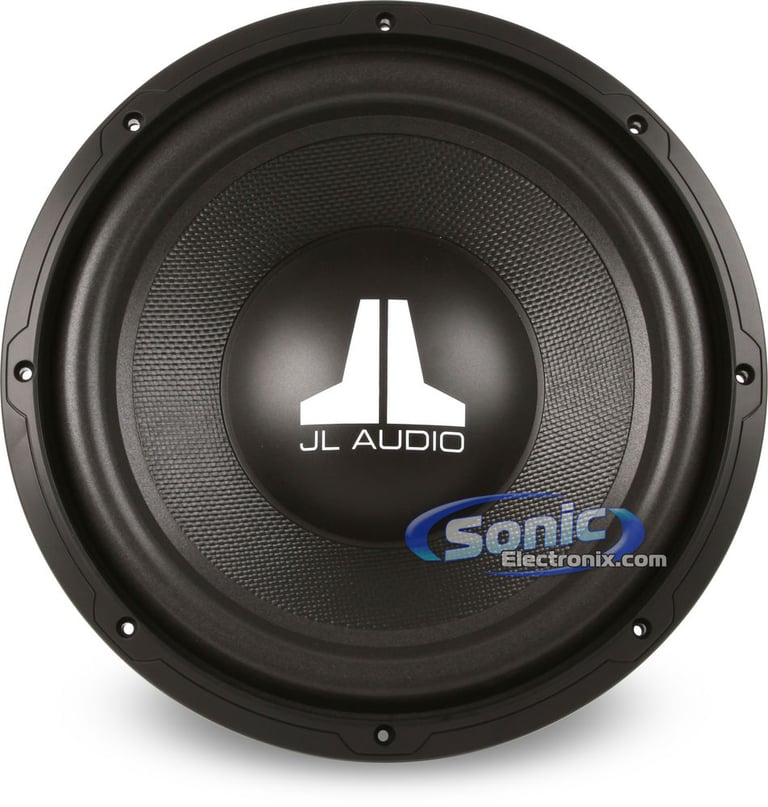

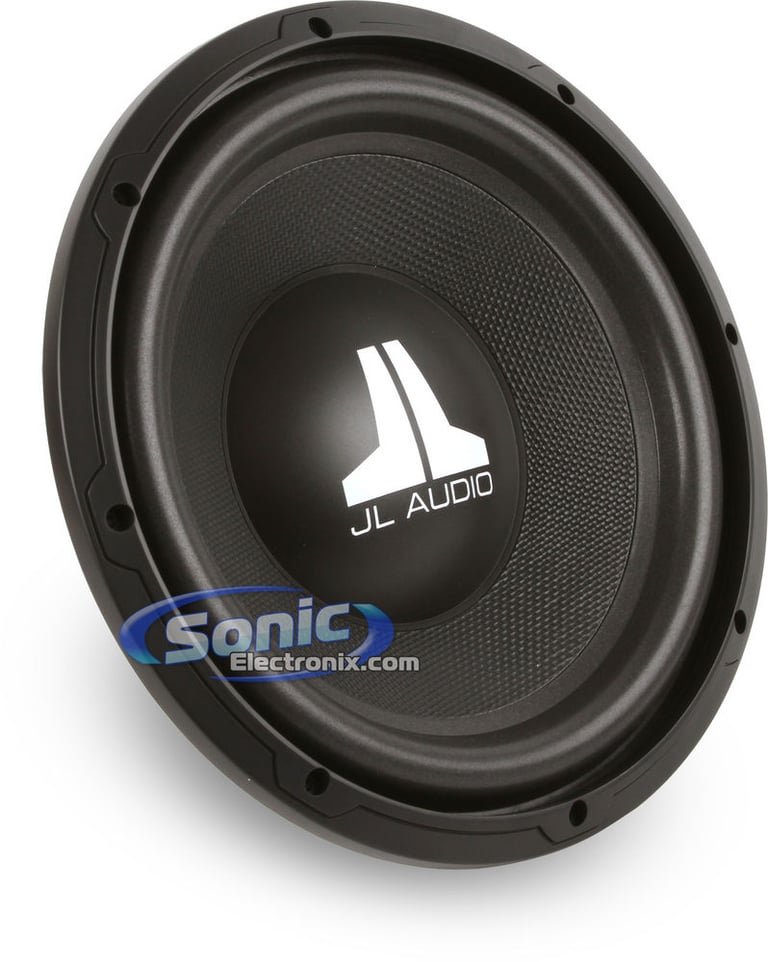

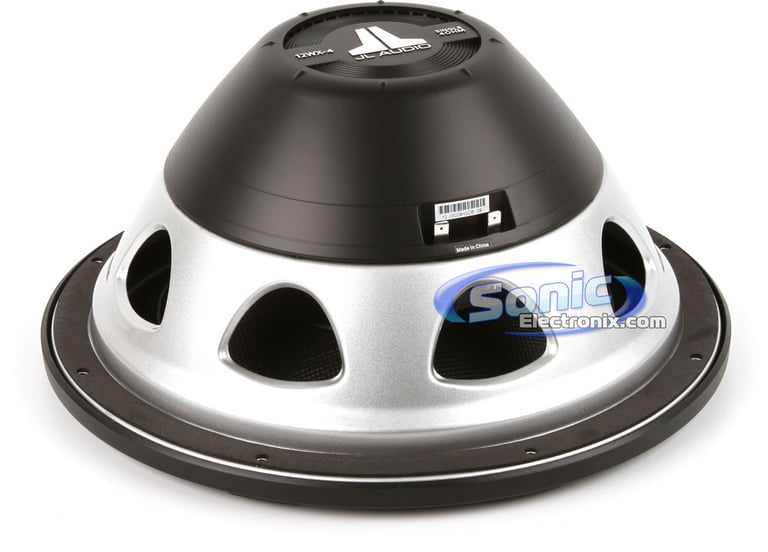

JL Audio 12WX-4 Features:
  • Pair of 12" Single 4 ohm WX Series Subwoofers
  • Power Handling:
    • Peak: 1000 watts total / 500 watts each
    • RMS: 400 watts total / 200 watts each
    • Recommended Power Range: 50-200 watts each
  • Impedance: 4 ohm
  • Polypropylene woofer cone material
  • Foam woofer surround type
  • Proprietary dynamic motor analysis (DMA) improves motor behavior
  • Elevated frame cooling delivers cold air above the top plate to the voice coil
  • Resists breakdown under extreme conditions
  • Integrated foam rear gasket which provides an optimal seal
  • Great application flexibility with small or medium enclosures
  • Frequency response: 22-250 Hz
  • Sensitivity: 87.17 dB
  • Top Mount Depth: 5-5/16"
  • Cutout Diameter: 10-13/16"
  • 1-year Sonic Electronix warranty

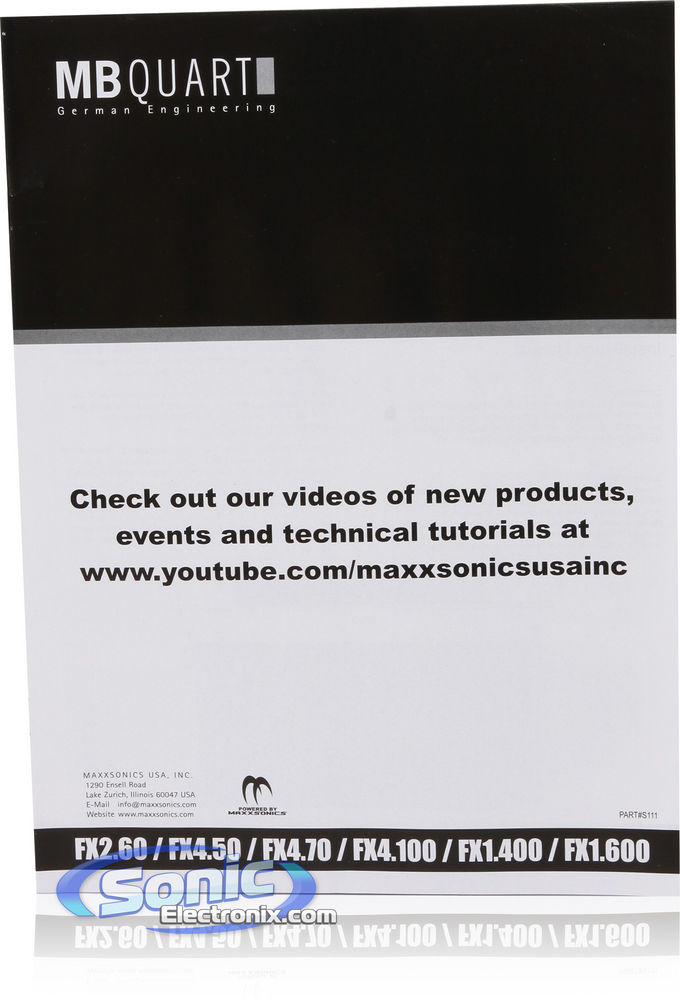

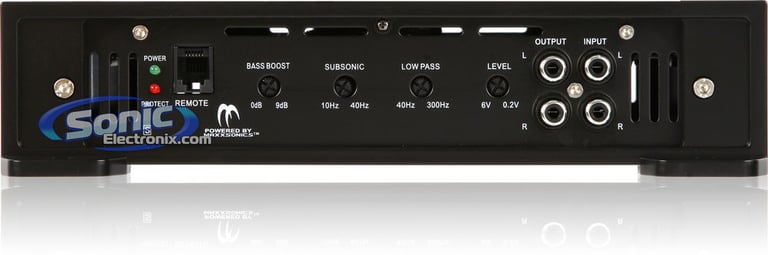

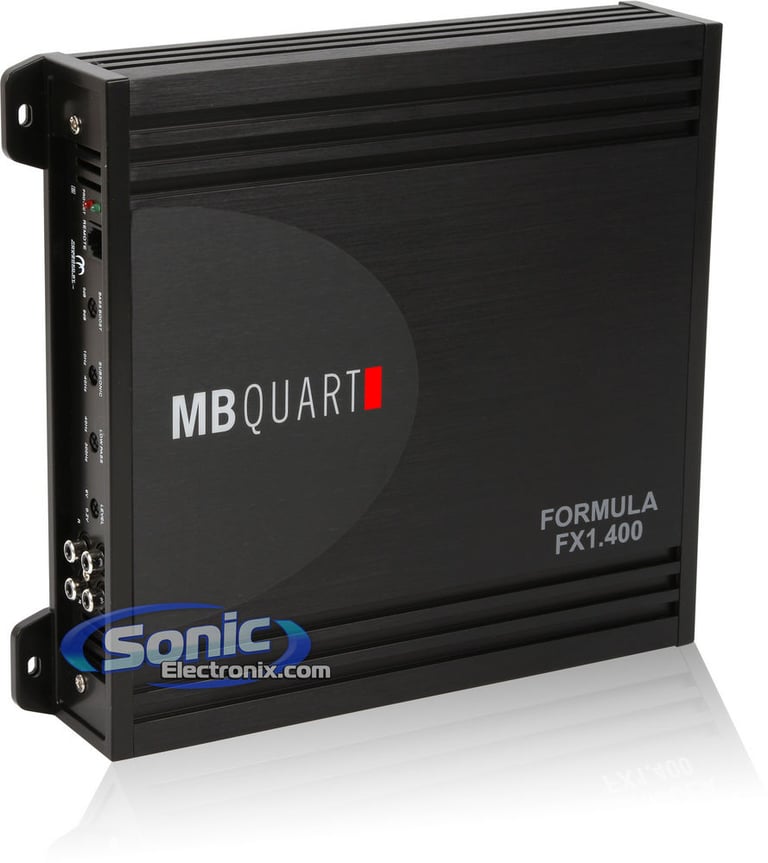

MB Quart FX1.400 Features:
  • Formula Series Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
  • PWM (Pulse Width Modulated) MOSFET power supply

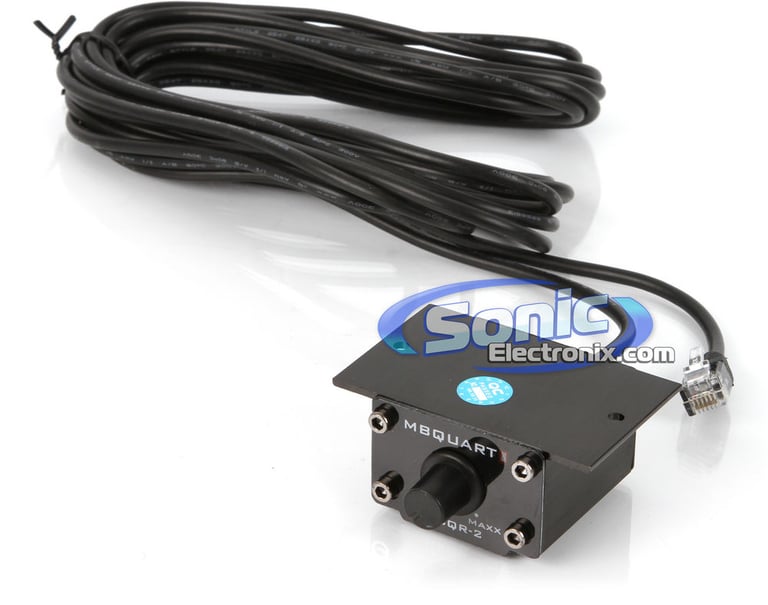

  • MB QR-2 Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz
  • Mono channel operation

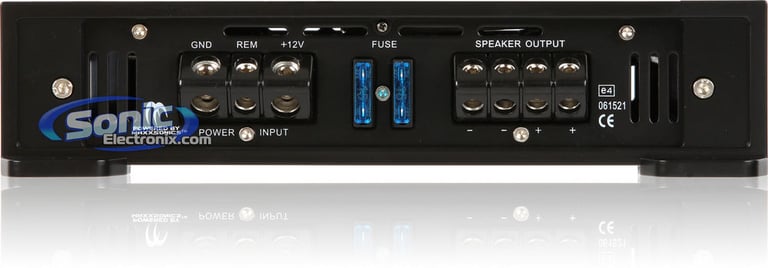

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Signal to noise ratio: 95dB
  • Channel separation: 85dB
  • Variable low-pass filter: 40-300 Hz
  • Subsonic filter: 10-40 Hz
  • Damping factor: >200
  • Frequency response: 10-300 Hz
  • Dimensions: 10-13/16"L x 9-1/2"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation./li>
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

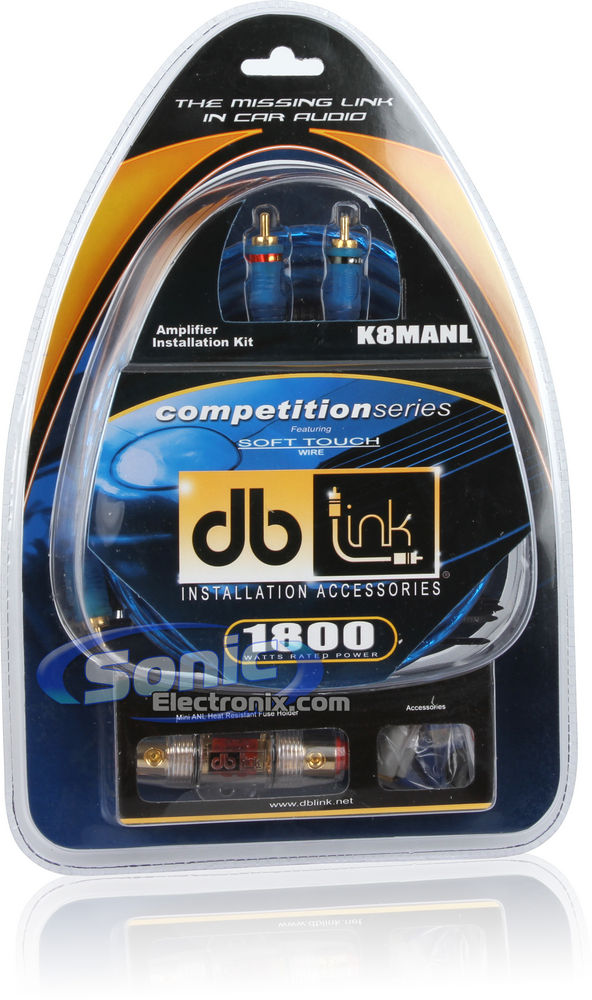

db Link K8MANL Features:
  • 8 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1800 watts
  • Power and ground wire provides excellent power transfer
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are Gold-plated for excellent signal transfer
  • Mini-ANL Fuse holder offers ideal protection for Mid powered systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
db Link K8MANL Includes:

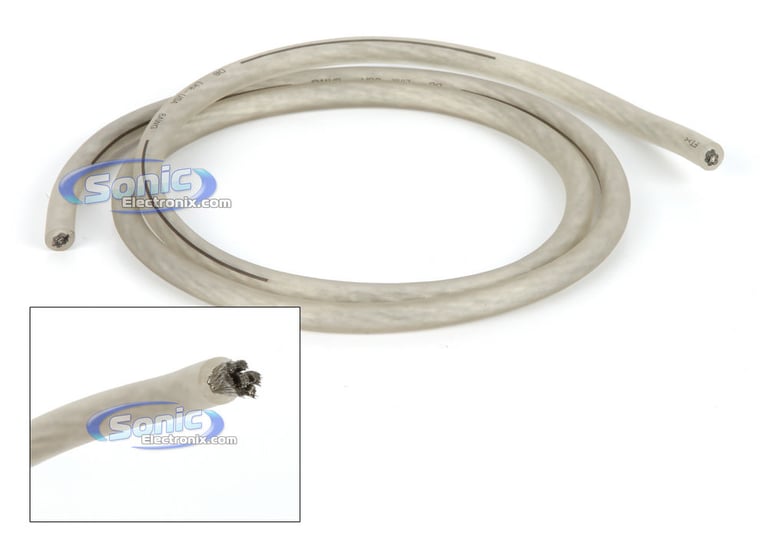

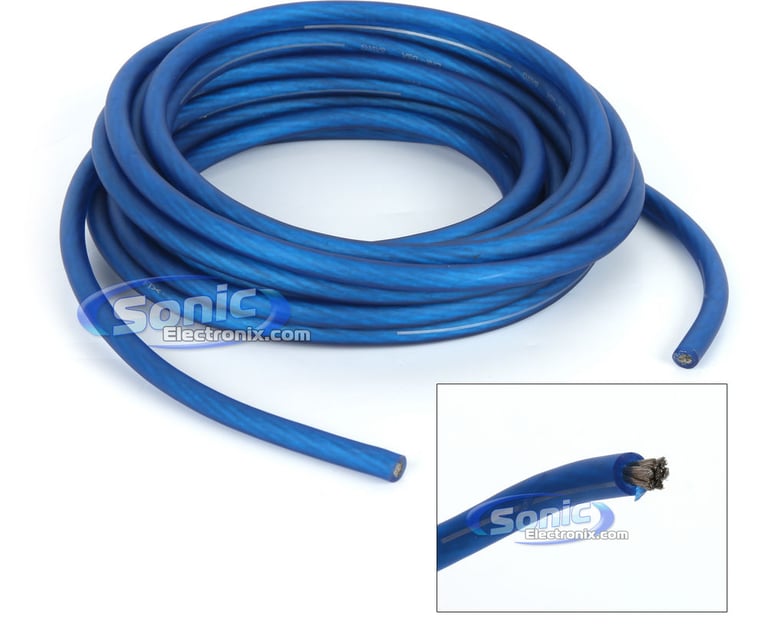

  1. 17 ft. of 8 gauge Blue power cable
  2. 3 ft. of 8 gauge Silver ground cable

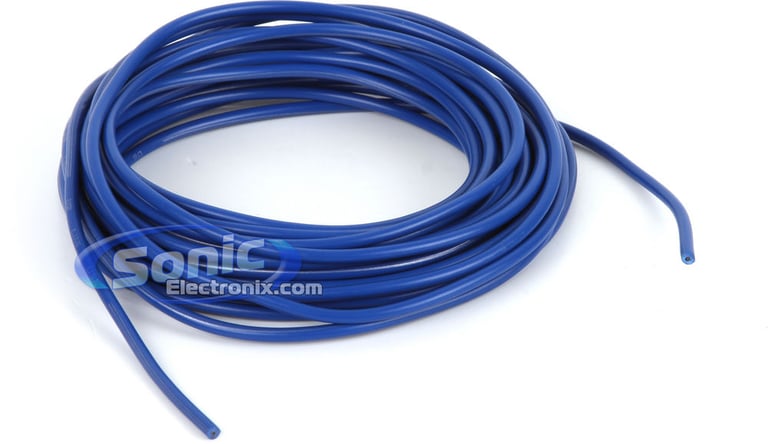

  3. 17 ft. of 18 gauge Blue remote turn-on wire

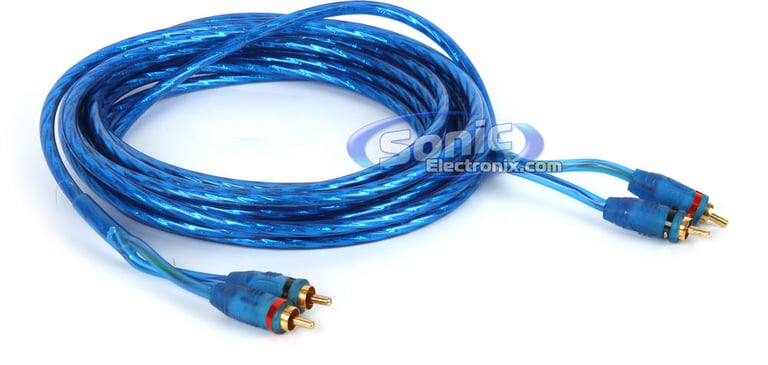

  4. 17 ft. of Blue twisted pair shielded RCA cable

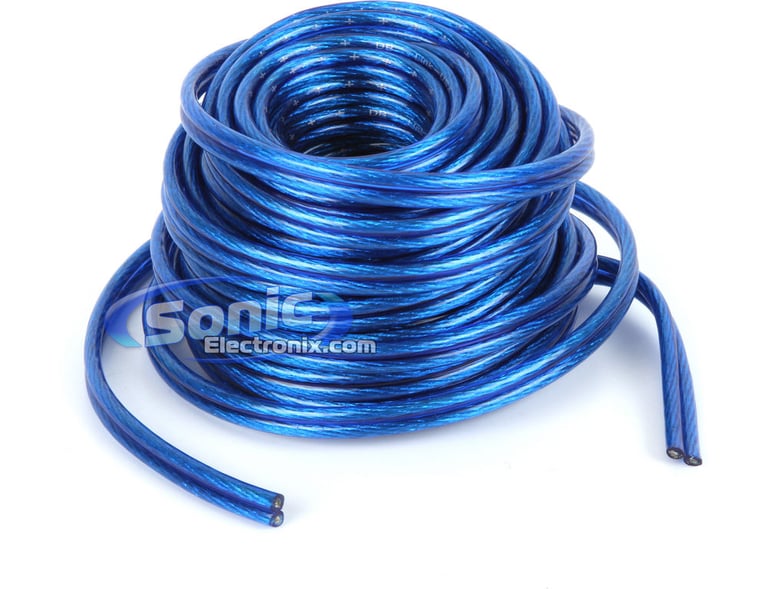

  5. 25 ft. of 16 gauge Blue speaker wire

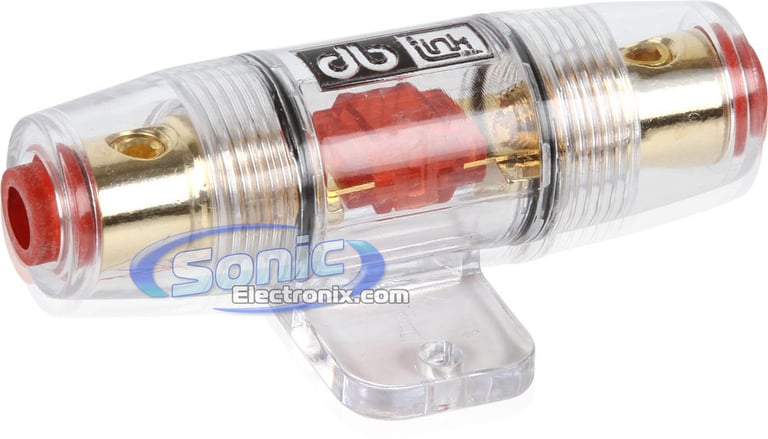

  6. 8 Gauge In-line Mini-ANL fuseholder
  7. 50 Amp ANL fuse

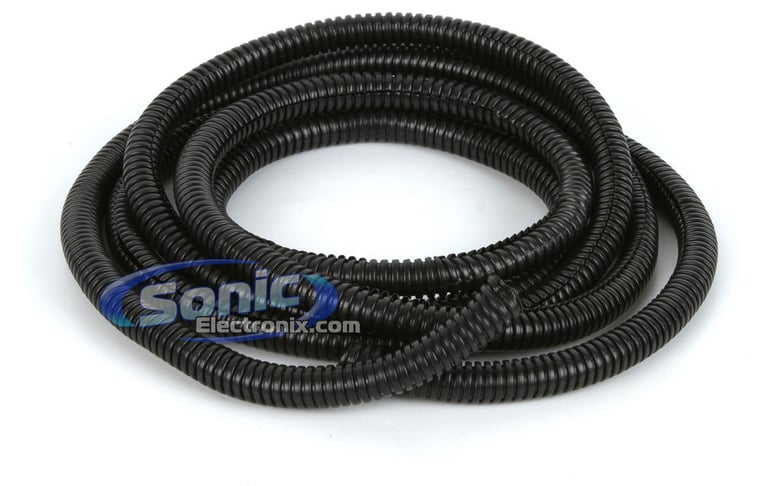

  8. 6 ft. of Black split loom tubing

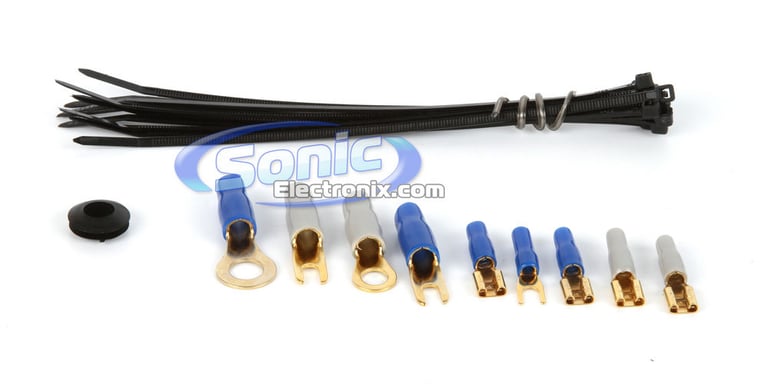

  9. Other Installation Accessories

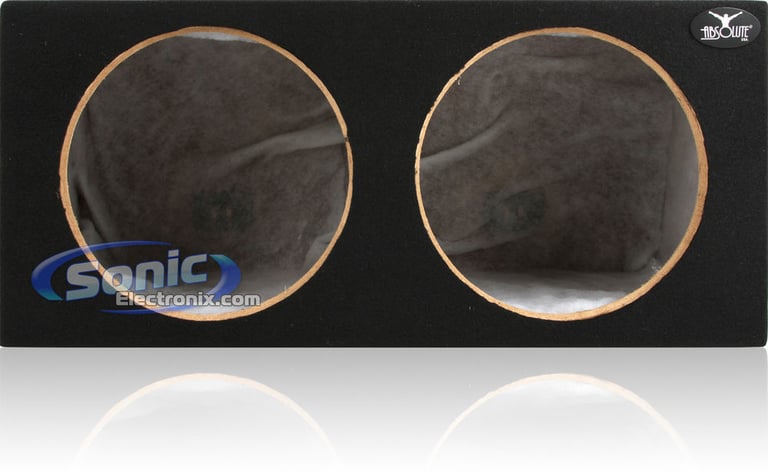

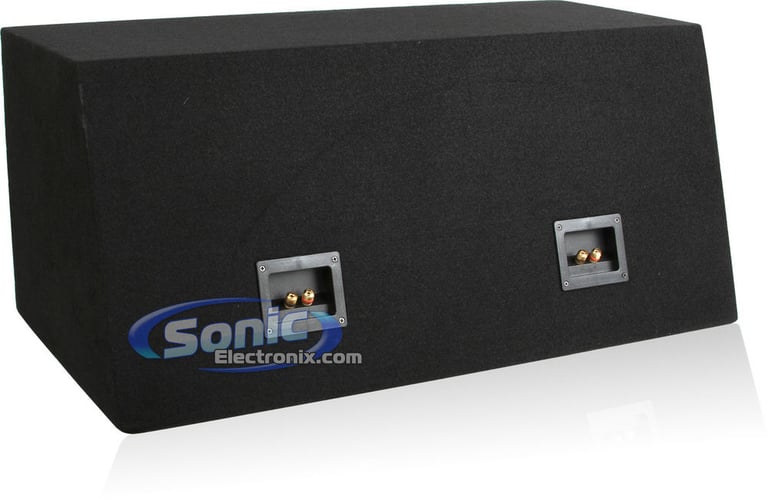

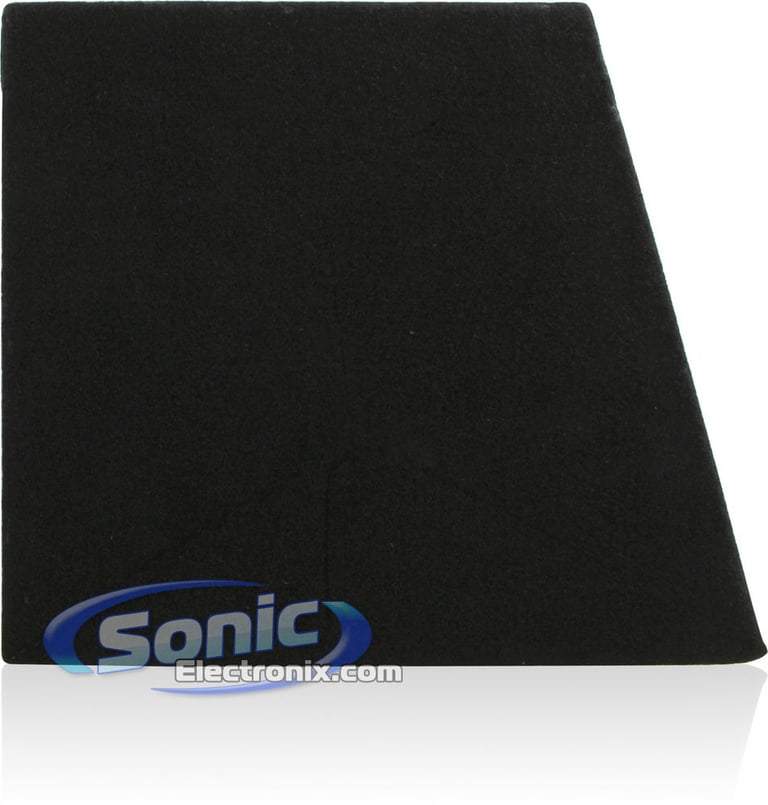

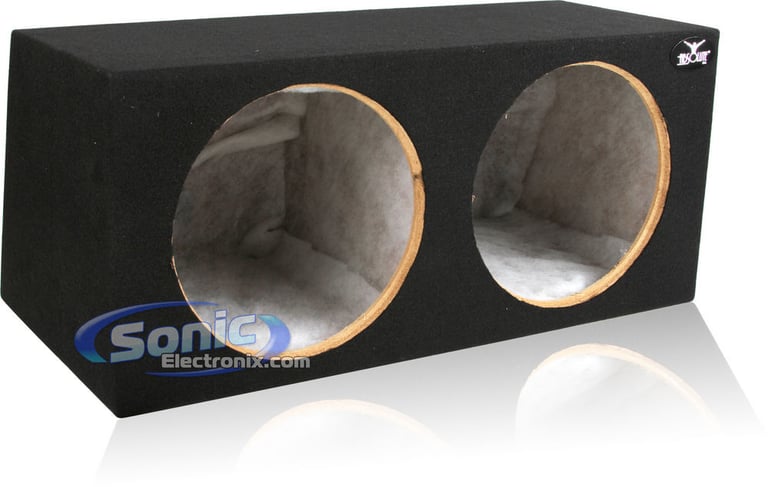

Absolute MDHF12 Enclosure Features:
  • 12" Dual Universal Sealed Enclosure
  • Covered in black carpet for durability

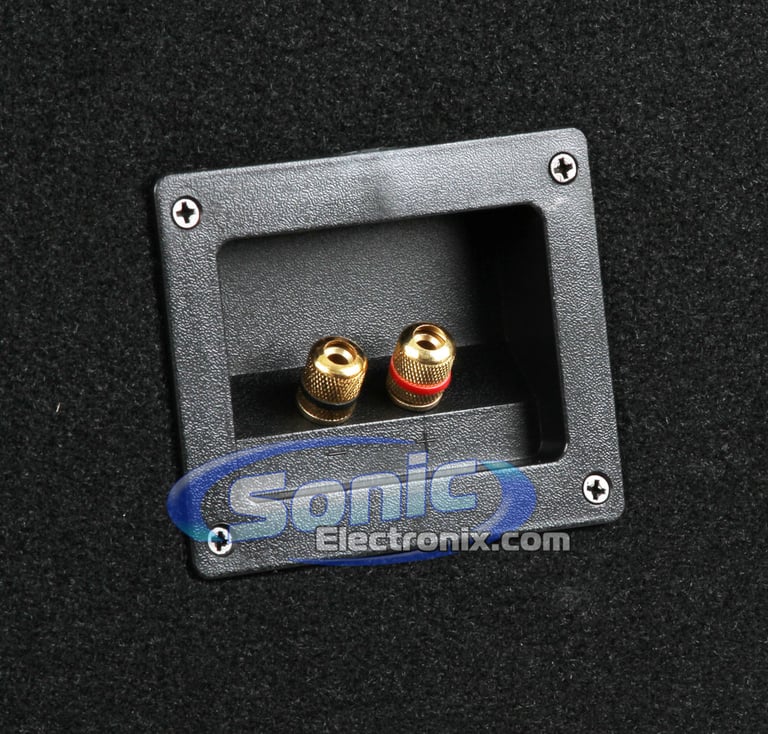

  • Two sets of binding posts
  • Banana clip ready for easy wiring
  • Two sealed chambers gives each subwoofer its own air space
  • 3/4" MDF(Medium Density Fiberboard) construction
  • Subwoofer mounting depth: 12-1/4"
  • Subwoofer cutout diameter: 11-1/4"
  • Box volume: 1.15 cubic feet (per chamber)
  • Total box volume: 2.29 cubic feet
  • Dimensions: 12"TD x 15-3/4"BD x 30"W x 13-1/2"H
  • Authorized Internet Dealer

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
Not Specified
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
Mono output
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
15A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
200 watts
Total RMS Power Handling
400 watts
Peak Power Handling
500 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87.17 dB
Frequency Response
22 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
30"
Depth
12"
Second Width
15-3/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

2-12WX-4_FX1.400

Weight:

62.30lbs

Internal SKU:

2-12wx4_fx1400

Internal Product ID:

39765
