JL Audio 12W0v3-4 (Like New (Open Box))

300W RMS 12" W0v3 Series Single 4-ohm Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 5.40"
• Sensitivity: 85.64 dB

Learn more about the ls-12w0v34-u9

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 5.40"
• Sensitivity: 85.64 dB

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

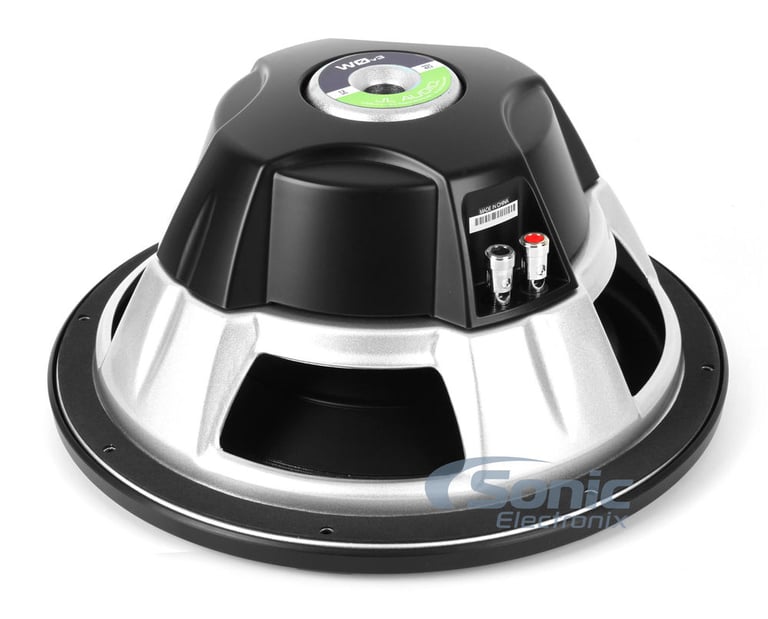

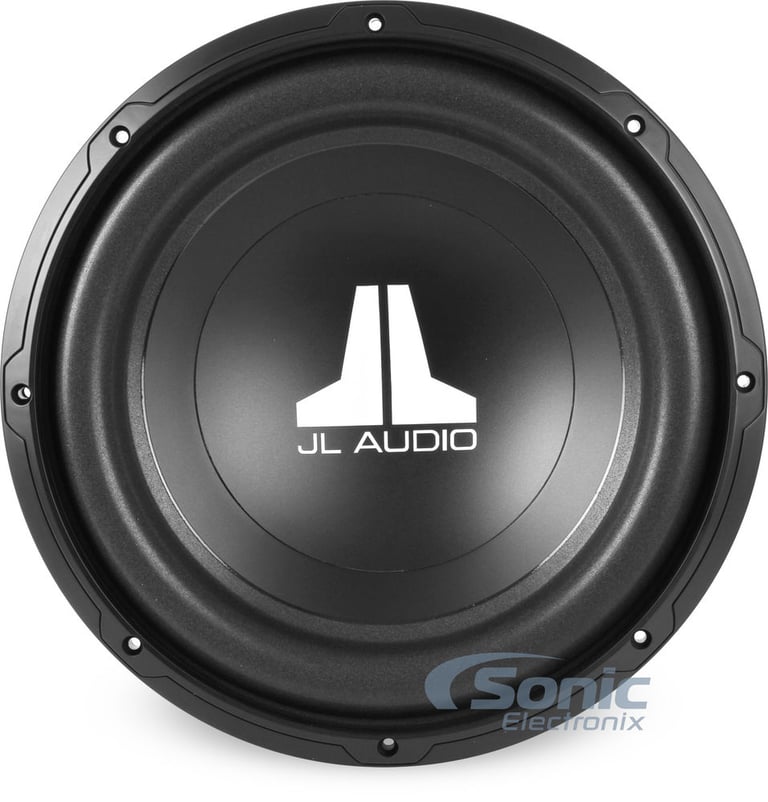

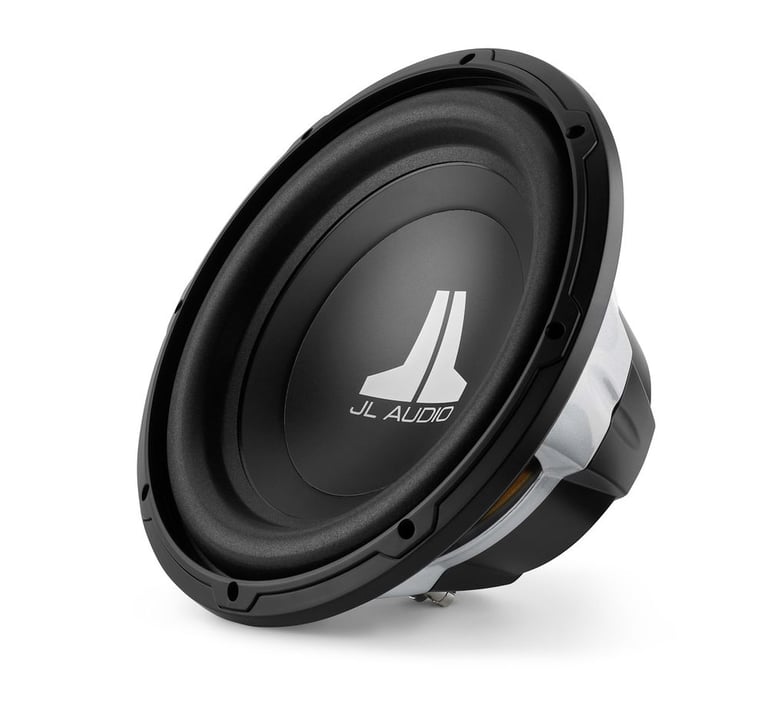

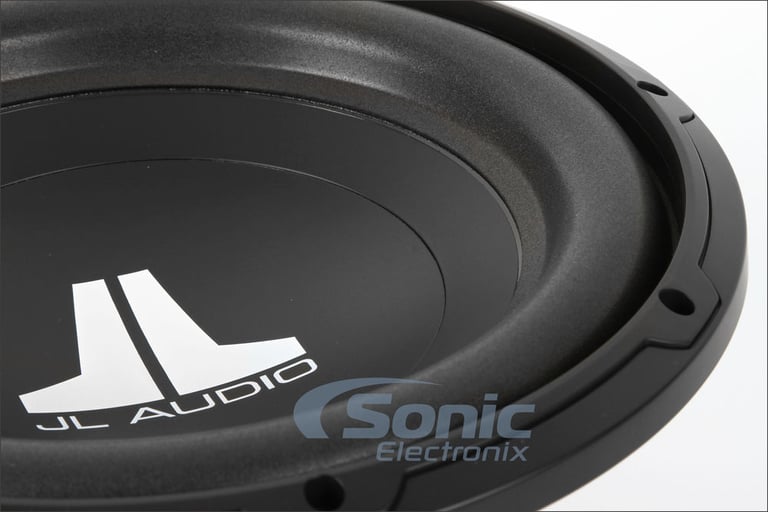

JL Audio 12W0v3-4

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability. The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.


Product Details:

  • 12" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Polypropylene Cone
  • Foam Surround
  • Elevated frame cooling to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion, less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider
  • Metallic silver frame finish
  • 11.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 28.43 Hz
  • Sensitivity: 85.64 dB
  • Recommended sealed box volume: 1.375 cubic feet
  • Recommended ported box volume: 1.75 cubic feet
  • Top-mount depth: 5.40"
  • Cutout diameter: 11.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-12 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJL Audio 12W0V34 owner’s manual

Product history:

JL Audio 12W0v3-4-5 thumbnail
(newest, current model)
JL Audio 12W0v2-4 thumbnail
(previous model, replaced by JL Audio 12W0v3-4 (Like New (Open Box)))
JL Audio 12W0 thumbnail
(previous model, replaced by JL Audio 12W0v2-4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 12W0v3-4 (Like New (Open Box)) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 12W0v3-4 (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 12W0v3-4 (Like New (Open Box)) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 12W0v3-4 (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
12"
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85.64 dB
Xmax (millimeters)
11.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.375 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5.40"
Cutout Diameter
11.0625"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.43 Hz
Equivalent Compliance (Vas)
74.64 liters
Total Speaker Q Value (Qts)
0.67
Electrical Q Value (Qes)
0.715
Electrical Resistance of Voice Coil (Re)
4.280 ohm
Mechanical Q Value (Qms)
10.709
