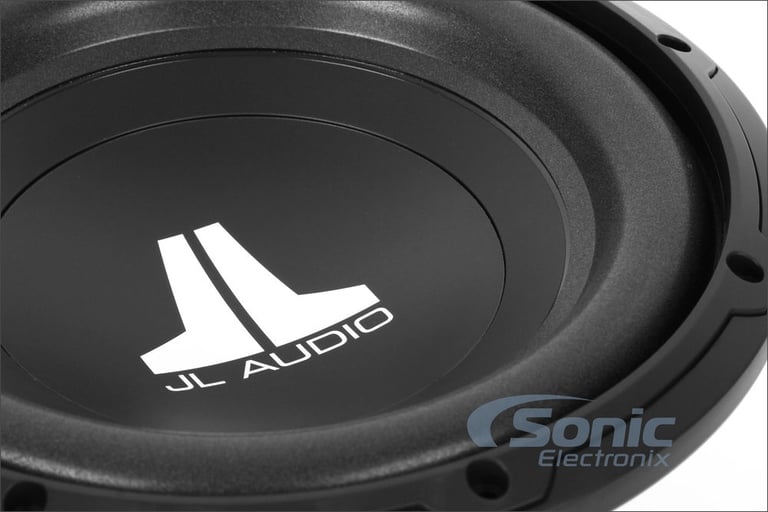

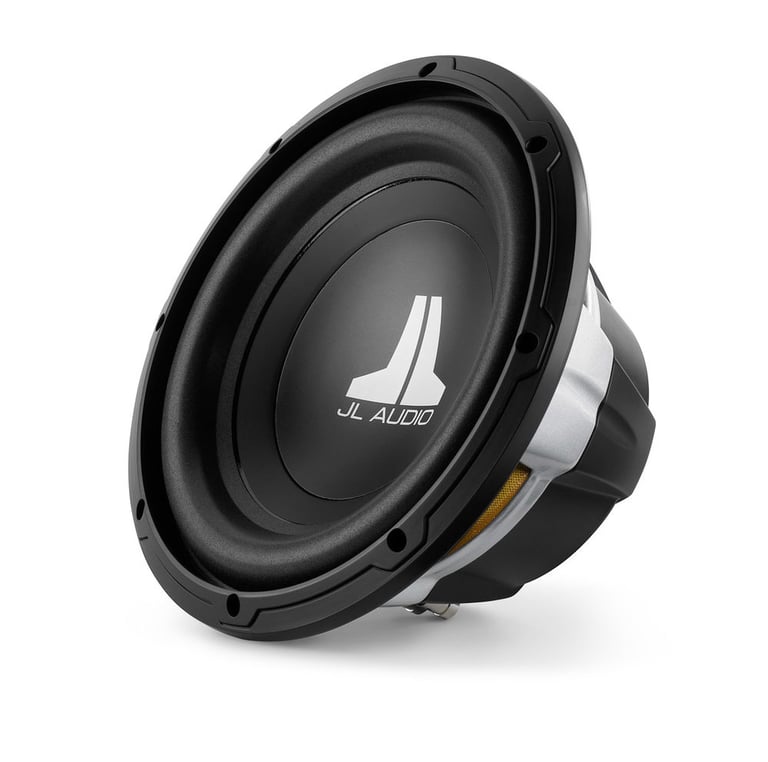

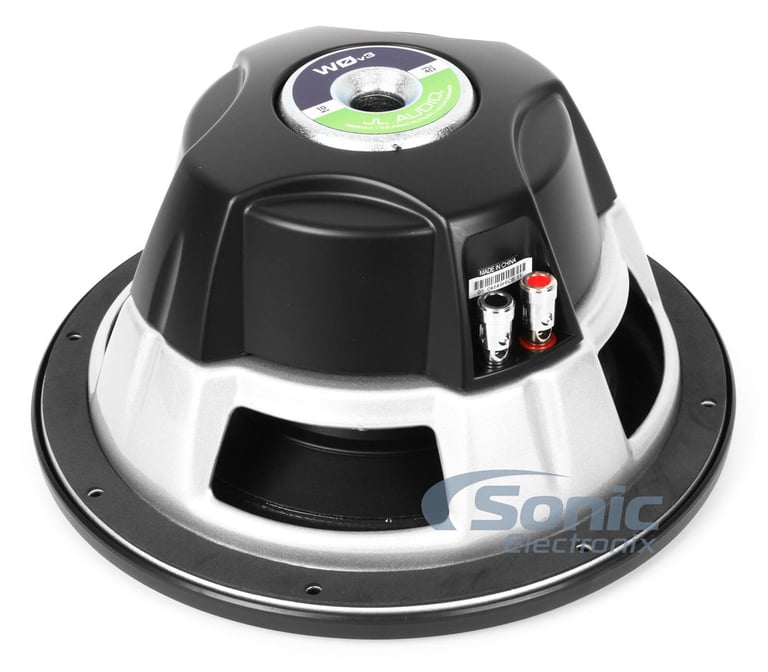

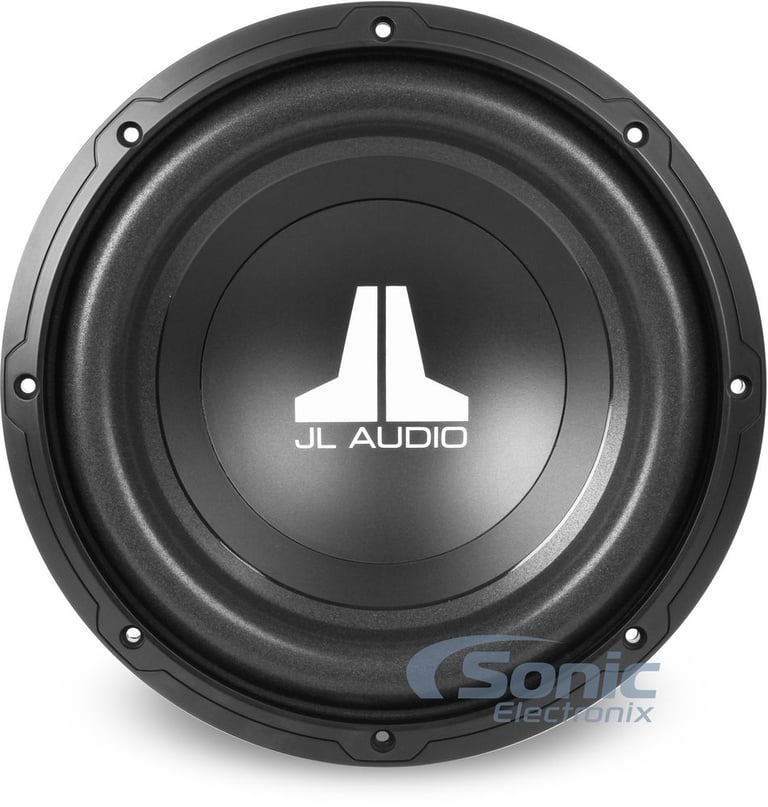

JL Audio 10W0v3-4 (Open Box, Good)

300W RMS 10" W0v3 Series Single 4-ohm Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

Learn more about the ls-10w0v34-u7

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.


JL Audio 10W0v3-4

The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability. The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.


Product Details:

  • 10" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • 2" Voice coil
  • 11.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.09 Hz
  • Sensitivity: 84.07 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Recommended ported box volume: 1.125 cubic feet
  • Top-mount depth: 4.90"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJL Audio 10W0V34 owner’s manual

Product history:

JL Audio LS-10w0v34-u7 thumbnail
(newest, current model)
JL Audio 10W0v2-4 thumbnail
(previous model, replaced by JL Audio 10W0v3-4 (Open Box, Good))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 10W0v3-4 (Open Box, Good) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 10W0v3-4 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 10W0v3-4 (Open Box, Good) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 10W0v3-4 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
84.07 dB
Xmax (millimeters)
11.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.65 cubic feet
Optimum Ported Box Volume
1.125 cubic feet
Top-Mount Depth (Mounting Depth)
4.90"
Cutout Diameter
9.0625"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.09 Hz
Equivalent Compliance (Vas)
31.01 liters
Total Speaker Q Value (Qts)
0.604
Electrical Q Value (Qes)
0.64
Electrical Resistance of Voice Coil (Re)
4.280 ohm
Mechanical Q Value (Qms)
10.752
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-10w0v34-u7

Weight:

9.62lbs

Internal SKU:

ls-10w0v34-u7

Internal Product ID:

230302
