JL Audio CS113TG-TW5 (Open Box)

One 13.5" JL Audio 13TW5-3 Loaded in a Sealed Truck PowerWedge Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

13.5" Loaded PowerWedge Truck Enclosure • 1200W Peak • 600W RMS • Comes Equipped with One JL Audio 13TW5-3 TW5 Thin-Line Subwoofer • High Grade Black Carpet Finish • Five-Way Binding Post Connectors

Learn more about the LS-cs113tgtw5-OB

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

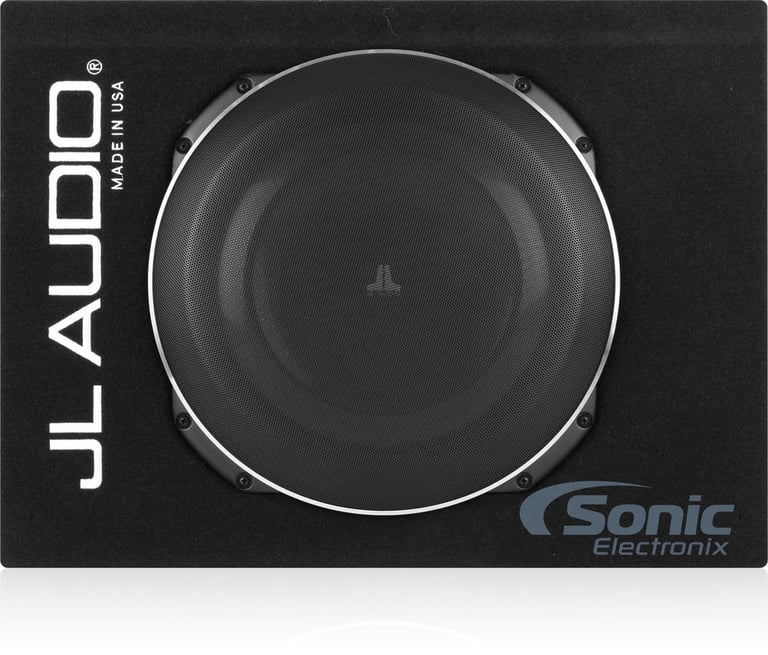

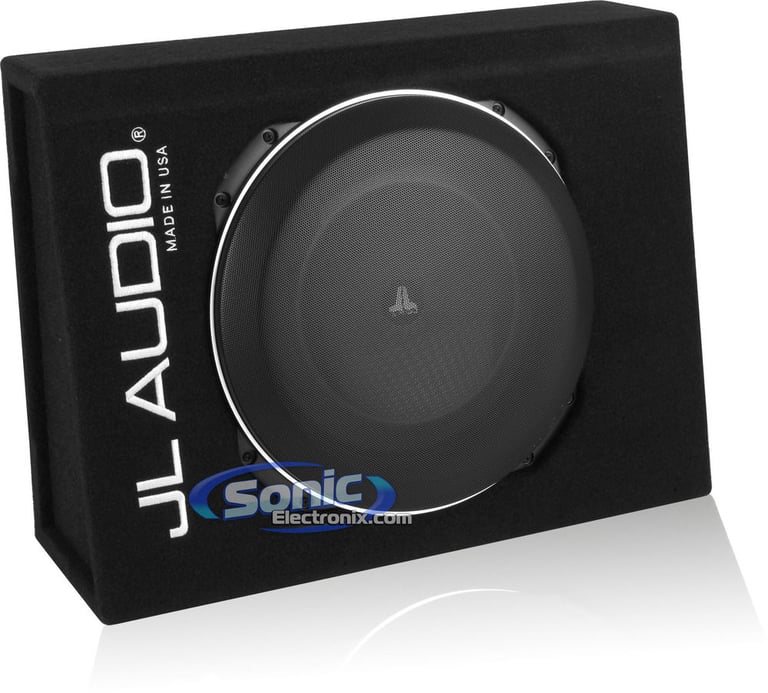

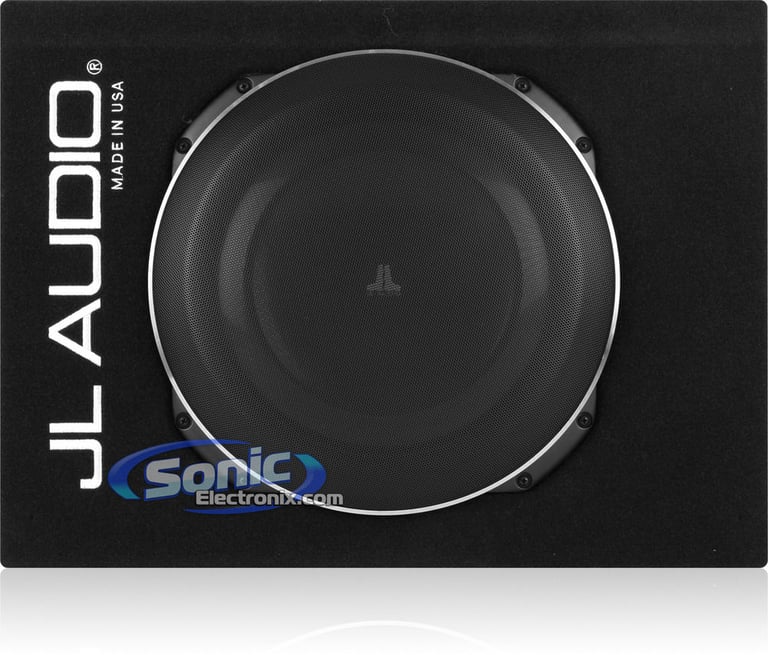

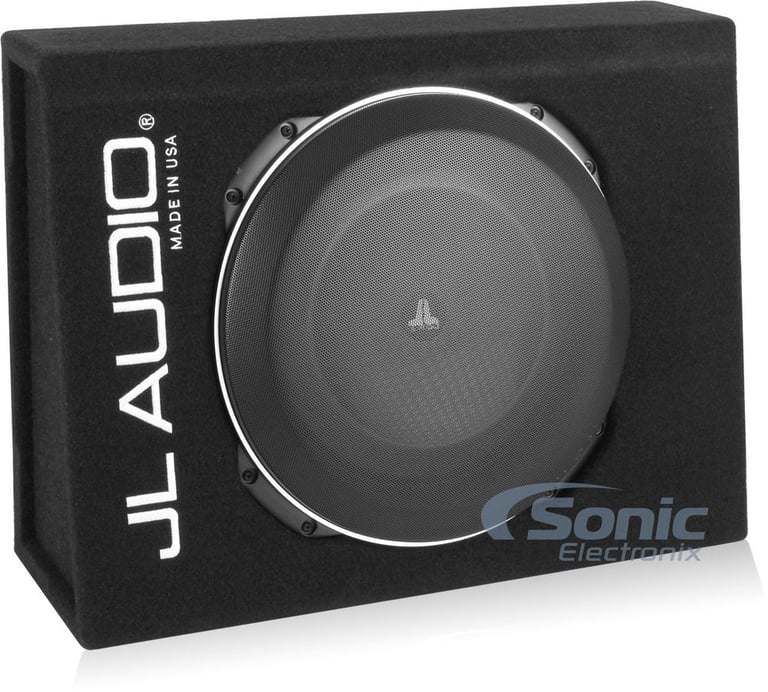

JL Audio 13.5" Loaded PowerWedge Truck Enclosure

JL Audio's sealed PowerWedge subwoofer enclosure is loaded with the 13.5" 13TW5-3 TW5 Thin-Line Subwoofer. The JL woofer features a peak power rating of 1200 watts and a continuous RMS rating of 600 watts. This sub will produce some earth shaking bass and is constructed with a mica-filled polypropylene cone for ultimate durability and a santoprene rubber surround that provides excellent excursion and superior accuracy. It's unique thin design allows for small airspace requirements.

The subwoofer is loaded into high quality MDF sealed enclosure that is covered with high grade black carpeting. This enclosure features a thin & compact design that will fit perfectly behind the seats of most pick-up trucks. It also comes equipped with five-way binding post connectors and a steel mesh grill that provides excellent woofer protection. This top of the line loaded enclosure will enhance any vehicles sound system.

Subwoofer Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished
  • 13.5" Single 3 ohm TW5 Thin-Line Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
    • Recommended Power Range: 100-600 watts
  • Impedance: 3 Ohm
  • Mica-filled polypropylene cone for ultimate durability
  • Santoprene surround for generous amounts of excursion and excellent accuracy
  • Unique design allows for small airspace requirements
  • Requires only 0.8 cubic feet of airspace
  • Cast alloy basket
  • Frequency response: 20-500 Hz
  • Sensitivity: 85.87 dB
  • Xmax: 9.7mm
  • Mounting Depth: 2-1/2"
  • Cutout Diameter: 12-1/2"
  • 90 Day Sonic Electronix Warranty

General Enclosure Features:

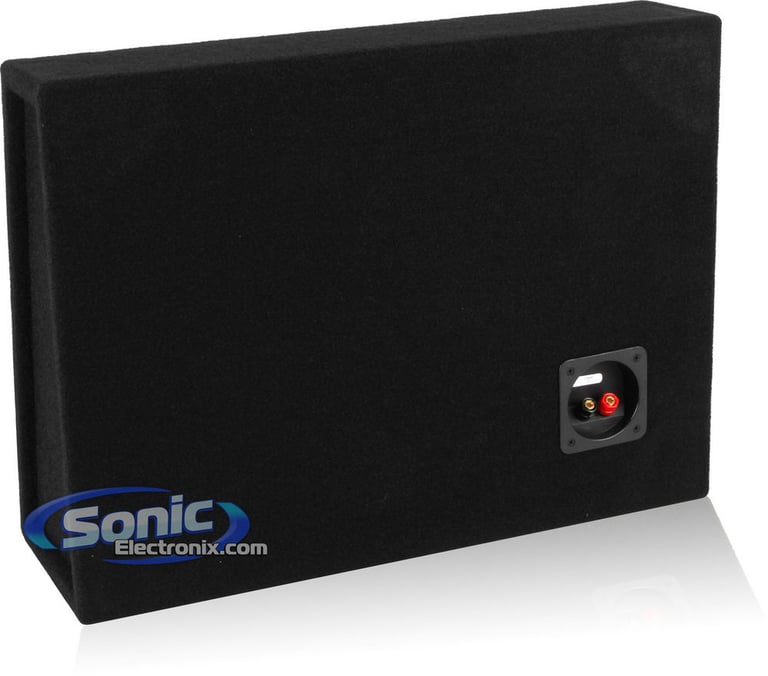

  • PowerWedge Sealed Truck Enclosure
  • High quality MDF construction
  • Delivers world-class sub-bass fidelity
  • Provides a detailed and smooth response
  • High grade black carpet finish

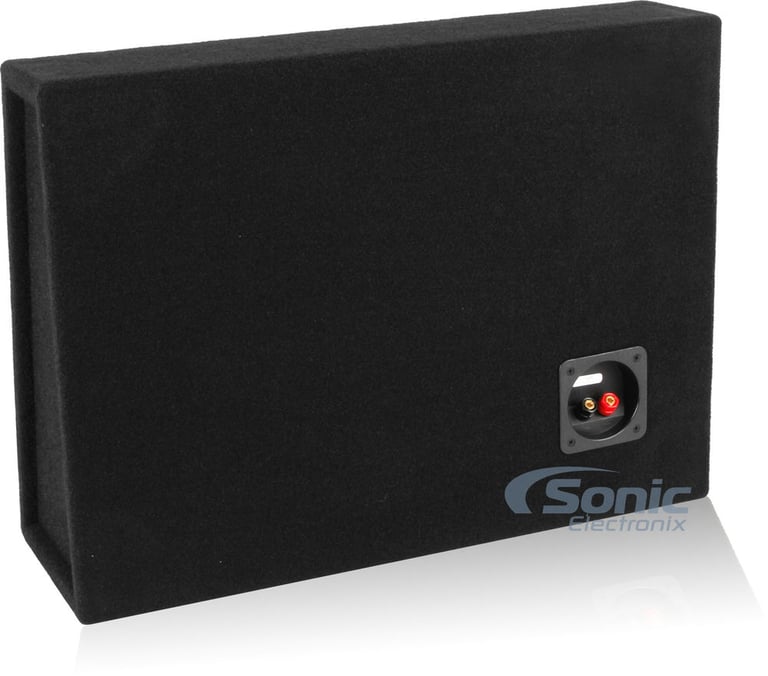

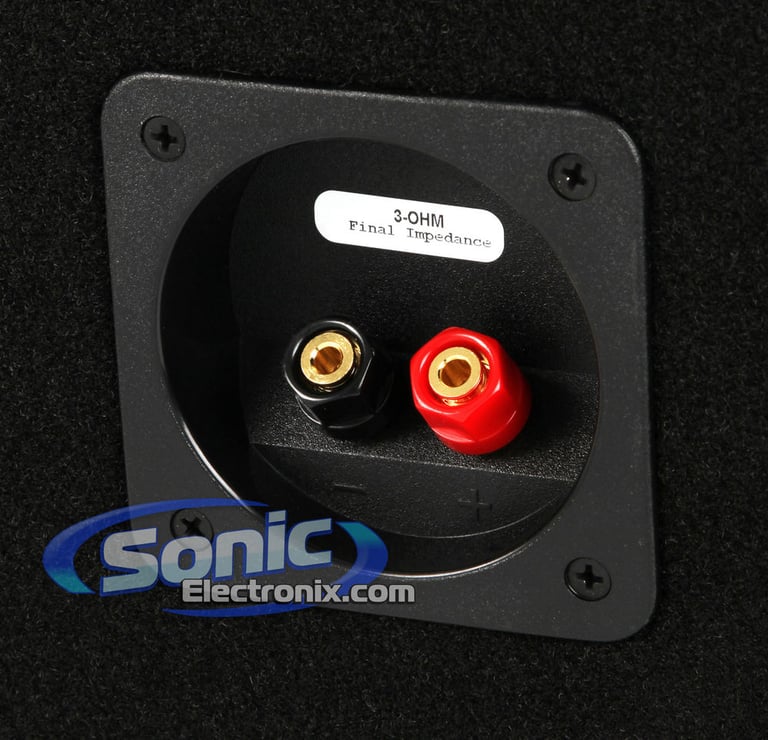

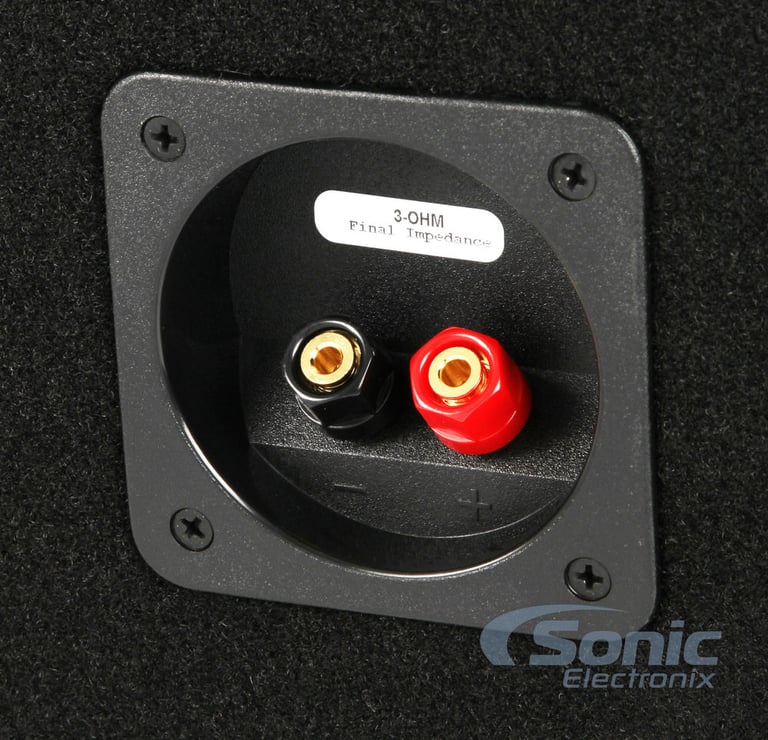

  • Five-Way binding post connectors
  • Embroidered JL Audio logo
  • JL Audio ECS internal wiring
  • Steel mesh grille provides excellent woofer protection
  • Final Impedance: 3 ohm
  • Weight: 34 lbs
  • Dimensions: 4-1/2"TD x 7-1/4"BD x 21-1/4"W x 15-3/4"H

Specifications & Details


Subwoofer Specifications
Subwoofer Size
13.5"
RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Santoprene Rubber
Sensitivity
85.87 dB
Frequency Response
20 - 500 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape

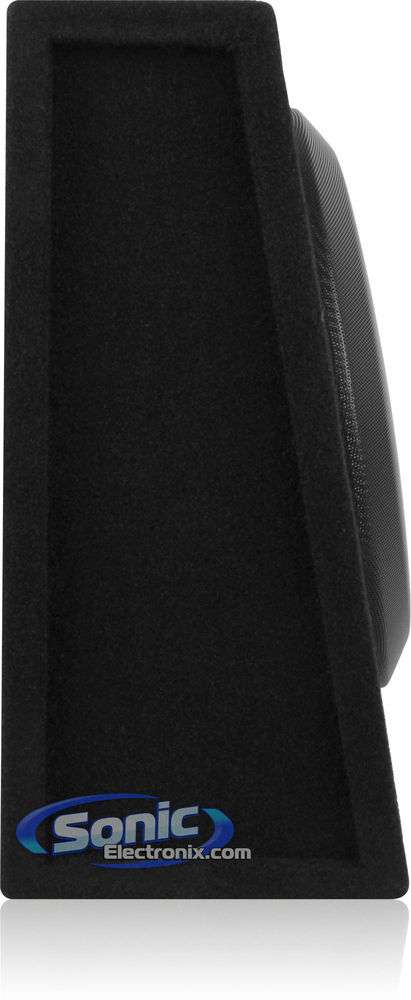

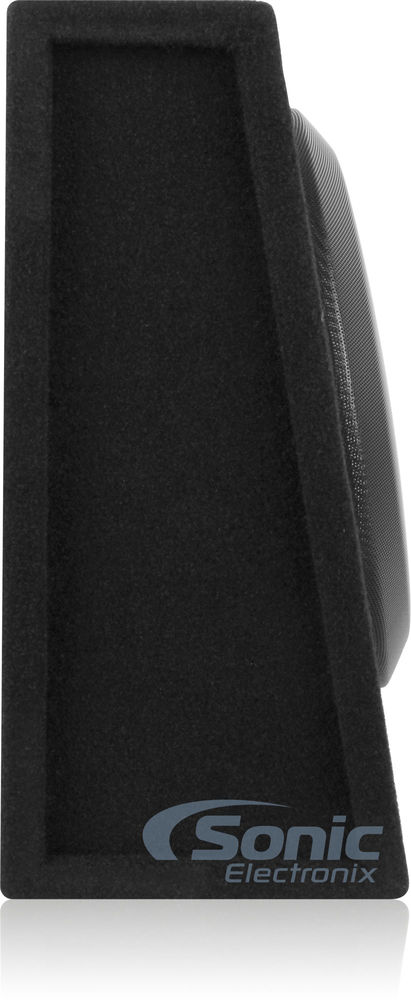

Truck Style, Slim with Angled Front
Wood Thickness
Not specified by manufacturer
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Second Width
4-1/2"
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CS113TG-TW5-2

Weight:

41.10lbs

Internal SKU:

LS-cs113tgtw5-OB

Internal Product ID:

60370

Customer Ratings & Reviews


JL Audio CS113TG-TW5 (Open Box) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Drops Surprisingly Low for such a small enclosure!

The following review is for CS113TG-TW5, which is a part of the bundle you are viewing.

I have recently installed the CS113TG-TW5 into the front luggage compartment of my Porsche 911 (997 model). It fits into the compartment exactly and the driver fires downwards. Amazingly there is still room above the enclosure to put luggage.
I am driving the Sub with a Genesis Profile Sub Amplifier and the rest of the system is Becker. I was happy with the original sound quality of the system, however required some additional bass where the Porsche system tails off. The bass travels through the car without problem and no porting into the interior is necessary! (Bass will travel through the bulkhead)
How does it sound? Well I have a pair of JL12W6v2 Subs in a custom common enclosure in another vehicle which sounds tonally accurate and drops very low. The tonality of the CS113TG-TW5 is very similar to the 12W6v2 which is near perfect. The surprising thing is how low the CS113TG-TW5 drops considering its small dimensions.
It will go more than loud enough to enjoy whilst driving, however it is not designed for SPL or as a Rice Boomer.
It will allow superb Sub Sonic performance in a very small Sports car or truck where previously nothing was available!
If you only have a small space available for a Sub in your vehicle then look no further the CS113TG-TW5 is for you!

By Craig on October 19, 2012

32 found this helpful


Good

The following review is for CS113TG-TW5, which is a part of the bundle you are viewing.

It sounds pretty good not quit what i expected though for 600 dollars. I have a single cab Silverado. I have a kicker cvx with a 4ft box behind the seat which in my opinion pounds the crap out of this sub. I know your thinking why did you buy then well i wanted more leg room. I'm 6'4" and the guy at my local audio store said it pounded so i got it. I have a 1600 watt spl amp putting around 350 rms. if you want bass to your truck its not a bad choice but my two year old kicker is kicking its butt lol.

By Muddigger on December 6, 2011

32 found this helpful


great value & super fast shiping from sonic!!:)

The following review is for CS113TG-TW5, which is a part of the bundle you are viewing.

Great subwoofer! Been dreaming of it for a year hahaha! Good thing it came with a nice box. I ordered it on Monday and I got it on Thursday same week :). I paired it with Alpine PDX6. I'm keeping it low for a while cuz they say it should break in for a month, just to be safe :). Really happy with it!

By clean car & a subwoofer on January 27, 2012

29 found this helpful
