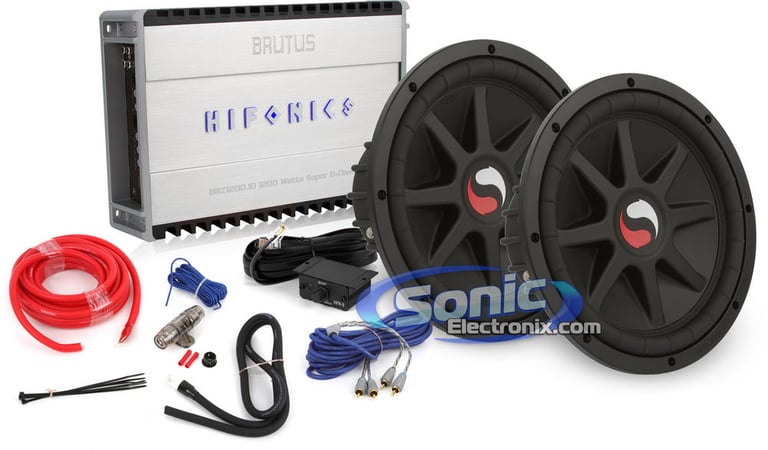

2400W Kicker + Hifonics Bass Bundle

Pair of 12" Kicker 09S12C4 Solo Classic Series Subwoofers + Hifonics Brutus BRZ1200.1D Amp + Kit

Kicker
Shop all Kicker
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Dual 4 Ohm Solo Classic Subwoofer • 2400W Max • 1200W RMS • Brutus Series Monoblock Class D Car Amplifier • Variable High/Low-Pass Filters • 4 Gauge Amplifier Installation Kit • KICKER Z-Series RCA Interconnects

Learn more about the 2-09s12c4_brz12001d

We apologize

This item has been discontinued


Loading...
Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

8
-11.43%

$309.99

List price $349.99

Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-16.67%

$249.95

List price $299.95

Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

14
-14.29%

$299.95

List price $349.95

Limited time!
ZXI-354 main

DS18 ZXI-354

240W Peak (80W RMS) 3.5” ZXI Series 4-ohm Full-Range Car Speakers

3
-15.00%

$50.96

List price $59.95

PRO-X6.4M main

DS18 PRO-X6.4M (Sold Individually)

500W Peak (250W RMS) 6.5” PRO-X Series Pro Audio Midrange 4-ohm Loudspeaker

4
DMH-341EX main

Pioneer DMH-341EX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Amazon Alexa

14
-31.43%

$240.00

List price $350.00

TX1S main

DS18 TX1S

200W Peak (50W RMS) 1.38" TX1 Series Pei Dome Ferrite Tweeter

1

Product Highlights


Pair of 12" Dual 4 Ohm Solo Classic Subwoofer • 2400W Max • 1200W RMS • Brutus Series Monoblock Class D Car Amplifier • Variable High/Low-Pass Filters • 4 Gauge Amplifier Installation Kit • KICKER Z-Series RCA Interconnects

Description


Kicker brand icon

Authorized dealer

Kicker and Hifonics Bass Bundle

Shopping for an amplifier and subwoofer can be daunting at times. Which sub should I get? What amplifier is best for this subwoofer? What else do I need? All these questions can pretty much drive you nuts when looking to add some bass to your car audio system. Here at Sonic Electronix our dedicated specialist have taken the time to create a high performing bass bundle, giving you a tremendous amount of bass and best of all doing all the annoying work for you. A better car audio system is just a click away.

This Sonic Electronix Exclusive Bass Bundle showcases a Hifonics Brutus BRZ1200.1D amplifier along with a pair of 12" Solo Classic Series, Kicker subwoofers. This excellent bass package pushes 1200 watts of clean, continuous RMS power. The Kicker subwoofers each have Dual 4 Ohm Voice Coils; meant to be wired in parallel/parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Kicker 09S12C4 12" Solo Classic series subwoofers require 1200 watts of RMS power. The included Hifonics Brutus BRZ1200.1D amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Kicker subwoofers, Hifonics amplifier, and Kicker amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system.



Kicker 09S12C4

12" Dual 4 ohm Solo Classic Series Subwoofers
Quantity: 2

  • Pair of 12" Dual 4 Ohm Solo Classic Subwoofer
  • Power Handling:
    • Peak: 2400 watts total / 1200 watts each
    • RMS: 1200 watts total / 600 watts each
  • Impedance: Dual 4 Ohm
  • Single piece SoloKon to withstand extreme air pressure in small boxes
  • Stitched and glued tinsel leads for high excursion and reliability
  • Spiralead tinsel leads for extreme flexibility and supreme reliability
  • Polyimide voice coil former with Nomex reinforcement for high thermal capability
  • T cut top plate for high magnetic field strength and cooling capability
  • Stamped steel basket
  • Accurate, detailed bass
  • Very small box performance
  • Recommended sealed box volume: 0.88 cubic feet
  • Frequency response: 20-100 Hz
  • Sensitivity: 87.2 dB
  • Item is a part of Kicker ProFit Group
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Hifonics Brutus BRZ1200.1D

Brutus Series Monoblock Super Class D Car Amplifier
Quantity: 1

  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • MOSFET power supply
  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation
  • Silver-plated unbalanced RCA level inputs
  • Silver-plated molded screw terminals
  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-18V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 14-5/8"L x 9-1/4"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

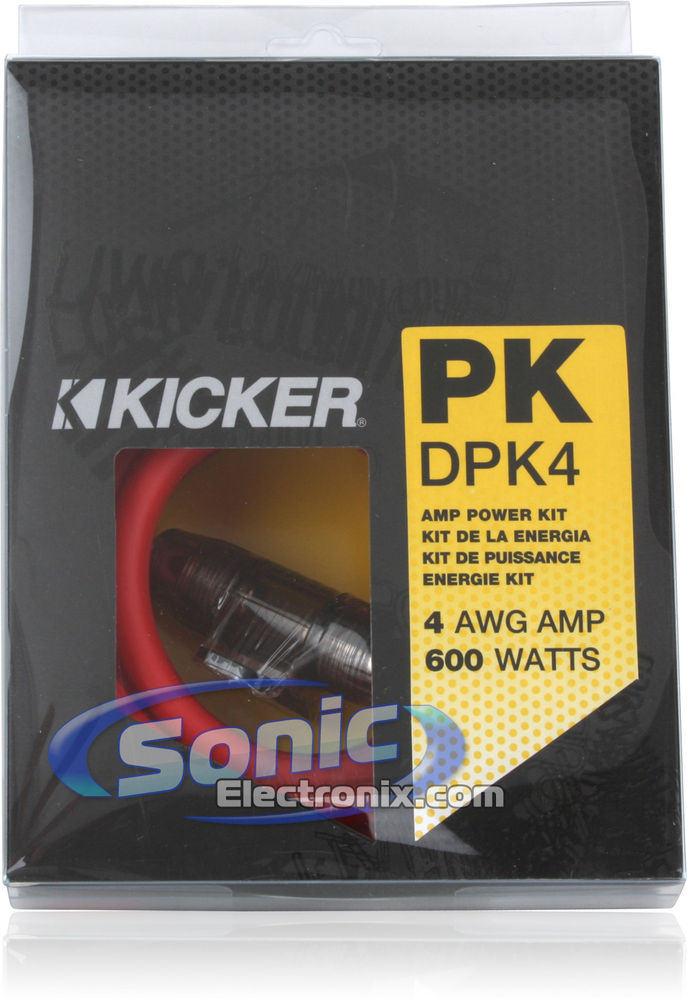

Kicker DPK4 / 09DPK4

Single Amplifier 4 Gauge D-Series Power Installation Kit
Quantity: 1

  • Single Amplifier 4 Gauge D-Series Power Installation Kit
  • 600 Watts max
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • 17ft(5.2m) Red 4AWG power wire

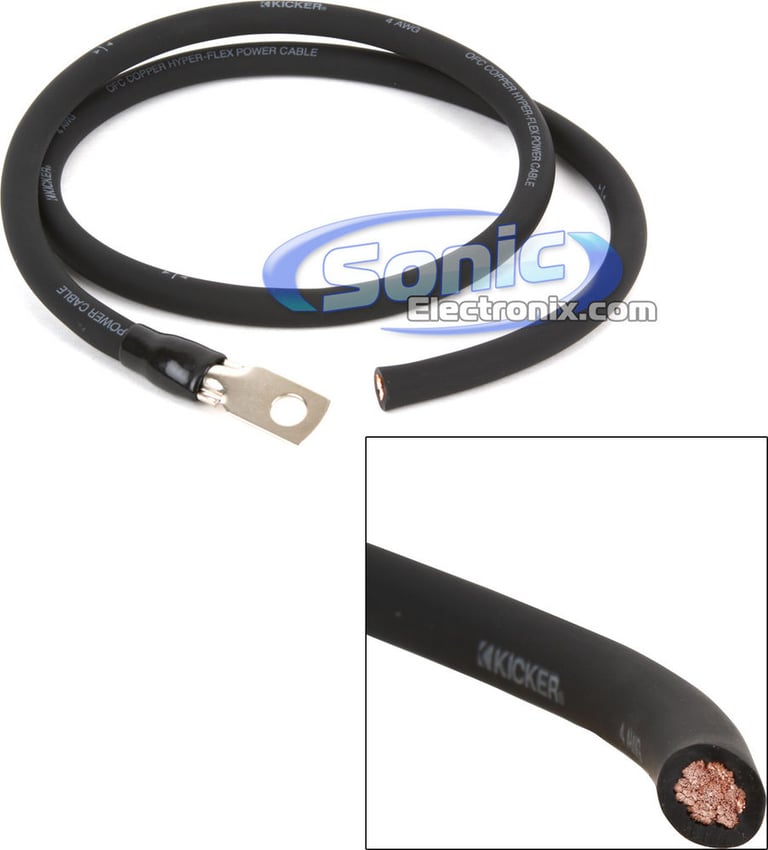

  • 3ft(0.9m) Black 4AWG ground wire

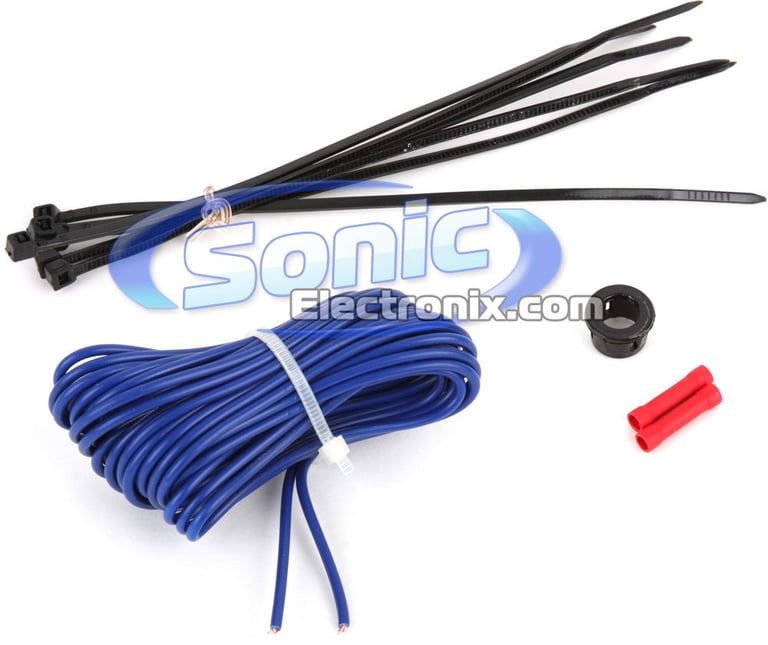

  • 17ft(5.2m) Blue 18AWG remote lead wire
  • Fuse holder with 80 amp fuse
  • Black rubber firewall grommet
  • Black zip ties
  • Red butt connectors
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

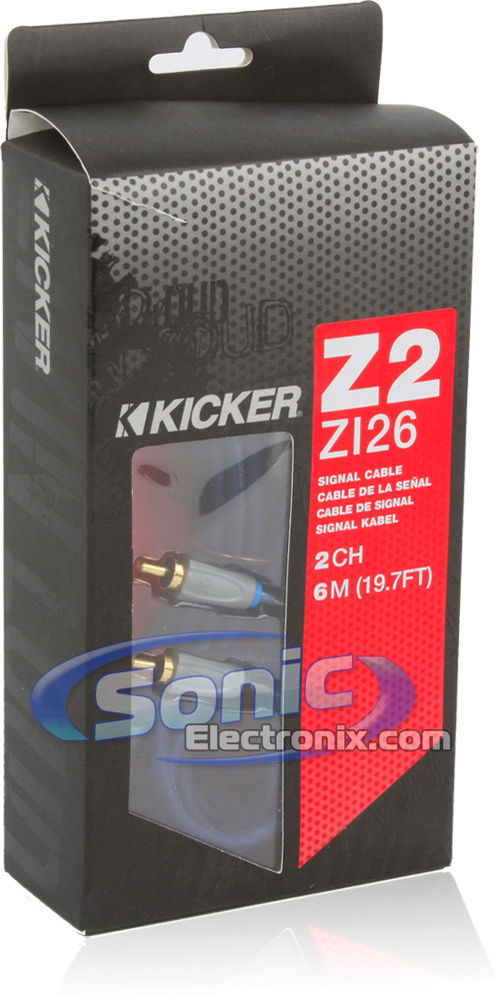

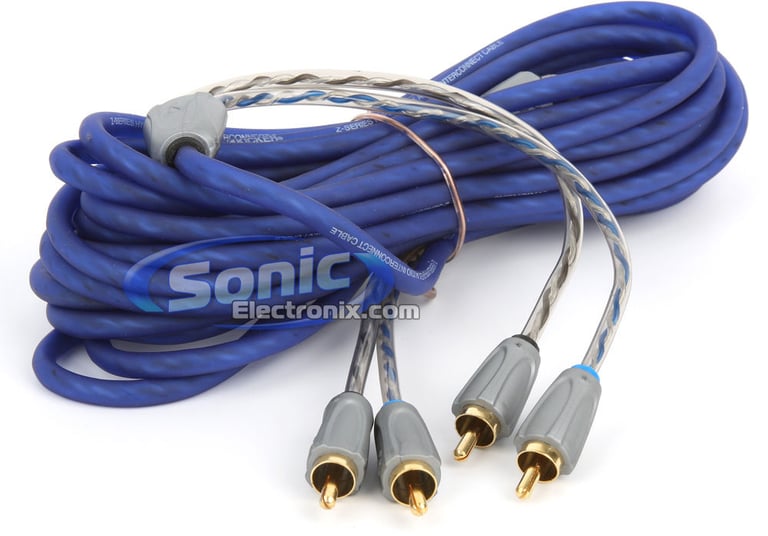

Kicker ZI26

6 Meters (19 ft.) 2-Channel Z-Series RCA Audio Interconnect Cable
Quantity: 1

  • KICKER Z-Series RCA interconnects
  • 2-Channel Interconnect Cable
  • Gold plated tips for the best signal transfer
  • Split-center pin for a secure connection while increasing the surface contact area
  • Sure grip ends for simpler installation
  • Twisted pair construction for a reduction in noise interference
  • Hyper-flex technology allows the cable to bend, twist, and contort in every way possible without a loss in quality
  • Cable is blue with silver ends
  • Length: 6 Meters (19 ft.)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

190
-38.14%

$255.32

List price $412.71

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
450 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
70A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
Solo Classic Series
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
600 watts
Total RMS Power Handling
1200 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
2400 watts
Woofer Composition
SoloKon Polypropylene
Minimum Sealed Box Volume
.88 cubic feet
Maximum Sealed Box Volume
.88 cubic feet
Sensitivity
87.2 dB
Frequency Response
20 - 100 Hz
Xmax (millimeters)
16 mm
Top-Mount Depth (Mounting Depth)
6-5/16"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-09S12C4_BRZ1200.1D

Weight:

58.95lbs

Internal SKU:

2-09s12c4_brz12001d

Internal Product ID:

40290

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


2400W Kicker + Hifonics Bass Bundle thumbnail image

5 star
76%
4 star
17%
3 star
6%
2 star
0%
1 star
2%



Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Too powerful

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

If you're going to buy this amp, make sure you know what you're doing. This amp is the same internals as the hifonics 2400W amp just with a smaller current handling system. If you don't know how to tune it right you're going to be blowing subwoofers left right and center. The speaker output has been reading up to 62V (at 1 ohm that is equivelant to 3844W). With the fuses that are in it and over-current protection I was still able to blow my hifonics brutus 1200W Peak subwoofer. Aside from that amazing amp, beautiful power coming from it.

By Matthew on April 23, 2014

51 found this helpful


dtp

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

I been running the same hifonics amp since 2008 never had any problem with it so when I upgraded the sound system in my truck I went with 2 of these. I would recommend hifonics amps to anyone who want to upgrade without breaking the bank.

By Bojangles on April 28, 2014

47 found this helpful


HiFonics

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

For the price this product is well worth it. Big BANG for the BUCK! Completely satisfied and thinking about purchasing more HiFonics products.

By Derrick on February 26, 2013

46 found this helpful


Pretty cool amp for a decent price.

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

I would recommend this to anyone looking for a pretty nice sound system for a little bit cheaper. This amp is the perfect middle ground. It's not so nice as to where it'd break the bank but it's not so cheap that it can't deliver its power ratings. I've had this amp for a little over a year and I'm happy with it. I push two Type R's with it just fine.

By George on July 1, 2013

44 found this helpful


ok buy

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Had this amp for a few months. Made my Alpines kick so hard, people could here my car for blocks. Amp started cutting out after a few months when I played something with too much bass. Called Sonic Electronix. They handled my problem greatly and sent me a new one.

By Kronmuffin on June 14, 2012

43 found this helpful


PEOPLE READ VERY IMPORTANT

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

When i first saw this amp and read through the reviews i knew this would be a very smart choice. i just had mine installed last week and man, this thing slaps so hard its insane. i can here this thing all the way down my street behind my buddy's fence(500ft). When my wife wants a massage i dont even have to get up anymore, i just have my boy go downstairs and turn on the car. sometimes i play some of that young jeezy slap for the premium massage. when i roll into work i roll with style. inside my employees know its me comin because half the store shakes therefor its a mess when i come in. Trust me and ALL the other reviews, this amp is the best if you dont wanna pay too much and if you want serious power. honestly i dont even know how my heart hasnt stopped yet this thing is so loud. ive gotten like 20 loud music ticketts!!!!!

By My. Greens on July 16, 2011

43 found this helpful


Good Amp

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Bought this amp to power a single 10 inch kicker, it pushes it really well and makes it sound good. Only down side to the amp is that when the weather gets hot it overheats really easily. Other than that it is a good amp for a everyday system.

By Casey on January 3, 2013

41 found this helpful


Too much to say!

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

This amp right here, Wow... All i have to say... I have had this baby power 2 alpine 10" 2012 alpines in a 2 cube ported enclosure at 1 ohm, and they pounded the living hell out of my poor little subby...

I currently have the amp hooked up to a rockford t2d2 woofer at 1 ohm.. And i was a little skeptical at first thinking, why am i hooking up a cheaper amp to a 900 dollar sub...

Man was i wrong. This amp pushed the living hell out of the 900 dollar woofer... Throwing the maximum excursion of 4 inches off the sub with zero stress, at barely HALF THE POWER.

Please.. please buy this amp.. It is the only amp in the price range that can deliver this much bass for the affordable price.

By BassHeadDan on February 20, 2013

38 found this helpful


Brutus 1200

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Not bad, just has some distortion. Won't push as much without distortion. But not a bad amp.

By DJ on February 10, 2013

39 found this helpful


Very good amp

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

I purchased this amp about six months ago from sonic electronix and ever sense then I have been very sarisfied with my purchase. This amp is amazingly powerful and is very well built. The price was what won me over. Well worth the money. System pounds very hard with this amp!

By biggggdoggg on January 13, 2013

37 found this helpful




07DS400 small

Kicker DS400

4" DS-Series Speakers 07DS400

(29)

$26.20

List price $59.95

CS-HX537X small

JVC CS-HX537X

5-1/4" 3-way Car Speakers

$34.99

List price $69.99

KX4-800 small

Kole Audio KX4-800

800W Max, 4-Channel Amplifier

(1)

$99.99

List price $189.99

No picture

Phoenix Gold Ryval V690 R/B

(Factory Refurbished) 6" x 9" 2-way Speakers (Rival)

$24.99

List price $79.99

2SVK12-GRAY small

Sonic Sub Box: 2SVK12 (Gray)

12" Kicker Solo-Baric Square-Hole Dual Slot Vented MDF Enclosure

(12)

$59.99

List price $124.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Toyota Venza

1968 Buick LeSabre

2014 Toyota Sequoia

2006 Toyota Avalon

2022 Ford Escape

1986 Mazda 323

2009 Lincoln Navigator

2000 Chevrolet Astro

1993 Chevrolet Caprice

2005 Scion xB

Vehicle
Store
Delete

2005 Harley Davidson FXSTS Springer Softail

2000 Harley Davidson FLHTC Electra Glide Classic

Vehicle
Store
Delete

2024 Can-Am Defender MAX DPS

2019 Can-Am Defender MAX HD10 XT

2024 Can-Am Defender MAX XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
