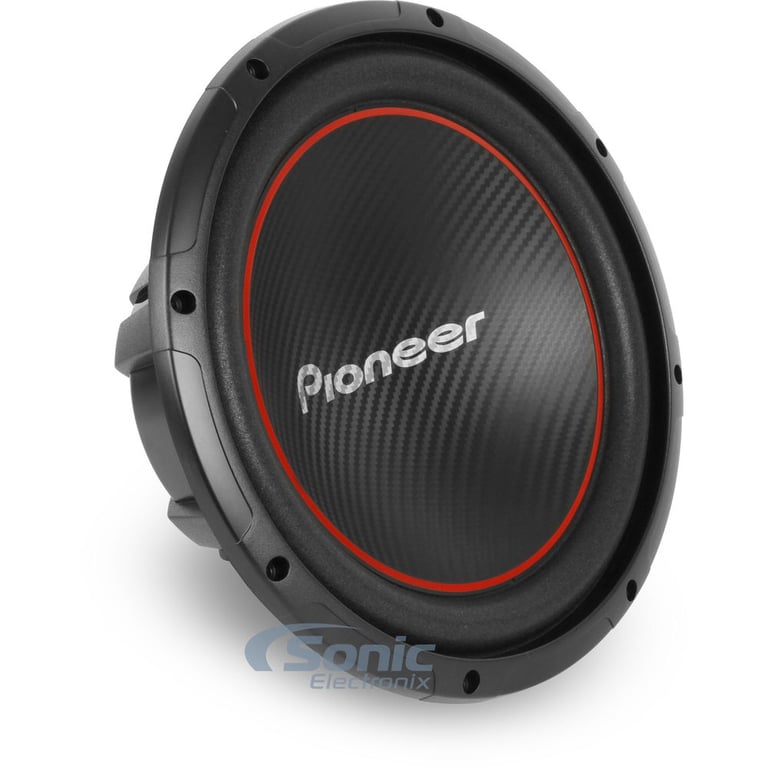

Pioneer TS-W304R Open Box Complete

300W 12" Champion Series Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• Open Box Complete
• 1300W Peak
• 300W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature Voice Coil

Learn more about the ls-tsw304r-obc6

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

  • A part that is fully functional but shows no sign of use outside of installation.

Product Features

  • 12"Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Single 4 ohm

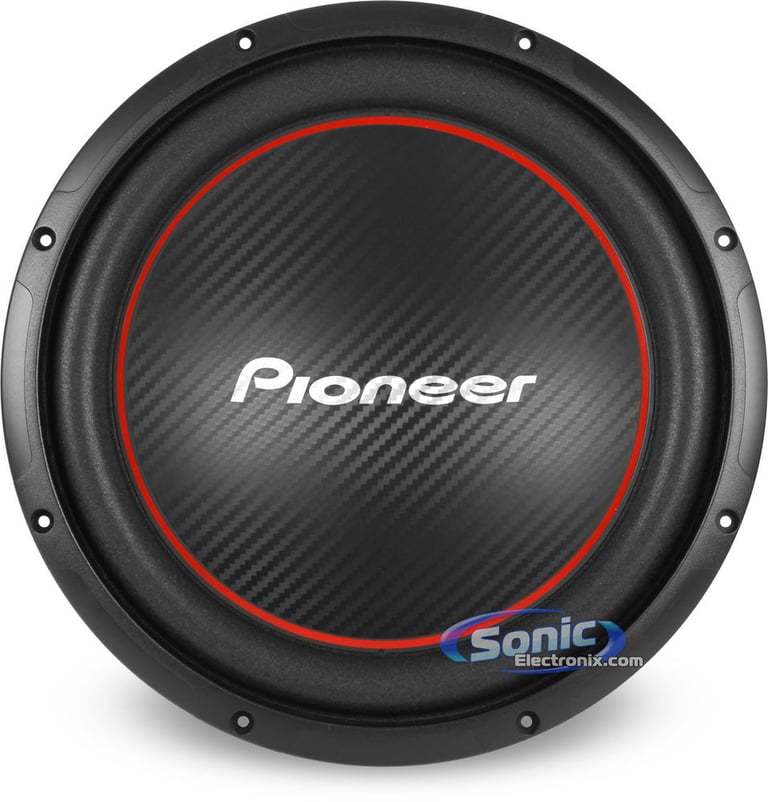

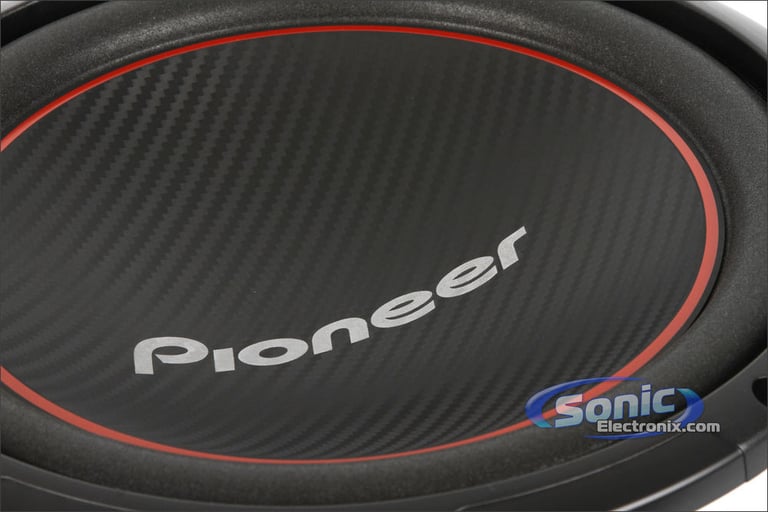

  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion

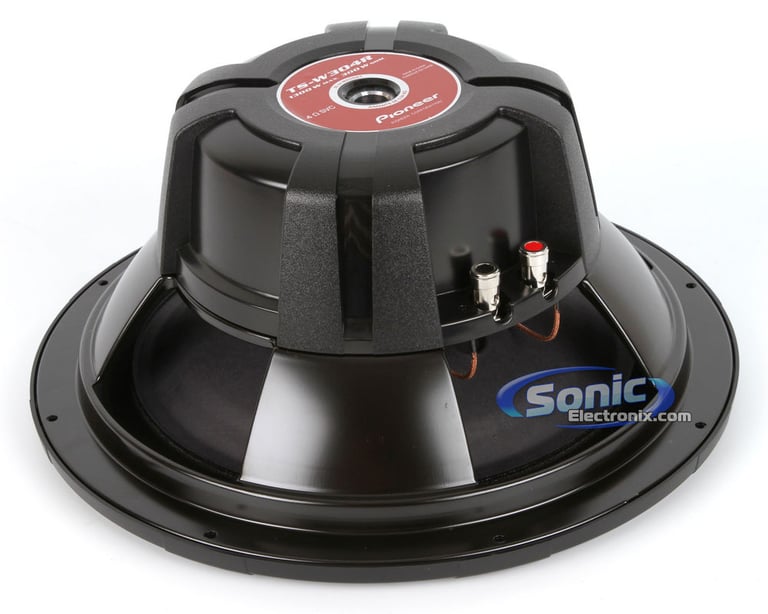

  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output
  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature voice coil design
  • 33 oz large strontium magnet structure
  • Frequency Response: 20-220 Hz
  • Sensitivity: 95 dB
  • Xmax: 4.7 mm
  • Mounting Depth: 5-1/4"
  • Cutout Dimensions: 11-1/8"
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W304R Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W304R Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W304R Open Box Complete Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W304R Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1300 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 220 Hz
Sensitivity
95 dB
Xmax (millimeters)
4.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Red
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Urethane
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/4"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-W304R Open Box Complete

Weight:

10.00lbs

Internal SKU:

ls-tsw304r-obc6

Internal Product ID:

132511
