JL Audio Stealthbox SB-F-SUPRCC/13TW5/GA

Custom-Fiberglass Enclosure w/ One 13TW5-3 Subwoofer for 2004-Up Ford SuperDuty Crew Cab (Stone, 94416)

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

Custom Stealthbox Enclosure with One 13TW5-3 Subwoofer • 1200W Max • 600W RMS • For 2004-Up Ford SuperDuty Crew Cab with FlexFold 60/40 Split Rear Bench Seat • Installs Under Driver-Side of Rear Bench Seat • Fiberglass Carpeted Sealed Enclosure

Learn more about the sbfsuprcc13tw5ga

We apologize

This item has been discontinued


Loading...
HRN-HRR-FO1 main

iDataLink Maestro HRN-HRR-FO1 Wiring Harness

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2006-2016 vehicles from Ford, Lincoln, Mercury

-18.27%

$84.99

List price $103.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

P1572 main

Rockford Fosgate Punch P1 P1572

240W Peak (120W RMS) 5x7" Punch Series 2 Way Coaxial 4-ohm Speakers

7

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

JBL Stage3 8627 (STAGE38627AM)

500W Peak (100W RMS) 6x8" Stage3 Series 2-way Coaxial 3-ohm Speakers

1
-18.19%

$89.95

List price $109.95

Product Highlights


Custom Stealthbox Enclosure with One 13TW5-3 Subwoofer • 1200W Max • 600W RMS • For 2004-Up Ford SuperDuty Crew Cab with FlexFold 60/40 Split Rear Bench Seat • Installs Under Driver-Side of Rear Bench Seat • Fiberglass Carpeted Sealed Enclosure

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:
  • 13-1/2" Single 3 ohm TW5 Thin-Line Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
    • Recommended Power Range: 100-600 watts
  • Impedance: 3 Ohm
  • Mica-filled polypropylene cone
  • Santoprene surround
  • Unique design allows for small airspace requirements
  • Requires only 0.8 cubic feet of airspace
  • Cast alloy basket
  • Frequency response: 20-500 Hz
  • Sensitivity: 85.87 dB
  • 1-year SonicElectronix.com warranty

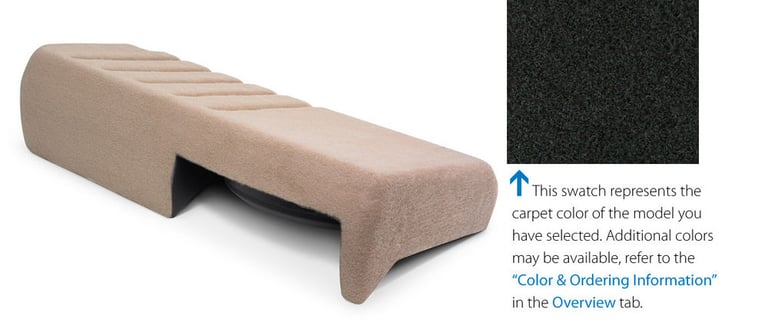

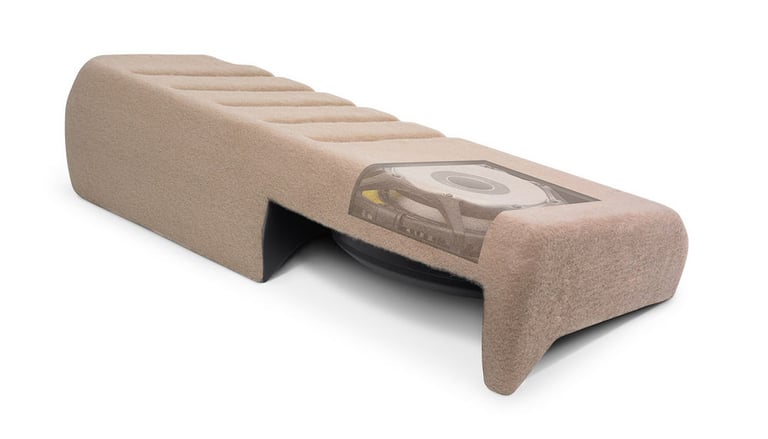

Enclosure Features:
  • For 2004-Up Ford SuperDuty Crew Cab
  • Only for vehicles with FlexFold 60/40 split rear bench seat
  • Wired for a 3 ohm load
  • Fiberglass sealed loaded enclosure
  • Loaded with one 13TW5-3 subwoofer

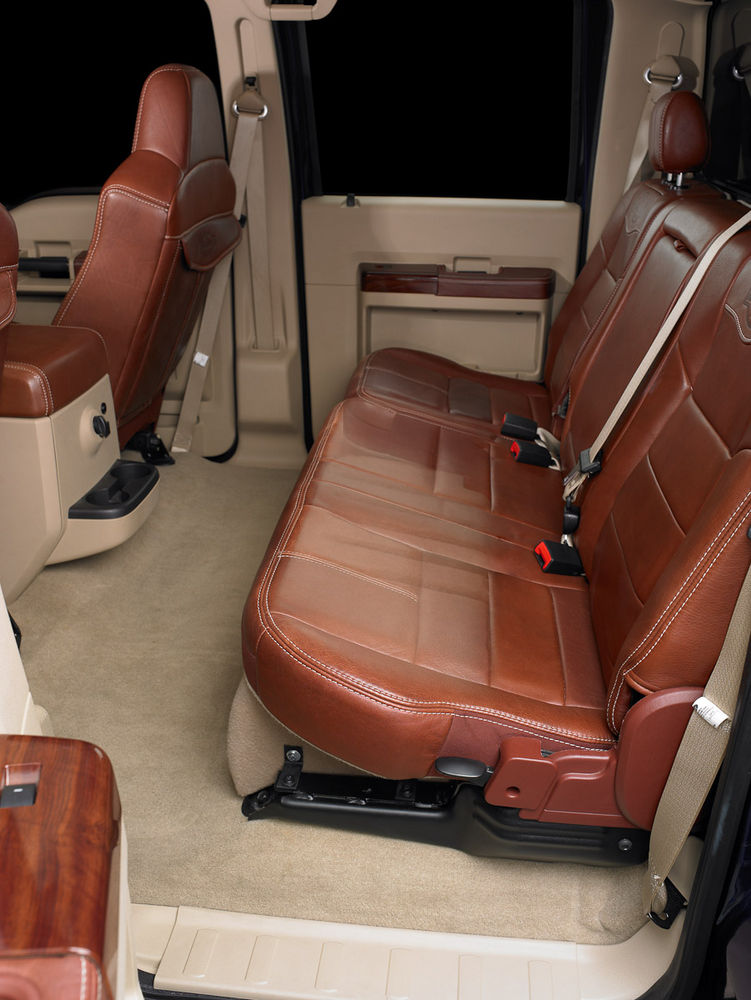

  • Installs under driver side of rear bench seat
  • Does not affect folding or reclining of seats
  • Professional carpeted finish
  • Hidden-from view terminals for cleanest installation possible
  • Black, steel mesh woofer grille for added woofer production is included
  • Binding post terminals for secure and sturdy connection and installation
  • OEM Color: Stone
  • Color Match Grade: Good
  • Also available in: Ebony, Black, Camel
  • Also found as: JL Audio 94416, SBFSUPRCC13TW5GA, JL Audio Stealthbox Ford SuperDuty Crew Cab, Stealthbox-Ford-SuperDuty Crew Cab-13TW5-GA

*JL Audio Stealthboxes are special-ordered for each customer and usually ship within 7-14 business days. As such, orders for Stealthboxes cannot be canceled unless it is unavailable.


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

Specifications & Details


Subwoofer Specifications
Series
TW5 Shallow Mount Series
Voice Coil(s)
Single
Impedance (Per Voice Coil)
3 ohm
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
85.87 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
9.7 mm
Subwoofer Size
13.5"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Stone
Box Finish
Carpet
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-F-SUPRCC/13TW5/GA

Weight:

60.00lbs

Internal SKU:

sbfsuprcc13tw5ga

Internal Product ID:

40402
