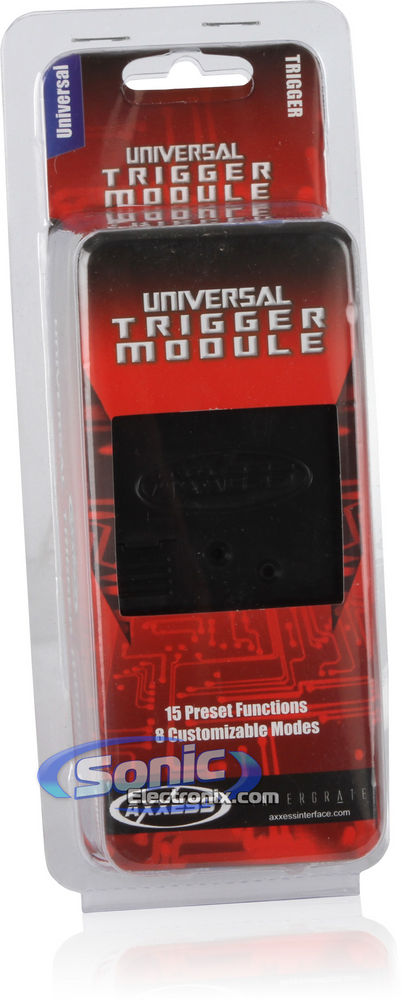

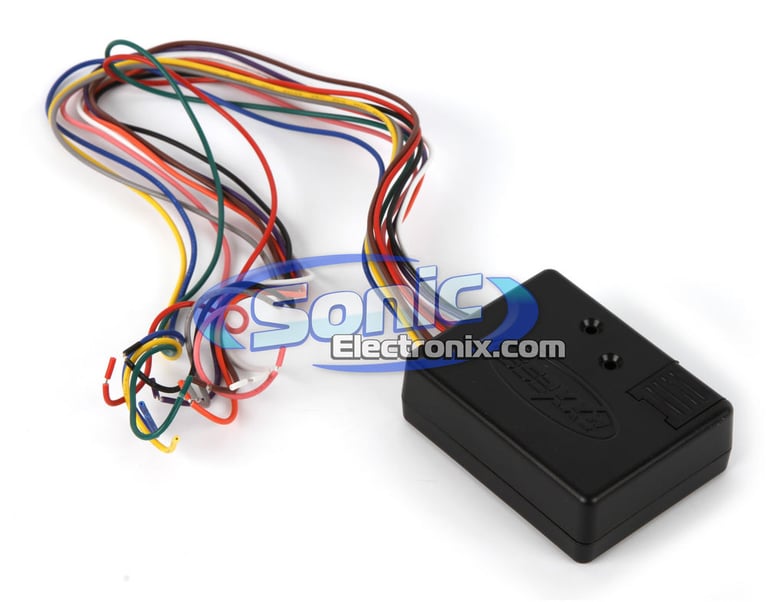

Axxess TRIGGER

Universal Trigger Module Provides 15 Different Functions Activated From A Positive or Negative Trigger

Axxess
Shop all Axxess
highlight-star-icon

• Universal Trigger Module
• Provides 15 Different Functions Activated From a Positive or Negative Trigger
• E-Brake Emulator
• Retained Accessory Power
• GMLAN Aftermarket Amp Turn-On
• Ability to Custom Program the Trigger

Learn more about the trigger

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Axxess brand icon

Authorized dealer

  • Universal Trigger Module
  • Provides 15 different functions activated from a positive or negative trigger
  • E-Brake Emulator emulates an E-Brake signal for use in RV’s, off road vehicles, and exhibition vehicles
  • Retained Accessory power will turn on when accessory turns on, and will not turn off until door opens or 10 minutes passes, whichever comes first
  • Delayed Turn-On allows a 2 second delay before an amp turn on output is sent to the amplifier
  • Low Voltage Turn-On provides 12 volts turn on from a low voltage source
  • Latched Outputs allow the capability of making a pulsed signal a latched signal
  • GMLAN Aftermarket Amp Turn-On provides an amp turn on LAN vehicles for adding an aftermarket amp
  • Active Edge Pulse Generator allows the capability of making an input signal a pulse signal
  • Turn-Off Delay allows the amp turn-off to be delayed by two seconds
  • Double Pulse Latch creates a latched signal from a double pulse signal
  • Double Pulse to One Second Output converts a double pulse output to a single pulse output
  • Theft Detection/ Closed Loop Trigger when connected, if item loses ground the Trigger will send out a 12 volt constant signal which can be hooked to an audible device
  • Channel Expander gives the ability to add additional channels to an alarm
  • Simple Data Detector produces a positive or negative signal out when data is detected
  • Long Delayed Turn-Off will keep headlights on for 1 minute after ignition is turned off
  • Dome Light Delay keeps dome light on for 30 seconds after ignition is turned off
  • Ability to custom program the Trigger using the Trigger program
  • Custom Program Modes:
    • Channel Expander (Latched) measures pulses that occur during 5 second interval/li>
    • Channel Expander (Pulsed) measures pulses that occur during 5 second interval
    • Delayed Turn-Off connects active high input to pin 9, or active low input to pin 10
    • Delayed Turn-On connects active high input to pin 9, or active low input to pin 10
    • Generic three output delay/pulse width, edge driven
    • Generic three output delay/pulse width, level driven
    • Square Wave Generator (honks horns and blinks lights)
    • Multiple Pulse Generator will produce multiple pulses on all outputs
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
