Crimestopper SV-6705

170° Ultra-Compact Flush Mount Style CMOS Color Reverse Camera

highlight-star-icon

Flush Mount Style CMOS Color Camera • Ultra-Compact Design • Built-In Distance Meter • Waterproof Design • Can Be Mounted In The Front Or The Rear

Learn more about the sv6705

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Description


Crimestopper brand icon

Authorized dealer

As Long As It's Flat

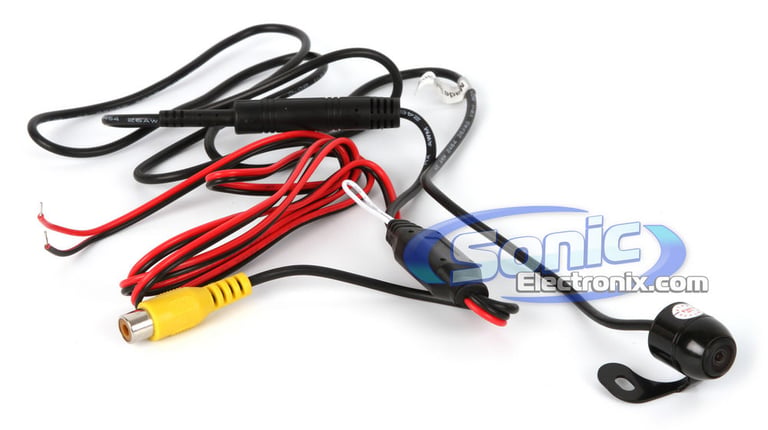

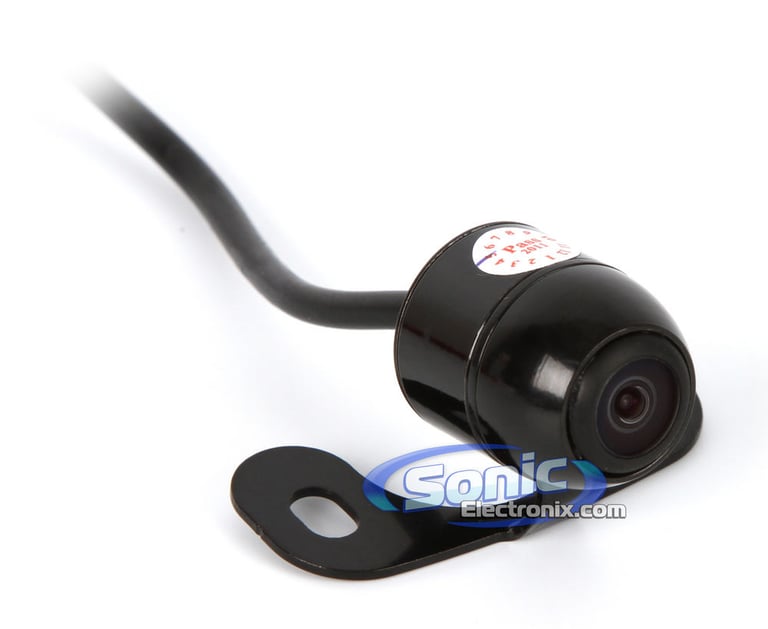

The SecurView™ SV-6705 is an ultra-compact mini bumper-fit flush mounted camera that can be installed almost anywhere on the vehicle as long as there is a flat surface. The flush mount design is perfect for user's who want the car looking completely factory with no aftermarket equipment sticking out.

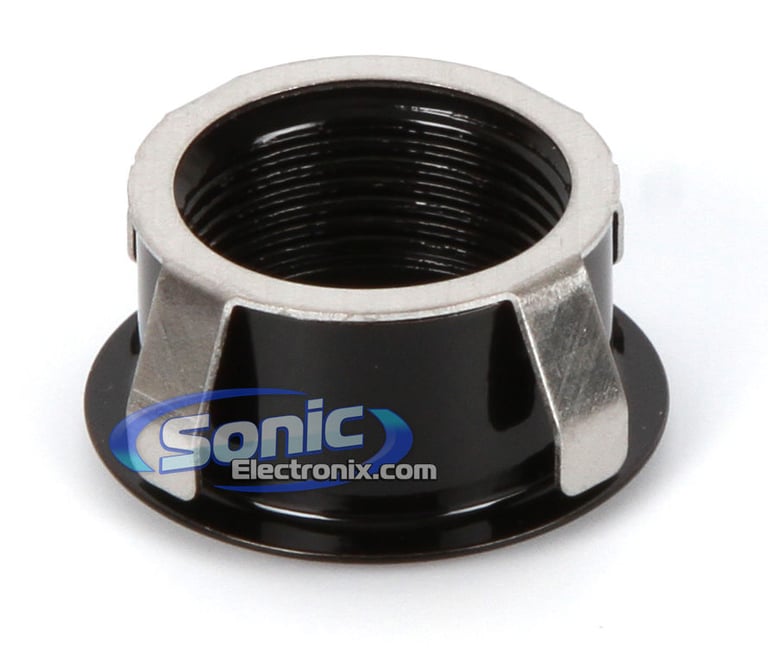

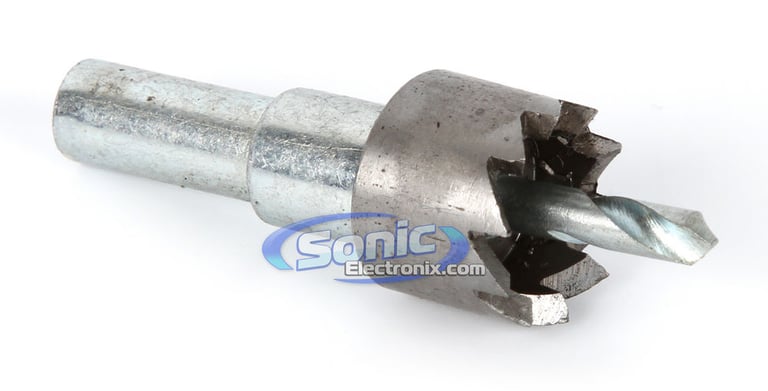

This camera is the smallest of our flush mount cameras and does not require a lot of space behind the mounting surface to be installed. Since it is a flush mount camera, a hole will be required for installation, however a hole saw bit is included with the camera to help drill the correct size hole. Once the hole is drilled the camera will snap into place leaving you a nice flush look on the vehicle surface.

General Features:
  • Flush Mount Style CMOS Color Camera
  • Ultra-compact design with super wide viewing angle
  • Flush mount design makes the camera barely noticeable and keeps the vehicle looking clean
  • Can be mounted in the front or the rear of the vehicle
  • Built-in distance meter to help the driver accurately judge distance behind the vehicle when reversing
  • Waterproof design (IP67)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Specifications:
  • Image Sensor: CMOS
  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 120°
  • TV System: NTSC / PAL
  • Normal / Reverse Image: Yes (Selectable)
  • Night Vision: No
  • Distance Meter: Yes
  • Audio: No
  • Resolution: 420 TV Lines
  • Illumination: 1 Lux / F 1.2
  • Dimensions (MM): 15(L) × 15(W) × 17(D)
  • Power Source: 12 Volt

Best selling similar products

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(35)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

RVCCH-75C small

Crux RVCCH-75C

• Rear-View Integration System with Camera
• For select 2013-2017 vehicles from Dodge, Jeep, Chrysler
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$261.90

List price $407.40

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

XCAMLP small

NVX XCAMLP

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Viewing Angle: 170 °
• Resolution: 720 x 480
• Waterproof: Yes
• Night vision: LED's

(51)

$49.99

List price $59.99

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 2500 and 3500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

RVCHN-76C small

Crux RVCHN-76C

• Backup Camera Integration Kit for select 2012-2013 Honda Civic Vehicles without navigation
• Waterproof Rear-view Camera included
• Automatically switches to Rear-View when car is in Reverse mode
• 170 Degree Viewing Angle
• Dimension: 3.5" L x 2.5" W x 7" H

(2)

$121.50

List price $189.00

Specifications & Details


General Features
Color Type
Color
Night Vision
No
Sensor Type
CMOS
Video Output

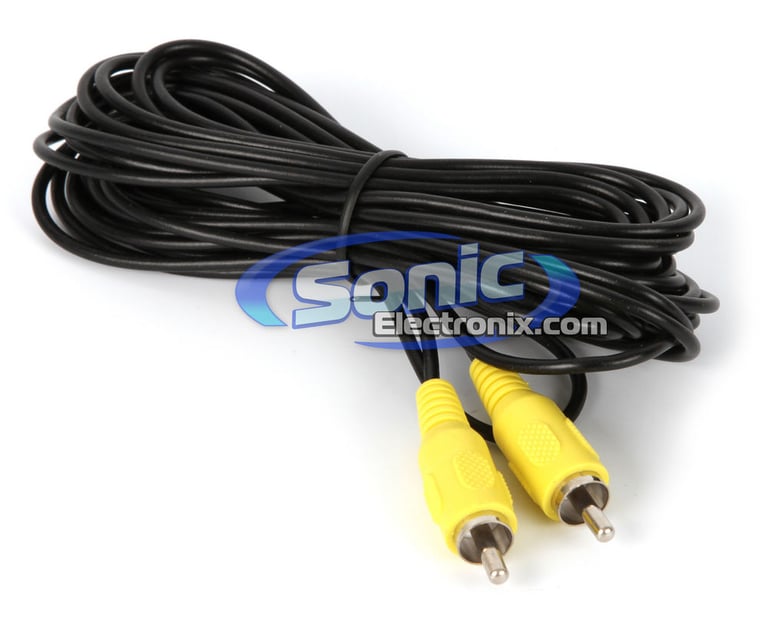

RCA Composite Cable
Mounting Type
Remote Mount
Adjustable Tilt
No
Weatherproof
Yes
Reverse Image
Adjustable
Parking Guidelines
Yes
Built-in Microphone
No
Primary Color
Black
Minimum Illuminance
1 lx
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SV-6705

Weight:

0.66lbs

Internal SKU:

sv6705

Internal Product ID:

40485

Customer Ratings & Reviews


Crimestopper SV-6705 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
4
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Good camera, but not great

I bought this camera for my Dodge Ram pickup. It was very easy to install and works pretty well in daylight. I have two complaints though. Number one, it would be nice if there was some type of reference mark on the housing indicating the top of the cam. It may sound strange, but you would be surprised how tricky it is to get the cam perfectly level. It takes a lot of trial and error. Secondly, if you use the cam at night often, you might want to opt for a more expensive model. This one works ok at night but it becomes very grainy at night. Overall it's a pretty good camera.

By Rob on August 19, 2012
