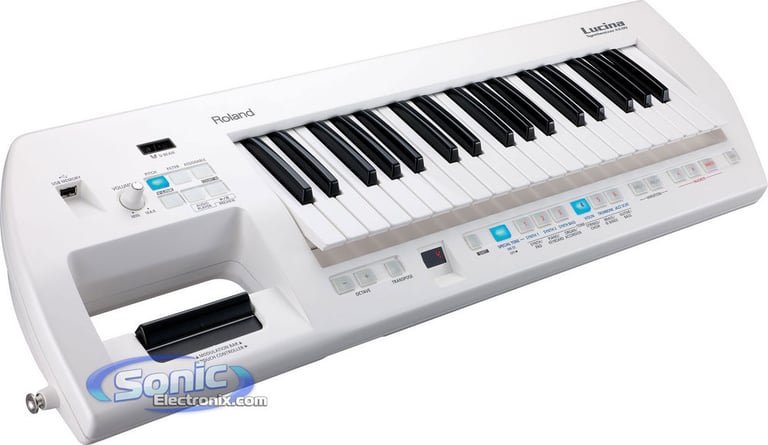

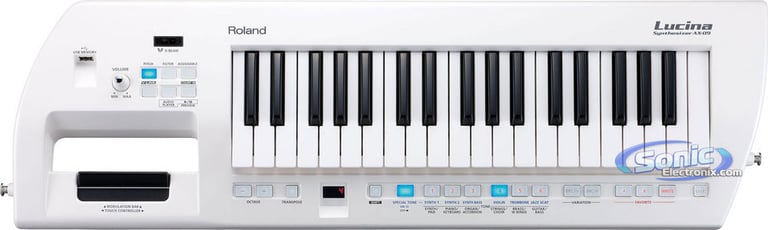

Roland Lucina AX-09

Lucina Pearl White 37-Key Tabletop/Shoulder Synthesizer w/ USB Song Player

Roland
Shop all Roland
highlight-star-icon

37-Key Tabletop/Shoulder Synthesizer • USB Song Player • 150 High-Quality Sounds • 128-Voice Polyphony • D Beam Controller • Modulation Bar & bull; Touch Controller • AC or Battery Powered (Ni-MH AA x 8)

Learn more about the ax09

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Roland brand icon

Authorized dealer

Roland Authorized Reseller

"Roam if you want to..."

No need to sit planted behind your gear! Feel free to roam with the Lucina AX-09 Synthesizer. The Lucina is light and compact, so pretty much anyone can carry it. The Lucina is also packed with high-quality sounds, all of which can be easily selected through the onboard Category buttons. Go ahead and plug in a USB stick to add backing tracks to your performances with the Audio Player feature, or you could plug in an MP3/CD player and jam along to your favorite songs. This lightweight synth has been designed to accommodate all kinds of musicians — even kids. With its spectacular sounds and expressive controls, the Lucina AX-09 packs quite a punch, and best of all: it's easy to use!

Great Sounds:
The Lucina AX-09 is loaded with 150 high-quality sounds that cover a broad stylistic spectrum - from blazing synth leads to silky-smooth pads. With the Lucina AX-09, you'll be sure to find the right sound quickly with the Category buttons. Press the Preview button to hear the currently selected sound with a pre-programmed riff. You may also assign your top 12 favorite sounds to the Favorites bank for instant recall. Reverb and volume level settings can also be stored with each individual Favorite setting.

Battery Power:

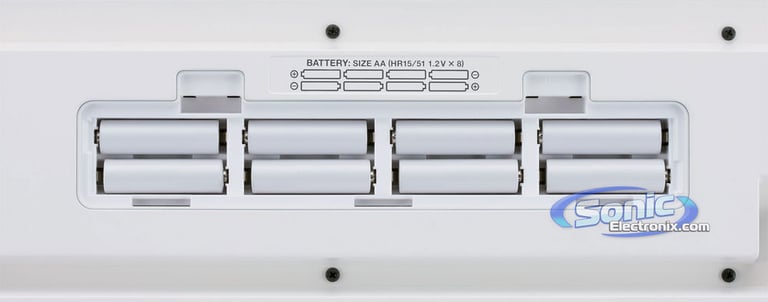

The Lucina AX-09 offers two power options: an included AC adapter or 8 Ni-MH AA batteries, enabling players to roam about the stage (batteries sold separately). A battery-power indicator alerts you when battery power is getting low so you never have to worry about missing a single note onstage.

Audio Player
The built-in USB Audio Player feature brings an entire band out of a single synthesizer. Simply plug in a USB stick with your favorite songs in MP3, WAV, or AIFF format, select the song you want, press Play and get jamming!

Hands-On Control
With the expressive controllers built into the Lucina AX-09, you'll be able to put your own unique stamp on your performances. Wave your hand over the invisible D Beam for dramatic effects, and use the Modulation Bar and Touch control to sculpt, bend and twist each sound you play just the way you like it.

Don't forget to pick up the LUCINA BAG, the only carrying bag specifically designed for your new Lucina synthesizer!


What's In The Box?

  1. (1) Owner's Manual
  2. (1) Quick Start Guide
  3. (1) Tutorial DVD
  4. (1) Strap
  5. (1) Panel Sticker
  6. (1) USB Memory Connector Cap
  7. (1) AC Adapter (PSB-1U (S))

Product Features:

  • White 37-key tabletop/shoulder synthesizer
  • Compact & lightweight design
  • Intuitive & user-friendly interface
  • 150 high-quality, diverse sounds
  • Velocity-sensitive keys
  • Maximum 128-voice polyphony
  • USB Audio Player
  • AC or battery powered (Ni-MH AA x 8, batteries sold separately)
  • Also available in black: Roland AX-09B
  • Also Found As: AX9, AX-9 Lucina, Luchina
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Optional Accessories:

Specifications:

  • Keyboard: 37 velocity-sensitive keys
  • Maximum Polyphony: 128 Voices
  • Parts: 1 Part
  • Tones: 150 Tones (144 Regular, 6 Special)
  • Playable Formats:
    • MP3:
      • Format: MPEG-1 Audio Layer 3
      • Sampling Frequency: 44.1 kHz
      • Bit Rate: 32 ~ 320 kbps CBR (Constant Bit Rate), VBR (Variable Bit Rate)
    • WAV, AIFF:
      • Sampling Frequency: 44.1 kHz
      • Bit Depth: 8/16/24-bit
  • Controllers:
    • D Beam Controller
    • Modulation Bar
    • Touch Controller
  • Connectors:
    • OUTPUT Jacks (L (MONO), R): 1/4" Phone Type
    • PHONES Jack: Stereo Mini Type
    • EXT IN Jack: Stereo Mini Type
    • FOOT PEDAL Jack: Assignable
    • USB COMPUTER Connector (for USB MIDI)
    • USB MEMORY Slot
    • MIDI OUT Connector (V-LINK)
    • DC IN Jack
  • Display: 7 segments, 3 characters (LED)
  • Power Supply:
    • AC Adapter
    • 8 x Ni-MH AA Size Rechargeable Batteries (sold separately)
  • Current Draw: 600mA
  • Battery Life (Continuous Use): Approx. 4 hrs (this figure will vary depending on conditions of use)
  • Size & Weight:
    • Weight: 8 lbs. 3 oz. (3.7 kg)
    • Width: 32-13/16" (832 mm)
    • Depth: 9-11/16" (245 mm)
    • Height: 3-3/4" (95 mm)

Specifications & Details


Keyboard Features
Number of Keys
37
Mod Wheel
Yes
Pitch Wheel
Yes
Aftertouch
Yes
Octave Shift
Yes
Advanced Controls
Number of Performance Pads
0
Number of Rotary Encoders
0
Number of Fader Encoders
0
Transport Controls
No
Controller Specifications
Footswitch/Expression Pedal Input(s)
Yes
MIDI Connections
5-Din Out
USB (Type B)
USB
Yes
Power Supply
AC Adapter
Batteries
Width
32-13/16"
Height
3-3/4"
Depth
9-11/16"
Weight (Pounds)
8 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AX-09

Weight:

8.18lbs

Internal SKU:

ax09

Internal Product ID:

40568

Customer Ratings & Reviews


Roland Lucina AX-09 thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
1
Usability
5

Customer Reviews

Sort by:

Loading...

Daggy but robust!

After my retro mini-keytar failed on stage in front of 50,000 people the AX09 was one of the few available to which I can hook on a strap & strut around the stage.

I love that the AX09:
1. Is sturdy, including coping with being put with cargo in a soft case (1 more lost plea to have my instrument as carry-on).
2. Doesn't have a 'neck' like the 80's keytars.
3. USB port for play-along tracks (ie. personal practice on the road).
4. That buttons are back-lit so I can see what's happening on a dark stage.

I use basic sounds - plenty of options & I believe modify-able.

What I wish was better:
1. That batteries could re-charge whilst in the keyboard (vs carrying around chargers & converter plugs on international tour).
2. That there were more colour options than heavy-metal-black & teeny-pop-girl white.
3. That the keys were 3/4 size (refer old Yamaha DX100) so the entire keyboard was smaller.

By Max on March 12, 2013
