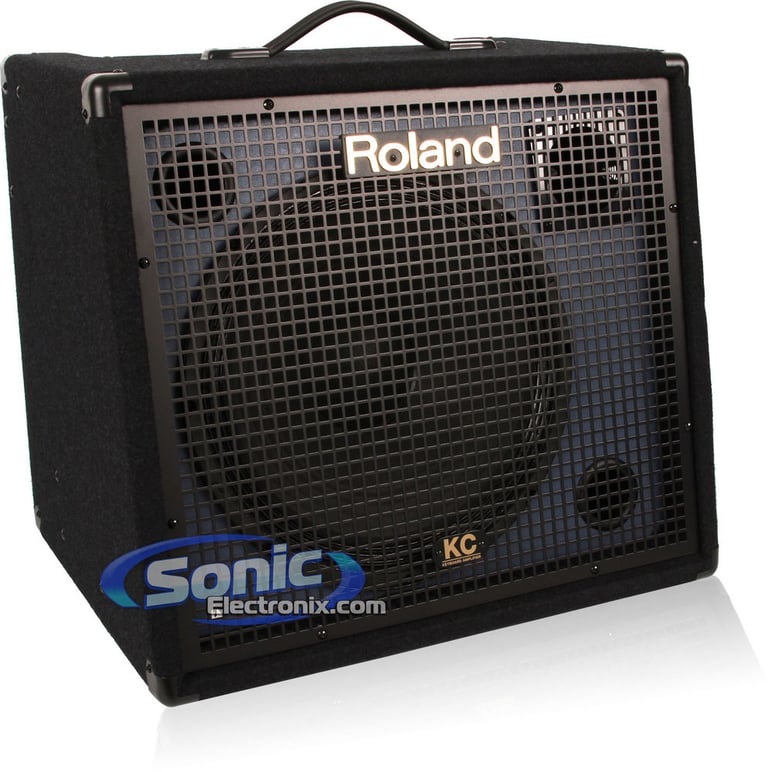

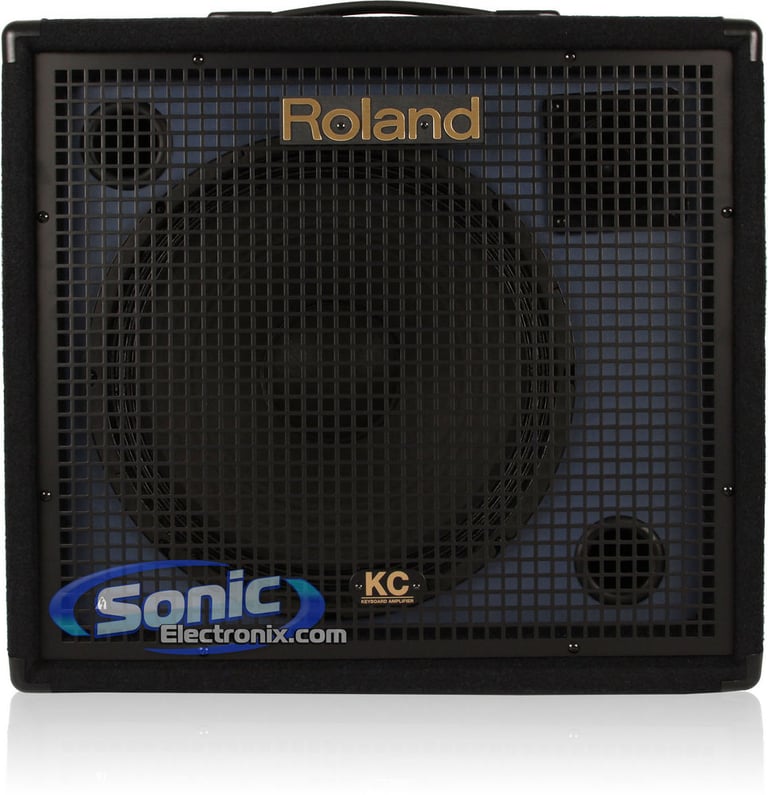

Roland KC-550 R/B

Product Features:

• 4-Channel 180W Stereo Mixing Keyboard Amplifier
• Powerful keyboard amplifier with 180-watt/15” speaker and horn tweeter
• Features Output Select and Shape switch for unique tonal adjustment
• 3-band EQ and Subwoofer output
• XLR Line output for connection to mixing consoles
• Stereo Link In/Out for chaining to KC-550s for stereo applications
• Also found as: KC550, K-C550
• Authorized Internet Dealer
• 1-year Parts, 90-days Labor Manufacturer's warranty

Specifications:

• Output:
• Rated Power Output: 180W
• Speakers: 15" (38 cm) x 1, Tweeter x 1
• Nominal Input Level (1 kHz):
• Channel 1 (MIC/LINE): -50 to -20 dBu
• Channel 2-4 (LINE): -20 dBu
• STEREO LINK INPUT: 0 dBu
• AUX IN: -10 dBu
• Nominal Output Level (1 kHz):
• LINE OUT: +4 dBu
• STEREO LINK OUTPUT: 0 dBu
• SUBWOOFER OUT: +4 dBu
• Controls:
• CHANNEL CONTROL:
• CH1 VOLUME Knob
• CH2 VOLUME Knob
• CH3 VOLUME Knob
• CH4 VOLUME Knob
• OUTPUT SELECT Switch
• PHONES VOLUME Knob
• MASTER CONTROL:
• EQ (LOW) Knob
• EQ (MIDDLE) Knob
• EQ (HIGH) Knob
• SHAPE Switch
• VOLUME Knob
• POWER Switch
• GND LIFT Switch

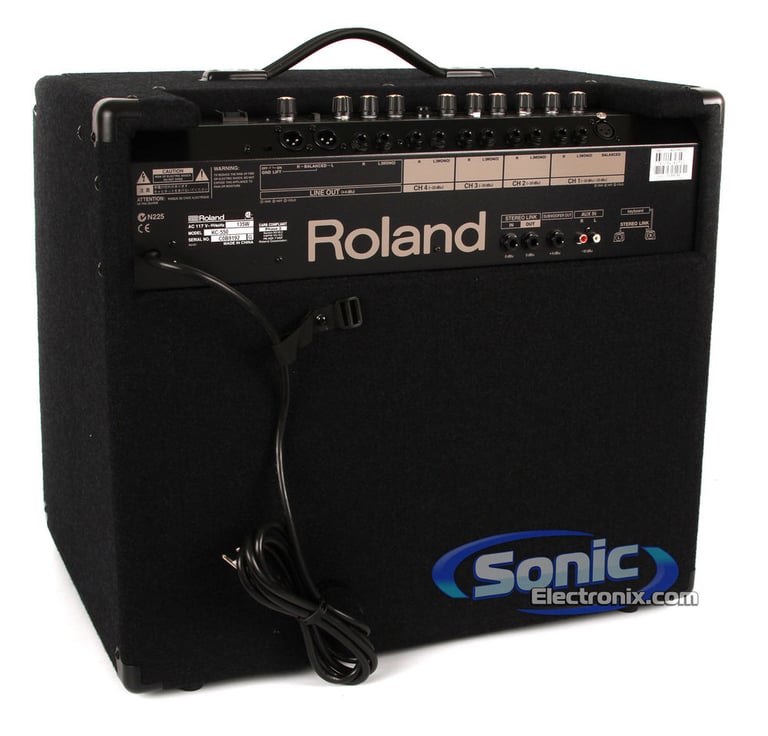

• Connectors:
• CH1 INPUT Jack (XLR type)
• CH1-4 INPUT L (MONO) Jacks (1/4" phone type)
• CH1-4 INPUT R Jacks (1/4" phone type)
• LINE OUT L (MONO) Jacks (XLR type, 1/4" phone type)
• LINE OUT R Jacks (XLR type, 1/4" phone type)
• AUX IN Jacks (RCA phone type)
• SUBWOOFER OUT Jack (1/4" phone type)
• STEREO LINK OUT Jack (1/4" phone type)
• STEREO LINK IN Jack (1/4" phone type)
• PHONES Jack (Stereo 1/4" phone type)
• Power Supply: AC 117 V, AC 230 V, AC 240 V
• Weight: 63 lbs. 15 oz. (29 kg)
• Dimensions: 23-1/4" (590 mm) W x 17-9/16" (445 mm) D x 21-1/8" (536 mm) H
