Description


Roland brand icon

Authorized dealer

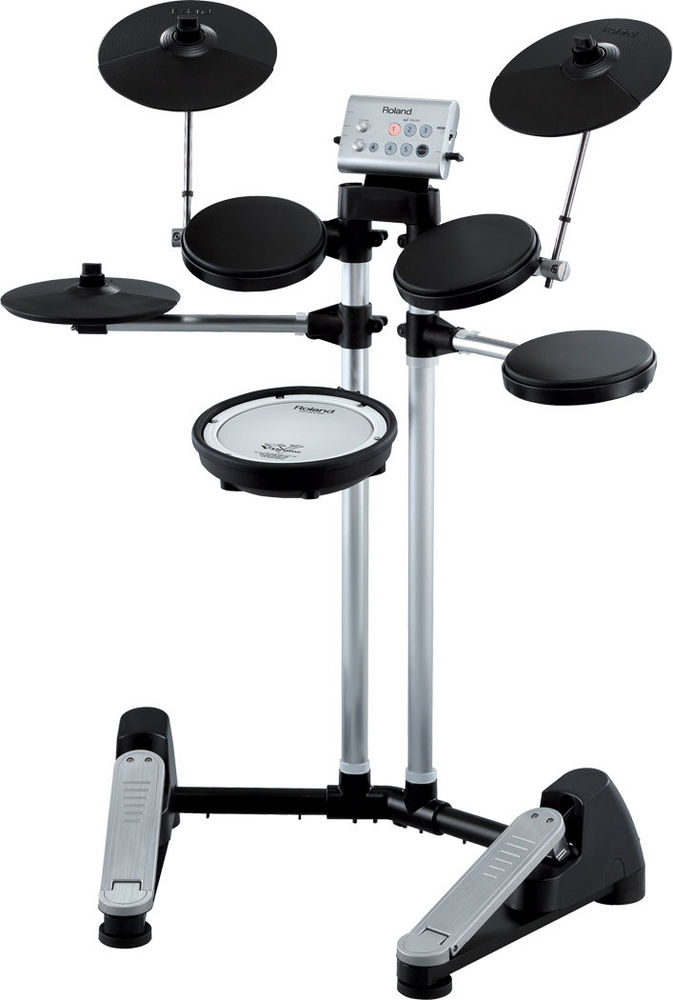

The Roland HD-1 V-Drums® Lite

Roland’s V-Drums are by far the most popular electronic drums in the world, but not everyone has the room or the money for a full V-Drums kit. Enter the new Roland HD-1 V-Drums Lite! This delightfully affordable kit is forged from the same Roland technology as its brethren, but it's much easier to use. It’s also amazingly quiet due to the cushioned tom pads, and newly designed kick beater. The HD-1 kit is also conveniently compact and stylish — ideal for any home, school, studio, etc. — and it's priced for the masses. Many of the HD-1’s components are mounted on one stand for quick setup and transport, and for a cleaner look. Just unbox it and start rockin'!

Think Big
The HD-1 kit might even look a little too compact, but rest-assured the HD-1 sounds and performs impressively large, especially when paired with a drum monitor (see Optional Accessories list below). With Roland’s legendary V-Drum technology at its core, this little darling is a dream come true for beginners or casual players as well as parents, since the volume level can be completely controlled via volume knob and/or headphones.

Play Along With Your Favorite Tunes
The HD-1 comes with an external input to connect CD players, iPods® and other personal media devices. Rock along with your favorite songs, and mix the blend of music and your live drumming through your headphones or a drum amplifier.

Roland Authorized Reseller

Product Features:

  • V-Drums® Lite
  • External input available for personal media devices
  • 70 high-quality drum, percussion and special effects
  • 10 drum kits and patterns for a wide variety of expressive sounds
  • Built-in metronome to help practice your timing
  • Tempo control to help improve your speed
  • Optional HD-1 Drum Tutor software available (see Optional Accessories list below)
  • Also found as: HD1, H-D1
  • Authorized Internet Dealer
  • 1-year Parts, 90-days Labor Manufacturer's warranty

What's In The Box?

  1. (1) Owner's Manual (see Product Summary below for PDF)
  2. (1) Setup Guide
  3. (1) Video Manual (DVD)
  4. (1) Kick Pedal
  5. (1) Snare V-Pad
  6. (1) V-Hi-Hat
  7. (1) Hi-Hat Control Pedal
  8. (3) Tom V-Pads
  9. (1) Crash V-Cymbal
  10. (1) Ride V-Cymbal
  11. (1) AC Adapter (PSB-1U)
  12. (1) Trigger Cable (pre-positioned in Drum Stand)
  13. (1) Drum Key
  14. (1) Screwdriver
  15. (4) Screws for Sound Module
  16. (4) Screws for Foot Pipe
  17. (1) Roland Sticker

Optional Accessories:

Specifications:

  • Drum Sounds: 70
  • Drum Kits: 10
  • Drum Patterns: 10
  • Controls:
    • (5) Drum Kit Buttons
    • (1) Variation Button
    • (1) Metronome Button
    • (1) Volume Knob
    • (1) Tempo Knob
  • Metronome:
    • Tempo (40-220)
    • Sounds (3 types)
    • Volume (3 levels)
  • Connectors:
    • Output Jack: Stereo Miniature Phone Type*
    • *Output Jack can be connected with headphones
    • Headphone Jack: Stereo Miniature Phone Type
    • Mix In Jack: (Stereo Miniature Phone Type
    • MIDI OUT Connector (5-pin DIN type)
    • Trigger Cable Connector (DB-25 type)
  • Output Impedance:
    • Output jack: 100 ohm
    • Headphone jack: 100 ohm
  • Power Supply: DC 9 V (AC Adapter)
  • Current Draw: 300 mA
  • Weight: 33 lbs. 2 oz. (15 kg)
  • Dimensions:
    • Width: 33-1/2" (850 mm)
    • Depth: 22-1/16" (560 mm)
    • Height: 46-1/16" (1170 mm)

Product history:

Roland HD-3 thumbnail
(newest, current model)
Roland HD-1 thumbnail
(previous model, replaced by Roland HD-3)
