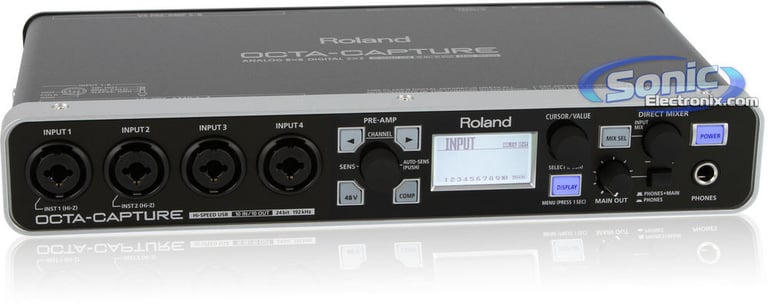

Roland UA-1010

Product Features:

• Octa-Capture 10 X 10 24-bit/192 kHz Hi-SPEED USB audio interface
• Propietary VS Preamp and VS Streaming technology
• AUTO-SENS feature for automatic level adjustment on each individual preamp
• Includes Cakewalk's SONAR X1 LE (Windows Only)
• Also found as: UA1010, U-A1010, UA10-10, OCTACAPTURE, Octa Capture
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Cakewalk SONAR X1 LE Features:

• Skylight Interface – the stunning new face of SONAR X1 includes redesigned Browser, Inspector, Screensets and MultiDock
• New Smart Tools intelligently edits audio and MIDI with no interruption to your creative flow
• Simpler, better installer and product activation process
• New template choices for popular project types like “Record Voice” and genres like “Rock”
• Hardware auto-detecting simplifies USB audio devices like USB Microphones setup
• Consolidated preferences puts everything together in one centralized place making it easier to find and change options
• Drag and Drop everything – audio files, MIDI files and video content, project and track templates and track effects
• Simplified track controls and a fully customizable Control Bar
• Matrix View - experience a whole new approach to creating music by loading audio or MIDI tracks, loops, and one-shots to improvise compositions on the fly
• Intuitive Shortcuts - designed to help new and power users to get around the new interface quickly
• All New Content: Over 1 GB in total, including 350+ WAV/REX audio files, 1000+ MIDI groove clips, tutorial projects, track templates and project templates
• Premium Cakewalk instruments including Studio Instruments Drums and Cakewalk Sound Center

---

OCTA-CAPTURE Specifications:

• Number of Audio Record/Playback Channels:
• [@ 44.1/48/96 kHz] Record: 12, Playback: 10
• [@ 192 kHz] Record: 4, Playback: 4
• Signal Processing:
• PC interface: 24-bit
• AD/DA Conversion: 24-bit
• Internal: 40-bit
• Sampling Frequency:
• AD/DA Conversion: 44.1/48/96/192 kHz
• DIGITAL (IN/OUT): 44.1/48/96 kHz
• Nominal Input Level:
• Input Jack 1-6 (XLR): -56 to -6 dBu
• Input Jack 7-8 (XLR): -50 to +0 dBu
• Input Jack 1-8 (1/4" TRS phone): -46 to +4 dBu
• Nominal Output Level: OUTPUT 1-8: +0 dBu (balanced)
• Head Room: 16 dB
• Input Impedance:
• Input Jack 1-6 (XLR): 5 k ohm (balanced)
• Input Jack 7-8 (XLR): 10 k ohm (balanced)
• Input Jack 1-8 (1/4" TRS phone): 17 k ohm (balanced)
• Output Impedance:
• OUTPUT 1-8: 1.8 k ohm (balanced)
• PHONES: 47 ohm
• Frequency Response:
• 192 kHz: 60 kHz to 90 kHz (+0/-8 dB)
• 192 kHz: 20 Hz to 60 kHz (+0/-2 dB)
• 96 kHz: 20 Hz to 40 kHz (+0/-2 dB)
• 48 kHz: 20 Hz to 22 kHz (+0/-2 dB)
• 44.1 kHz: 20 Hz to 20 kHz (+0/-2 dB)
• Residual Noise Level: INPUT 1-8 -> MAIN OUT: -87 dBu typ. (GAIN: min., 600 ohm terminated, IHF-A)
  *Internal Direct Monitor Mixer setting Stereo Link: ON,
  Input channel fader: Unity
• Dynamic Range:
• AD block: INPUT 1-8: 104 dB typ. (GAIN: min.)
• DA block: OUTPUT 1-8: 113 dB typ.
• Display: 128 x 64 Graphic LCD (backlit LCD)

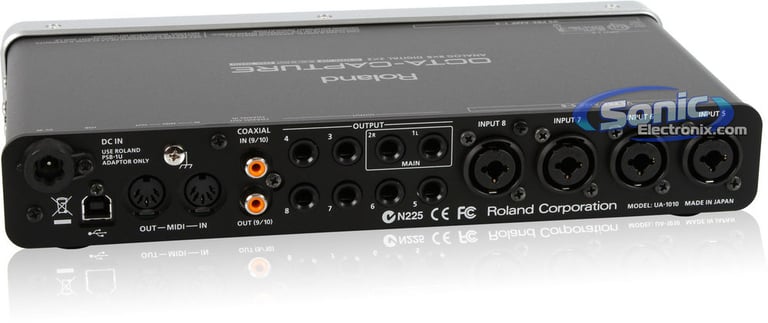

• Connectors:
• Combo Input Jacks 1-8 (XLR / 1/4" TRS phone)
• XLR (balanced / phantom power +48V)
• 1/4" TRS phone (balanced)
• Coaxial Input Connector
• Coaxial Output Connector
• Headphone Jack (Stereo 1/4" phone)
• Output Jack 1-8 (1/4" TRS phone: balanced)
• MIDI Connectors (In, Out)

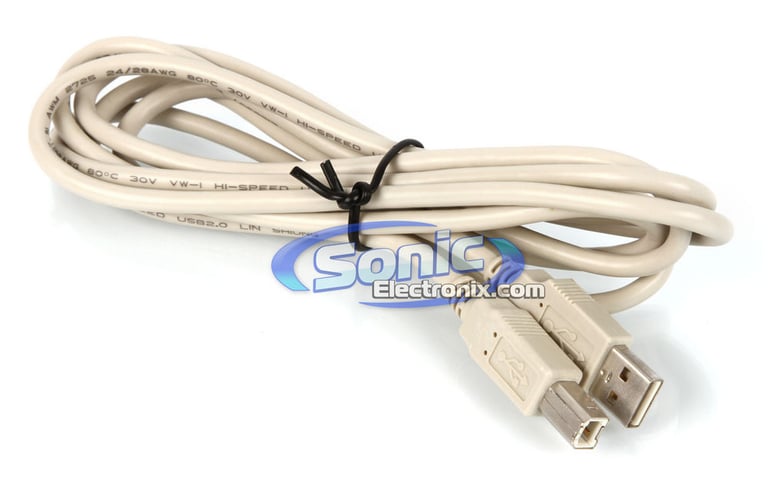

• USB Connector

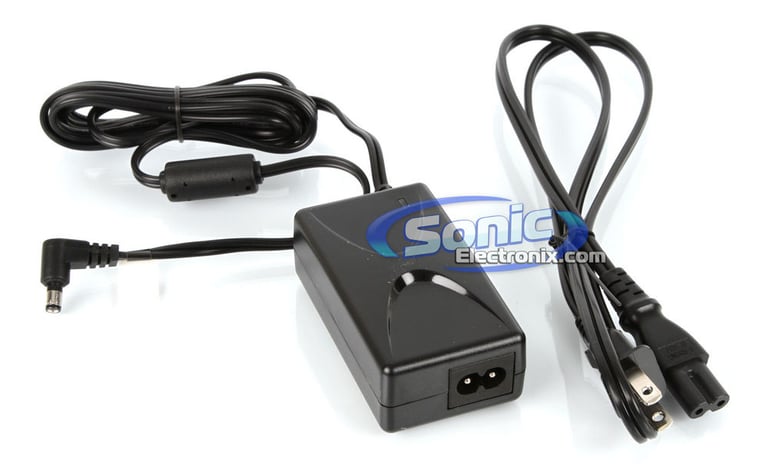

• Power Supply: DC 9 V (AC adapter)
• Current Draw: 1.45 A
• Size & Weight:
• Weight: 2 lbs. 15 oz. (1.32 kg)
• Width: 11-3/16" (283.8 mm)
• Depth: 6-1/4" (157.9 mm)
• Height: 2" (50.4 mm)

---

System Requirements for OCTA-CAPTURE*:

• Windows:
• OS: Microsoft® Windows® 7 / Vista® / XP Home / XP Professional SP2 or later**
• USB: USB 2.0 port
• CPU/Clock: Intel® Core™ 2 Processor 1.6 GHz or higher
• Memory (RAM): 1 GB or more (2 GB or more is recommended)


• Mac:
• OS: Mac OS X 10.4.11 or later***
• USB: USB 2.0 port
• CPU/Clock: Intel® Core™ Processor
• Memory (RAM): 1 GB or more (2 GB or more is recommended)


• To use at 192 kHz, Intel® Core™ 2 Processor/2 GHz or higher and built-in 7200 rpm or faster hard drive are required
• To use two OCTA-CAPTUREs, Intel® Core™ 2 Processor/2 GHz or higher and built-in 7200 rpm or faster hard drive are required
• To use two OCTA-CAPTUREs at 96 kHz or higher, one separate built-in SATA or faster hard drive dedicated for audio recording is required (A USB hard drive cannot be used)
• To use two OCTA-CAPTUREs with Mac, Mac OS X 10.5.8 or later is required

* This product has been tested on representative computers that meet the system requirements, but we cannot guarantee that it will operate on any computer that meets these requirements. Please be aware that even under the same conditions, differences in the operating environment may produce differences in performance.

** This product does not support Windows XP Media Center Edition or XP Professional x64

*** Mac computers running Microsoft Windows are not supported

---

System Requirements for Cakewalk SONAR X1 LE:

• Operating System: Microsoft Windows XP SP3, Windows Vista SP2, or Windows 7
• Processor: Intel P4 1.3 GHz or Core Solo 1.5 GHz
• RAM: 1 GB
• HDD Space: 3 GB
• Video Resolution: 1024 x 768, 16-bit
• Audio Hardware: Audio interface (WDM, ASIO)
If you're using Windows Vista, we recommend you use an external audio interface.
* Does not support Windows 95, 98, NT, ME, 2000, or XP Media Center Edition
* Internet connection is required for registration
