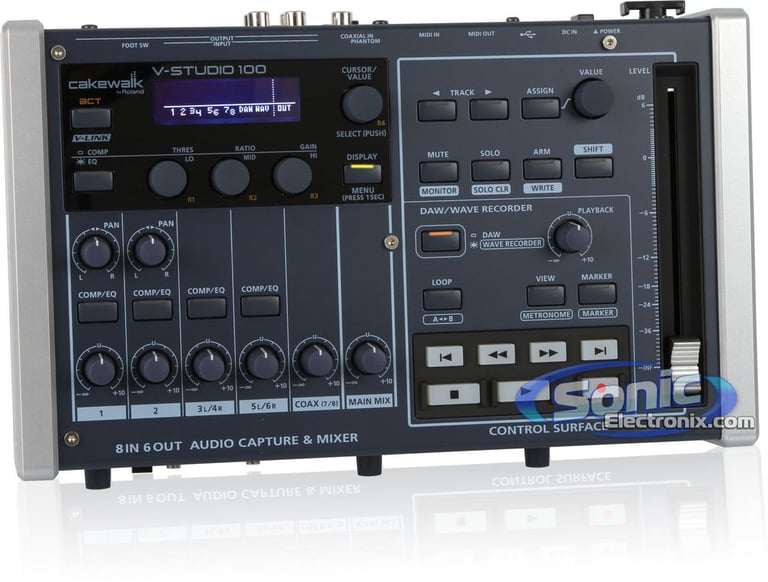

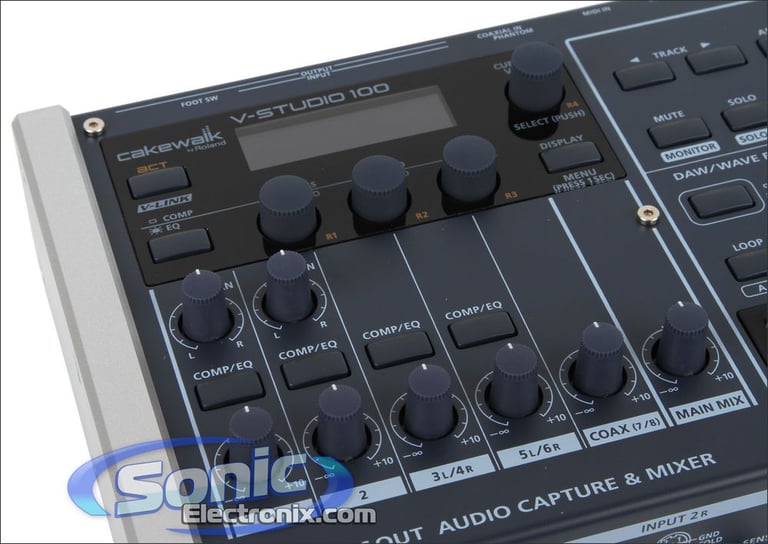

Roland VS-100

Product Features:

• V-Studio 100 Audio Interface
• Lightning fast USB 2.0 audio interface
• ASIO, WDM, WASAPI, ReWire, VST, V-Link & Core Audio supported
• Universal DAW (Digital Audio Workstation) controller - control any DAW via Mackie Control protocol
• SONAR VS digital audio workstation included (Windows only)
• Interface includes advanced control of SONAR software through proprietary Active Controller Technology (ACT)
• Features VS Product Pack suite of software instruments and effects for Mac and Windows
• 100 mm motorized, touch-sensitive fader for writing automation
• 5 rotary encoders, 11 buttons and transport control included
• Use V-Studio 100 as a digital mixer - perfect for mixing small bands, soloists, DJs or for home studios
• Two mic preamps w/ phantom power, Hi-Z guitar input and MIDI I/O included
• 8 in + mix / 6 out, 24-bit/96 kHz quality
• Four distinct types of reverb & 6 channels of EQ and compression
• Includes SD WAV recorder - no need for a computer
• 2 channel wave recording and playback - play and record to backing tracks
• Built-in metronome to keep recordings tight
• Insert markers during recording and playback for better organization
• Loop regions for practicing or jamming
• Also found as: VS100, V-S100, V-Studio100, V-Studio-100
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

V-STUDIO 100 Specifications:

• Audio Interface/Digital Mixer:
• Number of Input Channels: 8
• AD/DA Conversion:
• Sample Rate: 44.1/48/96 kHz
• Bit Depth: 24-bit
• DSP Processing: Compressor, Equalizer, Reverb
• Number of USB Audio Record/Playback Channels (Full Duplex):
• Record: 10 channels
• Playback: 6 channels
• Frequency Response:
• 96 kHz: 20 Hz to 40 kHz (+0/-3 dB)
• 48 kHz: 20 Hz to 22 kHz (+0/-3 dB)
• 44.1 kHz: 20 Hz to 20 kHz (+0/-3 dB)
• Residual Noise Level (IHF-A, typ.)
• -96 dBu (MAIN MIX knob = U, CHANNEL VOLUME knob = -∞)
• -81 dBu (MAIN MIX knob = U, CHANNEL VOLUME knob = U)
• Nominal Input Level:
• Mic Input Jacks 1-2: -60 to -16 dBu
• Input Jacks 1-2: -40 to +4 dBu
• Input Jacks 3-4: +4 dBu
• Input Jacks 5-6: -10 dBu
• Maximum Input Level: Nominal Input Level +18 dB
• Input Impedance:
• Mic Input Jacks 1-2: 1.5 k ohm
• Input Jacks 1-4: 15 k ohm
• Input Jacks 2 (Hi-Z): 500 k ohm
• Input Jacks 5-6: 18 k ohm
• Nominal Output Level:
• Output Jacks 1-4: +4 dBu
• Output Jacks 5-6: -10 dBu
• Maximum Output Level: Nominal Output Level +18 dB
• Output Impedance:
• Output Jacks 1-4: 2 k ohm
• Output Jacks 5-6: 1 k ohm
• Recommended Load Impedance: 10 k ohm or greater

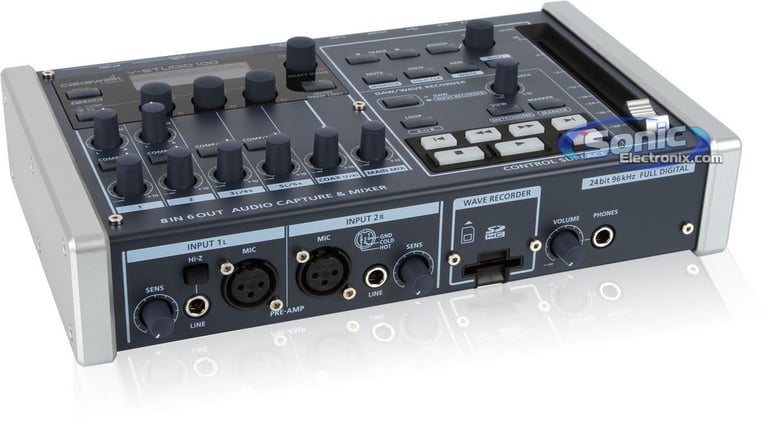

• Connectors:
• Mic Input Jacks 1-2: XLR type (balanced/phantom power +48 V)
• Input Jacks 1-4: 1/4" TRS phone type (balanced)
• Input Jack 1: Lo-Z/Hi-Z
• Input Jacks 5-6: RCA pin type
• Output Jacks 1-4: 1/4" TRS phone type (balanced)
• Output Jacks 5-6: RCA pin type
• MIDI Connectors: Input/Output
• Digital Input Connector: Coaxial type

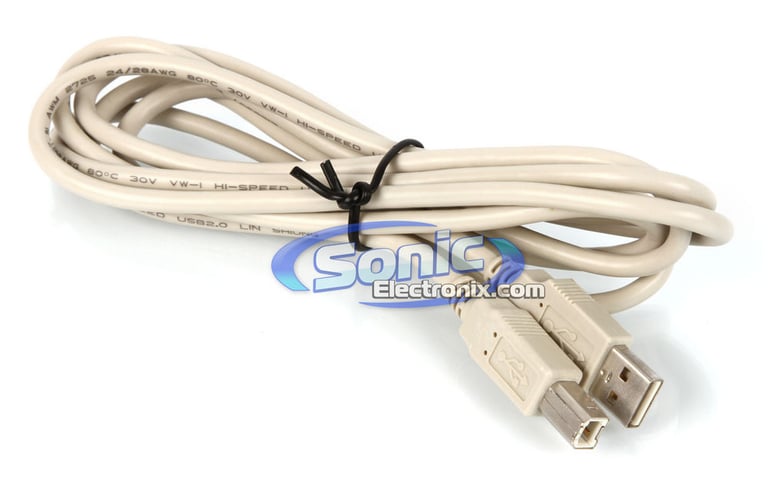

• USB Connector: B type
• Headphones Jack: Stereo 1/4" phone type)

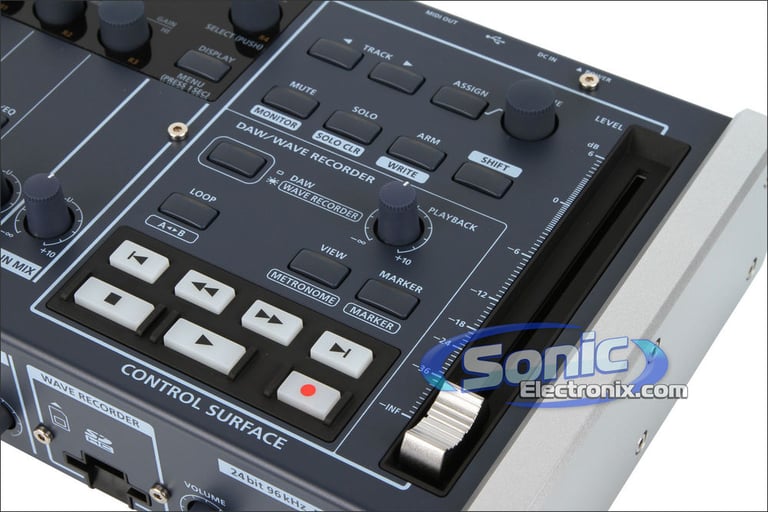

• DAW Controller:
• ACT Mode: OFF
• Fader: 100 mm Motorized Fader
• Fader Encoders: 1
• Buttons: 10 Transport
• ACT Mode: ON
• Fader: 100 mm Touch-Sensitive Motorized Fader
• Fader Encoders: 5
• Buttons: 11 Transport
• FULL-ASSIGN Mode: ON
• Fader: 100 mm Touch-Sensitive Motorized Fader
• Fader Encoders: 5
• Buttons: 16 Transport
• Volume: 8


• Wave Recorder:
• Channels:
• Record: 1 Channel Stereo
• Playback: 1 Channel Stereo (NORMAL MODE)
• Playback: 2 Channel Stereo (REC-ON-PLAY MODE)
• Data Type:
• Format: STEREO, WAV
• Sampling Frequency: 44.1/48/96 kHz
• Bit Depth: 16/24-bit
• Recording Media: SD(HC) Memory Card (not included), 512 MB or more
• Files:
• Up to 2 GB: 512 files
• 4 GB or more: 1000 files
• Controls:
• A-B
• REPEAT
• Marker
• Metronome
• REC-ON-PLAY MODE
• Recording Time using 8GB SDHC card:
• 16-bit/44.1 kHz Stereo: 755 min.
• 16-bit/48 kHz Stereo: 694 min.
• 24-bit/48 kHz Stereo: 462 min.
• 24-bit/96 kHz Stereo: 231 min.
   * Recording times are approximate. Actual results may vary.
   * If more than one recorded file exists, the total recordable time will be less than listed.
   * WAVE RECORDER does not function when VS-100 is connected to PC.


• Others:
• Display: Graphic LCD 122 x 32 dot (with back-light)

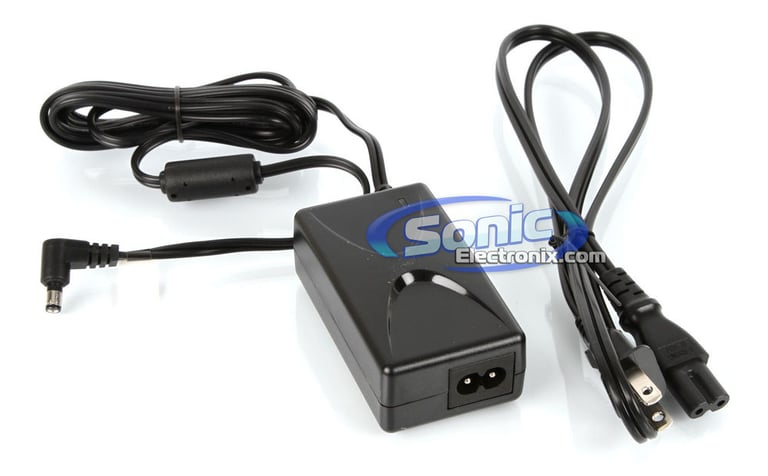

• Power Supply: DC 9 V (AC Adapter)
• Current Draw: 1 A
• Phantom Power: +48 V/5 mA (each input)
• Size and Weight:
• Weight: 4 lbs. 4 oz. (1.9 kg)
• Width: 11-1/8" (282 mm)
• Depth: 7-1/8" (180.8 mm)
• Height: 2-13/16" (70.2 mm)

SONAR VS Specifications:

• 64 audio tracks
• Unlimited MIDI tracks
• Includes twelve audio effects
• Includes five virtual instruments
• VS Production Pack includes:
• VX-64 Vocal Strip
• Native Instruments Guitar Rig 3 LE
• Boost 11 Peak Limiter
• Channel Tools
• Dimension LE
• Rapture LE
• Studio Instruments Bass
• Studio Instruments Drums
• Studio Instruments Electric Piano
• Studio Instruments Strings

System Requirements for V-Studio 100:

• USB Port
• 1 GB RAM (2+ GB recommended)
• 8+ GB Hard Disk Space
• 1024 x 768 Screen Resolution or higher
• DVD-ROM Drive for installation


• Windows PC:
• OS: Microsoft® Windows Vista®/Windows® XP Home/Windows® XP Professional SP2 or later*
• CPU: Intel® Core™ Processor 1.5 GHz or higher
• Optional: CD-R Drive for writing CDs; Internet Connection and Web Server Space with FTP Access for uploading music via Cakewalk Publisher


• Macintosh:
• OS: Mac OS X 10.4.11, Mac OS X 10.5.6 and higher**
• CPU: Intel Core2Duo Processor or higher***
• Optional: CD-R Drive for writing CDs; Internet Connection and Web Server Space with FTP Access for uploading music via Cakewalk Publisher

Recommended System Specifications for SONAR VS:

• Operating System: * Windows 7/Vista/XP (32 and 64-bit)
• Processor Speed: Intel Pentium 4 2.8 GHz [EM64T] or AMD Athlon XP 2800+ or better
• Memory: 1 GB or more
• Screen Resolution: 1280 x 960, 24-bit color or higher
• Hard Disk Space: 1 GB
• Hard Disk Type: EIDE/Ultra DMA (7200 RPM) or SATA
• MIDI Interface: ** Windows-compatible
• Audio Interface: *** Windows-compatible
• Media Drive: **** DVD-ROM drive
• Webserver Access: ***** Available web server space with FTP access privileges

Minimum System Requirements for SONAR VS:

• Operating System: * Windows XP (32-bit)
• Processor Speed: Intel Pentium 4 1.3 GHz or AMD Athlon XP 1500+
• Memory: 512 MB
• Screen Resolution: 1024 x 768, 16-bit color
• Hard Disk Space: 500 MB
• Hard Disk Type: Any
• MIDI Interface: ** Windows-compatible
• Audio Interface: *** Windows-compatible
• Media Drive: **** DVD-ROM drive
• Webserver Access: ***** None

* SONAR VS does not support Windows 95, 98, ME, NT, or 2000.

** Required to connect external MIDI devices.

*** Required for audio playback. See https://www.cakewalk.com/PCresource for a complete list of recommended audio devices.

**** SONAR VS is presented on DVD media. DVD-ROM Drive required for installation.

***** Cakewalk Publisher requires you to have available web server space with FTP access privileges. An internet connection is required for music uploading. A broadband connection is recommended.
