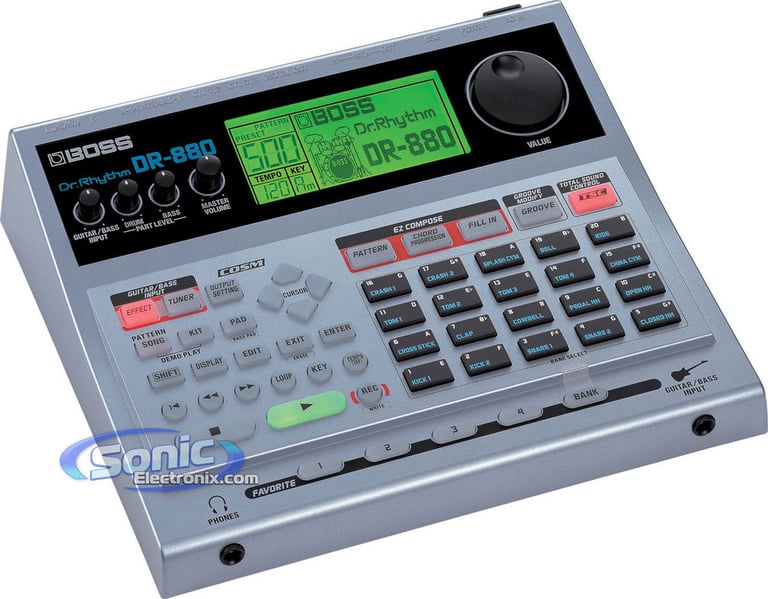

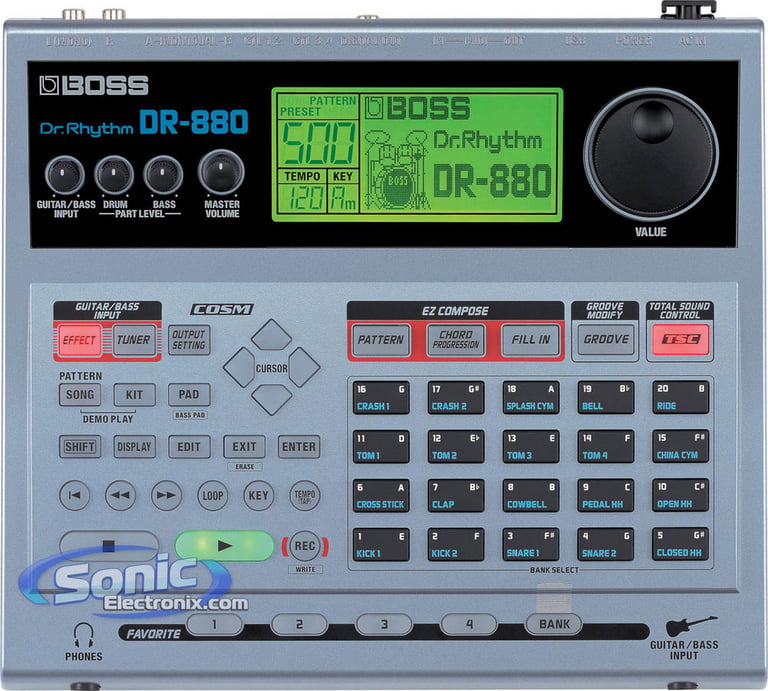

Boss DR-880

General Features:

• 440 world-class drum and percussion sounds, 40 bass sounds with COSM bass-amp models
• Three independent insert effects (EQ and compression), Total Sound Control featuring 3-band EQ and high-quality ambience
• 1,000 patterns (500 preset, 500 user); easily add fills, ghost notes, chord progressions, and more
• 20 velocity-sensitive pads
• Guitar/bass input, plus multi-effects and COSM amp models
• 100 effect patches (50 Preset, 50 User) for electric, acoustic, and bass guitars
• Four assignable footswitch and expression-pedal inputs
• Digital and individual outputs; USB port for importing SMFs
• Optional DVD Manual: Boss DR-880DVM
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Specifications:

• Maximum Polyphony: 32
• Instruments: Drums: 440, Bass: 40
• Kits: Preset: 100, User: 100
• Rhythm Patterns: Preset: 500, User: 500
• Songs: User: 100
• Maximum Note Storage: approx. 30,000 notes
• Resolution: Per quarter note: 96
• Tempo: Quarter note: 20 – 260 bpm
• Pads: 20 with velocity sensitive
• Display: Custom LCD (with backlight)
• Connectors:

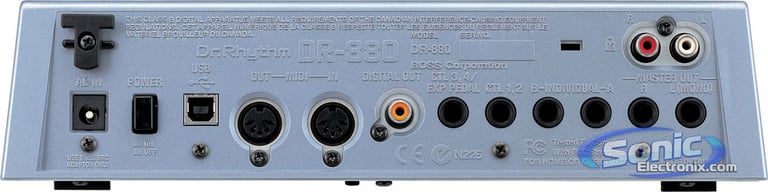

  • Rear: Master Out L(Mono), R (1/4" phone type), Master Out L, R (RCA pin type), Individual Out A, B (1/4" phone type), Digital Out (coaxial), USB, CTL 1/2 jack(1/4" TRS phone type), CTL 3/4(EXP Pedal) jack (1/4" TRS phone type), MIDI In, Out, AC Adaptor jack
  • Front: Phones (stereo 1/4" phone type), Guitar/Bass Input (1/4" phone type)
• Power Supply: AC Adaptor (BOSS BRC series)
• Current Draw: 600 mA (Max)
• Accessories: AC Adaptor (BRC series), Owner’s Manual, DR-880 Driver CD-ROM
• Options: Foot Switch: FS-5U, FS-6, Expression Pedal: EV-5, Connection Cable: PCS-31 (Roland)
• Dimensions: 10-3/4"W x 9-9/16"D x 2-7/8"H
