Cadence XM698

6" x 9" XM Series Mid-Range Car Speaker Driver

Cadence
Shop all Cadence
highlight-star-icon

6" x 9" XM Series Mid-Range Driver • 250W Max • 125W RMS • 8 ohm Impedance • Kevlar Reinforced Black Pulp Cone • Cloth Accordion Surround • Acrylic Bullet Phase Plug

Learn more about the xm698

We apologize

This item has been discontinued


Loading...
AXBUCH-MZ6V main

Axxess AXBUCH-MZ6V

Install a New Car Stereo and Retain Backup Camera in select 2007-2015 vehicles from Mazda

-10.00%

$44.99

List price $49.99

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

Description


Cadence brand icon

Authorized dealer

  • 6" x 9" XM Series Mid-Range Driver
  • Power Handling:
    • Peak Power Handling: 250 watts each
    • RMS Power Handling: 125 watts each
  • Kevlar reinforced black pulp cone material
  • Cloth accordion surround
  • Linear progressive Conex spider
  • 8 ohm impedance
  • Oversize 1.5” high temperature CCAR voice Coil

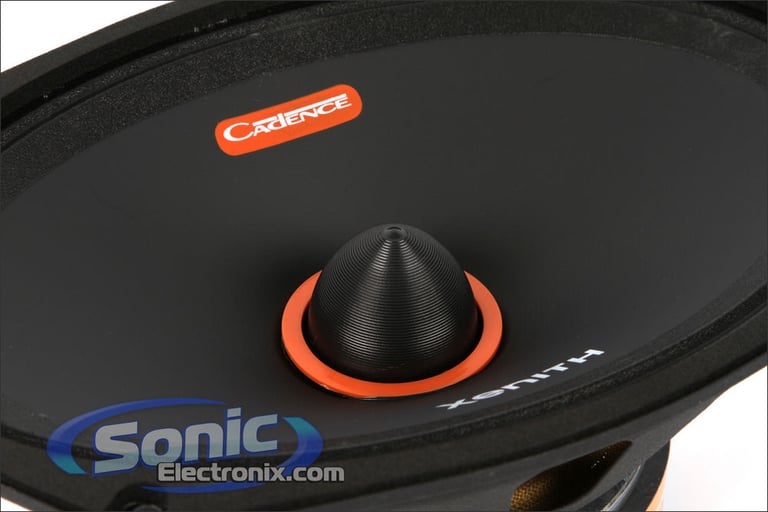

  • Acrylic bullet phase plug
  • 90oz magnet structure weight
  • High tinsel expanded steel basket
  • Slim design for it's size allows easy installation
  • Frequency response: 150-10,000 Hz
  • Top-mount depth: 3-3/16"

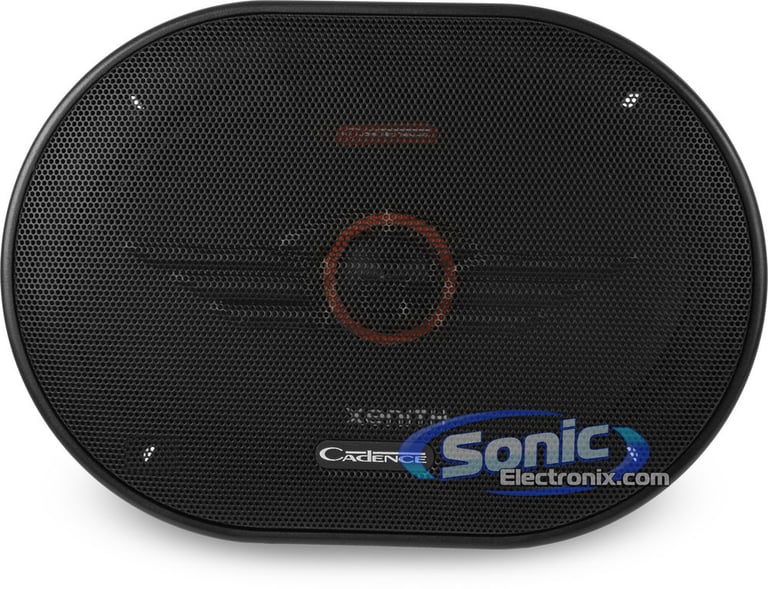

  • Mesh wire grill included
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Priced Individually


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$144.99

List price $169.99

AP-W81AC small

Deaf Bonce Apocalypse AP-W81AC

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

$189.90

List price $189.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

XQS3v2 small

NVX XQS3 v2 (XQS3v2)

• 100 watts Peak Each, 50 watts RMS Each
• tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

$129.99

List price $155.99

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

Specifications & Details


Speaker Specifications
Speaker Size
6" x 9"
Design
Mid-range
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Cloth
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
102 dB
Frequency Response
150 - 10000 Hz
Impedance (Per Voice Coil)
8 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-1/4"
Bottom-Mount Depth
3-1/2"

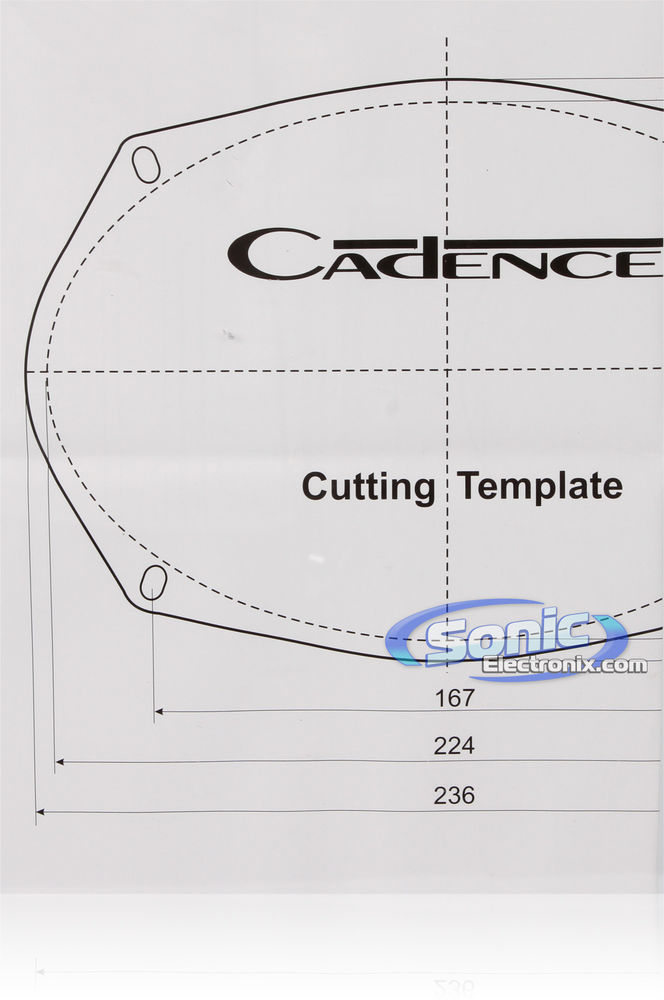

Cutout Dimensions
6" x 9"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XM698

Weight:

6.00lbs

Internal SKU:

xm698

Internal Product ID:

41247
