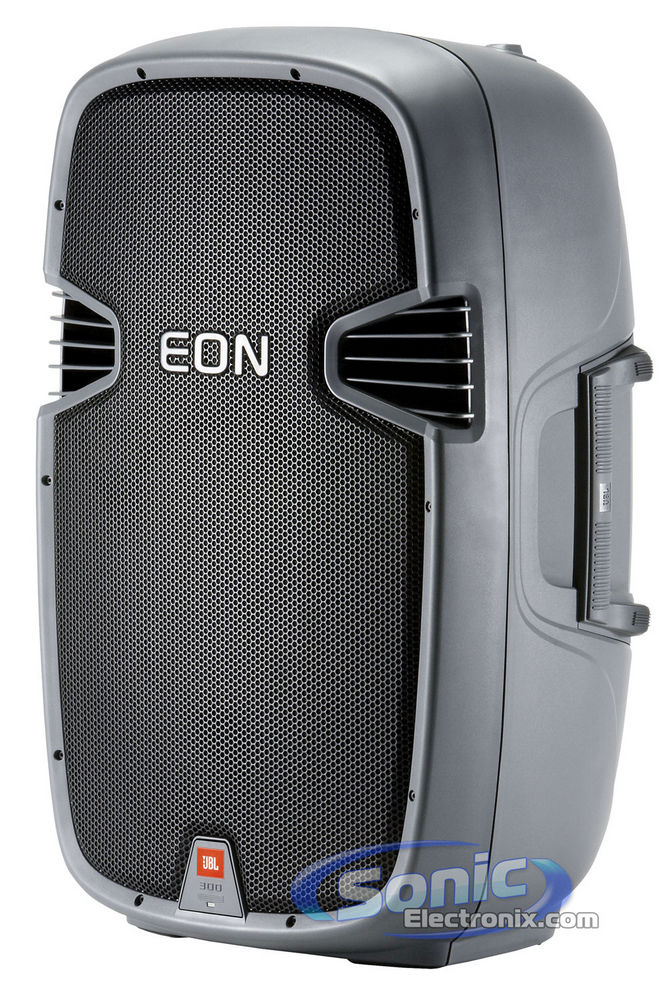

JBL EON315 Like New Open Box

280W Portable Self-Powered 15" Two-Way Speaker System with Class-D Digital Amplifier

JBL
Shop all JBL
Product videos
highlight-star-icon

15" EON Series Self-Powered Two-Way Portable DJ Loudspeaker • JBL 15" Low-Frequency Driver • Efficient Class-D Digital Amplifier • Integrated M10 Suspension Points

Learn more about the ls-eon315-ob

We apologize

This item has been discontinued

Product Highlights


15" EON Series Self-Powered Two-Way Portable DJ Loudspeaker • JBL 15" Low-Frequency Driver • Efficient Class-D Digital Amplifier • Integrated M10 Suspension Points

Description


JBL brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

Engineered Performance

For total system integration, the EON315 is self-powered with the latest Class-D amplifier technology. Delivering a continuous 280 watts, the amp is incredibly efficient, extremely light-weight and very compact. A combo XLR/1/4" connector provides input flexibility and a selectable ‘mic’ setting means you can connect a dynamic microphone directly to the system for quick on-the-fly PA applications. Pre-engineered selectable system EQ is provided to assist in optimizing the system to the application and a simple XLR output enables the addition of more EONs for scalable performance.

Product Features

  • 15" EON Series Self-Powered Two-Way Portable DJ Loudspeaker
  • Power Handling:
    • Continuous: 280 watts x 1 chan.
    • Peak: 560 watts x 1 chan.
  • Light Weight, true portability weighing only 15.9 kg (35 lb)
  • Multiple handles for easy transport
  • JBL 15" low-frequency driver with a 64mm (2 1/2" in) diameter edge wound ribbon voice coil
  • 1" throat diameter next generation JBL neodymium compression driver
  • Efficient Class-D digital amplifier technology
  • 100° H x 60° V asymmetrical waveguide for uniform audience coverage
  • Line level and direct microphone input capability
  • Selectable Pre-engineered EQ settings
  • Loop thru signal flow for extended system application and easy “daisy-chain” connections
  • Integrated M10 suspension points for easy rigging
  • Multi angle enclosure for main or monitor applications
  • Integrated 36 mm pole mount socket with stabilizing securing screw
  • Highly designed composite enclosure for durability, lightweight, and acoustic performance
  • Dimensions: 14-7/16"L x 17-5/16"W x 27"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications & Details


Loudspeaker Specifications
Type
Active
High Frequency Driver Size
1"
Low Frequency Driver Size
15" Driver
Frequency Response
38 - 20,000 Hz
Maximum Sound Pressure Level SPL
127 dB
Dispersion
100° H x 60° V
Active Power Specifications
Peak Power Rating
560 watts
Continuous Power Rating
280 watts
Amplifier Class
D
Amplifier Controls
Power On/Off
Physical Features
Inputs
1/4" TRS
XLR
Outputs
XLR
Enclosure Material
Polypropylene
Carrying Handles
Yes
Speaker Mounts
Yes
Height
27"
Width
17-5/16"
Depth
14-7/16"
Weight (Pounds)
35 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

EON315-3

Weight:

44.50lbs

Internal SKU:

ls-eon315-ob

Internal Product ID:

42297
