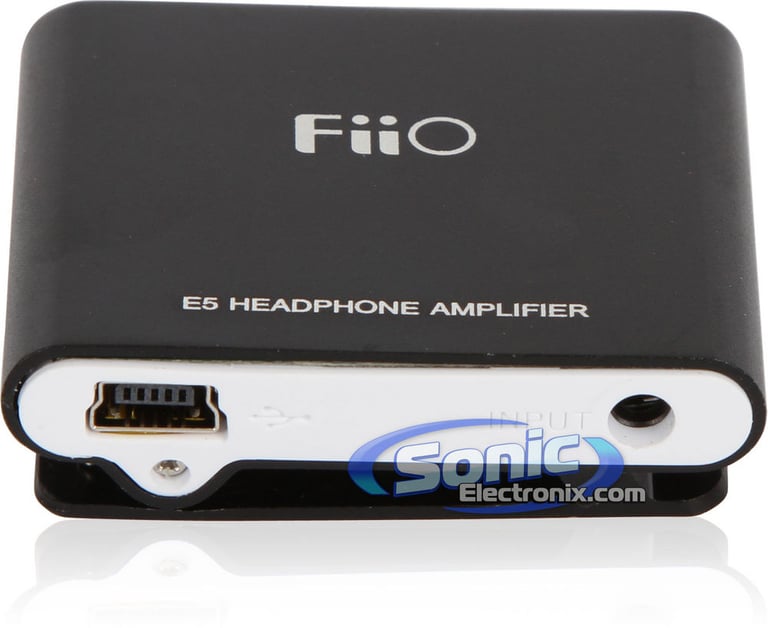

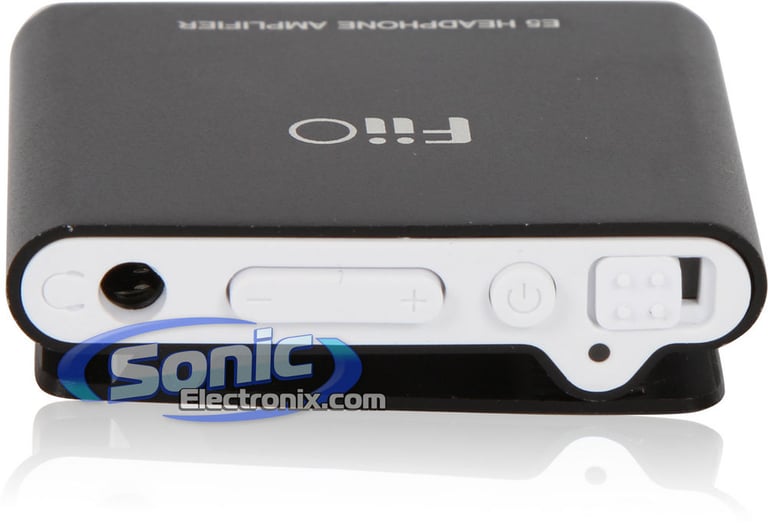

FiiO E5 (McKinley) Portable Clip-On Headphone Amplifier

Single Input and Output 1/8" (3.5mm) Interface and USB Rechargeable Battery

FiiO
Shop all FiiO
highlight-star-icon

• USB Rechargeable Lithium Ion Battery
• 1/8" (3.5mm) Mini Jack Output/Input
• Volume Control
• Bass Boost Mode
• Metal Clip

Learn more about the fiio-e5

We apologize

This item has been discontinued

Description


FiiO brand icon

Authorized dealer




Product Features:

  • Portable Headphone Amplifier Perfect for iPod & MP3 Players
  • Mini USB powered rechargeable battery
  • 1/8" (3.5mm) mini jack output and input interface
  • Volume button allows increase and decrease
  • Metal clip increases portability and convenience
  • Individual power switch
  • Selectable flat and bass boost modes
  • Indicator light indicates operating status
  • Similar amp is available in alternate design as FiiO E6
Technical Specifications
  • Frequency Response: 10Hz - 100000Hz
  • Output Power:
    • 150 mW with 16 Ohm headphones
    • 16 mW with 300 Ohm headphones
  • Signal to Noise Ratio: 95dB
  • THD: <0.009%
  • Rechargeable lithium ion battery
  • Suitable Headphone Impedance: 16 Ohm - 300 Ohm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Also found as: Fiio E05, fiio-e5, Fiio McKinley

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Portable
Digital-to-Analog Converter (DAC)
No
Frequency Response
10 - 100000 Hz
THD (Total Harmonic Distortion)
<0.009%
Input Connection
3.5mm Mini-Jack
Input Impedance
16-300 ohm
Output Connection
3.5mm Mini-Jack
Number of Outputs
1
Output Power
16-150 mW
Output Impedance
16-300 ohm
Power Requirement
USB
DAC Specifications
THD (Total Harmonic Distortion)
<0.009%
Power Requirement
USB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

E5

Weight:

0.11lbs

Internal SKU:

fiio-e5

Internal Product ID:

42828

Customer Ratings & Reviews


FiiO E5 (McKinley) Portable Clip-On Headphone Amplifier thumbnail image

5 star
69%
4 star
21%
3 star
10%
2 star
0%
1 star
0%



Durability
4.5
Value
4.7
Features
4.5
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good Value

I had used the FiiO for years and bought this one as a replacement. Works well with the added volume I need for headphone use. So far, so good with this unit, and very small and portable to use (and lose) so keep an eye on it when traveling.

By Victorm on January 6, 2014

50 found this helpful


These little guys are awesome!

I wish Sonic was carrying these when I bought mine. I have two of these which I use to amplify the the headphone-jack output of an mp3 player going thru an 3.5mm-to-RCA Y-connector into the RCA input of a car amplifier (mp3 mounted on handlebar of a MoTo going to a car amp). Especially if you have to branch the two outputs further into 4 outputs for a 4-channel amp, because doing so further halves the voltage. The battery-life on these things is friggin' great. I'll forget about charging it for a long darn time until one day it shuts-off, and I go "Oops!". They seem to stay charged for quite a long time during periods of no use as well.

By Gary on March 12, 2012

37 found this helpful


Great little Amp.

I use this amp on my helmet to ride my Motorcycle... It is a great little amp. the sound is so much crispier and clear is unbelievable. I would recommend this amp to any one who enjoys good quality sound.

By Luis on January 1, 2014

35 found this helpful


mp3 to shark mc

This item worked unbelievably well for a while, I was the envy of
riders with systems costing six times as much as mine!
Then it quit working.I dont know if I just got a bad one or what.

By Luke on September 17, 2013

31 found this helpful


Great item, Great price, Fast shipping!

This small item works GREAT! I use it mostly when out and about with my netbook to boost the volume of videos and webcasts. Great low price and fast shipping. Thanks!

By Dave on August 7, 2013

29 found this helpful


wonderful product

compact, powerful, long battery life, used with an iPod on a motorcycle battery good for a week of commuting before needing a recharge

By dratomic on September 23, 2013

27 found this helpful


solid sound

Bought this a couple months ago great amp has plenty of battery life makes my head phones sound way more bassy and clean.

By Steve on February 14, 2014

25 found this helpful


Well worth it!

It ups the volume level without adding anything nasty. The battery life is amazing!

By Nickifier on January 22, 2014

25 found this helpful


pretty good

When ordering I originally had little expectations for this amp. Cheap price, small unit, how powerful could it be? The unit is built fairly solid. Also I have tested this on several over the ear, in ear, and just all around different situations like multiple outputs. Overall for the price this is a very good value. Under certain situations like spliting to 2 or more unit did it really have an impact on loudless. With thatbeing said the amp cleans up output greatly. For audiophiles like me this is great! The rechargeable battery lasts quite some time on a single charge. Overall yes I would definitely recommend this amp over more expensive units because of the price vs quality. This tiny unit will greatly clean up output while upping output a tad.

By Evan on March 30, 2013

24 found this helpful


great value

I recommend this product it has improved the sound of my mp3 player greatly

By freddy on December 8, 2013

25 found this helpful
