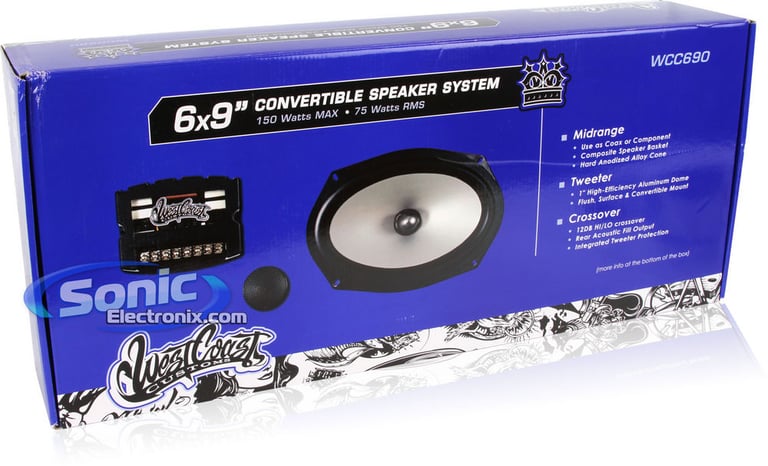

West Coast Customs WCC690

6" x 9" 2-Way Convertible Component/Coaxial Car Speakers System by Diamond Audio (WCC-690)

EXCLUSIVE
highlight-star-icon

6" x 9" WCC Series Speakers • Convertible Component System • 400 Max • 200 RMS • 4 ohm Impedance • Anodized Aluminum Cone • Rubber Speaker Surround • 1" Aluminum Dome Tweeter

Learn more about the wcc690

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


West Coast Customs brand icon

Authorized dealer

West Coast Customs Signature Speakers

These West Coast Custom speakers are top quality for your dollar. At 75 watts RMS, they pair well with most high output aftermarket amplifiers. These door speakers are designed with a 1" aluminum tweeter, allowing for a bright presence of high frequencies. The 12db/octave crossover network will fade the tweeters subtly into the mid-range speaker.

Convertible Component System

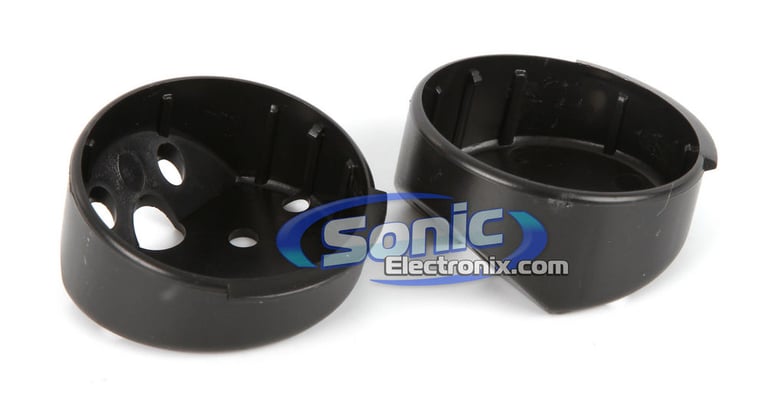

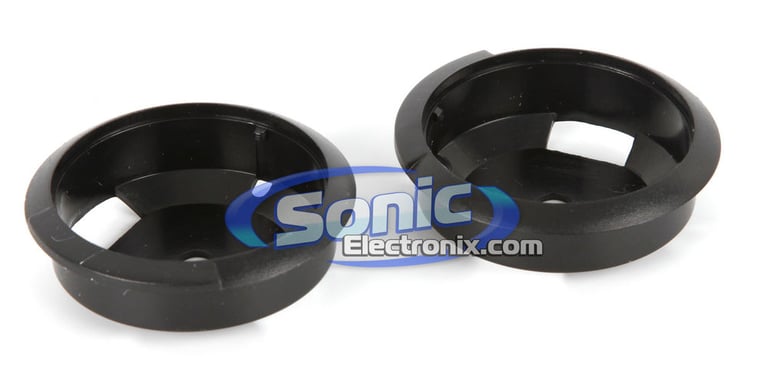

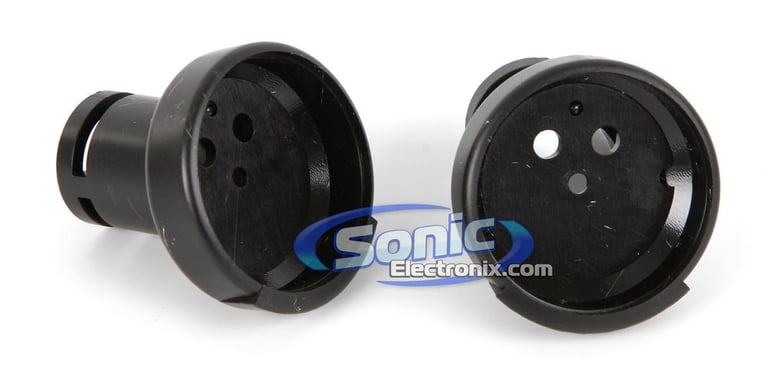

This speaker system has the ability to be mounted in either a component or a coaxial application. Simply release the tweeter and pull the wires out of the center ventilation hole. You may mount the tweeter in a separate location from the mid-woofer to bring out the highs, increase imagery and transparency of your music and provide a balanced sound.

General Features:

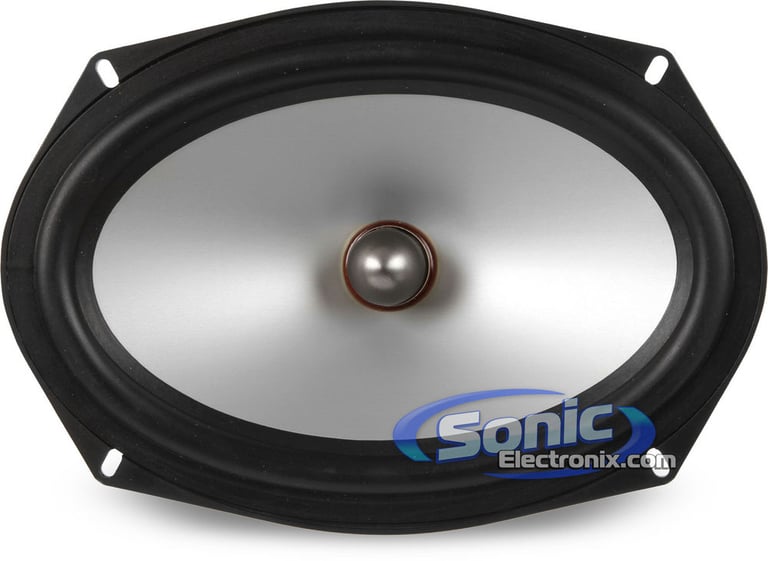

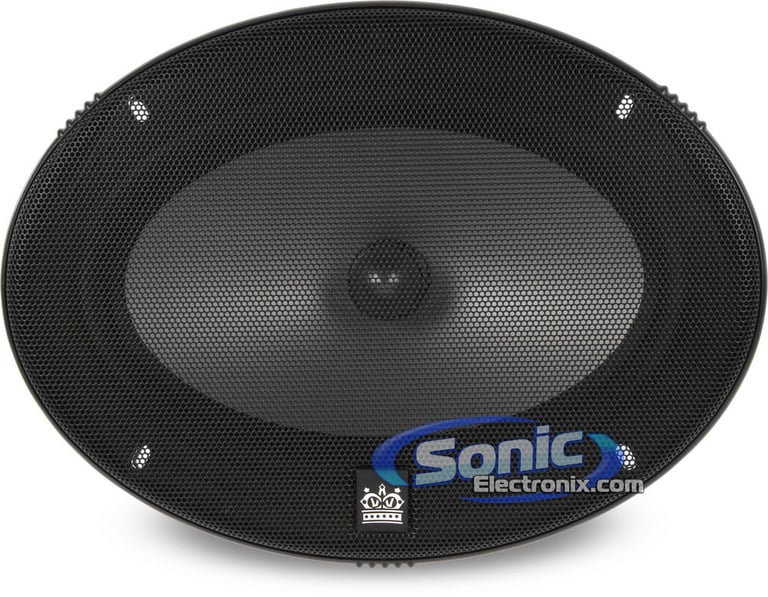

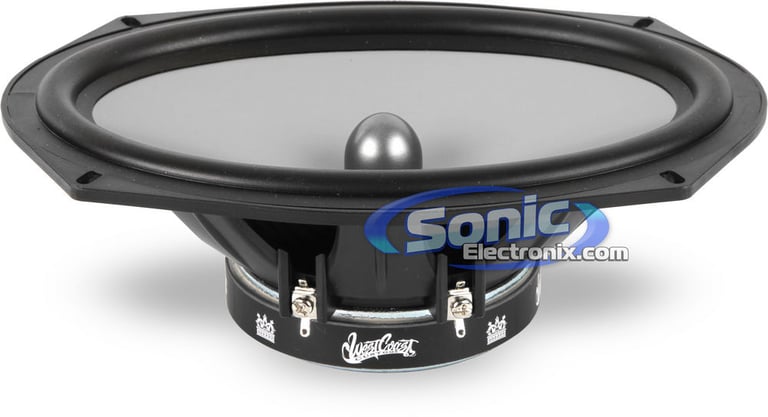

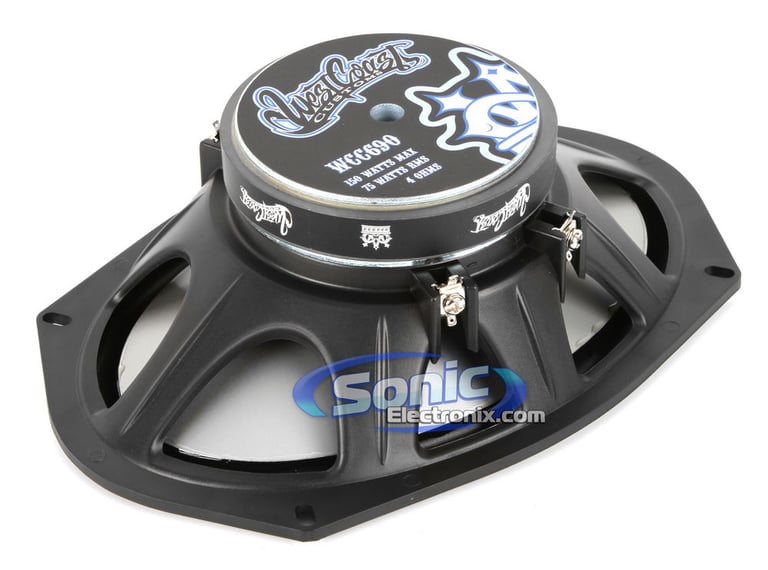

  • 6" x 9" WCC Series Convertible Component Car Speaker System
  • Power Handling:
    • Peak: 400 watts per set / 200 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • Component or Coaxial mounting configuration
  • Hard anodized Aluminum cone material
  • Rubber speaker surround for improved damping

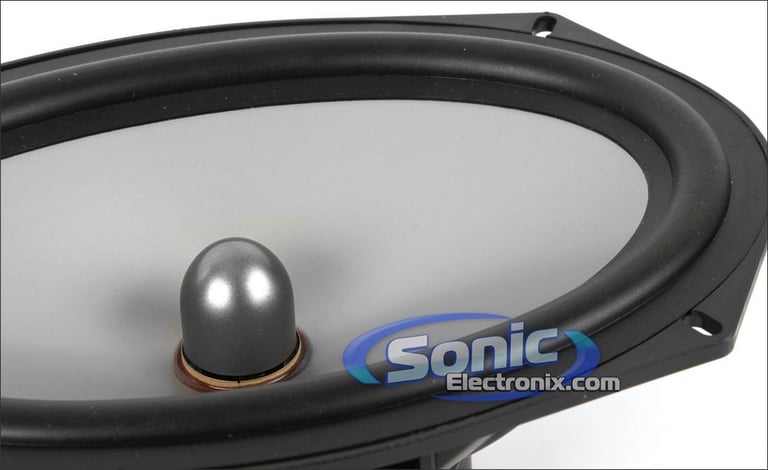

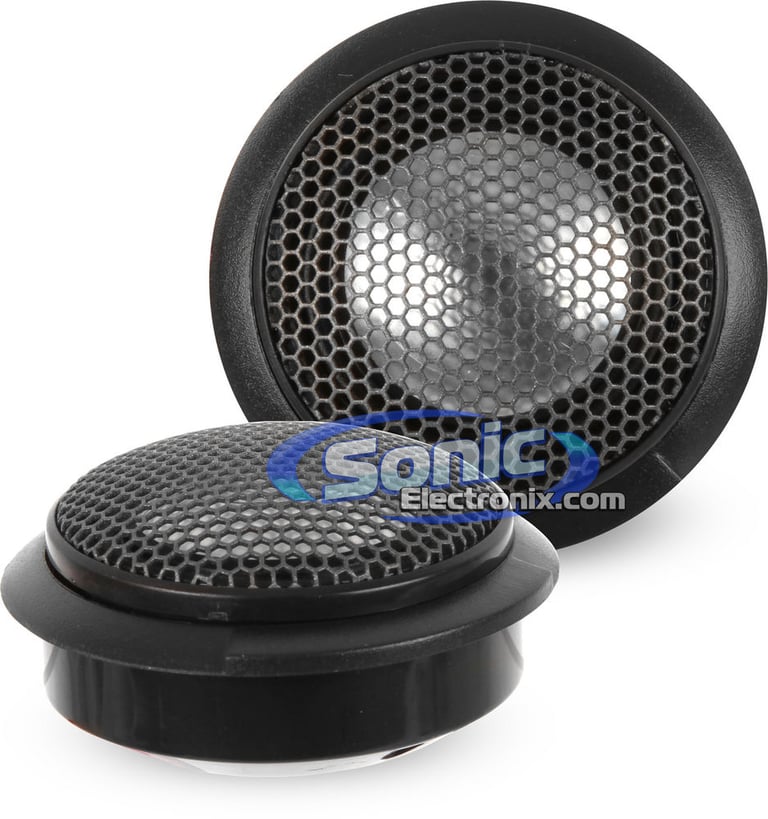

  • 1" Aluminum Dome tweeter

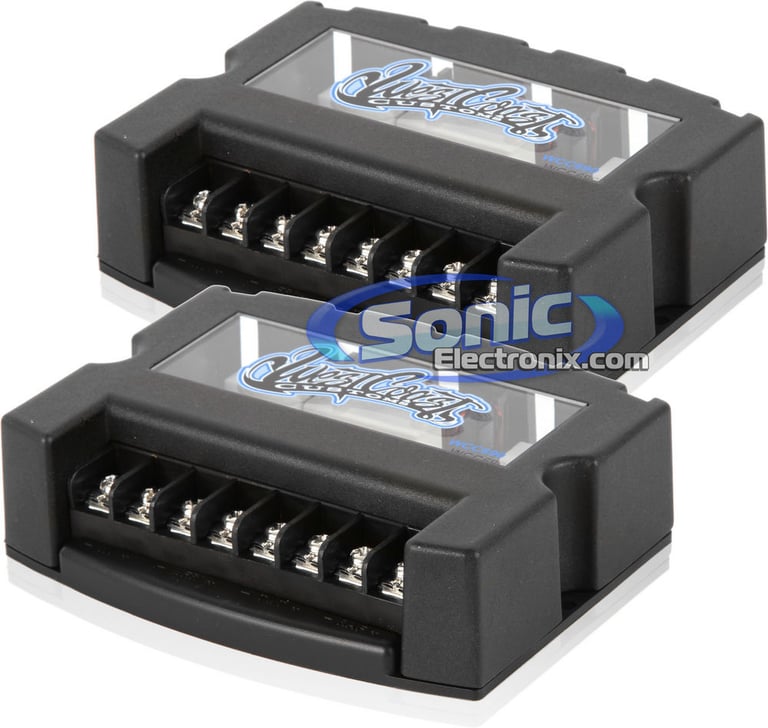

  • 12db/octave passive external crossover network
  • 4 ohm impedance
  • High temperature voice coil
  • Rear acoustic fill provides matched attenuated output from front crossovers to the rear speakers
  • Flat progressive spider maintains linear cone movement
  • Rubber boot magnet protector
  • Top-mount depth: 3.05"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

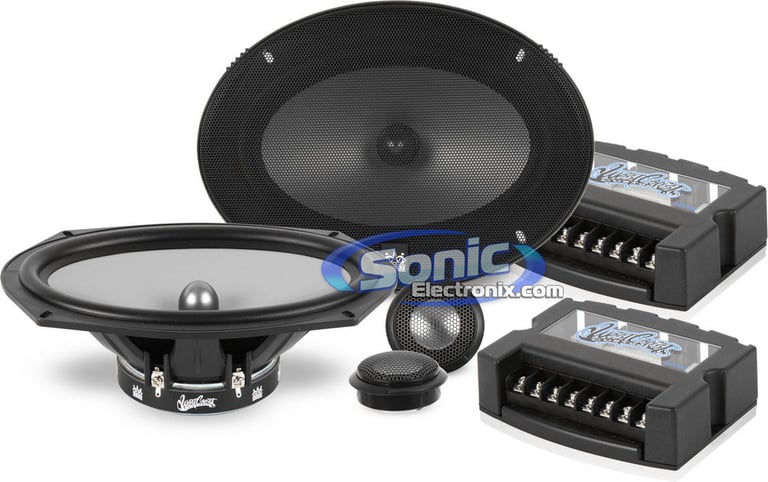

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

PNW-69CS2 small

AudioControl PNW-69CS2

• 125 watts RMS Each
• 1" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.78 dB

(1)

$349.00

List price $369.00

KFC-XP6902C small

Kenwood eXcelon KFC-XP6902C

• 300 watts Peak Each, 100 watts RMS Each
• 6x9" Woofer and 2.75" Midrange
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB
• Custom fit for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

(5)

$209.00

List price $320.00

V69C small

Cerwin-Vega V69C

• 480 watts Peak Each, 160 watts RMS Each
• 1" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

$279.99

List price $279.99

DMDX69C small

Diamond Audio DMDX69C

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Dome Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$279.99

List price $279.99

C1-690 small

JL Audio C1-690

• 60 watts RMS Each
• 1" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91.5 dB

(16)

$189.99

List price $189.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 8"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Aluminum
Woofer Composition
Aluminum
Woofer Surround
Rubber
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Sensitivity
83.5 dB
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3.05"
Cutout Dimensions
5.85 x 8.69
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

WCC690

Weight:

9.00lbs

Internal SKU:

wcc690

Internal Product ID:

42947
