West Coast Customs WCC680 (Same as Diamond Audio D673A)

6" x 8" / 5" x7" 2-Way Convertible Component/Coaxial Car Speakers System by Diamond Audio (D673A)

EXCLUSIVE
highlight-star-icon

6" x 8" WCC Series Speakers • Convertible Component System • 120W Max • 60W RMS • 4 ohm Impedance • Anodized Aluminum Cone • Rubber Speaker Surround • 1" Aluminum Dome Tweeter

Learn more about the DIA-wcc680

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

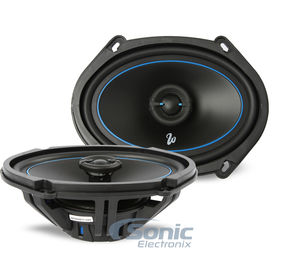

wcc680 thumbnail

West Coast Customs WCC680 by MB Quart

OUR PRICE: $59.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
51KSS365 main

Kicker KSS365 (51KSS365)

500W Peak (250W RMS) 6.5" KS Series 3-Way 4-ohm Component Speaker System

1
-7.89%

$349.99

List price $379.99

Description


West Coast Customs brand icon

Authorized dealer

West Coast Customs Signature Speakers by Diamond Audio

These West Coast Custom speakers are top quality for your dollar as they convert from coaxial to component. They are the exact same as the Diamond Audio D673A, only they are priced significantly less due to a huge closeout we purchased. At 120 watts RMS per set, they pair well with most high output aftermarket amplifiers. These door speakers are designed with a 1" aluminum tweeter, allowing for a bright presence of high frequencies. The 12db/octave crossover network will fade the tweeters subtly into the mid-range speaker.

Convertible Component System

This speaker system has the ability to be mounted in either a component or a coaxial application. Simply release the tweeter and pull the wires out of the center ventilation hole. You may mount the tweeter in a separate location from the mid-woofer to bring out the highs, increase imagery and transparency of your music and provide a balanced sound.

General Features:

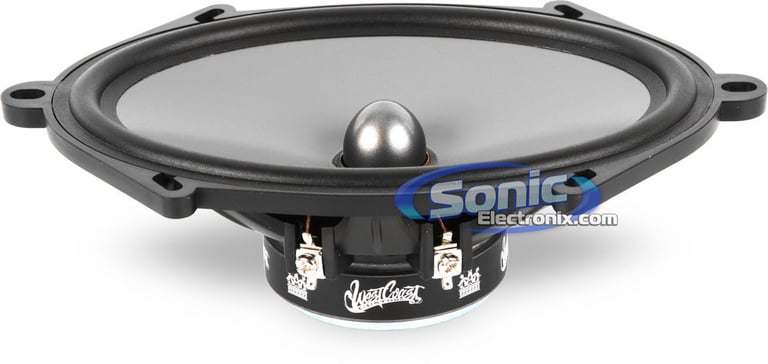

  • 6" x 8" WCC Series Convertible Component Car Speaker System
  • Equivalent to Diamond Audio D673A speakers
  • Power Handling:
    • Peak: 240 watts per set / 120 watts each side
    • RMS: 120 watts per set / 60 watts each side

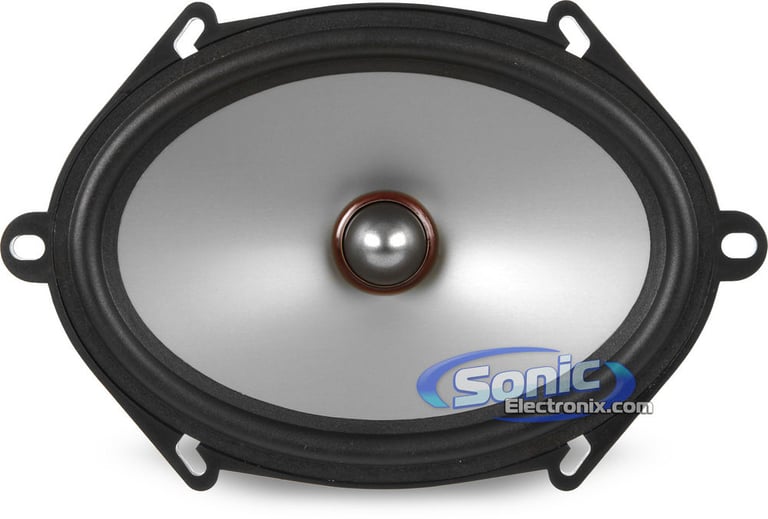

  • Component or Coaxial mounting configuration
  • Hard anodized Aluminum cone material
  • Rubber speaker surround for improved damping

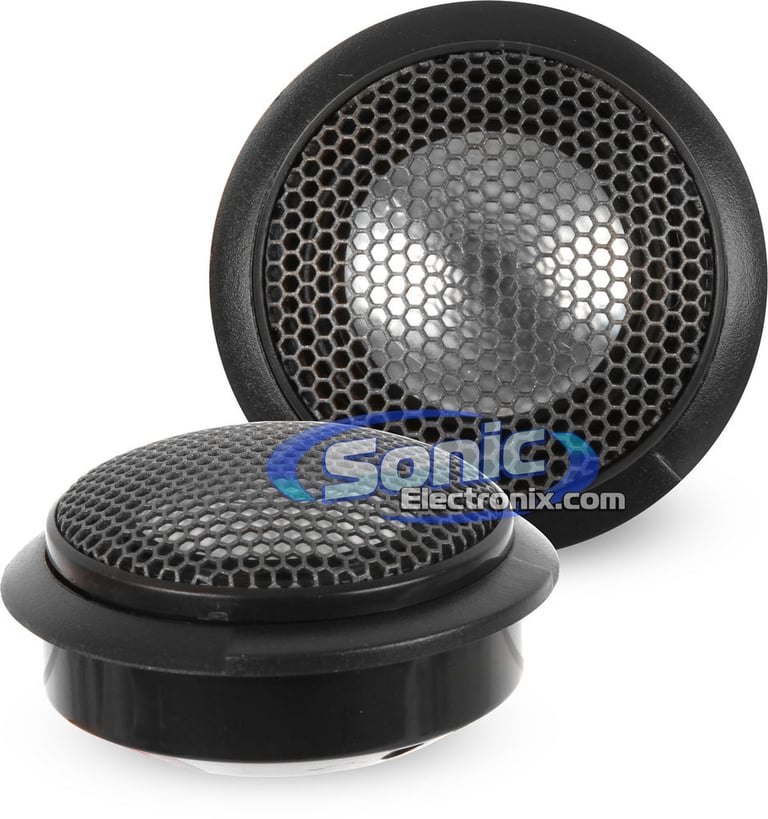

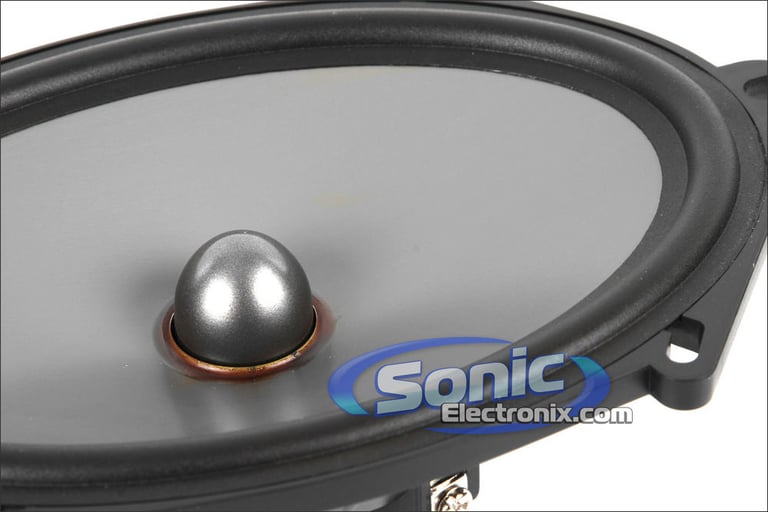

  • 1" Aluminum Dome tweeter

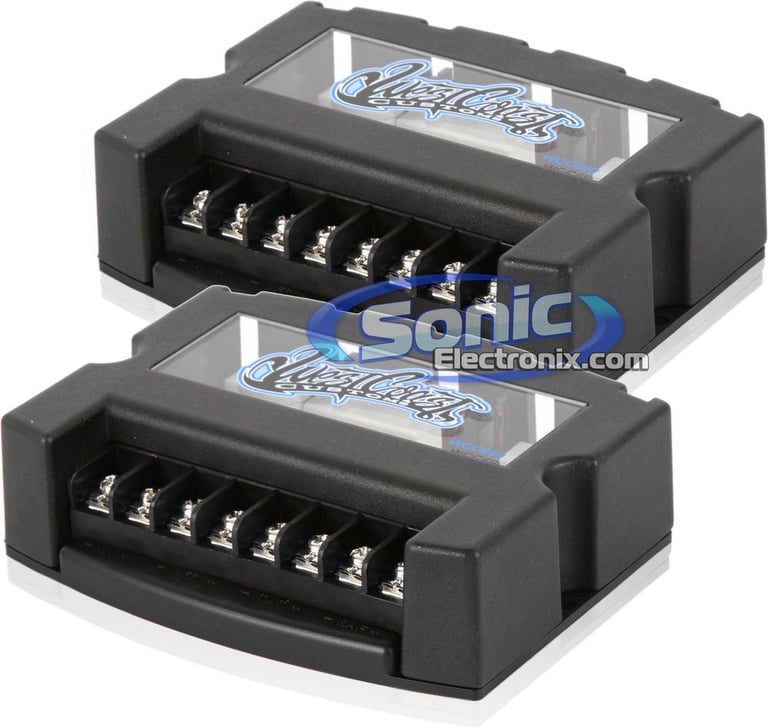

  • 12db/octave passive external crossover network
  • 4 ohm impedance
  • High temperature voice coil
  • Rear acoustic fill provides matched attenuated output from front crossovers to the rear speakers
  • Flat progressive spider maintains linear cone movement

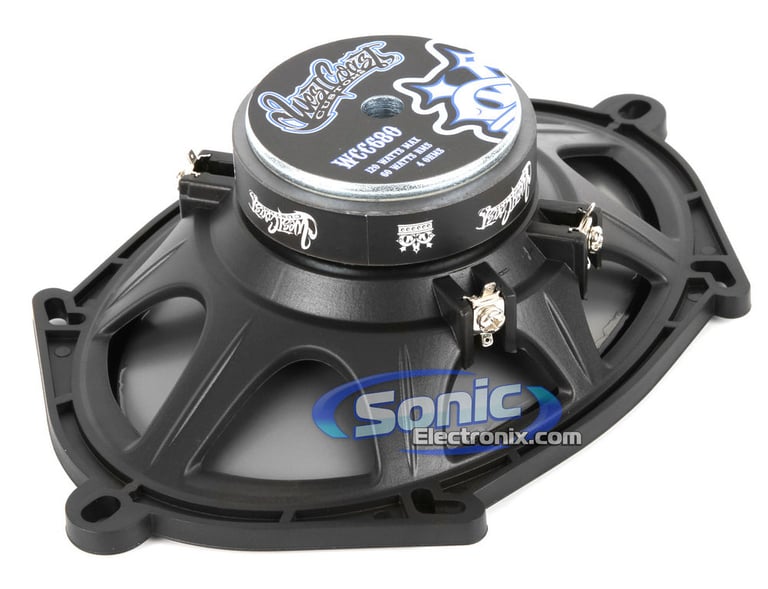

  • Rubber boot magnet protector
  • Top-mount depth: 2-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

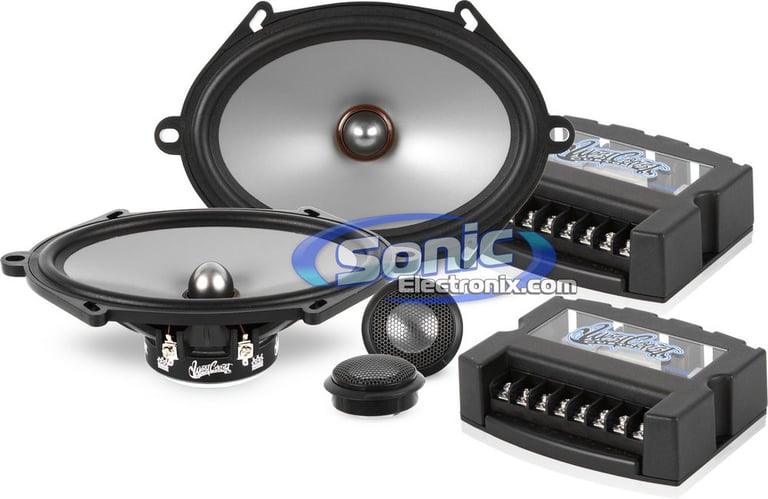

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Product history:

West Coast Customs WCC680 thumbnail
(newest, current model)
West Coast Customs DIA-WCC680 thumbnail
(previous model, replaced by West Coast Customs WCC680 by MB Quart)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

JS68K small

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

V68 small

Cerwin-Vega V68

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Balanced Dome Tweeters
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(29)

$139.99

List price $139.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(86)

$109.99

List price $109.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$99.99

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

46CSS684 small

Kicker CSS68 (46CSS684)

• 225 watts Peak Each, 75 watts RMS Each
• 3/4" Titanium Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(24)

$143.96

List price $199.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 8" (also mounts in most 5" x 7" locations)
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
Aluminum
Woofer Composition
Aluminum
Woofer Surround
Rubber
Peak Power Handling
120 watts
RMS Power Handling
60 watts
Sensitivity
86.5 dB
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
4-15/16" x 6-15/16"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DIA-WCC680

Weight:

6.50lbs

Internal SKU:

DIA-wcc680

Internal Product ID:

42948

Customer Ratings & Reviews


West Coast Customs WCC680 (Same as Diamond Audio D673A) thumbnail image

5 star
67%
4 star
0%
3 star
33%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.7
Usability
4.2

Customer Reviews

Sort by:

Loading...

All I want to do is sit in my car and listen to music now.

Got 4 on cyber monday. Def worth way more. Pure Pure Sound in my 2000 Lincoln Navigator.

By Ford on January 7, 2013

5 found this helpful


wow

These sound great. I was skeptical because of the price but they are woth 3 times as much. I own some Diamond D1's and these are very similar minus the logos and rubber magnet boot. The basket is also different but does not affect the sound. The mids also have some of the best bass I've heard from a 6x8.

I have owned Pioneer and Boston SE85's and these are better. I am running them on a P400-4 if you are not going to amp these I don't think you will be happy with them. They like power.

By Rob on December 2, 2012

4 found this helpful


Great Speakers for the price!

Mainly got these because my old door speakers weren't that loud and they didn't sound that good. I wanted the component system because I got the Alpine type R 15" and I wanted to hear the mids and highs over the bass. For that purpose I got a Jensen 760.4 amp to power these. They sound very good and the mids and highs are very clear and bright, It sounds like someone is singing right at me! Of course the speakers themselves don't have too amazing of bass, but its not a problem for me since I have a sub. With this amp the speakers are able to go very loud without problems. I'd recommend these speakers to someone who doesnt want to spend a lot of money on door speakers, also I recommend an amp because they can go pretty loud! Only con is the crossovers are big, so I had to just put them under the seats instead of the door's which wasn't a problem at all.

By Ian on January 5, 2013

3 found this helpful


bough and them almost did not install them.

I had a set of Infinity Reference 6000cs in the front of my '11 Tundra, they have been there for nearly 2 years, and they were in my 07 Tacoma for 3 years before that, and were in my accord for several years before that. They still sounded good, but they have more than a few years on them. I bought these on impulse when I saw the price (and because my truck cam with 6x9 in the front doors). When I got them i was kind of uncertain about putting them in, but went ahead and plunged in. I re-cut my baffles, screwed them in, ran wiring, found a place to hide the crossovers (which are fairly large) and buttoned everything up.
I am impressed and VERY happy I took a chance on stuff I knew nothing about.
They sound much better than my 7 year old (or older) Infinity speakers. I have been able to turn them up louder, push a bit more bass through them and they still sound cleaner and clearer. I am pushing them with a Pioneer 60x2 amp and it seems to be a perfect match.

The only reason ease of use did not get a 5 star is the crossovers are VERY large compared to what I am used to, and I was lucky to find a place under the center of my front console to fit them in.

By Willie on December 2, 2012

3 found this helpful


Wcc680

This component kit did a pretty good job powered by only the head unit. They were very clear but didn't handle bass well, and it sounded a lot better when powered by a small amp. Not a bad choice when trying to get a better sound than stock speakers can provide.

By South on August 27, 2020 Checkmark Icon Verified purchase


There OK

I have these powered off an eclipse headhunt in my ford van. I don't find the sound to be that great. They sound empty. The Tweeter is decent and I like the fact the crossover is very small. Maybe they need more power than what I am giving them. My head unit is probably putting out about 20 watts RMS. I checked the phase and they are wired correctly. I did get these at a great bargain so I am happy with what I paid for them.

By Anonymous on September 8, 2018 Checkmark Icon Verified purchase
