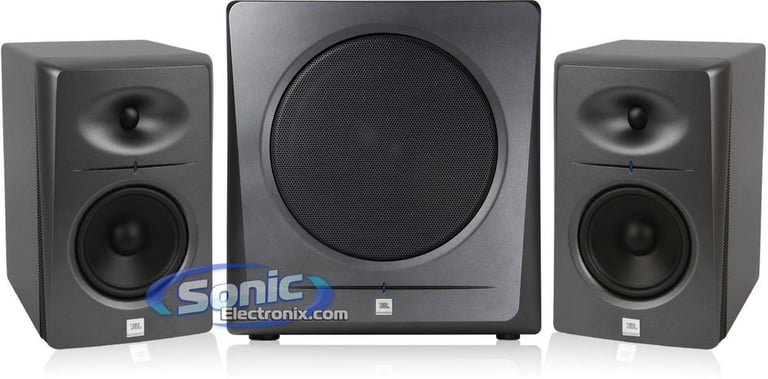

JBL LSR 2.1 Monitoring System

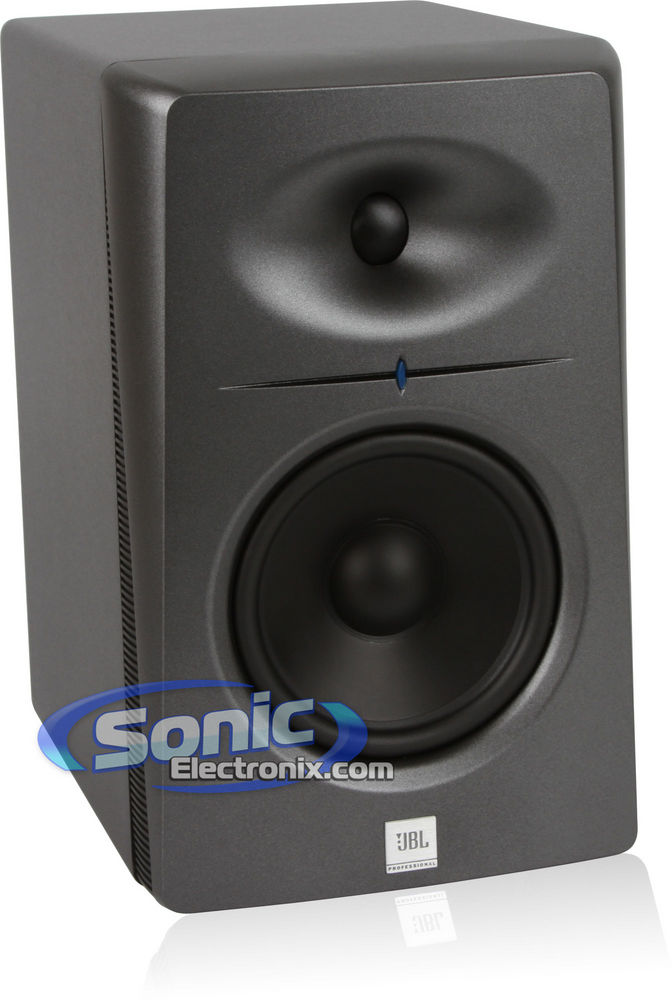

LSR2325P Features & Specifications:

• Frequency Range: 43 Hz - 20 kHz
• Low-High Frequency Crossover: 1.7 kHz 4th-order acoustic Linkwitz-Riley
• Maximum Continuous SPL each / Per Pair @ 1m >101 dB SPL / >107dB SPL
• Maximum Peak SPL Each/ Per Pair @ 1m >112 dB / >118 dB SPL / 1m

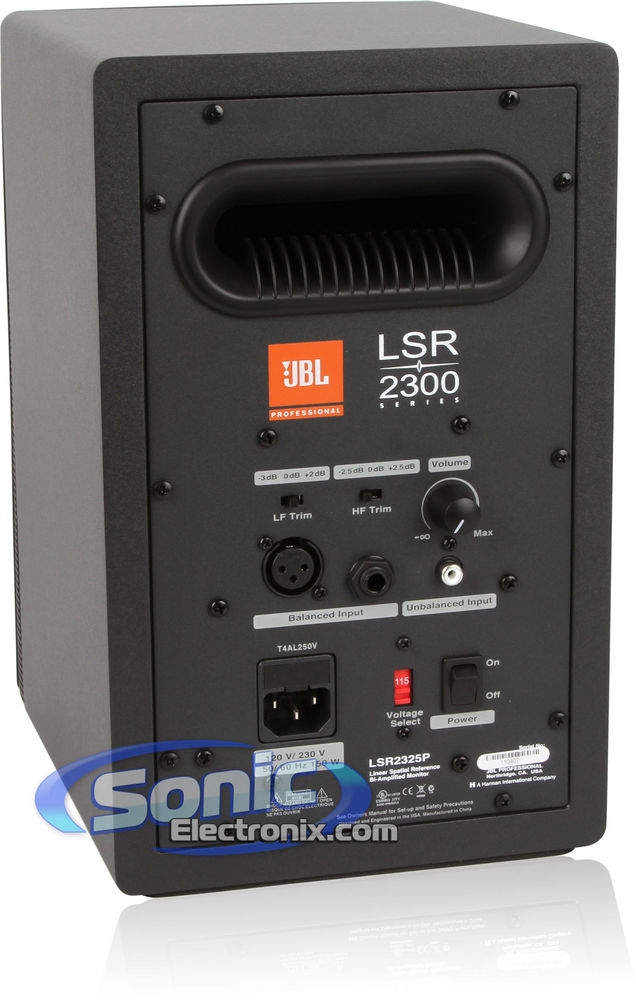

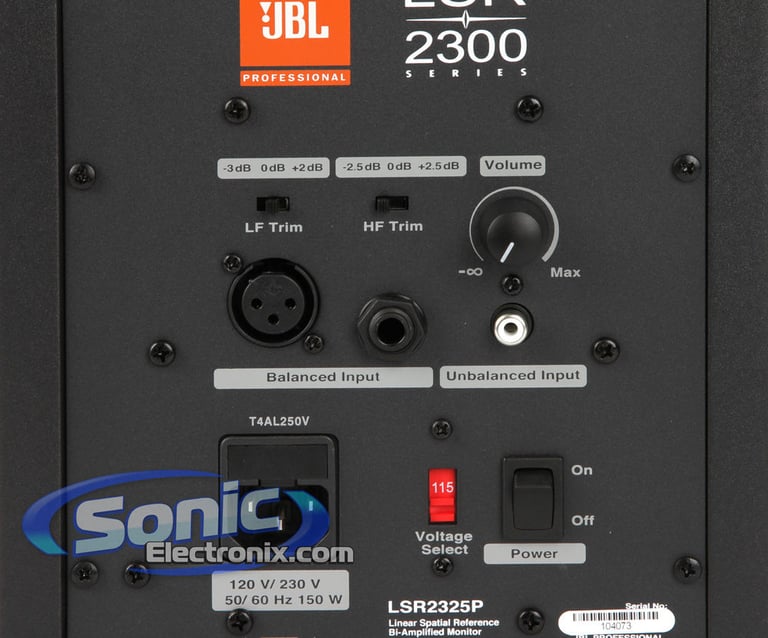

• Input Connectors: Balanced XLR, 1/4" tip-ring-sleeve and unbalanced RCA. Positive voltage applied to XLR pin 2 , 1/4" tip, RCA pin produces outward woofer motion
• Calibrated Input Sensitivity, XLR & 1/4": -10dBV 92 dB SPL / 1 m
• RCA Input: -22dBV 92 dB SPL / 1 m
• AC Input Voltage: 115 / 230 VAC, 50/60 Hz
• AC Input Voltage Operating Range +/- 15%
• Long-Term Maximum System Power: 21 watts (IEC265-5)
• Impedance: 4 ohm
• Magnet Type: Neodymium
• EOS Elliptical Oblate Spheroidal waveguide with Elliptical Aperture
• THD + N, H Power: <0.05%
• Enclosure Volume (net): 7.1 liter (0.25 cu. ft.)
• Dimensions: 11-15/16"L x 7-7/16"W x 10"H

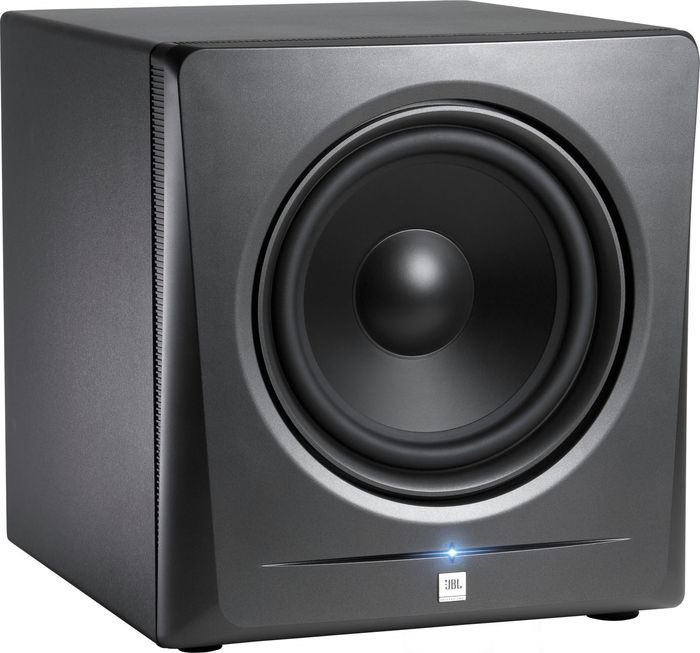

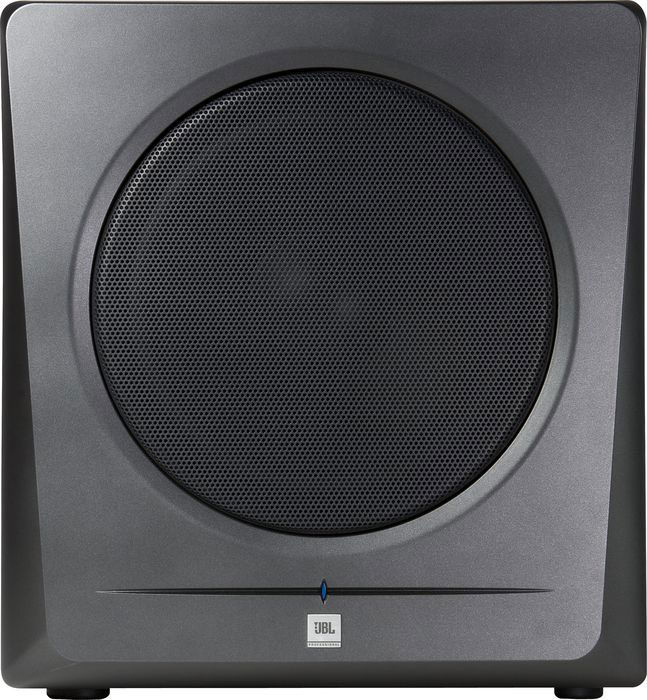

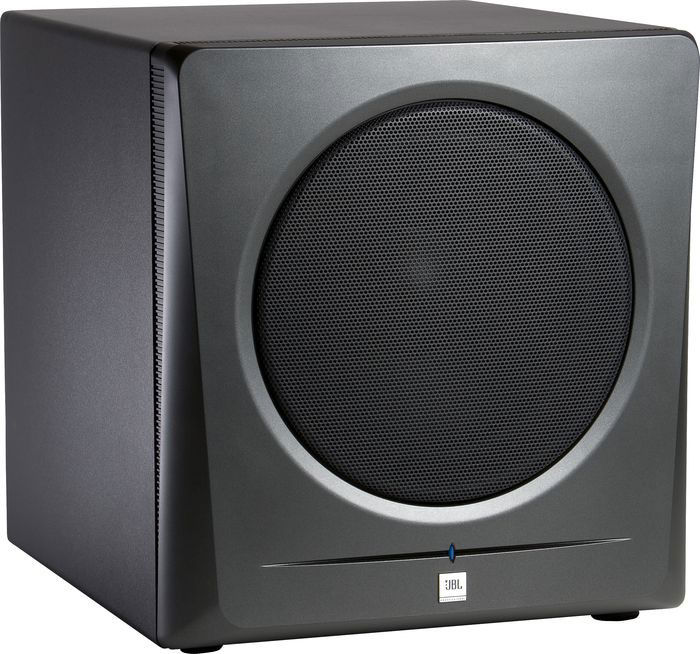

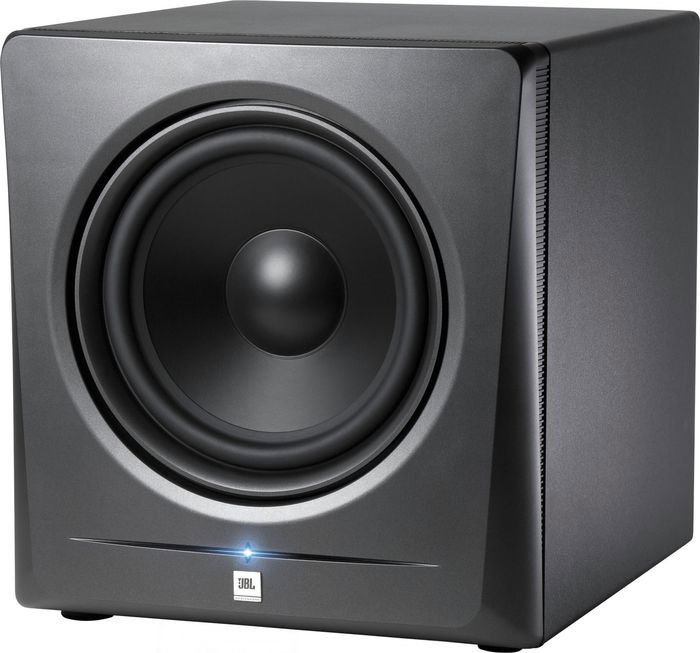

LSR2310SP Features & Specifications:

• 10" Professional Powered Subwoofer
• Power Handling
  • RMS: 180 watts
• Built-In internal amplifier
• Magnetic shielding eliminates radio-frequency noise and interference

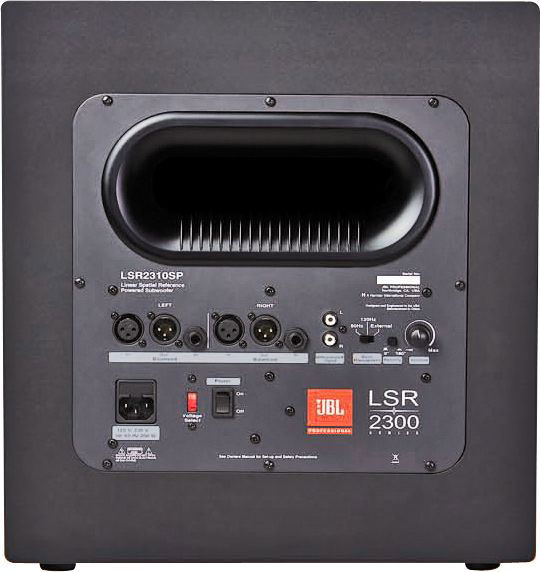

• 2 Sets of 1/4" phone balanced XLR and RCA connectors
• Selectable crossover switch (80-120 Hz)
• Level control dial
• Metallic anthracite paint baffle
• Dark matte black PVC enclosure
• Protective metal grille
• Frequency Response: 31-150 Hz
• Low Frequency Extension: 29 Hz
• Max SPL Continuous: > 103 dB
• Max SPL Peak: >113 dB
• Dimensions: 17-1/4"D x 15"W x 16-1/8"
