See all parts that fit your 2016 Q3 Quattro

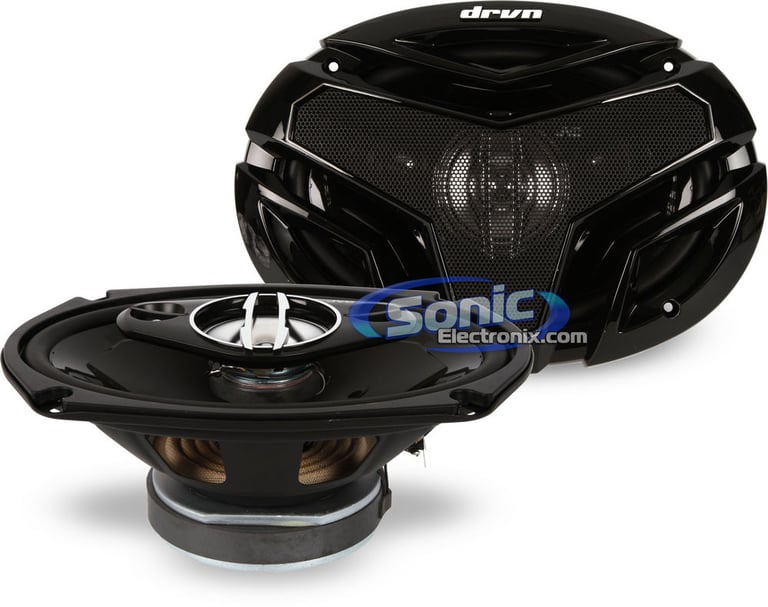

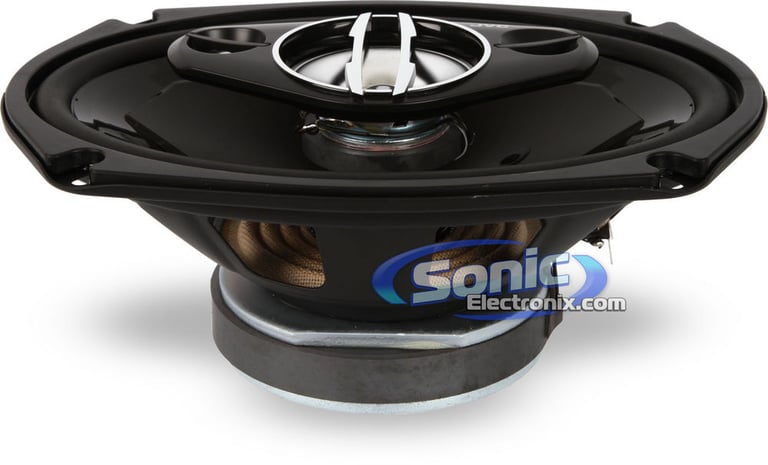

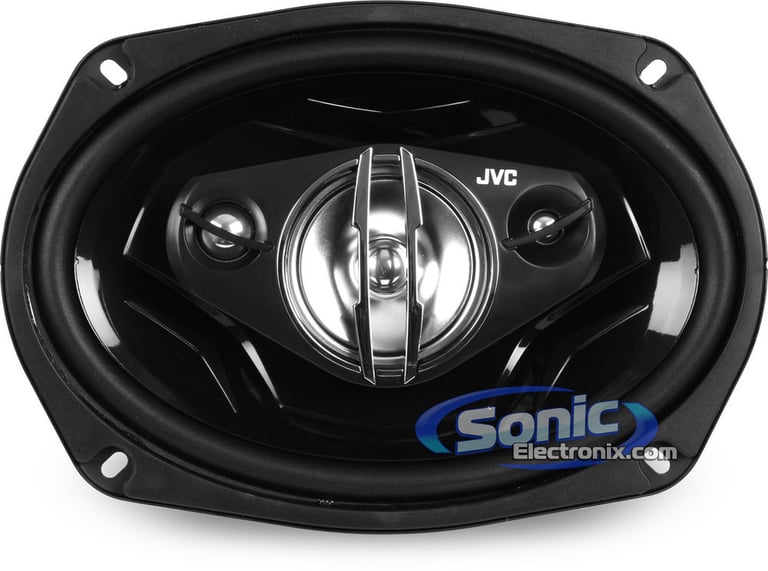

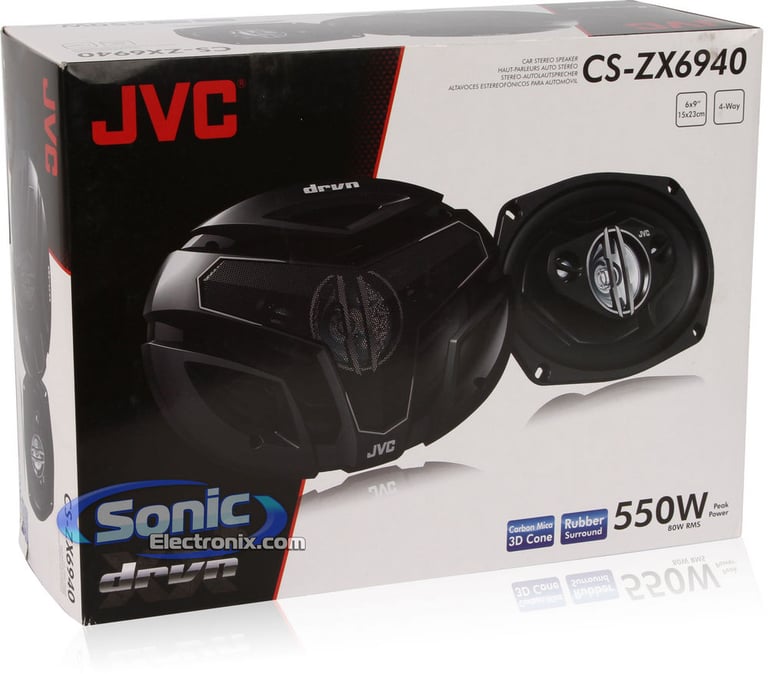

JVC CS-ZX6940

160W 6x9" 4-Way DRVN Series Coaxial Speakers w/ PEI Tweeters

JVC
Shop all JVC
Product videos
highlight-star-icon

• Peak Power: 1100W
• RMS Power: 160W
• Polyetherimide (PEI) Dome Supertweeter
• Mounting Depth: 3-3/16" • Carbon Mica 3D Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Learn more about the cszx6940

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 1100W
• RMS Power: 160W
• Polyetherimide (PEI) Dome Supertweeter
• Mounting Depth: 3-3/16" • Carbon Mica 3D Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 91dB

Description


JVC brand icon

Authorized dealer

General Features:

  • 6" x 9" DRVN Series 4-Way Car Speakers
  • Power Handling:
    • Peak: 1,100 watts per pair / 550 watts each
    • RMS: 160 watts per pair / 80 watts each
  • Carbon Mica 3D cone material
  • Single-roll Rubber speaker surround

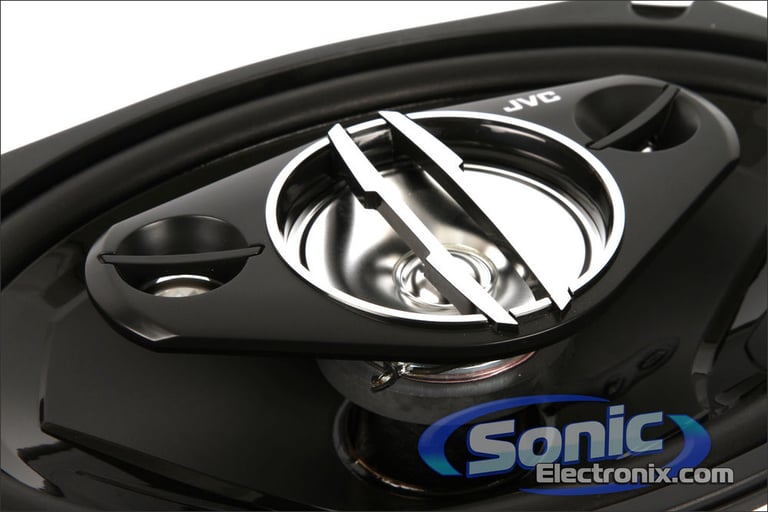

  • 2-5/8" Polyetherimide (PEI) midrange cone tweeter
  • Polyetherimide (PEI) Dome tweeter
  • Polyetherimide (PEI) Dome supertweeter
  • 4 ohm impedance
  • High-temperature voice coil

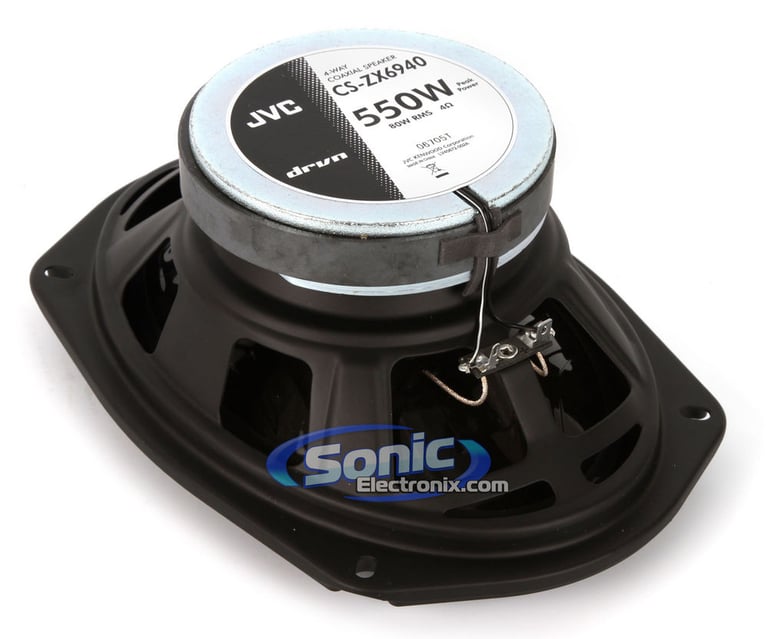

  • Ferrite magnet motor structure
  • Frequency response: 35-25,000 Hz
  • Top-mount depth: 3-3/16"
  • Sensitivity: 91dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

TERMINATOR69 small

MTX Audio TERMINATOR69

• 120 watts Peak Each, 60 watts RMS Each
• Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87.8 dB

(1)

$79.95

List price $89.95

NSP69 small

NVX NSP69

• 450 watts Peak Each, 150 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 3.14""

(53)

$89.99

List price $107.99

AP-X69A small

Deaf Bonce Apocalypse AP-X69A

• 400 watts Peak Each, 200 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(3)

$159.90

List price $159.90

PK1-169 small

MB Quart PK1-169

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 85.5 dB

$152.74

List price $219.99

A69 small

AudioControl A69

• 100 watts RMS Each
• Silk Dome Tweeters
• Precision-Molded Glass Fiber cone
• Impedance: 4 ohm
• Sensitivity: 86.5 dB

$159.00

List price $179.00

VSP69 small

NVX VSP69

• 450 watts Peak Each, 150 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB
• Mounting Depth: 3.14"

(54)

$109.99

List price $131.99

P1692 small

Rockford Fosgate Punch P1 P1692

• 150 watts Peak Each, 75 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome Tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(81)

$109.99

List price $109.99

Specifications & Details


Speaker Specifications
Series
DRVN Series
Priced Per
Pair
Speaker Size
6" x 9"
Design
4-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon Mica
Woofer Surround
Rubber
Peak Power Handling
550 watts
RMS Power Handling
80 watts
Sensitivity
91 dB
Frequency Response
35 - 25000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-3/16"
Cutout Dimensions
5-3/4" x 8-9/16"
General specifications

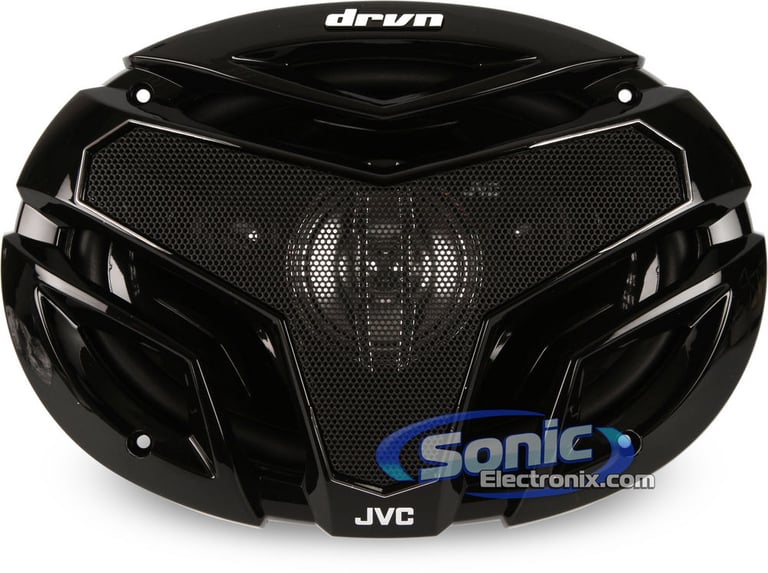

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-ZX6940

Weight:

9.00lbs

Internal SKU:

cszx6940

Internal Product ID:

44299
