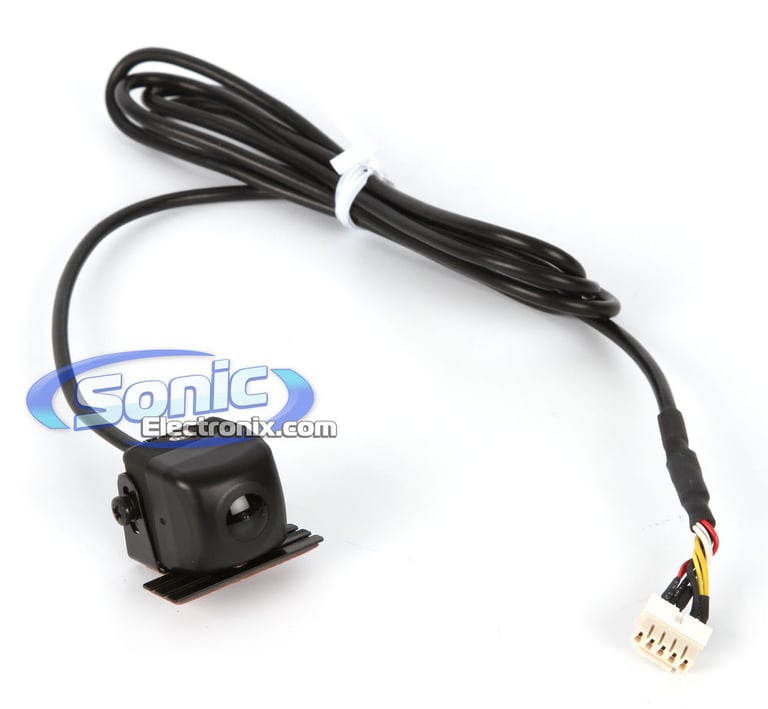

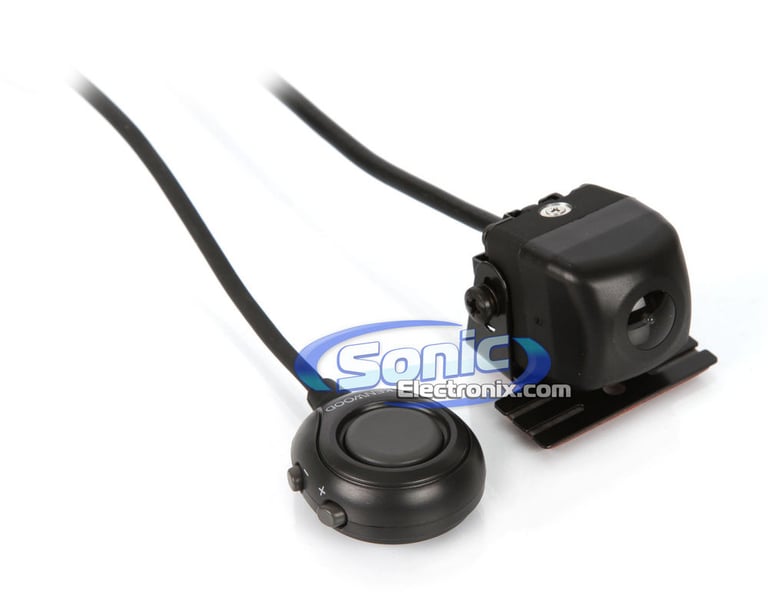

Kenwood CMOS-310

Universal Rear View Camera w/ Electronic Iris System & Dash Mount Mode Selector Button

Kenwood
Shop all Kenwood
highlight-star-icon

• High Resolution Rear View Camera with Multi-Viewing Modes
• Designed For Kenwood and eXcelon Video Units
• Uses CMOS Optics
• Wide Angle Lens
• Electronic Iris System

Learn more about the cmos310

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

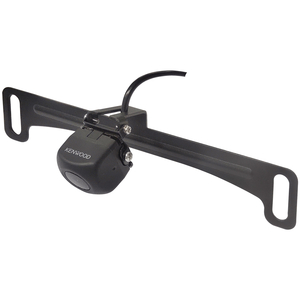

cmos320lp thumbnail

Kenwood eXcelon CMOS-320LP

OUR PRICE: $269.00

View item

Loading...
99-7010 main

Metra 99-7010 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2012 Eclipse (Silver)

4
-56.53%

$39.99

List price $91.99

70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
FH-S722BS main

Pioneer FH-S722BS

Double DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

7
-11.54%

$229.99

List price $260.00

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Kenwood brand icon

Authorized dealer

Why You Need This:

  • To see things behind you!
  • No one wants to mess their paint job up by backing into a pole
  • It's a hassle looking over your shoulder when backing up
  • Over 50 children are injured and 2 children die every week by people backing out of their very own driveway - You don't want to be one of the people responsible for that
  • It's Kenwood so you know it's good!

General Features:

  • High Resolution Rear View Camera with Multi-Viewing Modes
  • Designed specifically for Kenwood and eXcelon in-dash video units
  • The ideal add-on component for safety and security

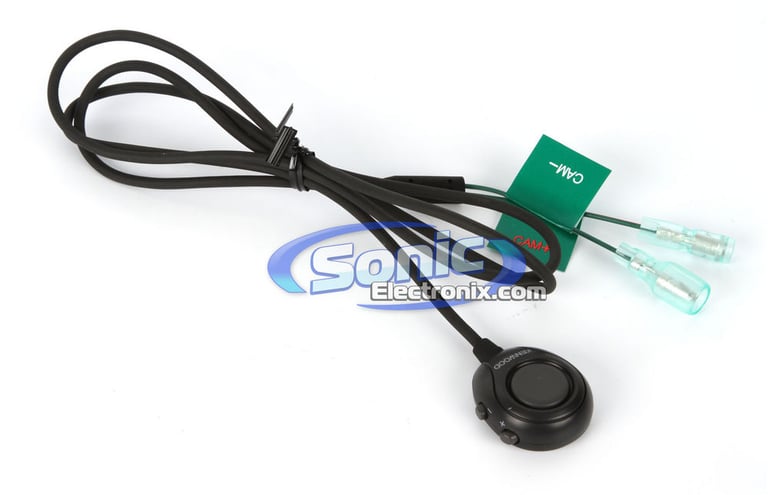

  • Camera view selection button
  • Picture-in-picture function
  • Multiple viewing modes: Super wide, wide, overhead, picture-in-picture and corner view
  • Uses CMOS optics for greater clarity
  • Integrates a smaller on-board chip with faster operating speeds
  • Does not receive as much light distortion from near-by light sources
  • Approximately 310,000 visible pixels
  • Waterproof chassis perfect for all vehicles
  • Flexible mounting base
  • Adjustable back-guide line indicator
  • High voltage protection
  • Wide angle lens
  • Electronic iris system
  • Interlace scanning system
  • Synchronizing system internal
  • 1-year Sonic Electronix warranty

Product Features:

  • Output Video: Wide-Angle Mirror Image (Rearview)
  • Sensor: 1/4 inch color CMOS sensor
  • Angle of View:
    • Horizontal: Approx. 190°C
    • Vertical: Approx. 151°C
  • Color Signal System: NTSC
  • Focal Length: f=0.82 mm, F value 2.4
  • Illumination Range: Approx 0.9 to 100,000 lux
  • Operating Voltage: 14.4V (9.0 - 16 V allowable)
  • Iris System: Electronic iris
  • Scanning System: Interlace
  • Synchronizing System: Internal synchronization
  • Current Consumption: Approx. 60mA
  • Grounding System: Negative Ground Type
  • Operational Temperature Range: -30°C - +70°C
  • Dimensions: 15/16"W x 1"D x 15/16"H
  • Dimensions (Camera): 15/16"W x 1"D x 15/16"H

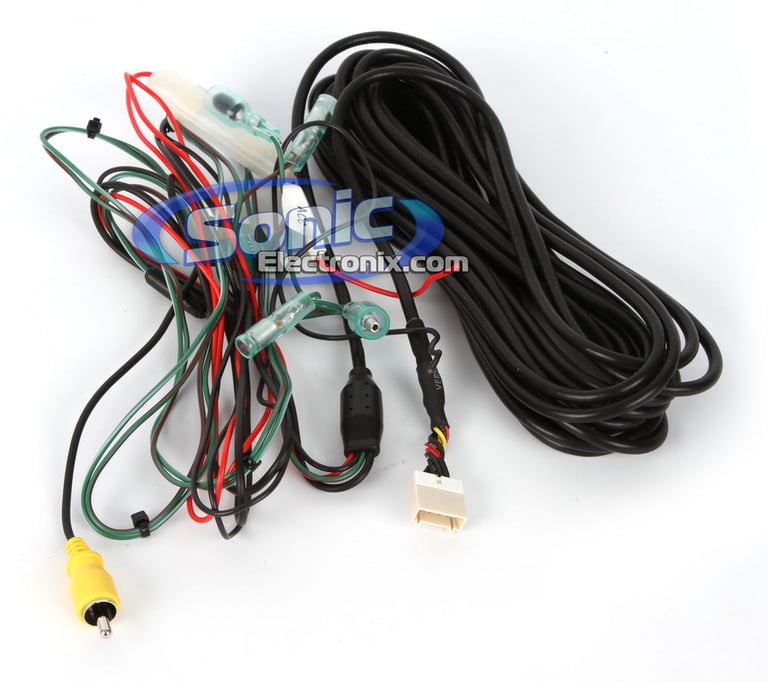

  • Dimensions (Power Cord): 7.5M (24.6ft)

Product history:

Kenwood CMOS-320LP thumbnail
(newest, current model)
Kenwood CMOS-320 thumbnail
(previous model, replaced by Kenwood eXcelon CMOS-320LP)
Kenwood CMOS-310 thumbnail
(previous model, replaced by Kenwood CMOS-320)
Kenwood CMOS-300 thumbnail
(previous model, replaced by Kenwood CMOS-310)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(35)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

RVCCH-75C small

Crux RVCCH-75C

• Rear-View Integration System with Camera
• For select 2013-2017 vehicles from Dodge, Jeep, Chrysler
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$261.90

List price $407.40

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 3500 and 2500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

XCAMLP small

NVX XCAMLP

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Viewing Angle: 170 °
• Resolution: 720 x 480
• Waterproof: Yes
• Night vision: LED's

(51)

$49.99

List price $59.99

MD-8400 small

Momento MD-8400

• 4K UHD Front and Rear Dash Camera
• Advanced Parking Mode
• Wi-Fi Connectivity for Easy Access
• MicroSD Card Included
• Sleek and Compact Design

$349.99

List price $399.99

TE-JPKT small

Metra TE-JPKT

• Rearview Spare Tire Camera
• Mounting Style: Spare Tire Mount
• Viewing Angle: 110-degree horizontal / 170-degree diagonal
• Resolution: 1280 x 720  (AHD) / 720 x 480 (CVBS)
• Waterproof: IP67 rating
• Nightvision: Low-light

$163.99

List price $182.99

CSV-TYT small

Crux CSV-TYT

• Side Mirror Mounted Rearview Back Up Camera
• Nightvision
• Resolution: 976 x 496
• Operating Temp.: -4°F (-20°C) to 185°F (85°C)

$143.10

List price $222.60

Specifications & Details


General Features
Color Type
Color
Night Vision
No
Sensor Type
CMOS
Video Output
RCA Composite Cable
Mounting Type
Remote Mount
Adjustable Tilt
No
Weatherproof
Yes
Reverse Image
Yes
Parking Guidelines
Adjustable
Built-in Microphone
No
Primary Color
Black
Camera Housing Material
Metal
Minimum Illuminance
0.8 lx
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CMOS-310

Weight:

1.10lbs

Internal SKU:

cmos310

Internal Product ID:

44312
