NuVOICE UG-9

UHF Wireless Guitar System w/ 90° Plug

NuVOICE
Shop all NuVOICE
highlight-star-icon

UHF Wireless Guitar System w/ 90° Plug • Diversity Receiver Design • 16 Operating Channels • Operating Range Of Up To 150 Feet • Adjustable Squelch Control • TS ¼” Audio Output • Receiver Can Operate On Batteries Or DC Power • Receiver Can Be Paired w/ Any Of The Five U-Series Transmitters

Learn more about the ug9

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


NuVOICE brand icon

Authorized dealer

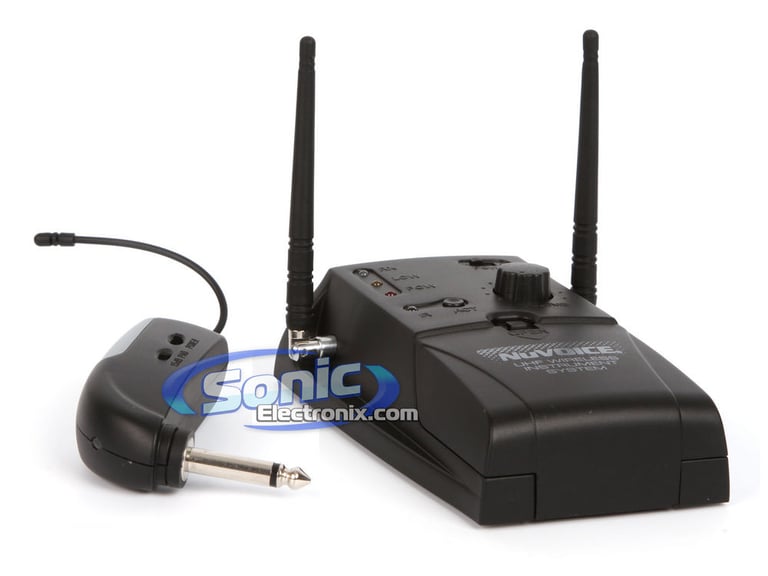

The NuVOICE UG-9:

Some musicians need freedom when playing their instrument, and with the U-Series Wireless Instrument System, they may have all the freedom they like. Simply attach the wireless transmitter to your instrument and you're free to play for up to 12 hours on a single AAA battery. The solid base receiver can run on batteries or AC power, allowing for virtually unlimited placement options. Also, the diversity receiver design helps avoid signal drop-outs for greater reliability. Since there are 16 user-selectable operating frequencies, up to four systems can be used simultaneously.

Free yourself with the U-Series Wireless Instrument Miking Systems by NuVOICE!


What's In The Box?

  1. (1) Owner's Manual
  2. (1) Travel Case
  3. (1) U-SERIES Receiver
  4. (1) 3' Male/Male 1/4" TRS Cable
  5. (1) AC Power Adapter
  6. (1) UG-9 Transmitter

Product Features:

  • UHF Wireless Guitar System w/ 90° Plug
  • Diversity receiver design eliminates dropouts caused by multipathing and interference
  • 16 operating channels allow for multiple sets to be used simultaneously
  • Operating range of up to 150 feet
  • Adjustable squelch control to minimize outside interference
  • TS ¼” audio output
  • 3 LEDs display power, battery, and antenna link status
  • Receiver can operate on 2 AA batteries or included DC power adapter
  • Receiver can be paired with any one of the five U-Series transmitters:
    • UG-3
    • UG-9
    • UF-3
    • US-3
    • UV-3
  • Also found as: UG9
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Transmitter:
    • RF Output Power: 10dBm ± 1dBm
    • Spurious: -50dBm
    • Modulation Factor: 40kHz
    • Pre-emphasis: 50u/sec
    • Max. Input Level: +2dBv
    • Input Impedance: 20K ohm
    • T.H.D.: < 0.8% (1kHz 100mV)
    • Frequency Response: 50Hz - 20kHz ± 3dB
    • Operating Power Voltage: 1.5V typical, 1.1V min. - 2V max.
    • Current Consumption: 80mA
    • Battery Life: 12 hrs. (AAA size battery)
    • Antenna: Permanently Attached 1/4 Wave Length Wire
    • Controls: Power / 15dB Pad Switch
    • LED Indicators: Power On (flash) / Low Battery (solid)
  • Receiver:
    • Frequency Range: 900MHz - 925MHz
    • Modulation Type: F3E
    • OSC (Oscillator) System: PLL Circuit
    • Operating Range: Approx. 328 Feet (100 m)
    • De-emphasis: 50u/sec
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    • Receiving Sensitivity: SINAD > 30dB 10dBuV
    • Squelch Sensitivity: 17dBuV ± 4dBuV
    • S/N (Signal-to-Noise) Ratio: 95dB (A) (f1kHz = 1mV)
    • Audio Output Level at div.f15kHz: 800mV (f40kHz)
    • Frequency Response: 50Hz - 20kHz ± 3dB
    • T.H.D. (@ SG Output 56dBuV): < 0.8% (f1kHz)
    • Output Impedance: 5K - 10K ohm
    • Power Supply: DC9V / 2x 3V AA Batteries
    • Current Consumption: 9V / 60mA, 3V / 100mA
    • Antenna: Dual 1/4 Wave Length Rod Antennas
    • Controls:
      • Audio Volume
      • IR ACT
      • Ch. Select
      • Power
    • LED Display:
      • White: IR SEND
      • Red: Power
      • Yellow: Low Battery
      • Orange/Green: Antenna
