NuVOICE US-3

UHF Wireless Saxophone System

NuVOICE
Shop all NuVOICE
highlight-star-icon

UHF Wireless Saxophone System • Diversity Receiver Design • 16 Operating Channels • Operating Range Of Up To 150 Feet • Adjustable Squelch Control • TS ¼” Audio Output • Receiver Can Operate On Batteries Or DC Power • Receiver Can Be Paired w/ Any Of The Five U-Series Transmitters

Learn more about the us3

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12

Description


NuVOICE brand icon

Authorized dealer

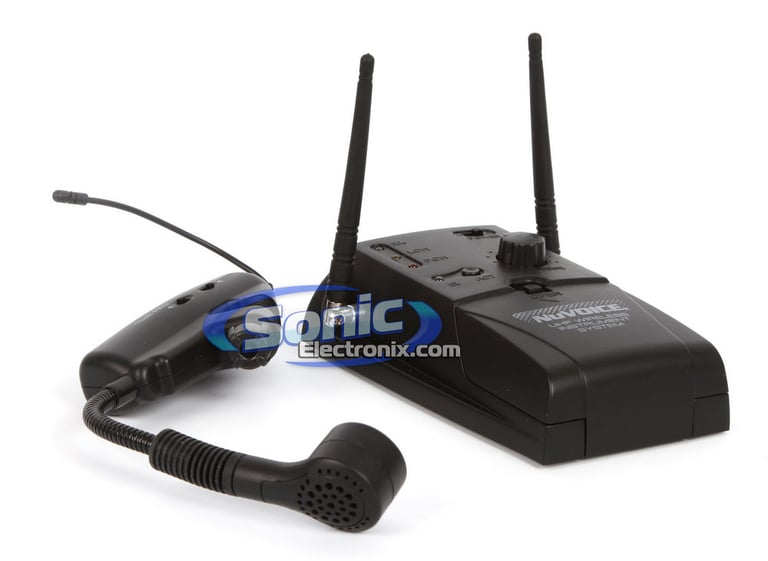

The NuVOICE US-3:

Some musicians need freedom when playing their instrument, and with the U-Series Wireless Instrument System, they may have all the freedom they like. Simply attach the wireless transmitter to your instrument and you're free to play for up to 12 hours on a single AAA battery. The solid base receiver can run on batteries or AC power, allowing for virtually unlimited placement options. Also, the diversity receiver design helps avoid signal drop-outs for greater reliability. Since there are 16 user-selectable operating frequencies, up to four systems can be used simultaneously.

Free yourself with the U-Series Wireless Instrument Miking Systems by NuVOICE!


What's In The Box?

  1. (1) Owner's Manual
  2. (1) Travel Case
  3. (1) U-SERIES Receiver
  4. (1) 3' Male/Male 1/4" TRS Cable
  5. (1) AC Power Adapter
  6. (1) US-3 Transmitter

Product Features:

  • UHF Wireless Saxophone System
  • Diversity receiver design eliminates dropouts caused by multipathing and interference
  • 16 operating channels allow for multiple sets to be used simultaneously
  • Operating range of up to 150 feet
  • Adjustable squelch control to minimize outside interference
  • TS ¼” audio output
  • 3 LEDs display power, battery, and antenna link status
  • Receiver can operate on 2 AA batteries or included DC power adapter
  • Receiver can be paired with any one of the five U-Series transmitters:
    • UG-3
    • UG-9
    • UF-3
    • US-3
    • UV-3
  • Also found as: US3
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Transmitter:
    • RF Output Power: 10dBm ± 1dBm
    • Spurious: -50dBm
    • Modulation Factor: 40kHz
    • Pre-emphasis: 50u/sec
    • Max. Input Level: +2dBv
    • Input Impedance: 20K ohm
    • T.H.D.: < 0.8% (1kHz 100mV)
    • Frequency Response: 50Hz - 20kHz ± 3dB
    • Operating Power Voltage: 1.5V typical, 1.1V min. - 2V max.
    • Current Consumption: 80mA
    • Battery Life: 12 hrs. (AAA size battery)
    • Antenna: Permanently Attached 1/4 Wave Length Wire
    • Controls: Power / 15dB Pad Switch
    • LED Indicators: Power On (flash) / Low Battery (solid)
  • Receiver:
    • Frequency Range: 900MHz - 925MHz
    • Modulation Type: F3E
    • OSC (Oscillator) System: PLL Circuit
    • Operating Range: Approx. 328 Feet (100 m)
    • De-emphasis: 50u/sec
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    • Receiving Sensitivity: SINAD > 30dB 10dBuV
    • Squelch Sensitivity: 17dBuV ± 4dBuV
    • S/N (Signal-to-Noise) Ratio: 95dB (A) (f1kHz = 1mV)
    • Audio Output Level at div.f15kHz: 800mV (f40kHz)
    • Frequency Response: 50Hz - 20kHz ± 3dB
    • T.H.D. (@ SG Output 56dBuV): < 0.8% (f1kHz)
    • Output Impedance: 5K - 10K ohm
    • Power Supply: DC9V / 2x 3V AA Batteries
    • Current Consumption: 9V / 60mA, 3V / 100mA
    • Antenna: Dual 1/4 Wave Length Rod Antennas
    • Controls:
      • Audio Volume
      • IR ACT
      • Ch. Select
      • Power
    • LED Display:
      • White: IR SEND
      • Red: Power
      • Yellow: Low Battery
      • Orange/Green: Antenna

Best selling similar products

JBLPBWIRELESSMICAM small

JBL PartyBox Two-Person Wireless Mic (JBLPBWIRELESSMICAM)

• Includes two wireless microphones and one dongle
• Compatible with all PartyBox speakers
• Rechargeable UHF dual channel wireless receiver
• High vocal quality and JBL Original Pro Sound
• Microphones come with replaceable AA batteries

$169.95

List price $204.00

Specifications & Details


Microphone Specifications
Microphone Type
Clamp On
Designed Applications
Instruments
Number of Microphones
1
Frequency Response
50 - 20000 Hz
Signal-to-Noise Ratio
95 dB
Output Impedance
5-10 k ohm
Pad(s)
-15
Connection Type
1/4" (TS Connector)
Wireless Specifications
Carrier Frequency Range
900 - 925 MHz
Operating Range
328 feet
Number of Channels
16
Receiver Type
Portable
Diversity
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

US-3

Weight:

1.80lbs

Internal SKU:

us3

Internal Product ID:

45006
