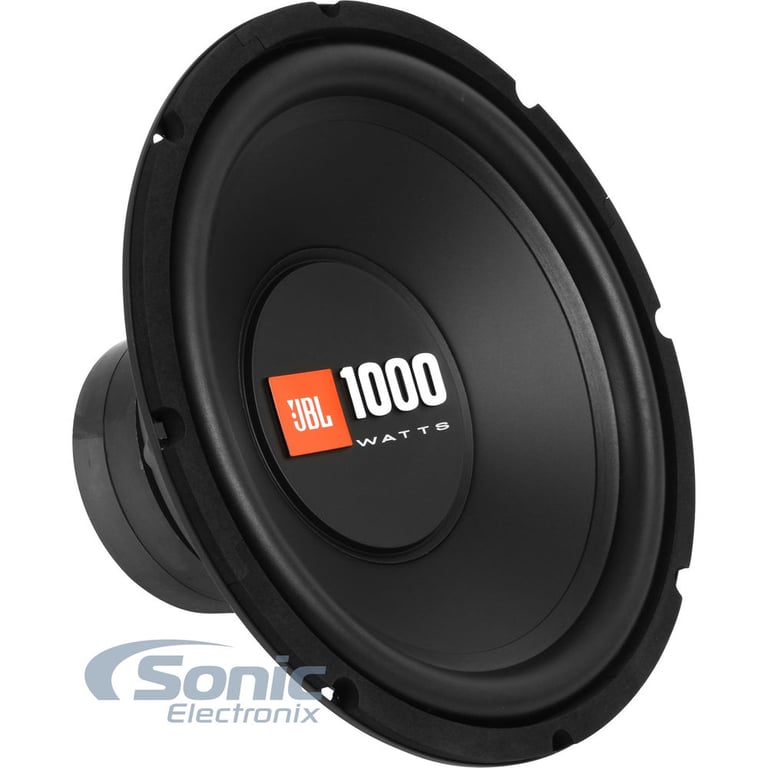

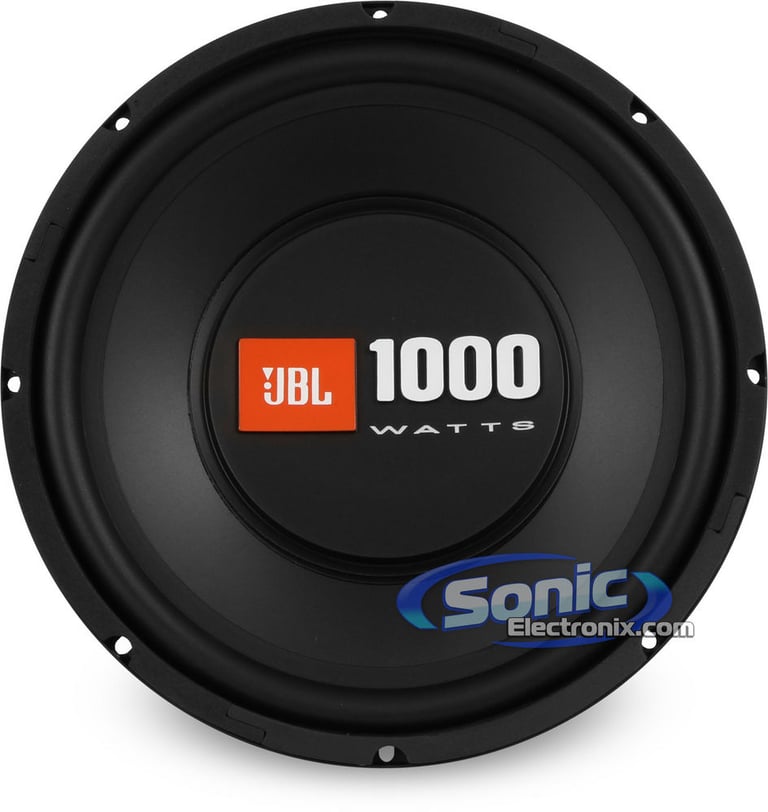

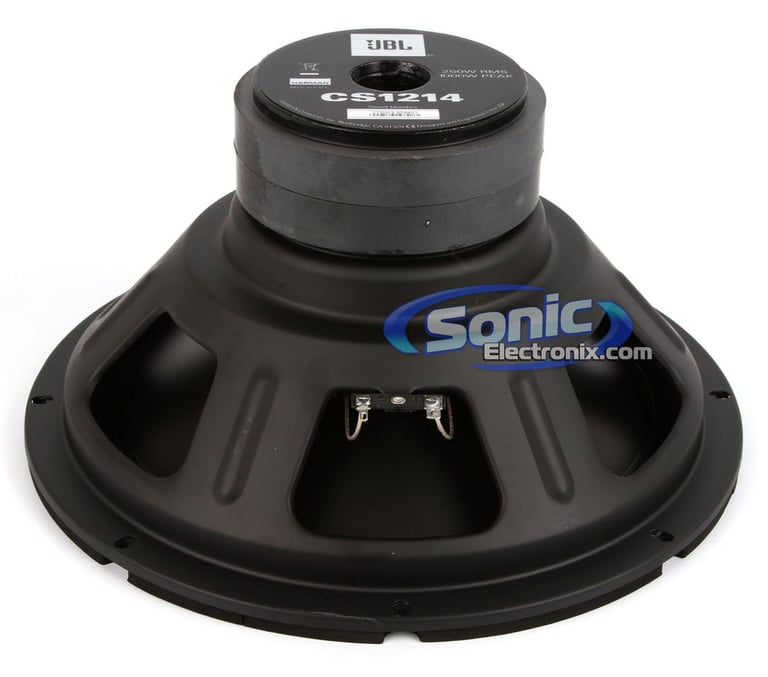

JBL CS1214 Open Box Complete

250W 12" CS Series Single 4 Ohm Subwoofer

JBL
Shop all JBL
highlight-star-icon

• Item Condition: Open Box Complete
• Peak Power: 1000W
• RMS Power: 250W
• Impedance: 4 ohm
• Polypropylene Cone
• Rubber Surround
• Resonance Frequency (Fs): 28 Hz

Learn more about the ls-cs1214-obc6

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.



Great "Boom" For The Buck!

With 1000 watts of peak power handling and 250 watts RMS, the JBL CS Series CS1214 subwoofer handles a serious amount of power. Some of its great features include a frequency response of 35Hz – 200Hz which enables you to hear the wide bass range that you’ve always wanted. And with a sensitivity of 90dB, it provides for better performance at lower power levels. The woofer cone is polypropylene and very light, ensuring maximum performance and efficiency. JBL also uses a progressive spider on the CS Series, which offers better control at the excursion limits, rather than the linear spider commonly used by other manufacturers. This helps reduce distortion even at the highest output levels.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


  • A part that is fully functional but shows no sign of use outside of installation.

General Features:

  • 12" CS Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: 4 ohm
  • High excursion, high BL motor
  • Polypropylene Cone
  • Rubber Surround
  • 1-1/2" Voice coil
  • Frequency response: 35-200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Top-mount depth: 6-1/16"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL CS1214 Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL CS1214 Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL CS1214 Open Box Complete Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL CS1214 Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
CS Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1-1/2"
Frequency Response
35 - 200 Hz
Sensitivity
90 dB
Xmax (millimeters)
6.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.75 cubic feet
Optimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
.75 cubic feet
Optimum Ported Box Volume
1 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/16"
Cutout Diameter
11"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
76.7 liters
Total Speaker Q Value (Qts)
.54
Electrical Q Value (Qes)
.57
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
8.85
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

CS1214 Open Box Complete

Weight:

11.00lbs

Internal SKU:

ls-cs1214-obc6

Internal Product ID:

130003
