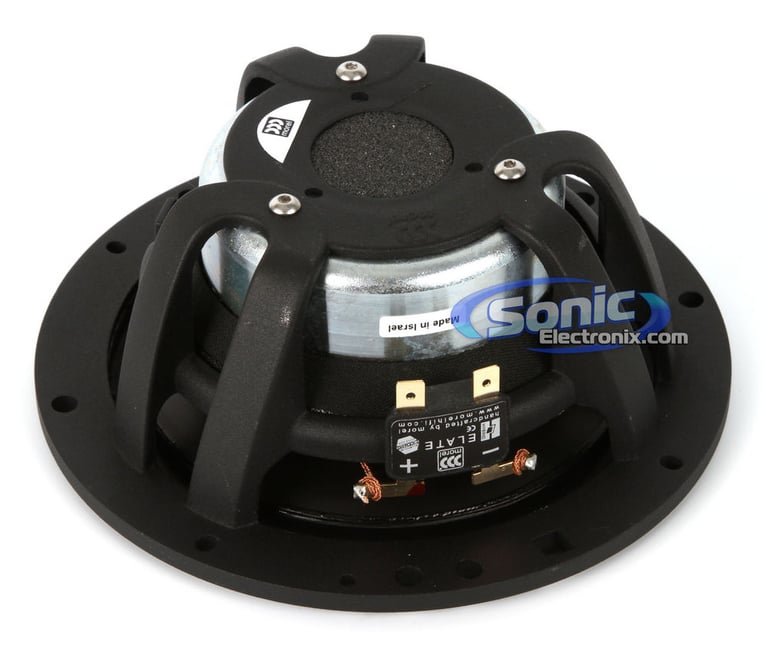

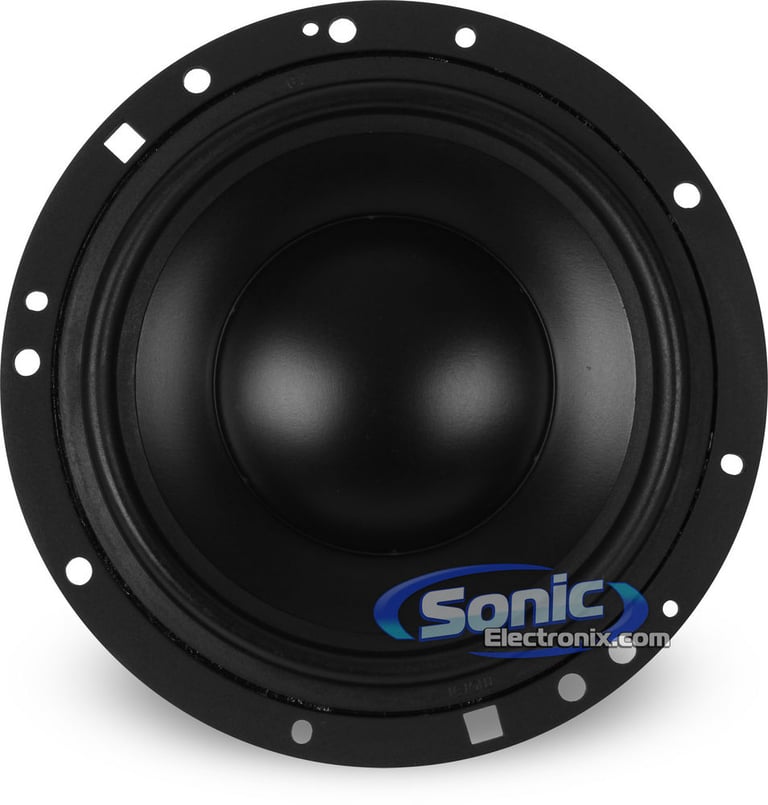

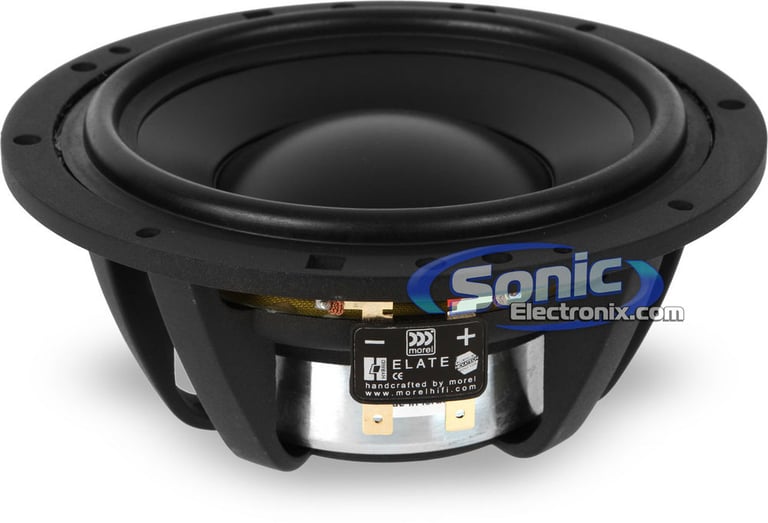

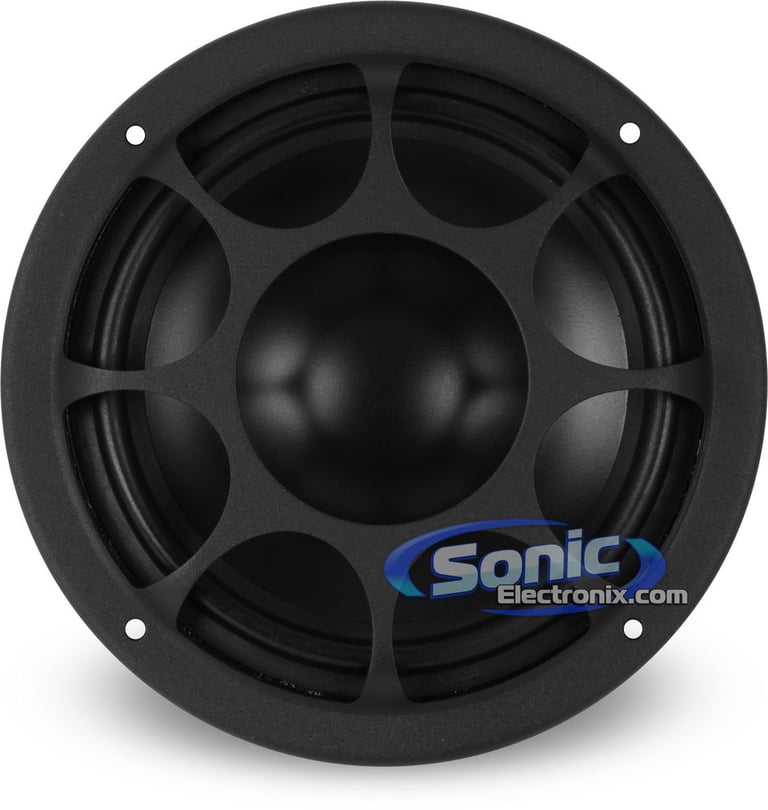

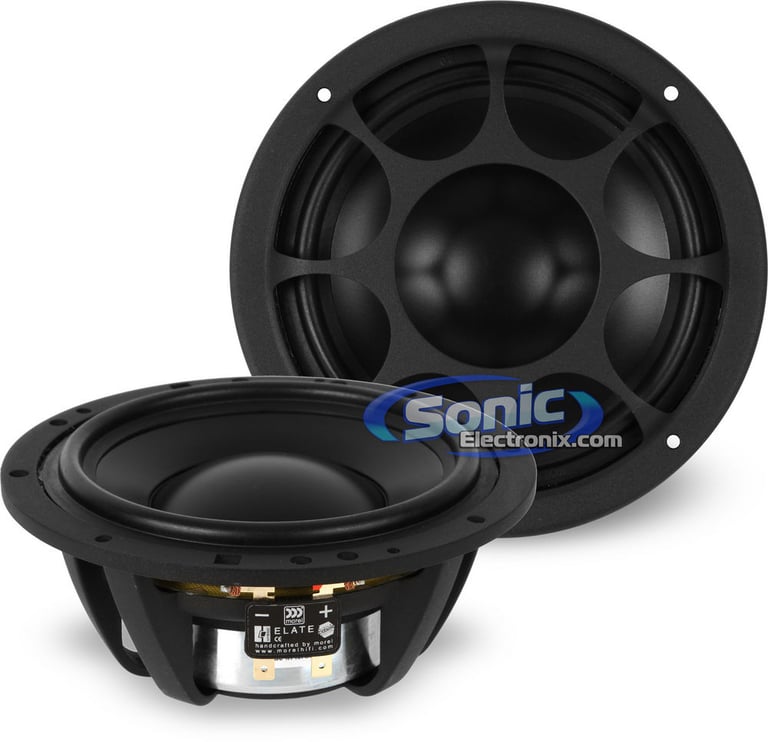

Morel Elate SW 6

6" Single 4 ohm Elate SW Series Subwoofer

Morel
Shop all Morel
Product videos
highlight-star-icon

6" Elate SW Series Subwoofer • Single 4 ohm Voice Coil • 1000W Max • 180W RMS • One-piece Formed Damped Polymer Composite Cone Material • Uniflow aluminum die-cast chassis

Learn more about the elatesw6

We apologize

This item has been discontinued


Loading...
72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

GM1VT2 main

GROM Audio GM1VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2019 vehicles from Chevrolet, Buick, GMC

1

$549.95

List price $559.95

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

MP69 main

DS18 MP69

Adapts 6x9" Speaker Space to 6.5" Speaker and 1.38" Tweeter

2
P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
PRO-GM6.4PK main

DS18 PRO-GM6.4PK

960W Peak (280W RMS) 6.5” PRO-GM Series 4-ohm Component Midrange Car Speakers

3

Product Highlights


6" Elate SW Series Subwoofer • Single 4 ohm Voice Coil • 1000W Max • 180W RMS • One-piece Formed Damped Polymer Composite Cone Material • Uniflow aluminum die-cast chassis

Description


Elegant And Accurate Bass

The Elate SW woofers are Morel's solution for deep and accurate bass reproduction. Engineered to be utilized in a wide variety of applications, the Elate SW Subwoofers employ the new Uniflow aluminum die-cast chassis, which has a shallow aerodynamic design to minimize sound reflection distortion. The large-diameter 75mm (3.0") Hexatech voice coil supports a one-piece DPC shallow cone, enabling the loudspeaker profile to remain low while preventing cone breakup distortion at high levels. The Elate SW subwoofers combine outstanding power handling capability with a compact size.

General Features:

  • 6" Single 4 ohm Elate SW Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 180 watts
  • Impedance: 4 ohm
  • One-piece Formed Damped Polymer Composite Cone Material
  • Uniflow aluminum die-cast chassis
  • Large-diameter 75mm (3.0") Hexatech voice coil
  • Hybrid rear vented motor structure
  • Frequency response: 25-4,000 Hz
  • Resonance Frequency (Fs): 50 Hz
  • Top-mount depth: 2-3/8"
  • Sensitivity: 89 dB
  • 1-year SonicElectronix.com Warranty
