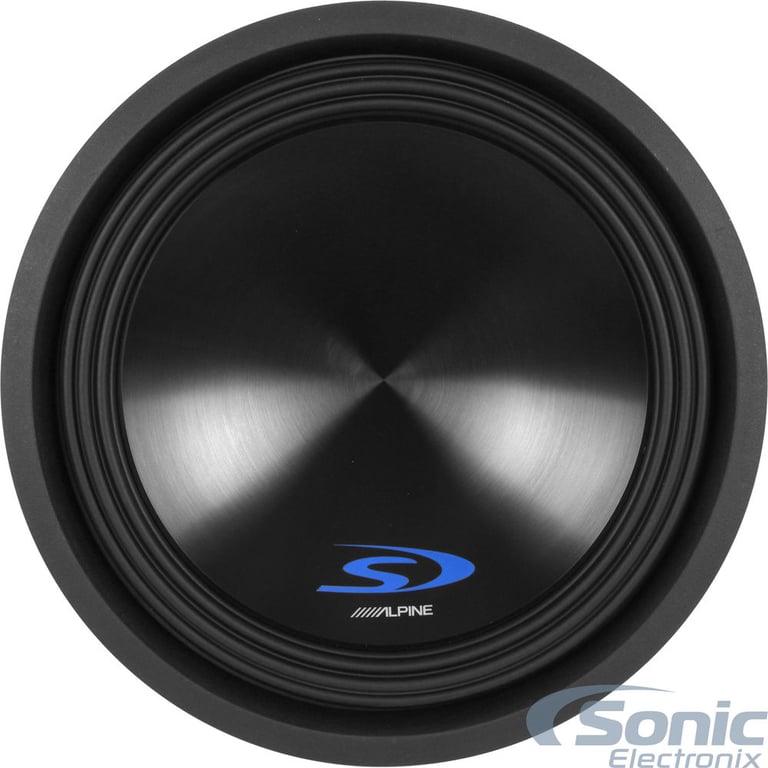

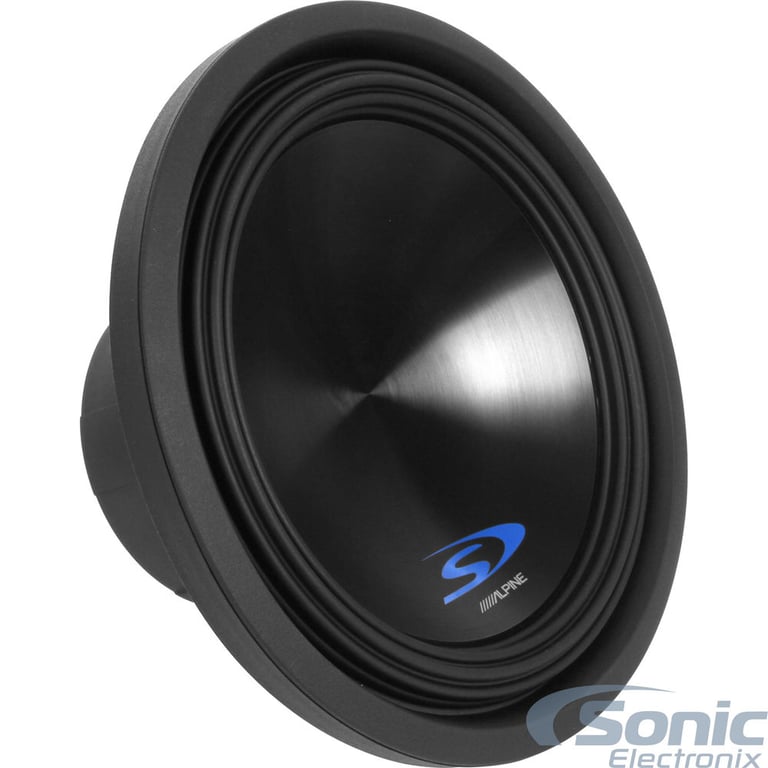

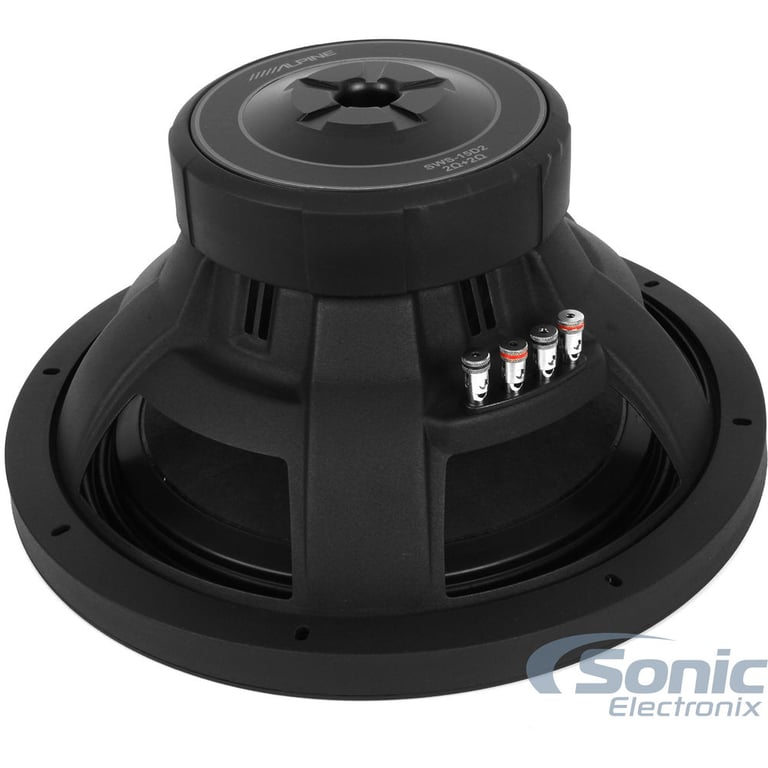

Alpine Type-S SWS-15D2

1500W Peak 15" Type-S Series Dual 2-Ohm High Performance Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 1500W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround
• Progressive Spider for Reliable and Consistent Control

Learn more about the sws15d2

We apologize

This item has been discontinued


Loading...
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-16.67%

$99.99

List price $119.99

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

14
-10.50%

$179.00

List price $200.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

86
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


• 1500W Peak
• 500W RMS
• Dual 2-Ohm Voice Coil
• Kevlar Treated Pulp Cone
• Durable HAMR Santoprene™ Surround
• Progressive Spider for Reliable and Consistent Control

Description


Alpine brand icon

Authorized dealer




General Features:

  • 15" Type-S Series Car Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Recommended power range: 150 - 500 watts RMS
  • Impedance: Dual 2 ohm
  • Kevlar reinforced cone
  • HAMR performance surround
  • Progressive spider for reliable and consistent control
  • FEA Optimized Dual-Sided CRC Motor Structure
  • CEA-2031 compliant
  • 2.5" Voice Coil
  • 106 oz. magnet motor structure
  • Frequency response: 24-200 Hz
  • Resonance Frequency (Fs): 27 Hz
  • Top-mount depth: 7"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine Type-S SWS-15D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine Type-S SWS-15D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine Type-S SWS-15D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Alpine Type-S SWS-15D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-16.67%

$99.99

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
15"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
24 - 200 Hz
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Santoprene Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Minimum Sealed Box Volume
1.25 cubic feet
Optimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Optimum Ported Box Volume
2.5 cubic feet
Maximum Ported Box Volume
3.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
13-5/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27 Hz
Equivalent Compliance (Vas)
107 liters
Total Speaker Q Value (Qts)
.48
Electrical Q Value (Qes)
.51
Electrical Resistance of Voice Coil (Re)
1.8 ohm
Mechanical Q Value (Qms)
7.69
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWS-15D2

Weight:

24.51lbs

Internal SKU:

sws15d2

Internal Product ID:

45528

Product and How-to Videos


Customer Ratings & Reviews


Alpine Type-S SWS-15D2 thumbnail image

5 star
80%
4 star
0%
3 star
0%
2 star
20%
1 star
0%



Durability
4.4
Value
4.8
Features
5
Design
5
Usability
4.4

Customer Reviews

Sort by:

Loading...

Alpine 15D2 Subwoofers

I have bought 2x of these. First off I want to say that they sound amazing but I have had nothing but problems with them. When I got them, I had them for 2 days total before I blew the first coil on both the subs. Idk how it happened but the first coil was reading 0 on multimeter and the second was reading positive for power. So I got them replaced with 2x new ones that lasted me 1 week before the same thing happened. I blew the first coil and not the second one. I have them replaced now and both of them just turned off and they are not reading any power to either of them. I would recommend these if they worked a lot better. They still have a very deep sounding bass and it drops extremely hard.

By Matt on November 13, 2013

19 found this helpful


Excellent value

With the surface area of a 15inch and 65mm of peak to peak excursion this sub offers more displacement per dollar than any other big brand subs.

Sound quality is exceptional. 1.5cubic foot sealed works well with loud punchy bass for sound quality orientated systems. For big bass fans it also works brilliantly in a larger 3 cubic foot ported box. Sound quality is still decent.

By Ben on January 20, 2013

18 found this helpful


Awesome Buy

Bought this subwoofer over a month ago. I constructed a custom box with the recommended dimensions and it certainly shakes my mirrors. The type s hits highs, lows, and everything in between and I would recommend to anyone. Great buy.

By Matt on March 19, 2015

13 found this helpful


Bumpin!!

I would recommend this sub to anyone it shocked me! It broke the brand new ported box I bought! You want good for little money this is it

By Jonathan on November 5, 2012

14 found this helpful


Great subs, great price

I bought a pair of these type s 15's and I am more than satisfied. The best bang for ur buck without a doubt. Alpine quality, deep deep lows, and built to last. 4.5 cubic foot box tuned to 35 hz and it's just nasty!! Alpine for the win guys.

By Jeramy on June 14, 2017
