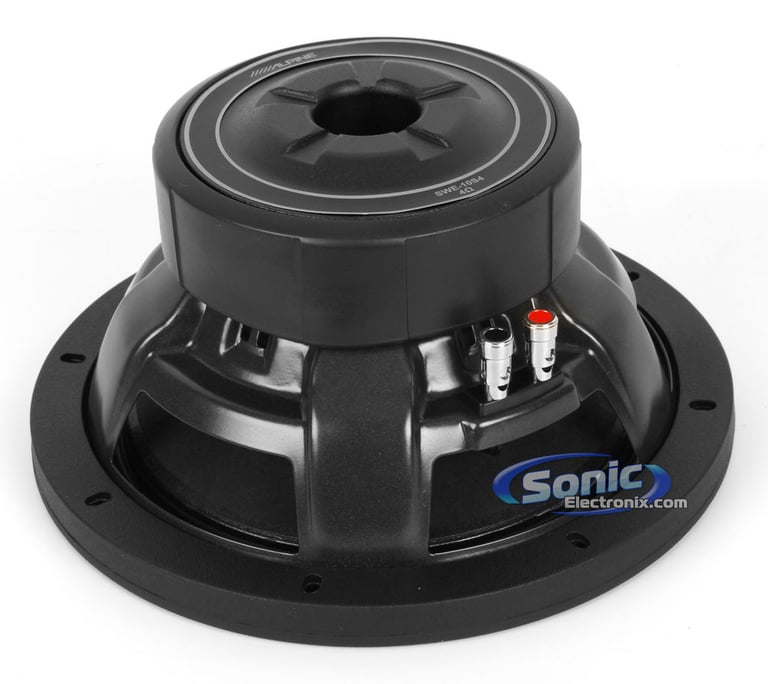

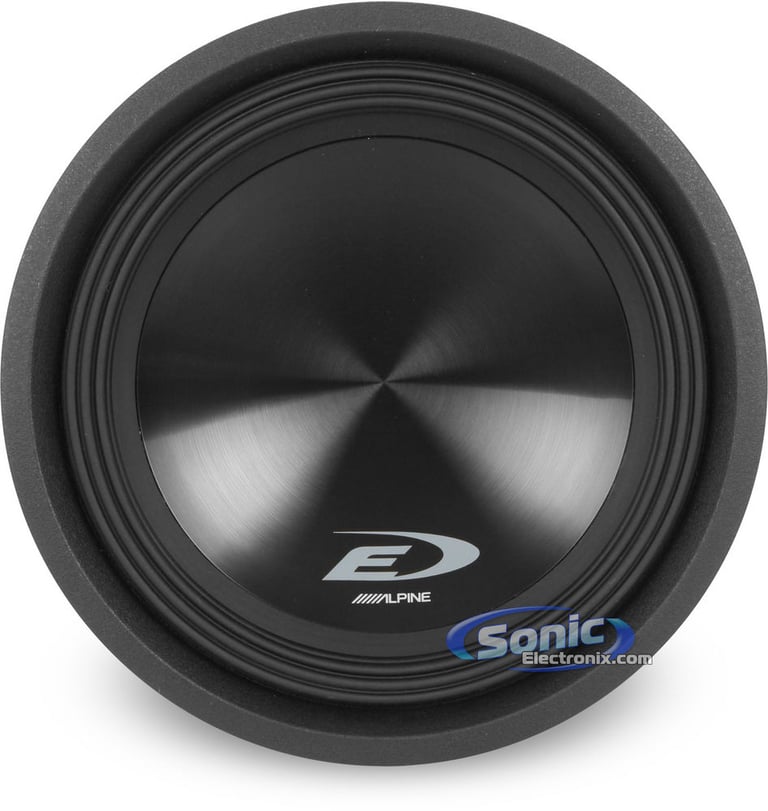

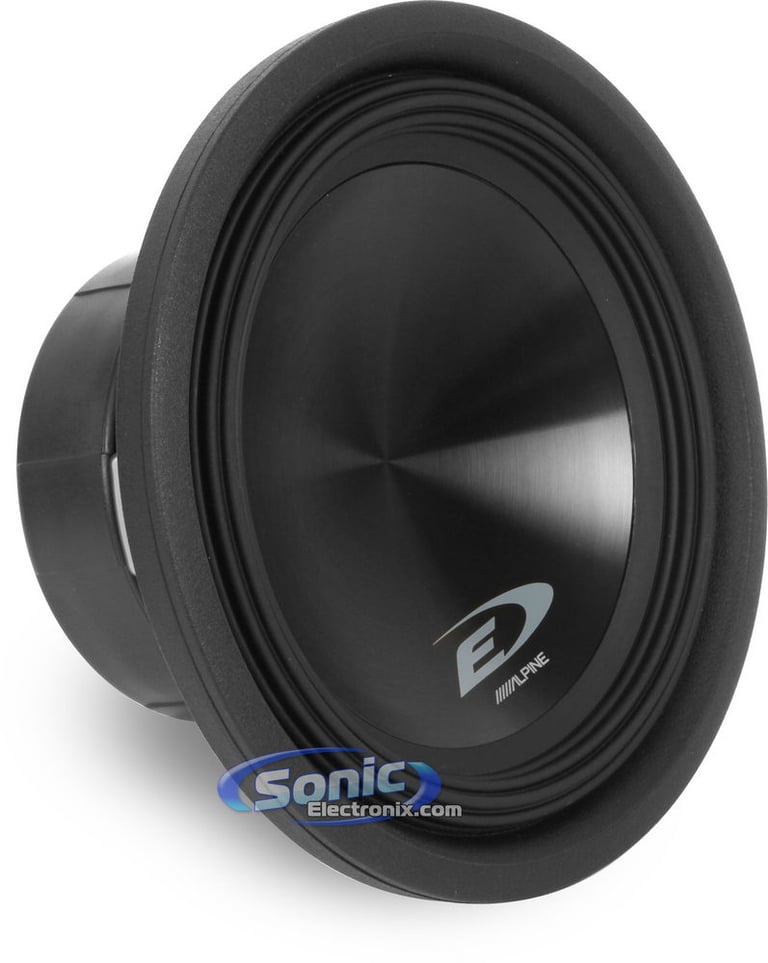

Alpine SWE-10S4 (Open Box, Complete)

250W 10" Type-E Single 4-Ohm Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 750W Peak
• 250W RMS
• Single 4-Ohm Voice Coil
• Woven Fiber w/ Kevlar Reinforced Pulp cone
• Santoprene Woofer Surround

Learn more about the ls-swe10s4-obc7

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

Genetically Built Like A Type-R

The new Type-E’s highly efficient design can play both louder and lower, and is more durable than its predecessor. With a shallow mounting depth, these subs can be installed just about anywhere, but they look so good, you won't want to hide them.

The Type-E cones are built with a reinforced parabolic cone structure and lightweight poly mica dust cap, enabling a faster snappy dynamic response. The high excursion Santoprene® H.A.M.R. surround allows for impressive linear excursion so Type-E subs play louder, and lower!

What is unique and amazing about the new Type-E subwoofer is not only the engineering behind the build, it's the new requirements for them to optimally perform. The new Type-E 12” specification requires 0.65 – 1.0 cubic feet air space for superior performance. That’s 35% less air space used in your vehicle!

General Features:

  • 10" Single 4-Ohm Type-E Series Car Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 250 watts
  • Impedance: Single 4 ohm
  • Woven Fiber w/ Kevlar Reinforced Pulp cone
  • Multi-Roll Santoprene Woofer Surround
  • Custom High Strength Steel Basket
  • Progressive Nomex Spider
  • 2.6" 3-Layer Single Voice Coil
  • FEA Optimized Design w/ Compound Radii
  • Frequency response: 32-200 Hz
  • Resonance Frequency (Fs): 40Hz
  • Top-mount depth: 4-3/4"
  • Sensitivity: 86.9dB
  • 1-year SonicElectronix.com Warranty

Product history:

Alpine SWE-10S4-3 thumbnail
(newest, current model)
Alpine SWE-1043 thumbnail
(previous model, replaced by Alpine SWE-10S4 (Open Box, Complete))
Alpine SWE-1042 thumbnail
(previous model, replaced by Alpine SWE-1043)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWE-10S4 (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWE-10S4 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWE-10S4 (Open Box, Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWE-10S4 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Type-E Series
Subwoofer Size
10"
Peak Power Handling
750 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2-1/2"
Frequency Response
32 - 200 Hz
Sensitivity
86.9 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Woven Kevlar and Glass Fiber Composite
Woofer Surround
Santoprene Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
1.30 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
8-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
26 liters
Total Speaker Q Value (Qts)
0.51
Electrical Q Value (Qes)
0.55
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
6.75
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWE-10S4-3

Weight:

13.00lbs

Internal SKU:

ls-swe10s4-obc7

Internal Product ID:

182473
