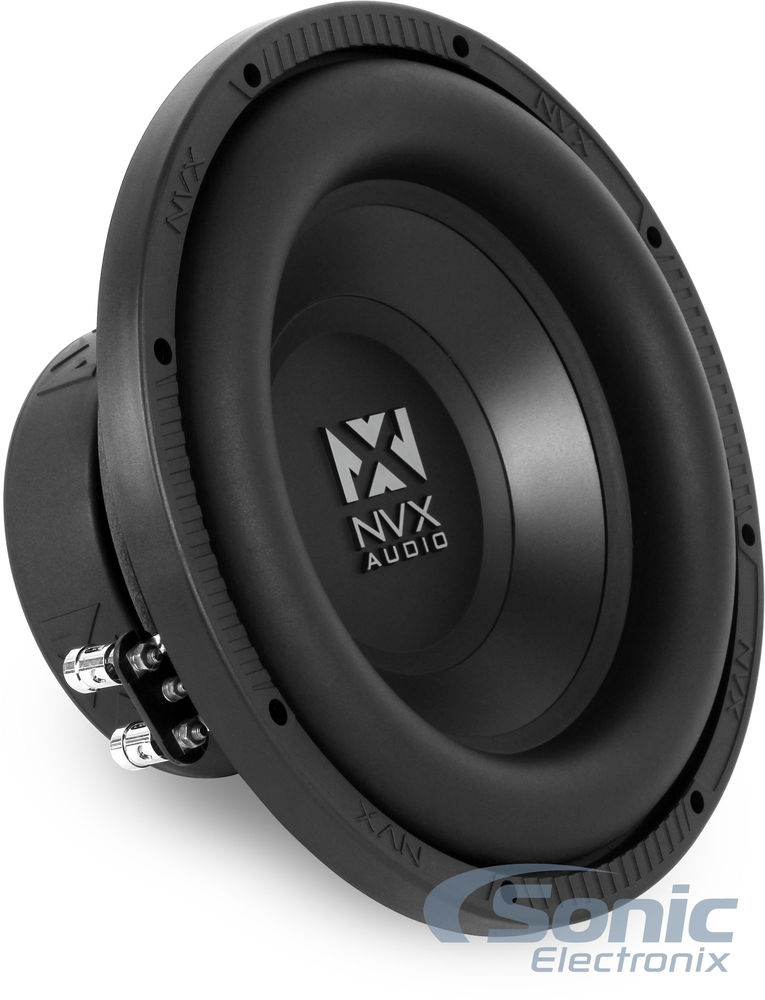

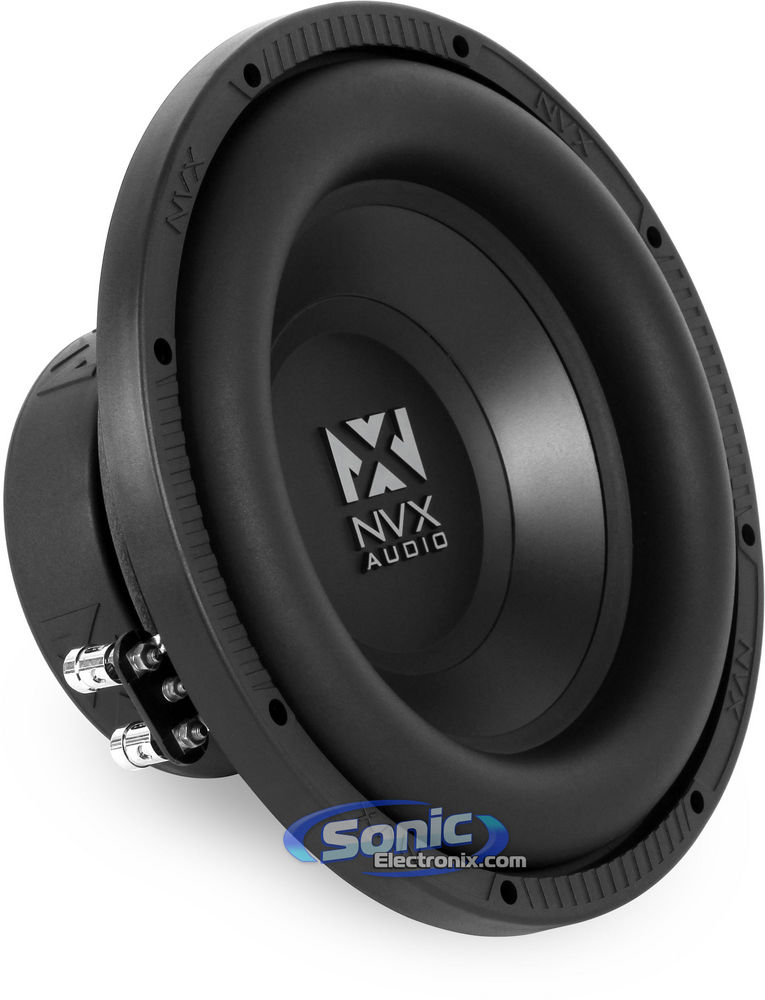

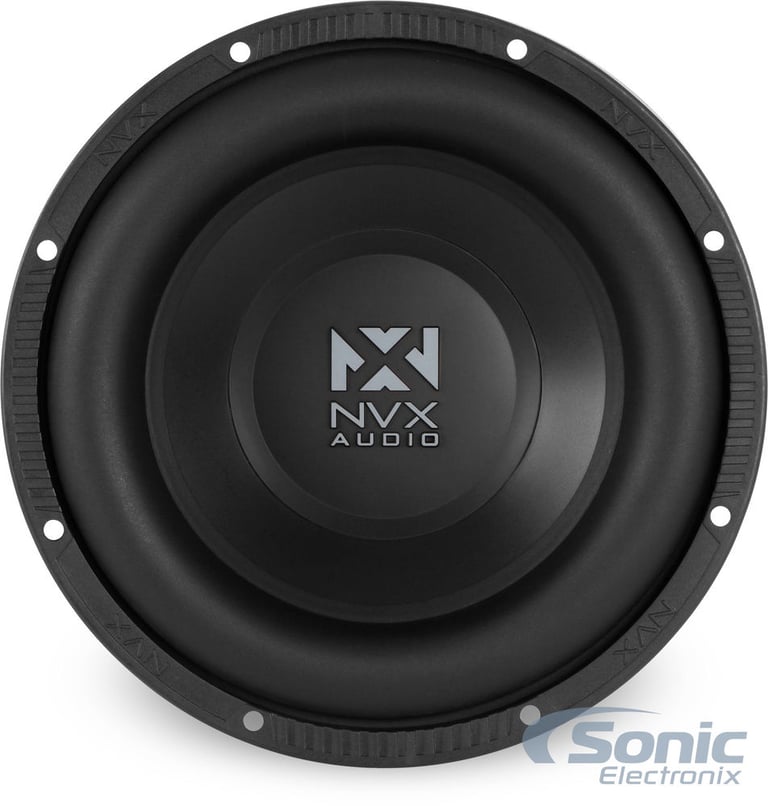

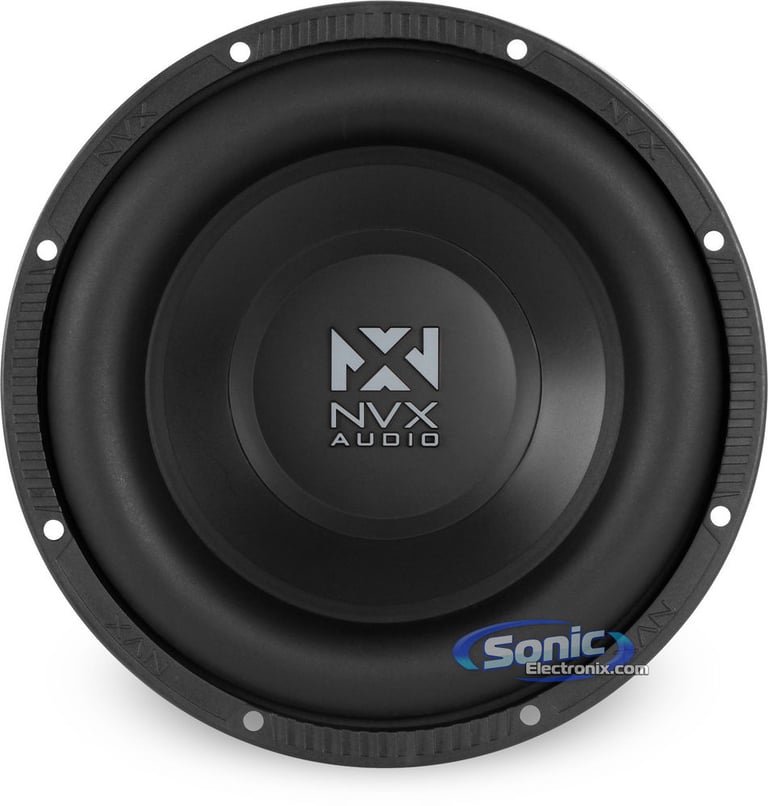

NVX NSW104 Open Box

10" Dual 4 ohm N-Series Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

10" N-Series Subwoofer • Dual 4-ohm Voice Coil • Power Range (RMS) 200-350 Watts • Polypropylene Cone • High Excursion Rubber Surround • Stamped Steel Basket • Nomex Single Spider

Learn more about the LS-nsw104-OB

We apologize

This item has been discontinued

Product Highlights


10" N-Series Subwoofer • Dual 4-ohm Voice Coil • Power Range (RMS) 200-350 Watts • Polypropylene Cone • High Excursion Rubber Surround • Stamped Steel Basket • Nomex Single Spider

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Power and Value with N-Series

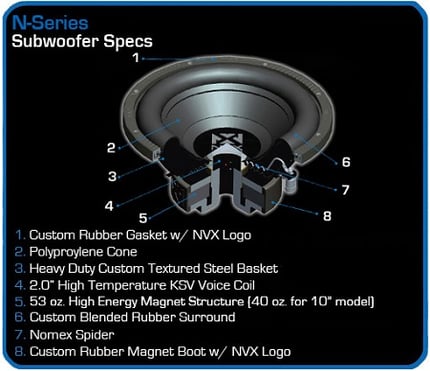

NVX's entry-level subwoofer is anything but "entry-level." NVX has engineered the NSW104 with exceptional features, such as a polypropylene cone, Nomex single spider and a high excursion rubber surround. This all adds up to a sub that moves more air for awesome, responsive and deep bass. The 2" dual 4-ohm KSV voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW104 requires less power to operate efficiently without losing bass quality.

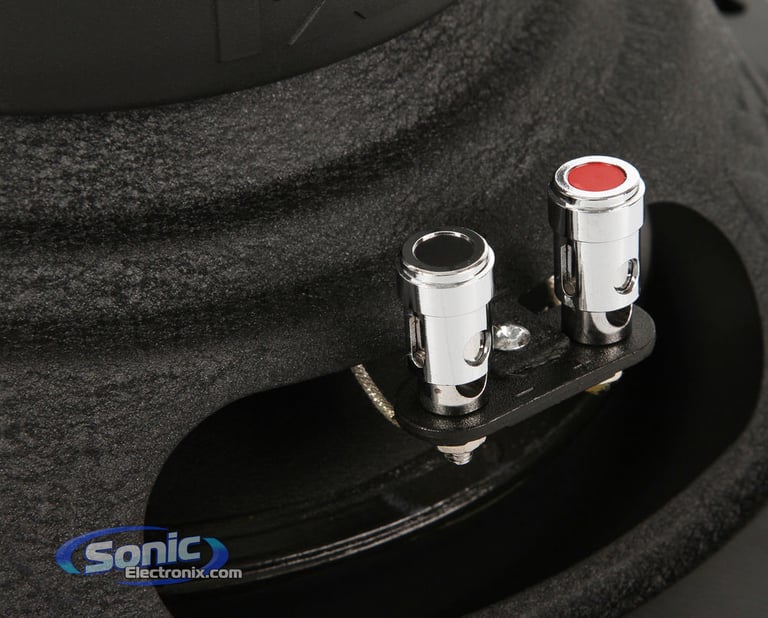

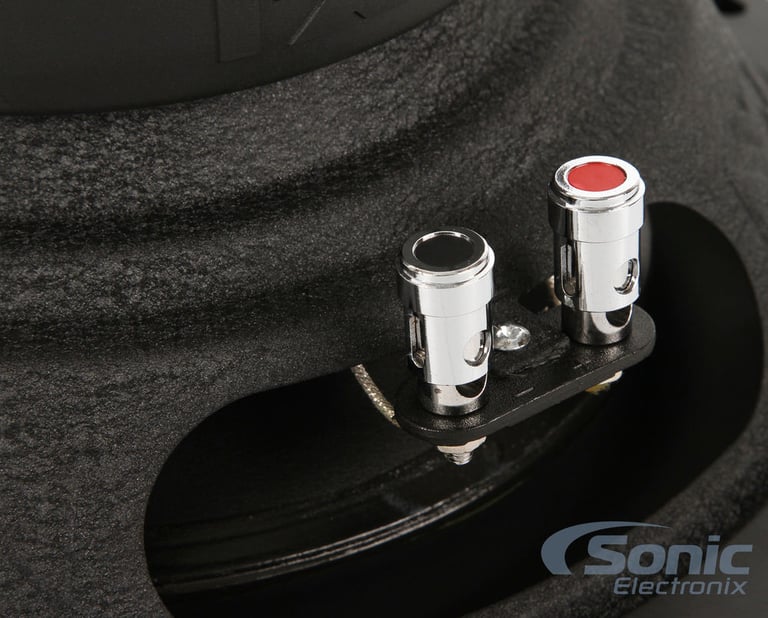

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity and the spring-loaded, chrome plated push terminals ensure a strong and dependable speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!

General Features:

  • 10" Dual 4-ohm N-Series Car Subwoofer
  • Power Handling:
    • Power Range (RMS) 200-350 Watts
  • Impedance: Dual 4 ohm

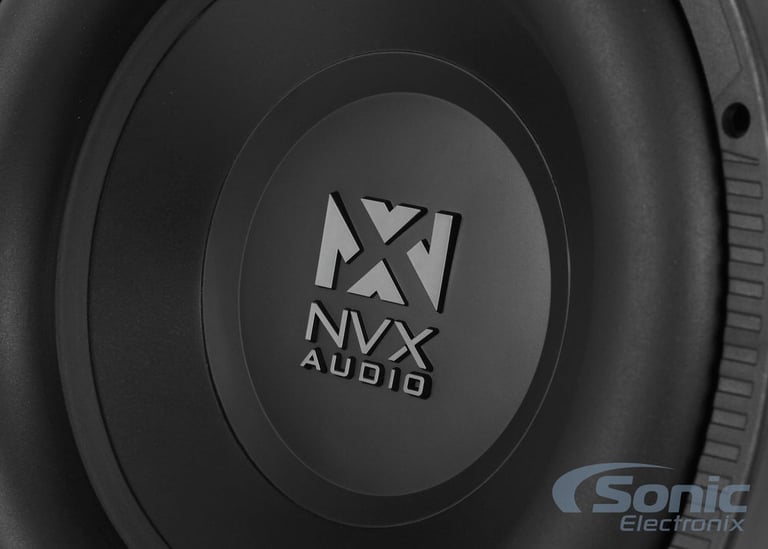

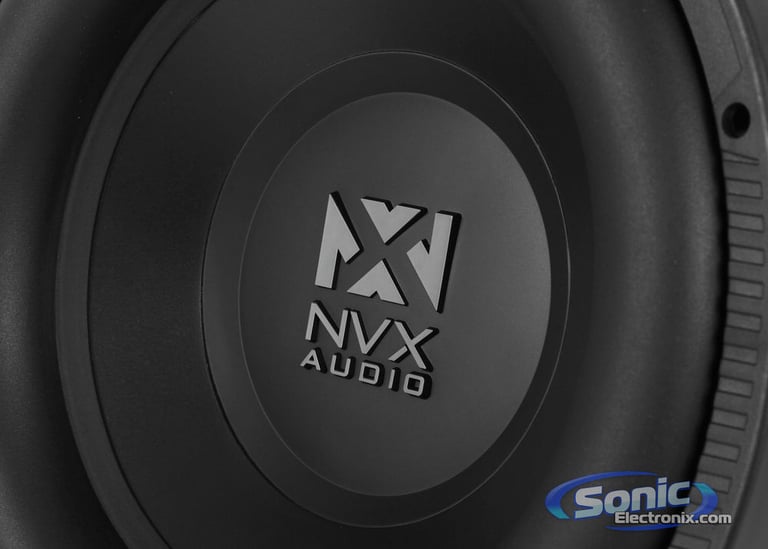

  • Polypropylene cone
  • High excursion rubber surround

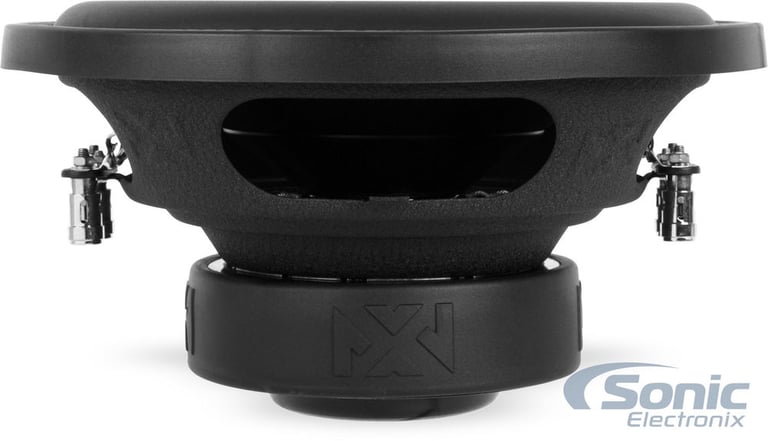

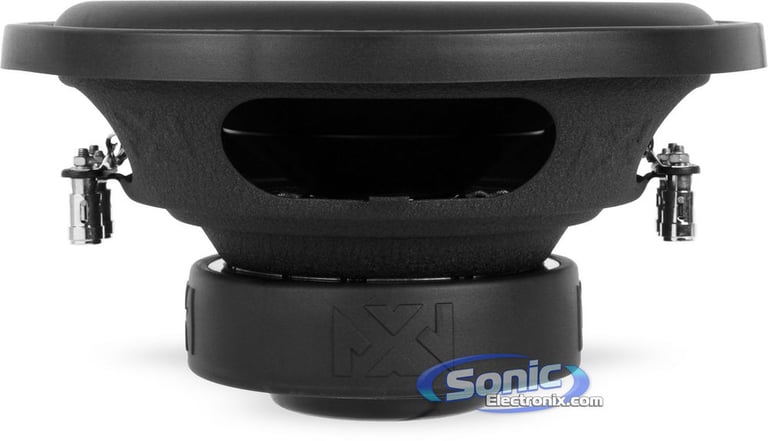

  • Stamped steel basket for maximum rigidity
  • Nomex single spider
  • 2" KSV Voice coil

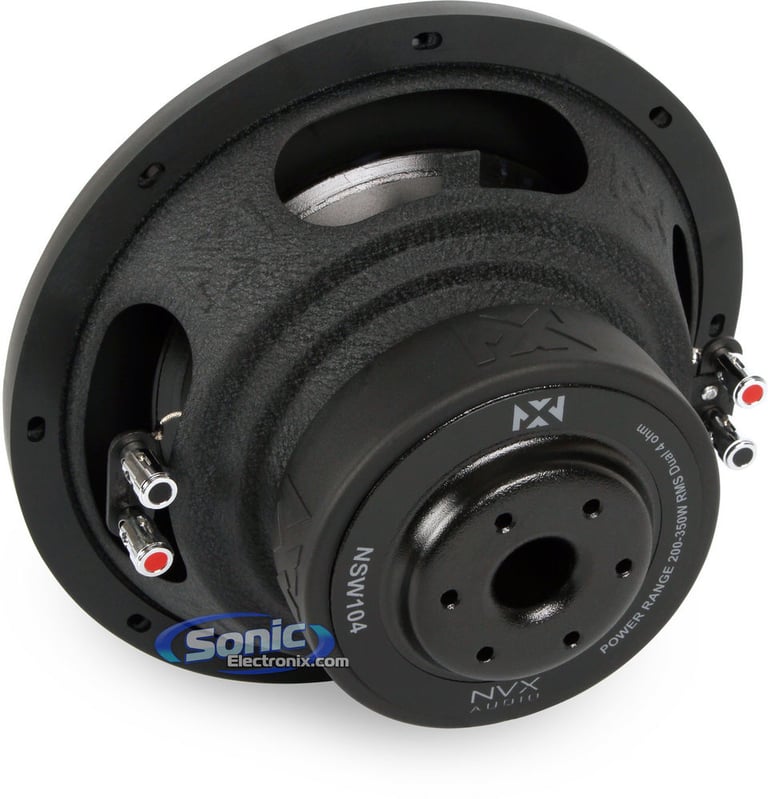

  • 40oz. magnet motor structure with protective rubber boot
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 36Hz
  • Top-mount depth: 4-11/16"
  • Sensitivity: 83.4dB
  • Authorized Internet Dealer
  • 90-Day SonicElectronix.com Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX NSW104 Open Box Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW104 Open Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW104 Open Box Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW104 Open Box Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
N Series
Subwoofer Size
10"
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
20 - 200 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
4-11/16"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36 Hz
Equivalent Compliance (Vas)
24.96 liters
Total Speaker Q Value (Qts)
0.66
Electrical Q Value (Qes)
0.818
Electrical Resistance of Voice Coil (Re)
6.40 ohm
Mechanical Q Value (Qms)
3.524
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

NVX

Model Number:

NSW104-OB

Weight:

10.00lbs

Internal SKU:

LS-nsw104-OB

Internal Product ID:

73249
