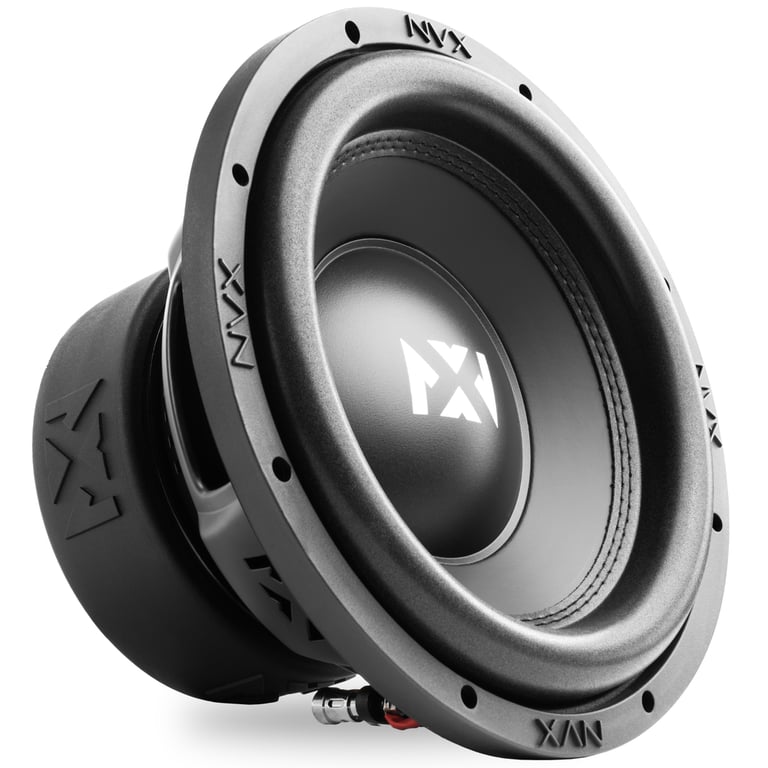

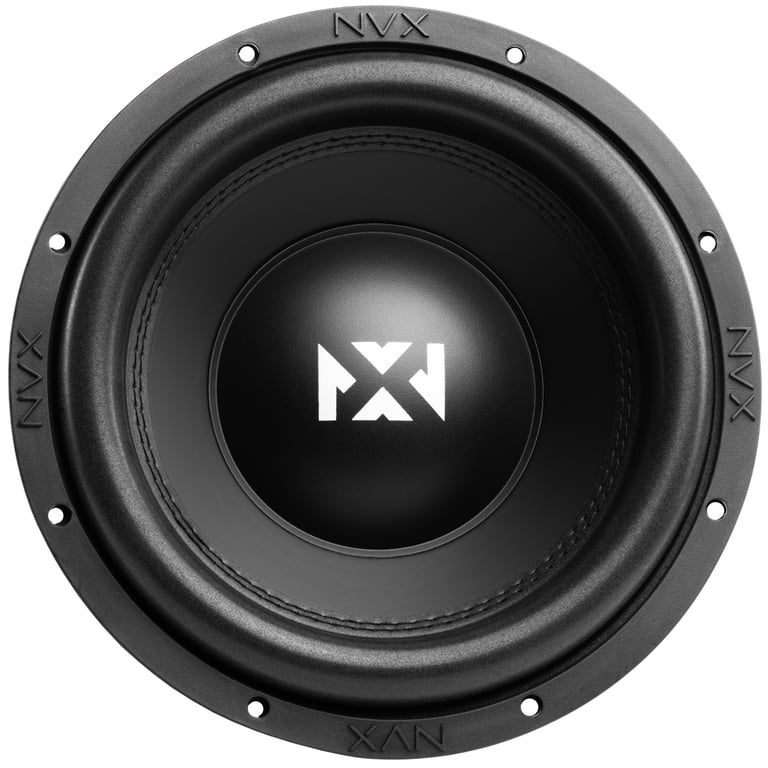

NVX VSW104 (Open Box, Good)

500W 10" VS-Series Dual 4 ohm Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

• RMS Power: 350-500W
• Dual 4-ohm Voice Coil
• Hybrid Carbon And Fiberglass Woven Cone With A Pressed Paper Backing
• High Excursion Foam Surround
• Textured Stamped Steel Basket
• Dual Nomex Spiders

Learn more about the ls-vsw104-u7

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 350-500W
• Dual 4-ohm Voice Coil
• Hybrid Carbon And Fiberglass Woven Cone With A Pressed Paper Backing
• High Excursion Foam Surround
• Textured Stamped Steel Basket
• Dual Nomex Spiders

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

Cutaway diagram of NVX V-Series component

Top Quality Bass at an Amazing Price

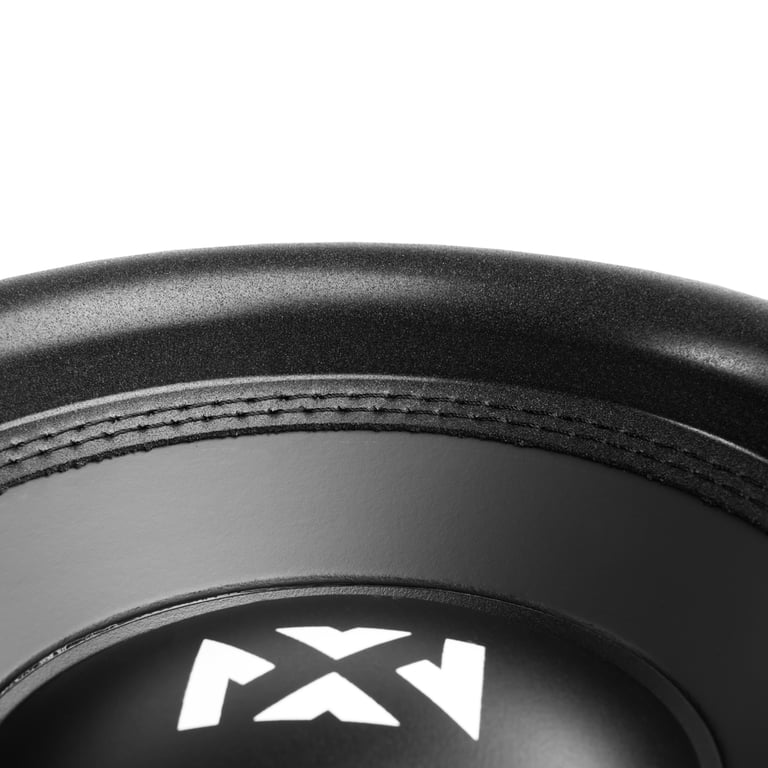

The NVX VSW104 is the perfect subwoofer solution. The series utilizes excellent engineering found in the higher end NVX subwoofers. It features a hybrid carbon and fiberglass woven cone with a pressed paper backing that is strong and lightweight for accurate response and extreme SPL. Keeping the cone under control is a high-roll 3-layer foam surround with silver stitching that is specially treated to give you maximum excursion. The VSW104 also uses a 2.5" high-temperature aluminum voice coil that provides maximum current distribution and has a power handling range of 350-500 watts RMS. All of these elements combined produce tight, deep and accurate bass that is sought after by bass-heads and audiophiles. If you are looking for an extremely well engineered subwoofer at an amazing price, then the NVX VSW104 is the perfect choice for you.


General Features:

  • 10" Dual 4-ohm VS-Series Car Subwoofer
  • Power Range:
    • RMS: 350-500 watts
  • Impedance: Dual 4 ohm

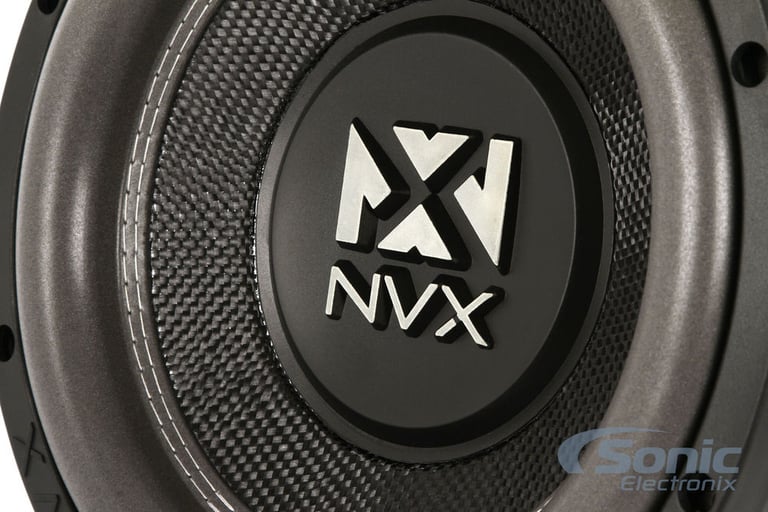

  • Non-pressed paper cone with woven carbon fiber top

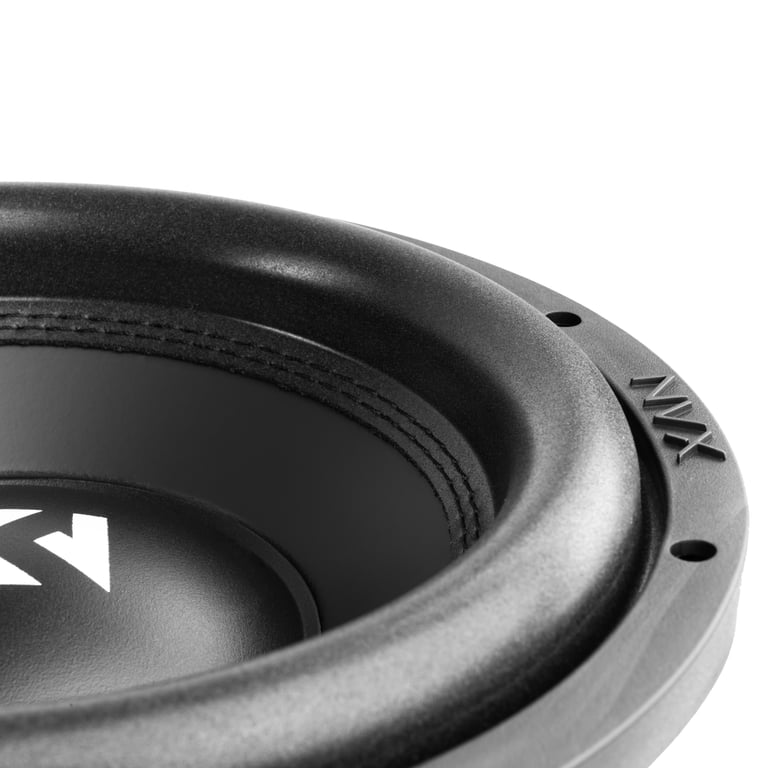

  • High excursion 3-layer foam surround
  • Heavy duty custom textured steel basket for maximum rigidity

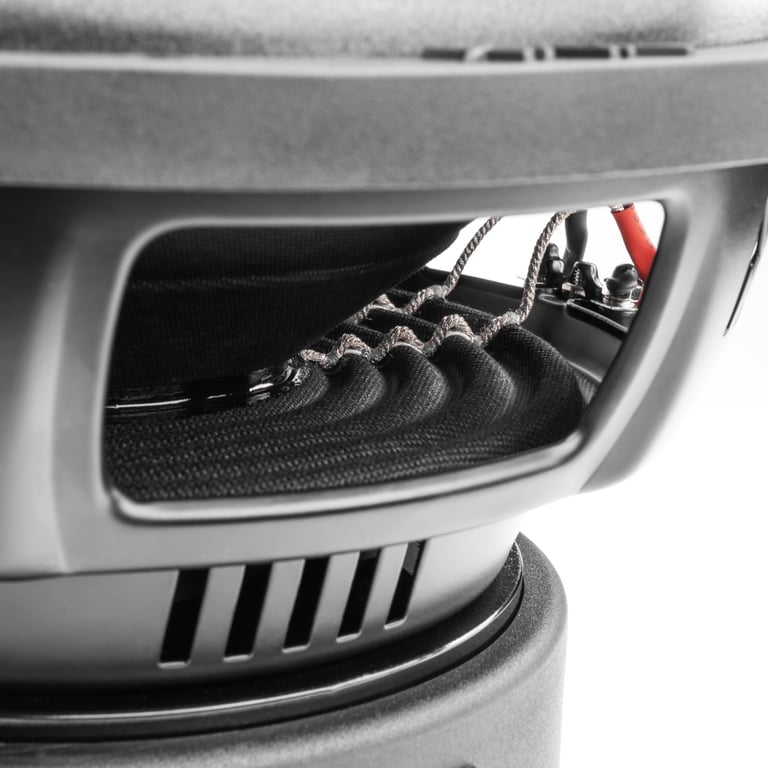

  • Dual Nomex Spiders
  • 2.5" High temperature aluminum voice coil

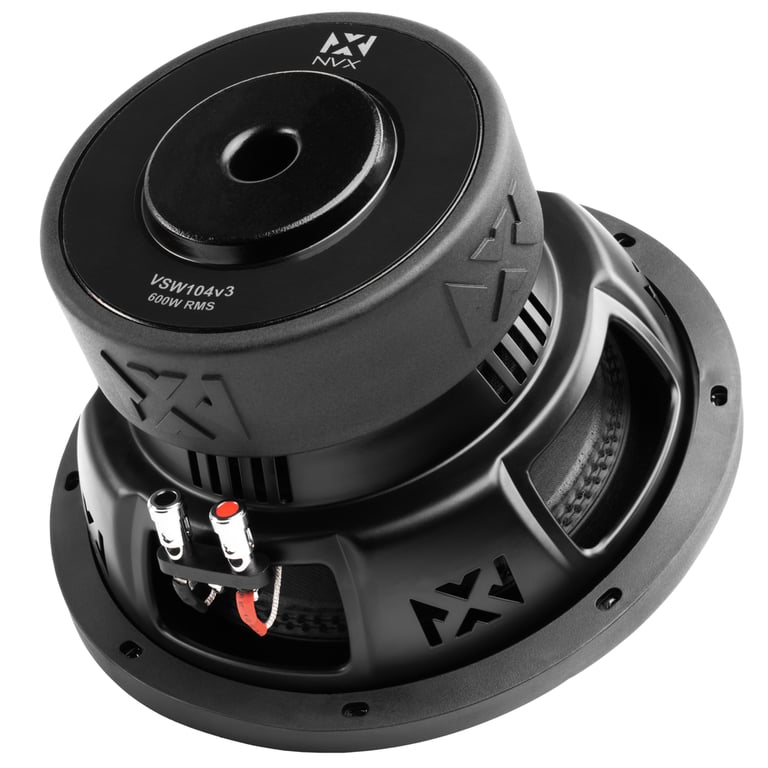

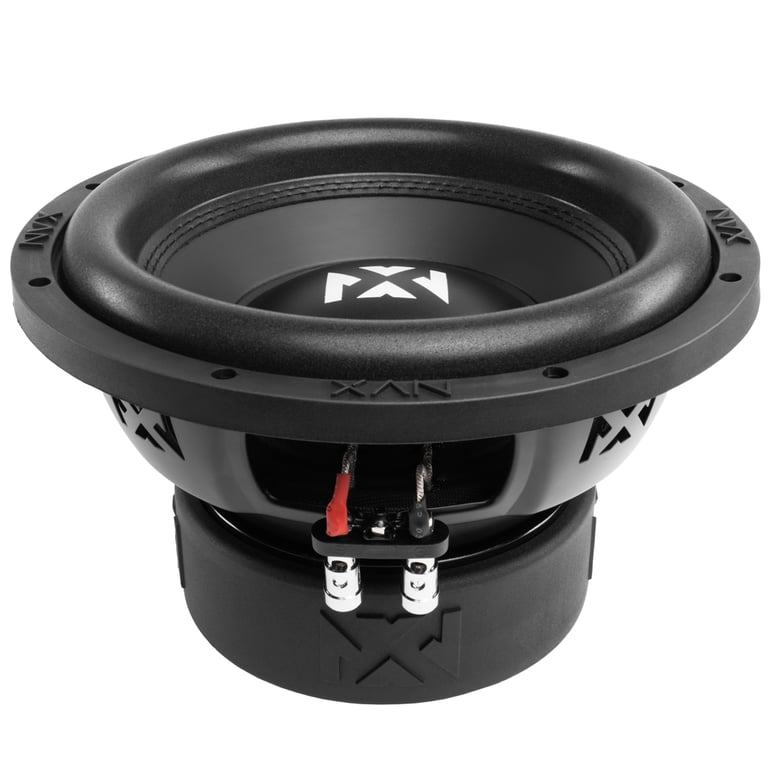

  • Double stacked Ferite magnet motor structure with protective rubber boot
  • Frequency response: 30-500 Hz
  • Resonance Frequency (Fs): 32.4
  • Top-mount depth: 5-5/16"
  • Sensitivity: 84.5dB
  • *CEA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Additional Information:

CEA-2031 Certified NVX Logo

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.




Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VSW104 (Open Box, Good) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VSW104 (Open Box, Good) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VSW104 (Open Box, Good) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX VSW104 (Open Box, Good) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
VS Series
Subwoofer Size
10"
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
30 - 500 Hz
Sensitivity
84.5 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Non-Pressed Paper With Woven Carbon Fiber Top
Woofer Surround
High Roll Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.75 cubic feet
Optimum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/16"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.4 Hz
Equivalent Compliance (Vas)
21.55 liters
Total Speaker Q Value (Qts)
0.483
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

LS-vsw104-u7

Weight:

20.00lbs

Internal SKU:

ls-vsw104-u7

Internal Product ID:

225652
