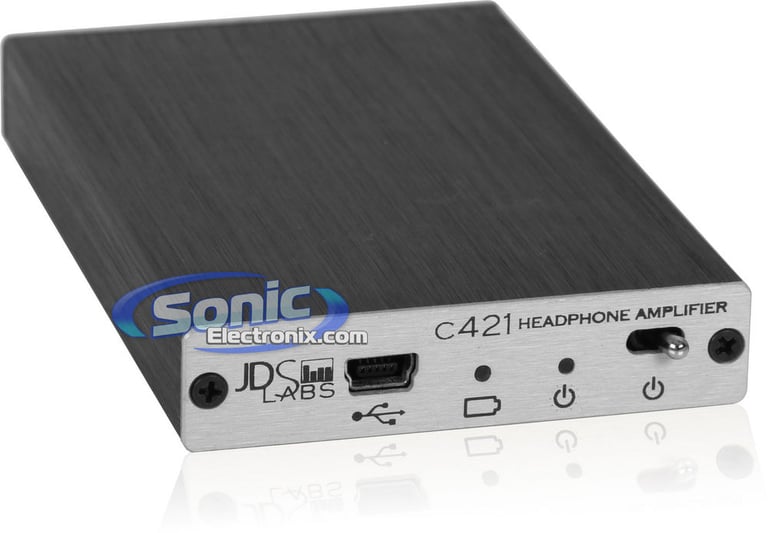

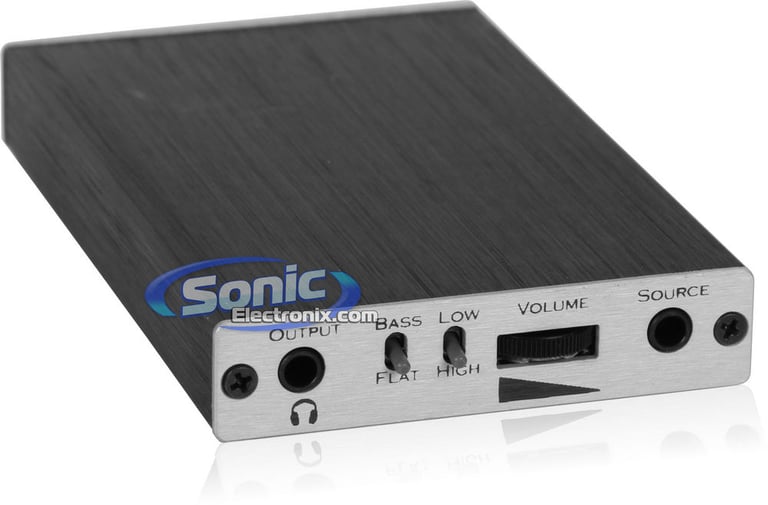

JDS Labs C421 (C421 v1.01) Headphone Amplifier

Brushed Aluminum Headphone Amplifier with Bass Boost, Low Battery Detection, Dual Gain

highlight-star-icon

Desktop Headphone Amplifier • Low Battery Indication • USB Powered Smart Charging • Bass Boost • Dual Gain

Learn more about the c421-silver

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

c5-red thumbnail

JDS Labs C5 Professional Grade Portable Headphone Amplifier (Red)

OUR PRICE: $189.00

View item

Loading...
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3
Limited time!
TS-G1320S main

Pioneer TS-G1320S

500W Peak (70W RMS) 5.25" G-Series 2-way 4-ohm Coaxial Car Speakers

7
-30.78%

$44.99

List price $65.00

Kenwood KMM-BT232U

Single DIN Digital Media Receiver with Bluetooth

3
-15.00%

$119.00

List price $140.00

Description


JDS Labs, Inc brand icon

Authorized dealer

Product Features:

  • Desktop Headphone Amplifier
  • Signal is transferred through 0.1% thin film resistors for transparency and minimal distortion
  • Power circuit provides continuous voltage boosting so the music stays strong until battery depleted
  • Low battery indication announced during last 45 minutes of battery use
  • Stylish brushed aluminum housing
  • New active-true ground topology enables fail-safe charging while giving benefits of an active ground circuit
  • Implemented on a 4-layer PCB that has dual internal ground planes to provide maximum signal integrity

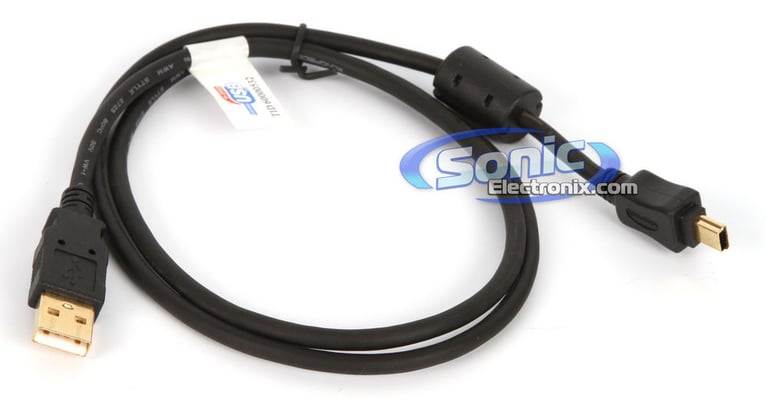

  • USB powered smart charging

Technical Specifications:

  • Dual Gain: 2.3x or 7.0x (+7.2dB or +16.9dB)
  • Bass Boost: +8dB peak
  • Battery: 1200mAh, 3.7V Li-Ion battery
  • 3.5mm input and output jacks, gold plated
  • Run-Time: 11 hours (approx.)
  • Charge Time: 5 hours
  • Frequency Response: 20-20,000 Hz
  • SNR: > 110 dB
  • THD: < 0.0041%
  • Crosstalk: < -57dB
  • Output Impedance: 0.1 ohm
  • Volume Potentiometer Taper: 3B
  • Primary stage opamp: OPA2227
  • Dimensions: 2.46"W x 0.55"D x 3.83"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

JDS Labs, Inc C5 Red thumbnail
(newest, current model)
JDS Labs, Inc c421 Black thumbnail
(previous model, replaced by JDS Labs C5 Professional Grade Portable Headphone Amplifier (Red))
JDS Labs, Inc C421 thumbnail
(previous model, replaced by JDS Labs, Inc C421 Black Edition Headphone Amplifier)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Specifications & Details


Headphone Amplifier Specifications
Amplifier Style
Desktop
Digital-to-Analog Converter (DAC)
No
Frequency Response
20 - 20000 Hz
Input Connection
3.5mm Mini-Jack
Output Connection
3.5mm Mini-Jack
Number of Outputs
1
Output Impedance
0.1 ohm
Width
2.46"
Height
.55"
Depth
3.83"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C421

Weight:

0.38lbs

Internal SKU:

c421-silver

Internal Product ID:

46564

Customer Ratings & Reviews


JDS Labs C421 (C421 v1.01) Headphone Amplifier thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Big sound in a small package!

After using this amp, and experiencing nothing short of "musical bliss", I would surely recommend it. Right out of the box, this little amp had my headphones rocking like never before. It feels really solid, looks really good, and sounds really great! The people who made this amp really put a lot of thought into it. It shows. You can charge it multiple ways, use it as a desk top or portable, and it let's you know through colorful LED lights its status. It can drive all headphones with ease. I have several and I'm a witness! I really have nothing negative to say about it! Do yourself a favor and get one!

By Therm on October 7, 2012
