NVX VCW124 Open Box

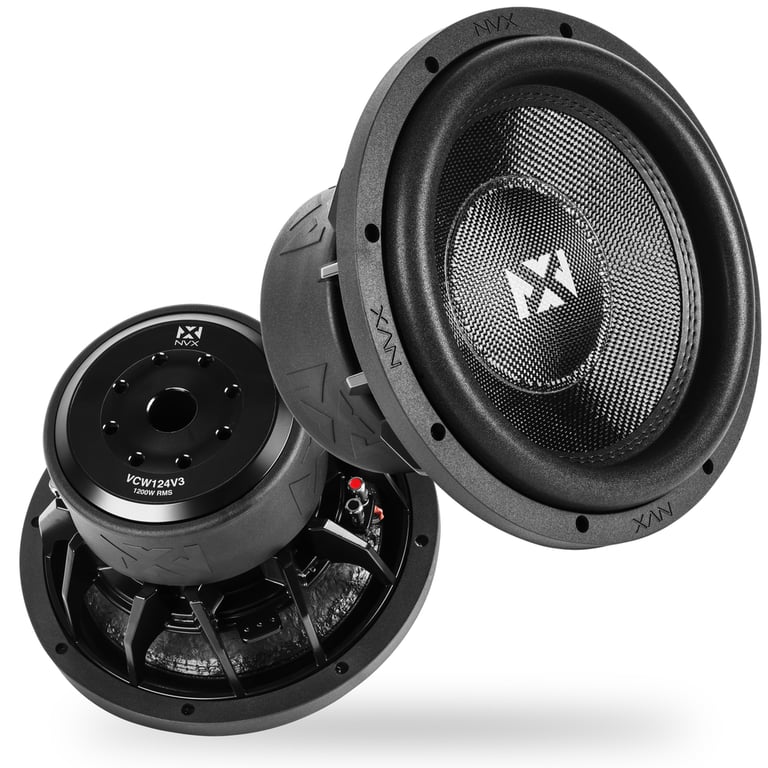

12" Dual 4-ohm VC-Series Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

12" VC-Series Subwoofer • Dual 4-ohm Voice Coil • Power Range (RMS) 850-1000 Watts • Woven Fiber Pressed Paper Cone • Custom High Roll Foam Surround With Nylon Stitching • Die Cast Aluminum Basket • Dual Poly-Cotton Spiders

Learn more about the LS-vcw124-OB

We apologize

This item has been discontinued

Product Highlights


12" VC-Series Subwoofer • Dual 4-ohm Voice Coil • Power Range (RMS) 850-1000 Watts • Woven Fiber Pressed Paper Cone • Custom High Roll Foam Surround With Nylon Stitching • Die Cast Aluminum Basket • Dual Poly-Cotton Spiders

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Incredible Bass with Ability to Perform in a Tight Space!

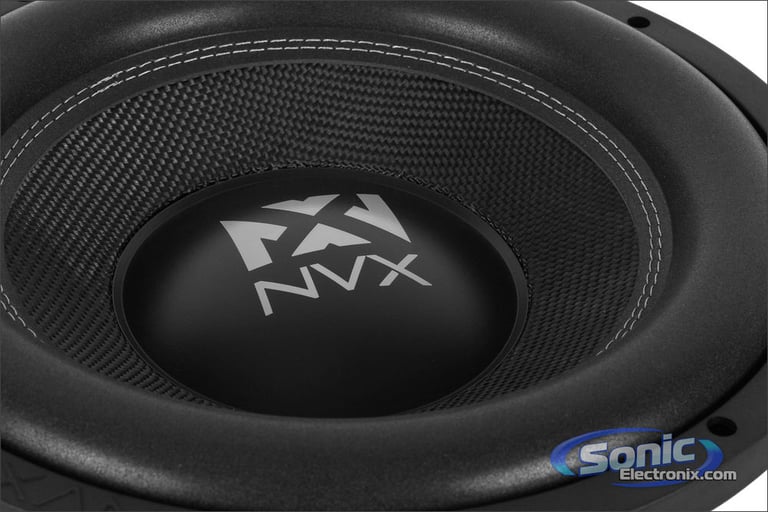

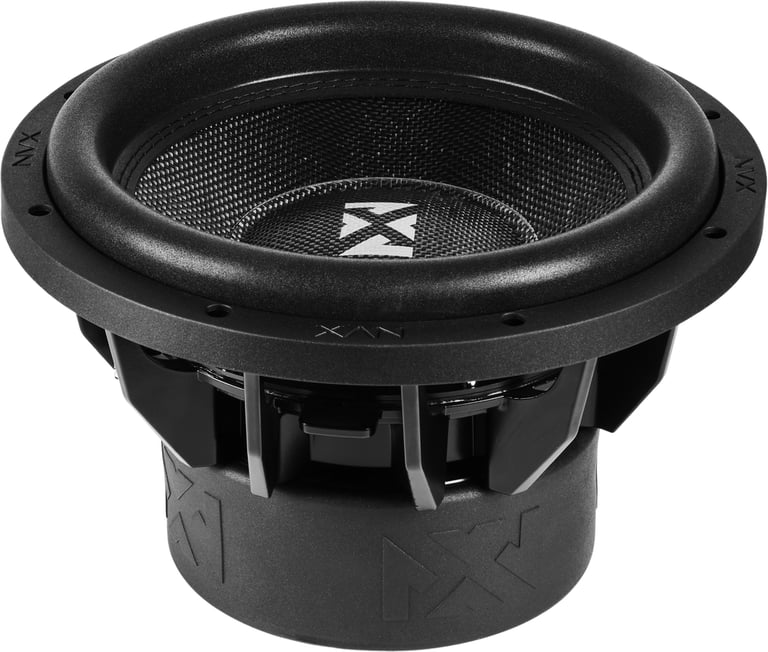

NVX's VC-Series car subwoofers are about to blow you away. The VCW124 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW124 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. With all of these features combined this sub can handle some serious power at 850-1000 watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations.

With all the above engineering elements combined, the VCW124 subwoofer gives you a better sound and build quality of many subs costing almost twice as much. They even sound amazing in small sealed enclosure for people with limited space!


General Features:

  • 12" Dual 4-ohm VC-Series Car Subwoofer
  • Power Handling:
    • RMS Power Range: 850-1000 watts

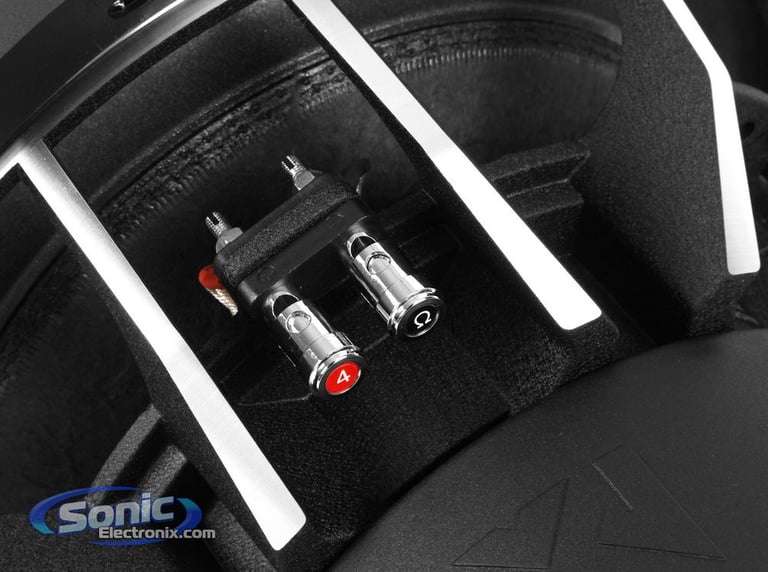

  • Impedance: Dual 4 ohm

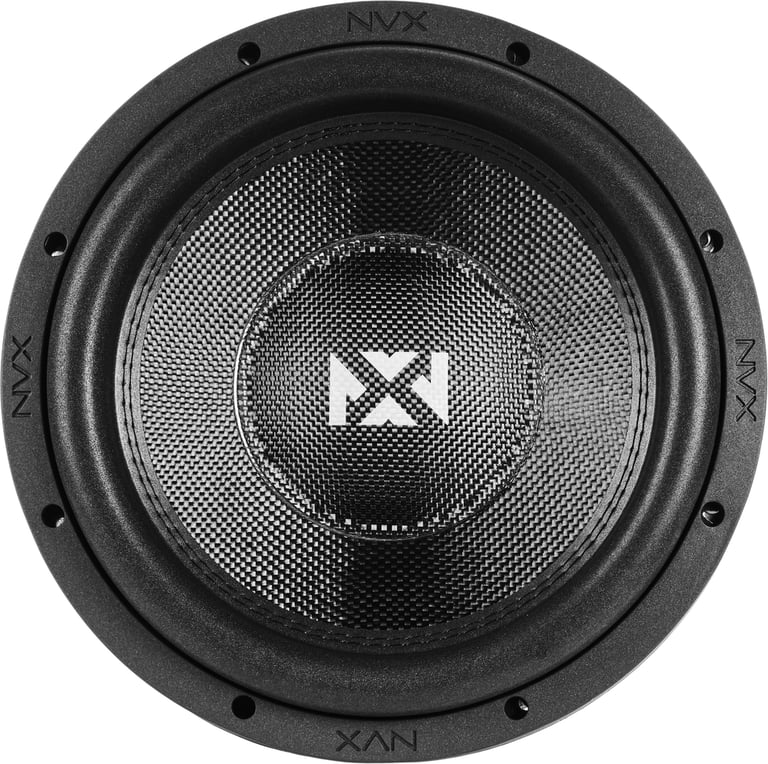

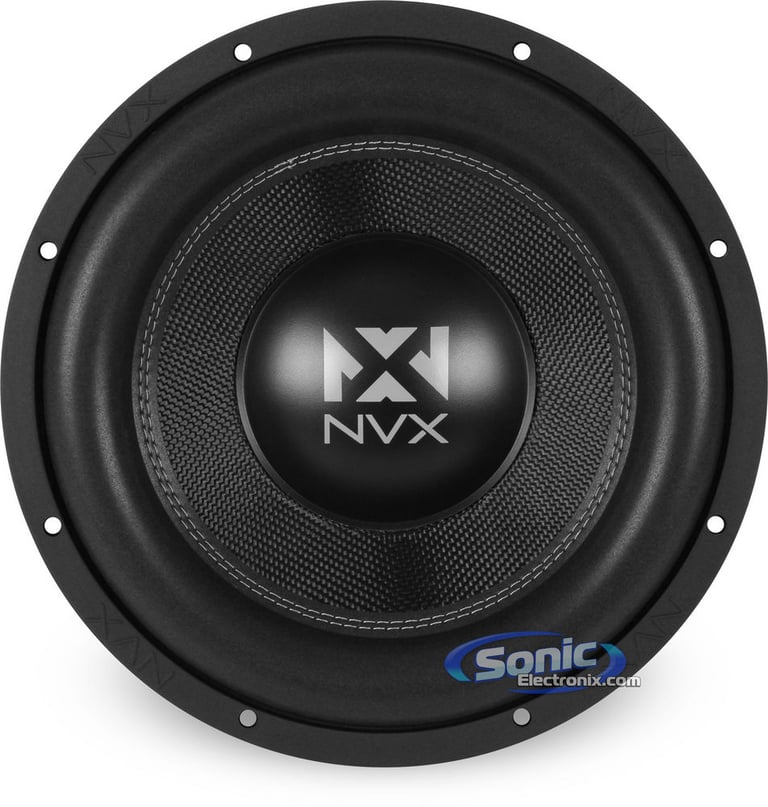

  • Woven fiber pressed paper cone

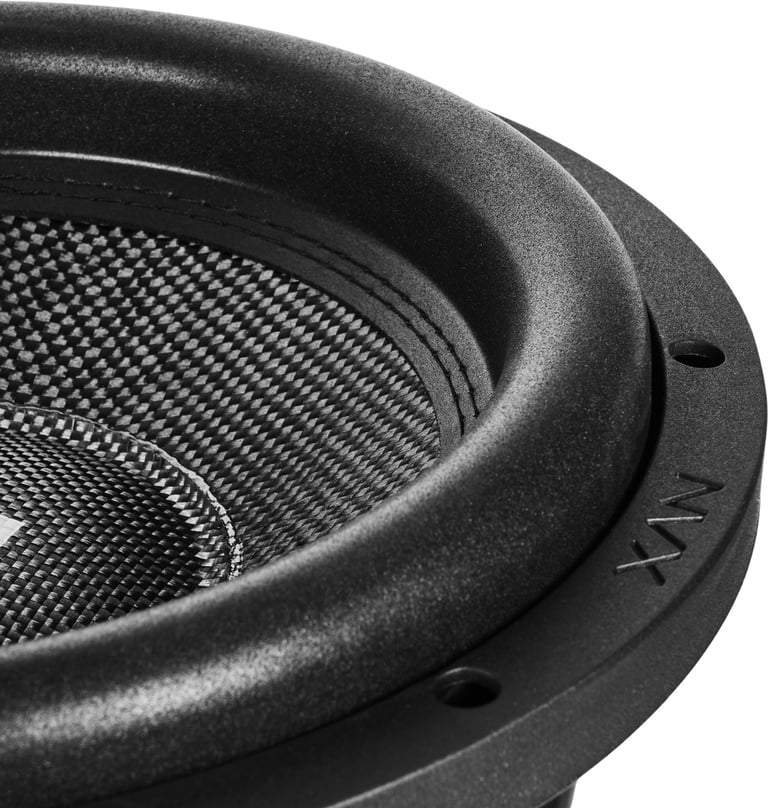

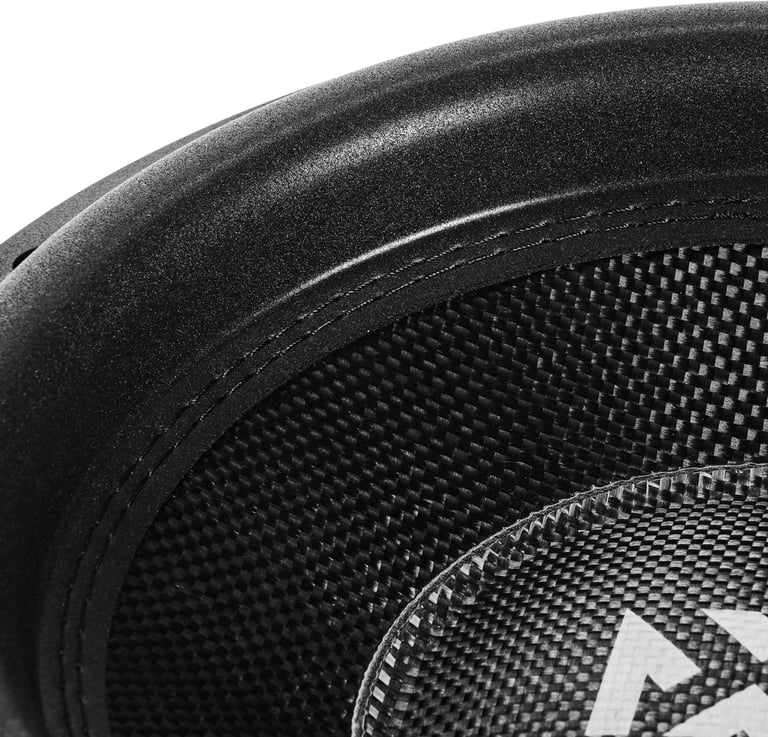

  • Custom High Roll foam surround with Nylon stitching

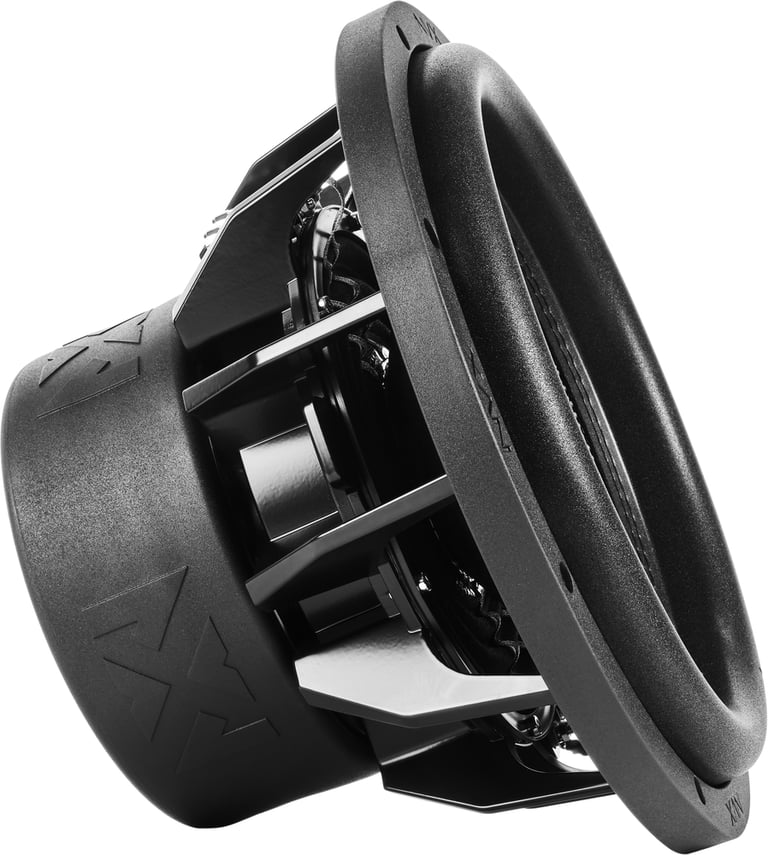

  • Die Cast aluminum basket for maximum rigidity
  • Dual Poly-Cotton Spiders
  • 3" High Temperature Aluminum Voice coil

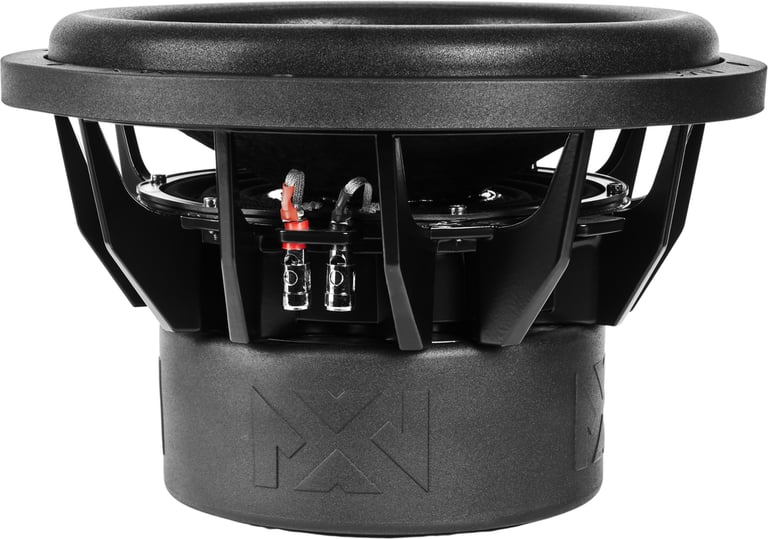

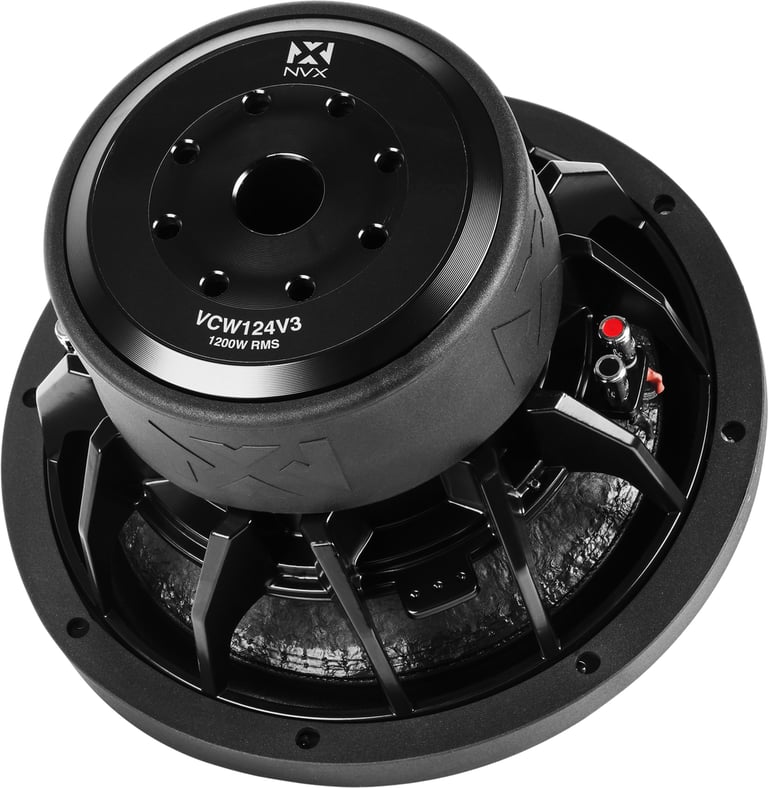

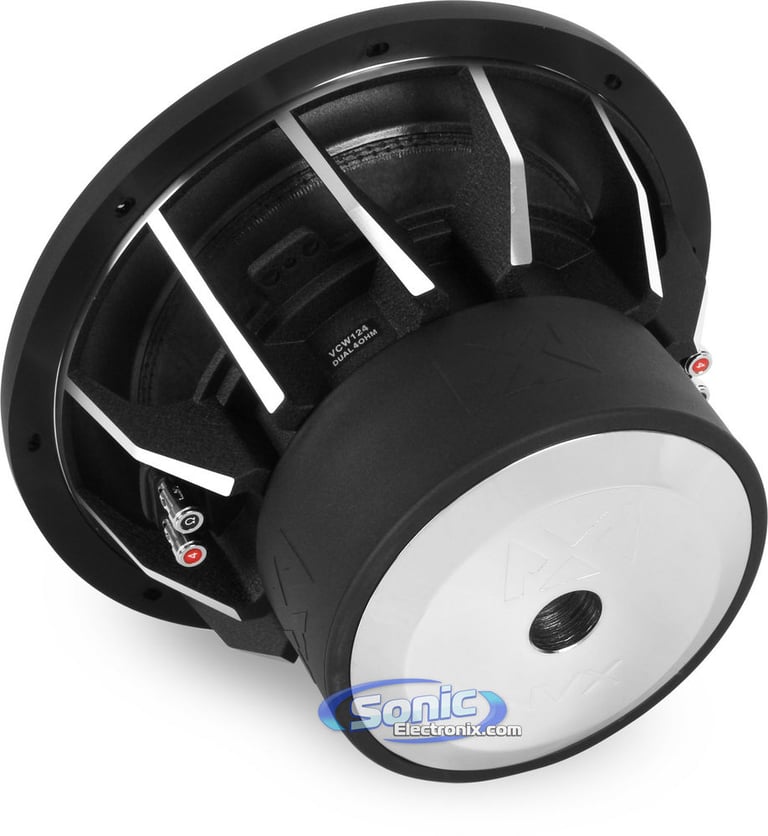

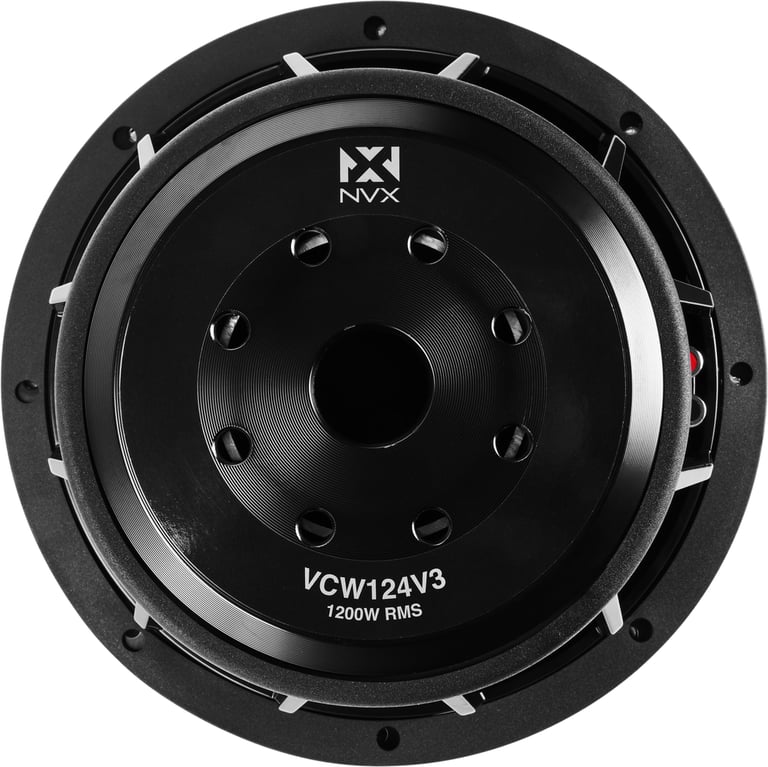

  • 195 oz. Triple stacked High Energy magnet motor structure with protective rubber boot
  • Frequency response: 20-220 Hz
  • Resonance Frequency (Fs): 23.6 Hz
  • Optimal sealed box volume: 0.75 cubic feet tuned at 40 Hz
  • Optimal ported box volume: 1.25 cubic feet tuned at 25 Hz
  • Top-mount depth: 7"
  • Sensitivity: 85dB
  • Authorized Internet Dealer
  • 90-Day Sonic Electronix Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VCW124 Open Box Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VCW124 Open Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VCW124 Open Box Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX VCW124 Open Box Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 220 Hz
Sensitivity
85 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.75 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.6 Hz
Equivalent Compliance (Vas)
63.51 liters
Total Speaker Q Value (Qts)
0.38
Electrical Q Value (Qes)
0.435
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

NVX

Model Number:

VCW124-OB

Weight:

30.50lbs

Internal SKU:

LS-vcw124-OB

Internal Product ID:

73022

Product and How-to Videos


Customer Ratings & Reviews


NVX VCW124 Open Box thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great choice for any application

I was a bit hesitant to order a brand that is so new, but I am so glad I took the risk. Not only are these subs incredibly built and durable, but the bass they create is numbing.

Currently I'm running two of these at 1600w (Hifonics BRX1600.1D), inverted, with my boxes tuned to 26hz in my two door 89 Sierra. I still am surprised how hard they kick while also sustaining the lows.

I have converted my friend who swears by his JL Audio W6's after hearing these.

Pros -
The surround is tough and doesn't damage easily
The cone is not only aesthetically pleasing but durable
They look great, especially inverted
Loud. Just loud.

Cons -
They only con I can muster is the rubber gasket. The edges around the mounting holes are thin and a sideways screw will split the gasket, but this does not affect the sound at all.

Buy them. Load them. Love them.

By Bryan on June 11, 2014

3 found this helpful
