NVX VCW124 OPEN BOX COMPLETE

1000W 12" VC-Series Dual 4-ohm Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

Item has no scratches or blemishes
• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone

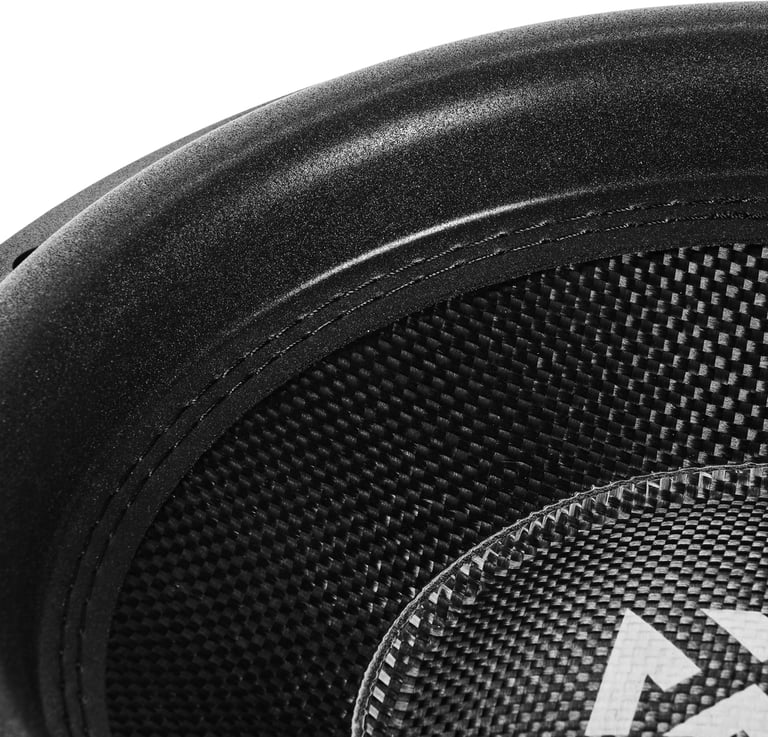

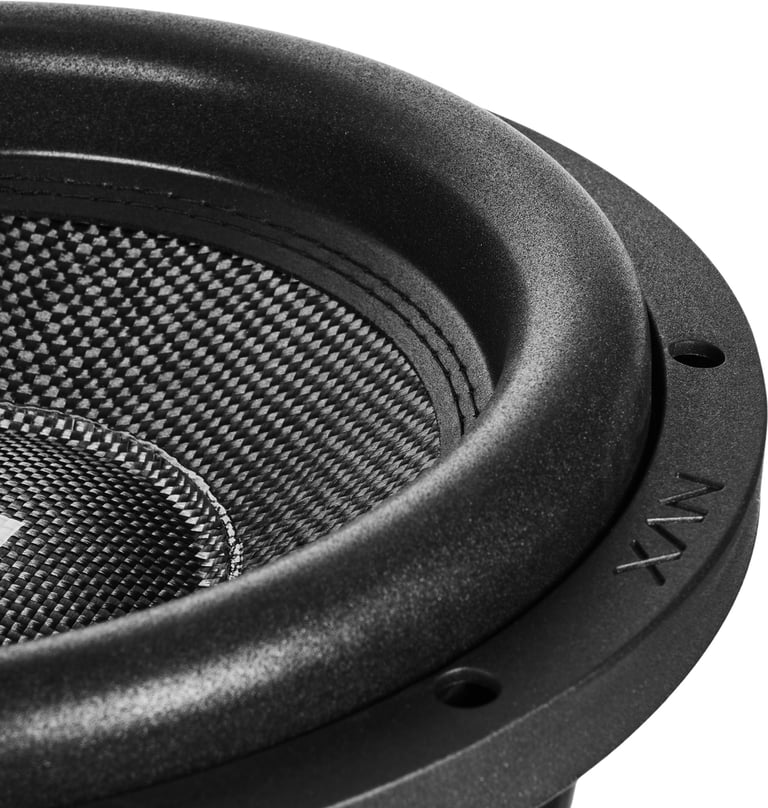

• Custom High Roll Foam Surround With Nylon Stitching

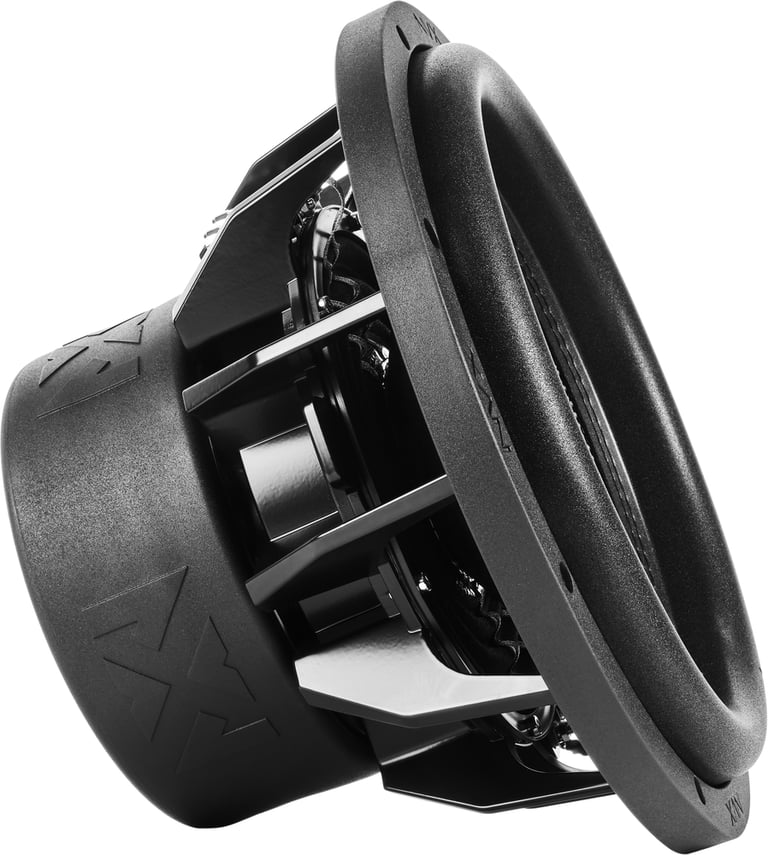

• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders

Learn more about the LS-vcw124-OBCra228425

We apologize

This item has been discontinued

Product Highlights


Item has no scratches or blemishes
• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Incredible Bass with Ability to Perform in a Tight Space!

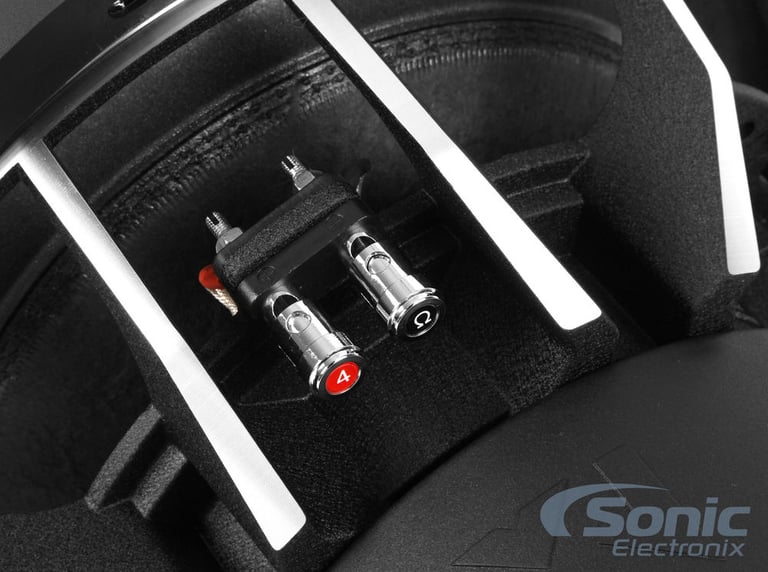

NVX's VC-Series car subwoofers are about to blow you away. The VCW124 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW124 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. With all of these features combined this sub can handle some serious power at 850-1000 watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations.

With all the above engineering elements combined, the VCW124 subwoofer gives you a better sound and build quality of many subs costing almost twice as much. They even sound amazing in small sealed enclosure for people with limited space!



Item Condition: Open Box Complete

  • Item has no scratches or blemishes
    • General Features:

      • 12" Dual 4-ohm VC-Series Car Subwoofer
      • Power Handling:
        • RMS Power Range: 850-1000 watts
      • Impedance: Dual 4 ohm
      • Woven fiber pressed paper cone
      • Custom High Roll foam surround with Nylon stitching
      • Die Cast aluminum basket for maximum rigidity
      • Dual Poly-Cotton Spiders
      • 3" High Temperature Aluminum Voice coil

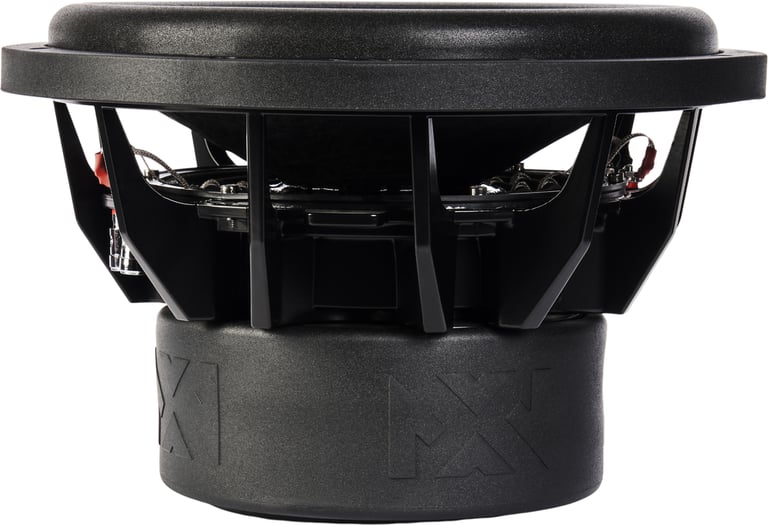

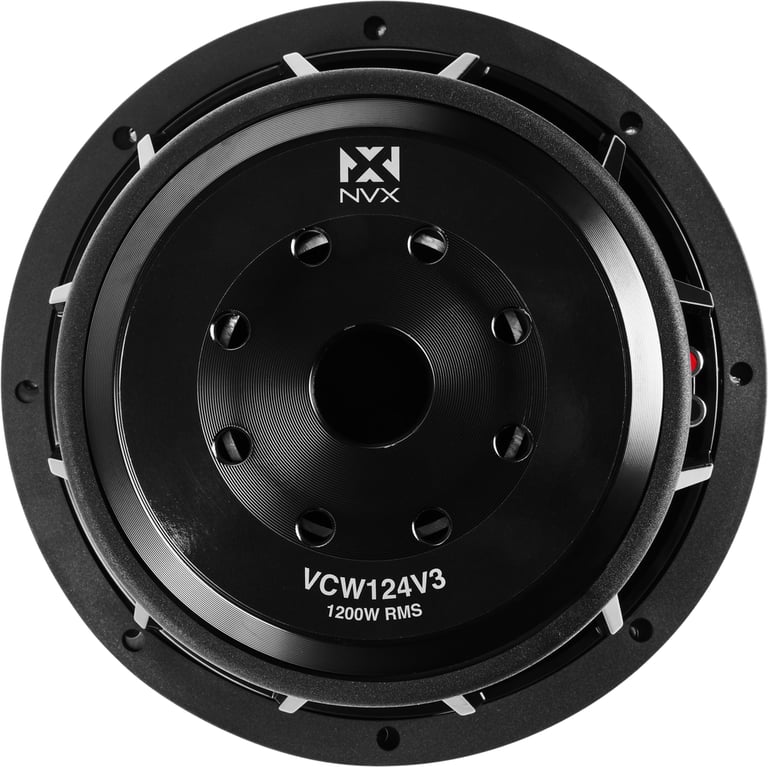

      • 195 oz. Triple stacked High Energy magnet motor structure with protective rubber boot
      • Frequency response: 20-220 Hz
      • Resonance Frequency (Fs): 23.6 Hz
      • Optimal sealed box volume: 0.75 cubic feet tuned at 40 Hz
      • Optimal ported box volume: 1.25 cubic feet tuned at 34 Hz
      • Top-mount depth: 7"
      • Sensitivity: 85dB
      • Authorized Internet Dealer
      • 1-year Manufacturer's Warranty

      Additional Information:

      *CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 NVX VCW124 OPEN BOX COMPLETE Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 NVX VCW124 OPEN BOX COMPLETE Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 NVX VCW124 OPEN BOX COMPLETE Subwoofers

    Mono Amp

    4 Channel Amp

    Wiring Guide to Wire 4 NVX VCW124 OPEN BOX COMPLETE Subwoofers

    Mono Amp

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Series
    VC Series
    Subwoofer Size
    12"
    Peak Power Handling
    2000 watts
    RMS Power Handling
    1000 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Voice Coil Diameter
    3"
    Frequency Response
    20 - 220 Hz
    Sensitivity
    85 dB
    Xmax (millimeters)
    20 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Dark Gray
    Woofer Composition
    Woven Fiber Pressed Paper
    Woofer Surround
    Foam
    Magnet Structure
    Triple Stacked
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    .75 cubic feet
    Optimum Ported Box Volume
    1.25 cubic feet
    Top-Mount Depth (Mounting Depth)
    7"
    Cutout Diameter
    11-1/4"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    23.6 Hz
    Equivalent Compliance (Vas)
    63.51 liters
    Total Speaker Q Value (Qts)
    0.38
    Electrical Q Value (Qes)
    0.435
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    NVX

    Model Number:

    LS-VCW124-OBC-2

    Weight:

    32.00lbs

    Internal SKU:

    LS-vcw124-OBCra228425

    Internal Product ID:

    98650
