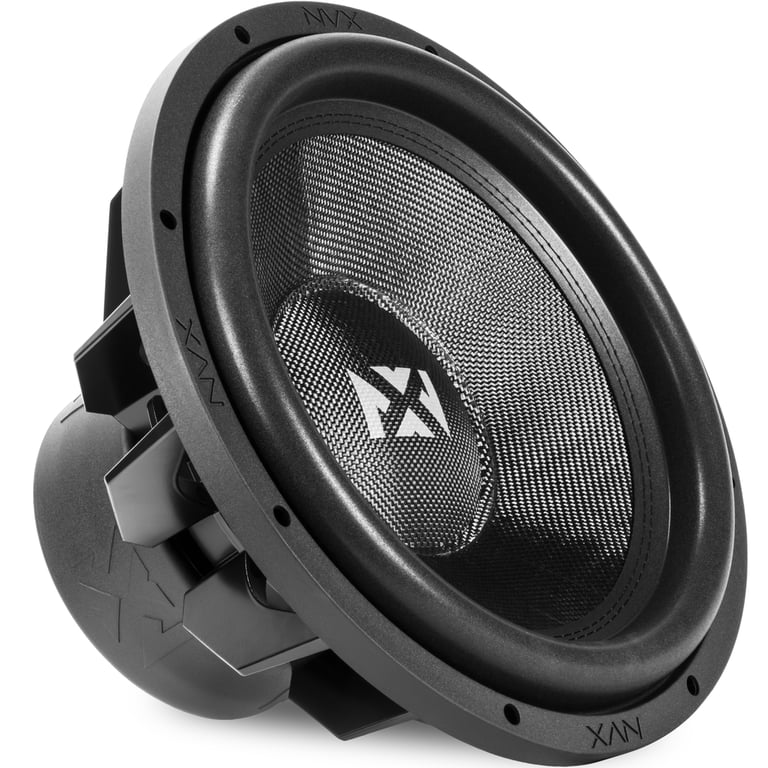

NVX VCW152-OPEN BOX

15" Dual 2-ohm VC-Series Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

• RMS Power: 850-1000W
• Dual 2-ohm Voice Coil

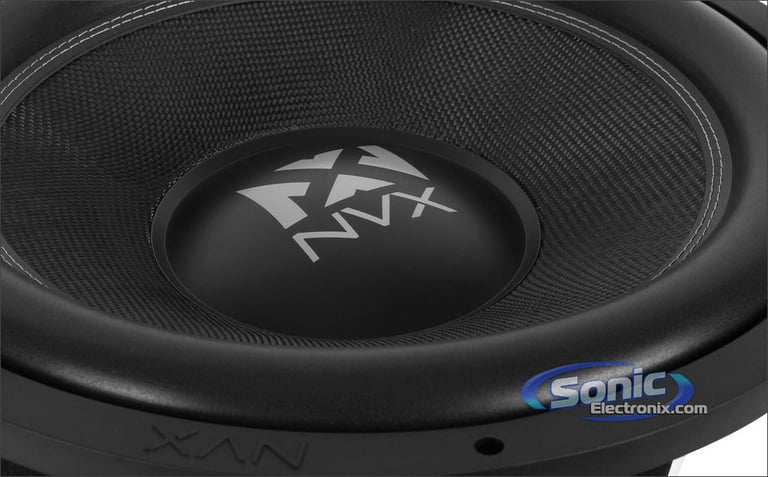

• Pressed Paper Cone With Woven Fiber Top

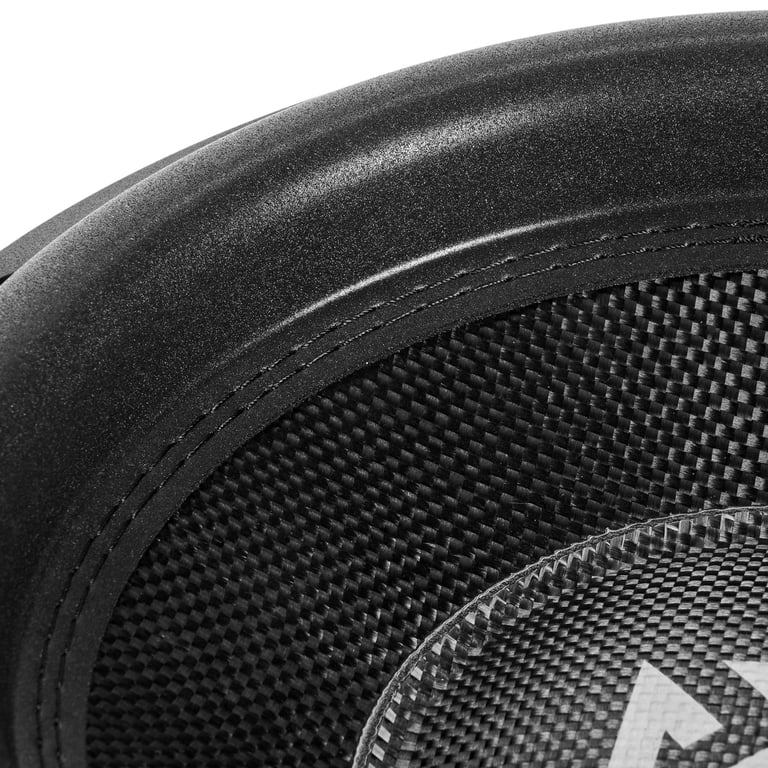

• High Excursion Foam Surround

Learn more about the LS-vcw152-OB

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 850-1000W
• Dual 2-ohm Voice Coil
• Pressed Paper Cone With Woven Fiber Top
• High Excursion Foam Surround

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

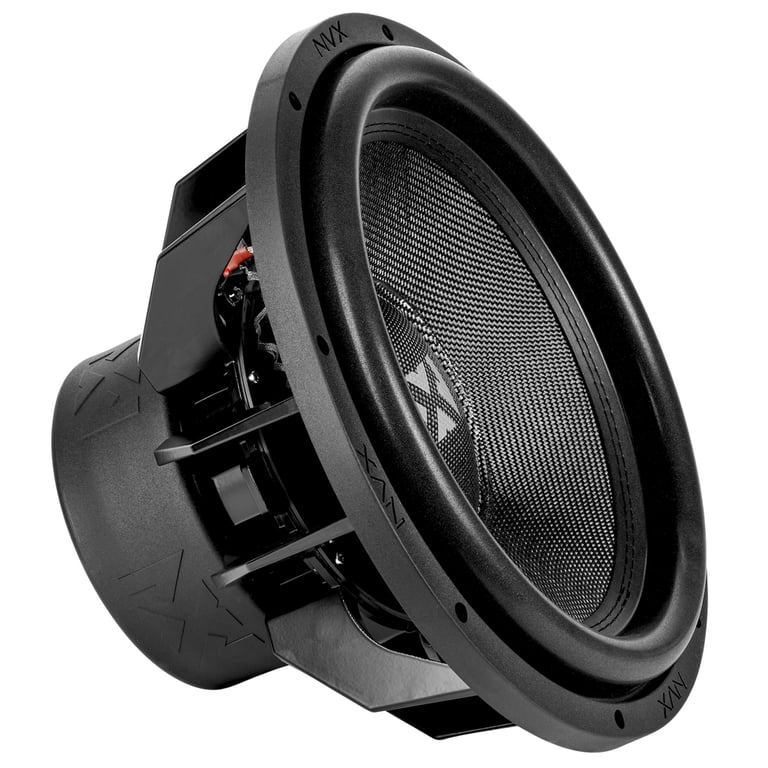

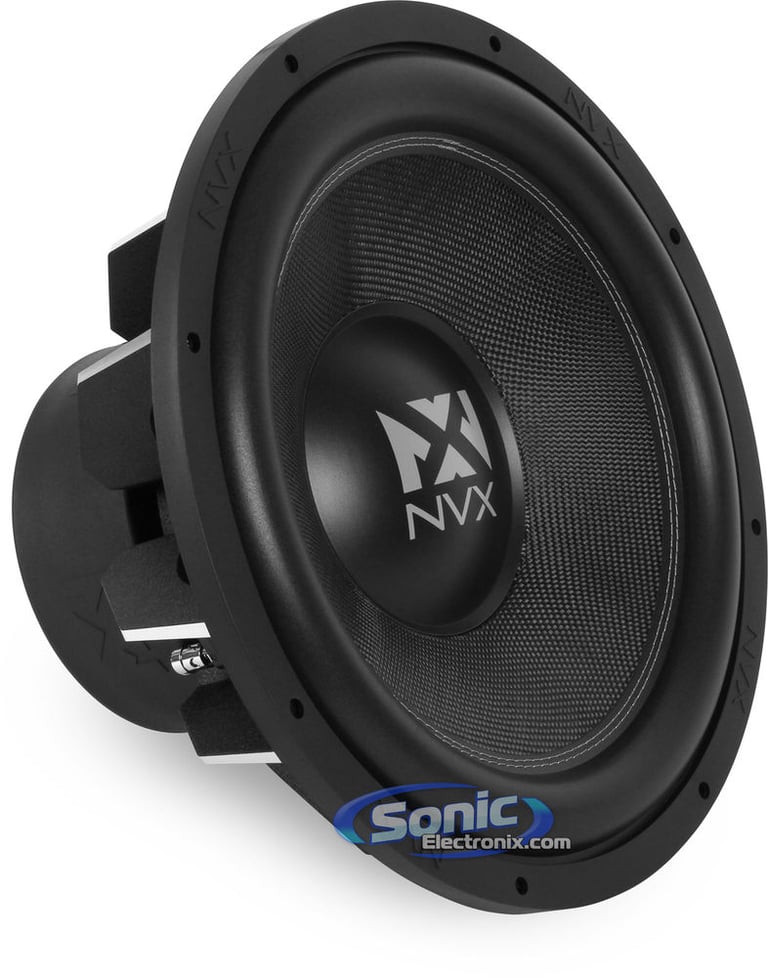

Incredible Bass with Ability to Perform in a Tight Space!

NVX's VC-Series car subwoofers are about to blow you away. The VCW124 is a jack-of-all-trades and has been engineered to the highest standards. The woven fiber pressed paper cone and custom High Roll foam surround with Nylon stitching help reproduce tight and accurate bass, keeping cone distortion to a minimum even at the highest volume levels. The next key components in the design of the VCW124 are the large dual 3" High Temperature Aluminum voice coils and triple stacked motor structure. With all of these features combined this sub can handle some serious power at 850-1000 watts RMS. The dual voice coils also give you many options for different Ohm load wiring configurations.

With all the above engineering elements combined, the VCW124 subwoofer gives you a better sound and build quality of many subs costing almost twice as much. They even sound amazing in small sealed enclosure for people with limited space!

General Features:

  • 15" Dual 2-ohm VC-Series Car Subwoofer
  • Power Handling:
    • RMS Power Range: 850-1000 watts
  • Impedance: Dual 2 ohm

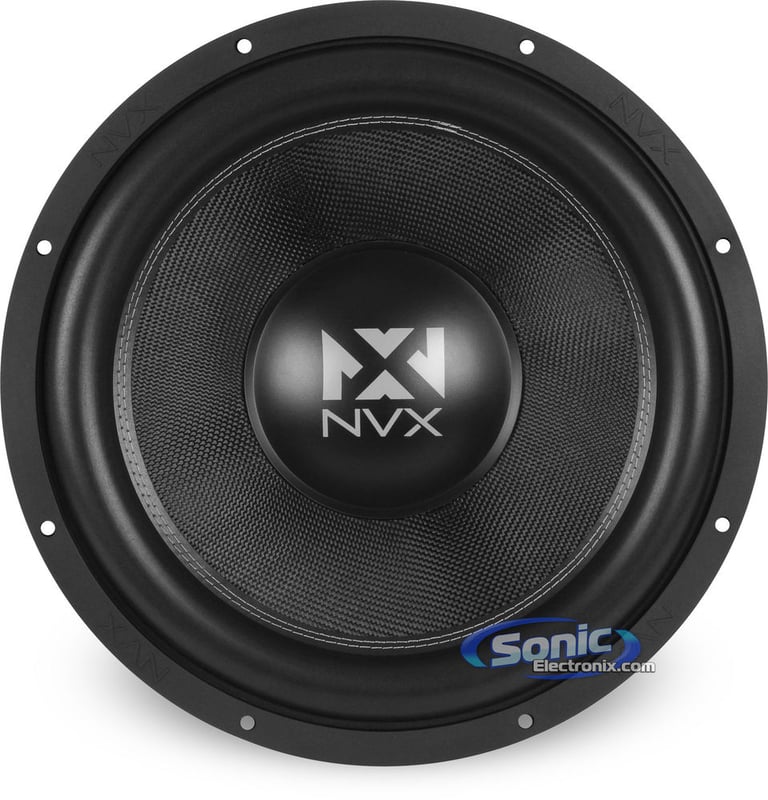

  • Pressed paper cone with woven fiber top
  • High excursion foam surround

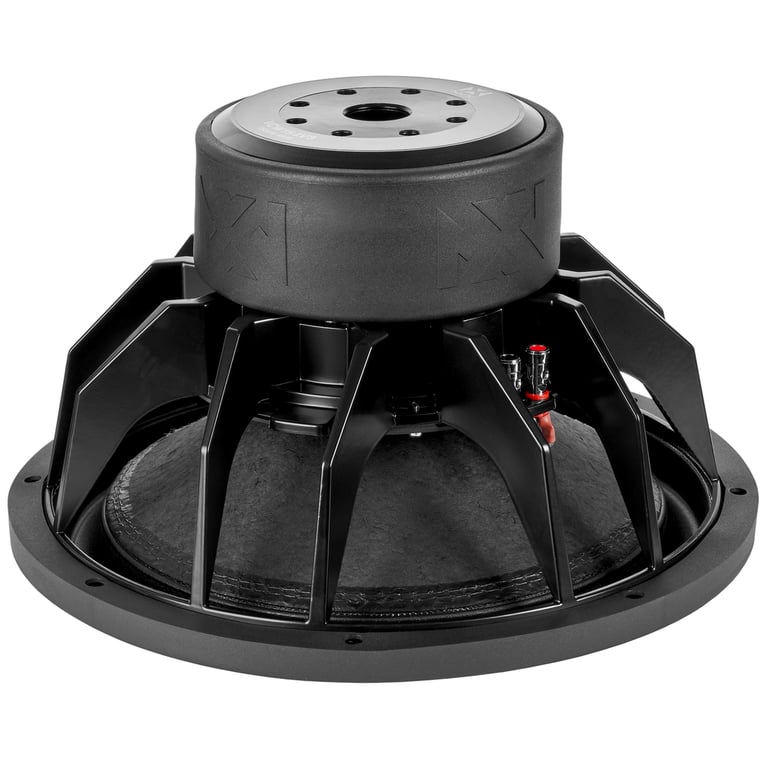

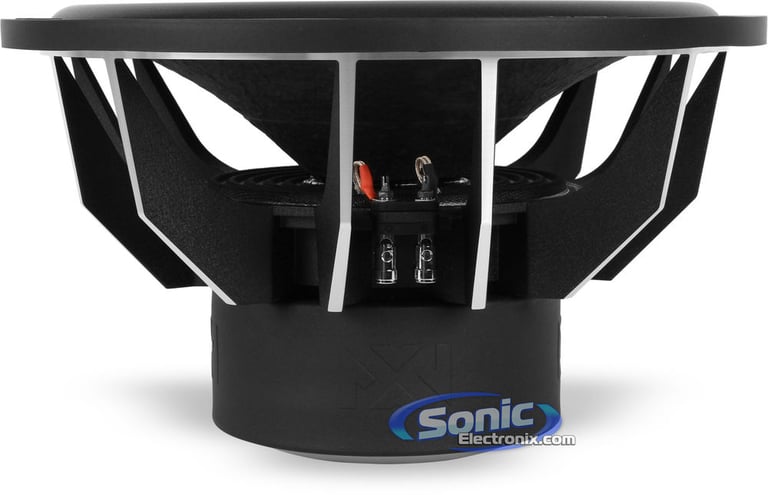

  • Cast aluminum basket for maximum rigidity

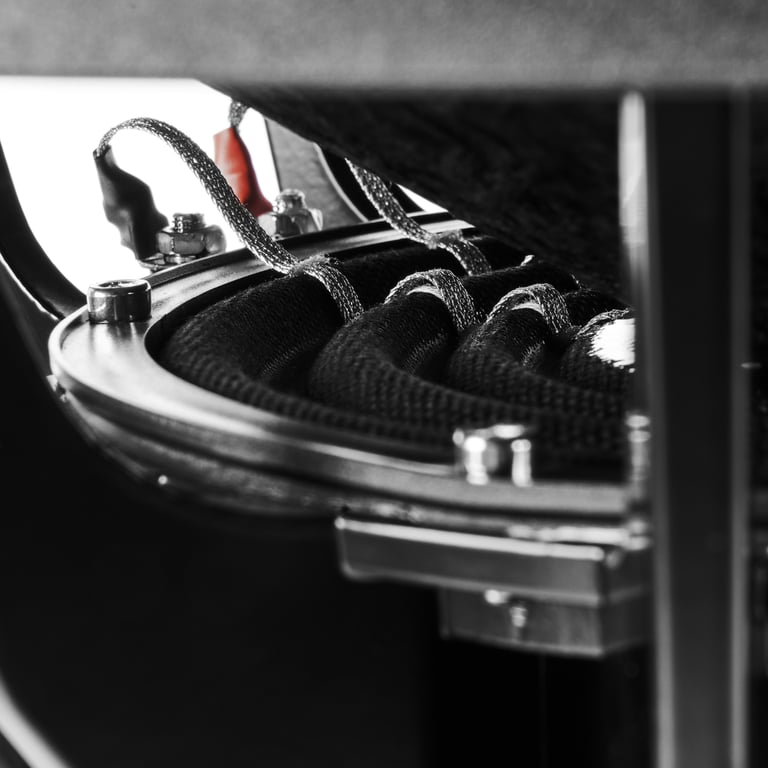

  • Dual Poly-Cotton Spiders
  • 3" Aluminum Voice coil

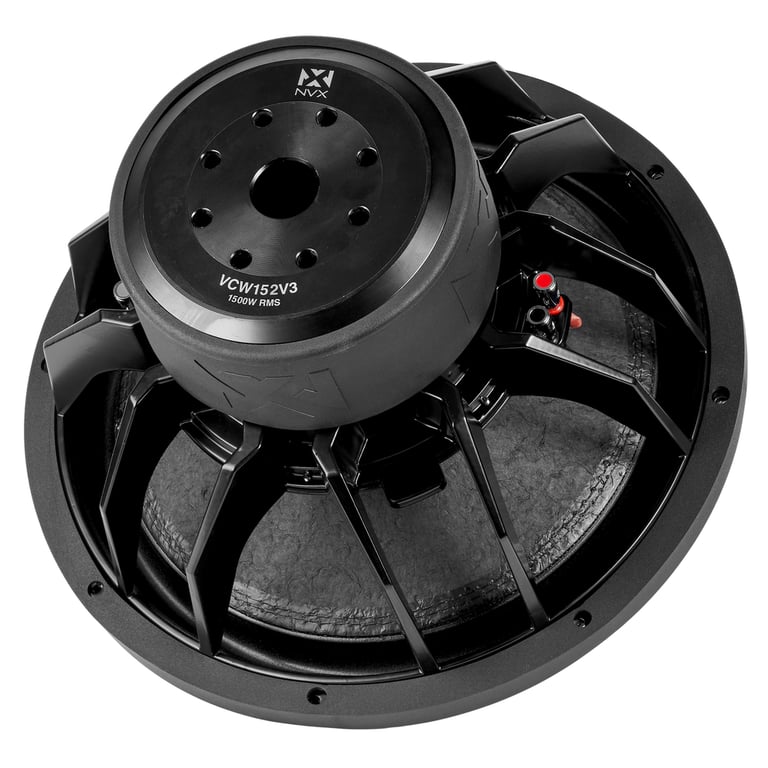

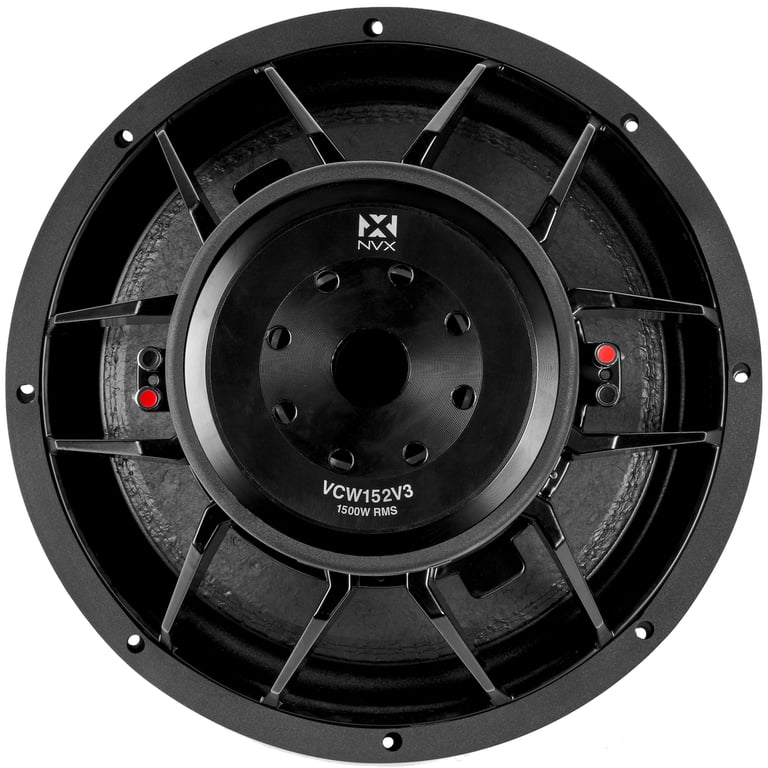

  • 195oz. Triple stacked Ferite magnet motor structure with protective rubber boot
  • Frequency response: 20-220 Hz
  • Resonance Frequency (Fs): 24 Hz
  • Optimal sealed box volume: 1.50 cubic feet tuned at 40 Hz
  • Optimal ported box volume: 2.50 cubic feet tuned at 33 Hz
  • Top-mount depth: 7-9/16"
  • Sensitivity: 87dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VCW152-OPEN BOX Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VCW152-OPEN BOX Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VCW152-OPEN BOX Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX VCW152-OPEN BOX Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
15"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 200 Hz
Sensitivity
87 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
7-9/16"
Cutout Diameter
14-7/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24 Hz
Total Speaker Q Value (Qts)
0.36
Electrical Q Value (Qes)
0.409
Electrical Resistance of Voice Coil (Re)
3.20 ohm
Mechanical Q Value (Qms)
2.910
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW152

Weight:

33.50lbs

Internal SKU:

LS-vcw152-OB

Internal Product ID:

75641
