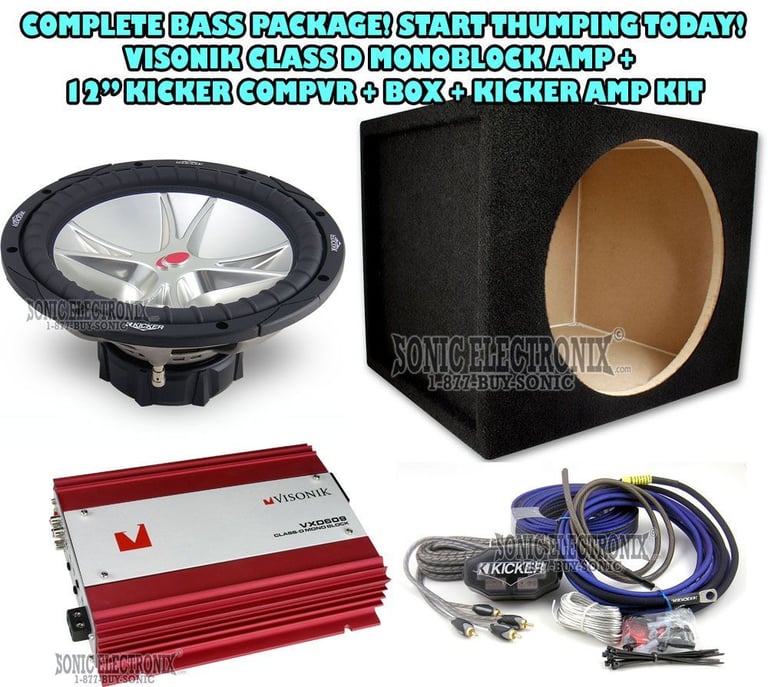

Kicker CVR 12" Combo: 05CVR124 + Visonik VXD609 + 12" MDF Sealed Box + CK8 Amp Kit

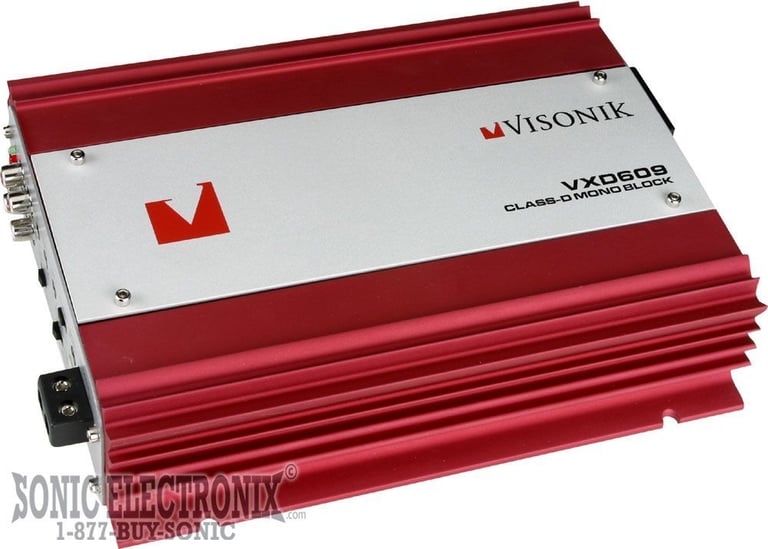

VXD609 Amp Description:

• Monoblock Class-D Digital Amplifier
• Heavy Duty Heatsink
• PWM MOSFET Power Supply
• Adjustable Input Sensitivity: 100 mV - 2V/2V - 8V
• Variable Bass Boost Control: 0 - 18 dB
• Phase Shift Control: 0° - 180°
• Variable Subsonic Filter: 15 - 40 Hz
• Variable Low Pass Filter: 50 - 150 Hz
• Remote Control: Bass Boost
• Full Protection against overcurrent, thermal, and reverse voltage
• Power and Protection LED Status Indicators
• RMS Power Output:
• 180 watts x 1 chan. @ 4 ohm
• 300 watts x 1 chan. @ 2 ohm
• Bridgeable with another VXD609 (4 ohm Load MINIMUM)
• Dimensions: 10.7" L x 7.33" W x 2" H
• 2-year Authorized Manufacturer's warranty

VXD609 Amplifier Specifications:

• Number of Channels   1 - Mono
• RMS Power (4 ohm)   180 watts x 1 chan.
• RMS Power (2 ohm)   300 watts x 1 chan.
• RMS Power (1 ohm)   Not Stable
• Bridged RMS Power   Not Bridgeable
• Peak Power Output   600 watts approx.
• Min. Impedance Unbridged   2 ohm
• Min. Impedance Bridged   Not Bridgeable
• THD @ Rated RMS Power   0.03 %
• Speaker Level Inputs   No
• Amp Preamp Outputs   Yes - 1 Pair
• Built-in Crossover   LP (50 - 150 Hz), Subsonic (15 - 40 Hz)
• Bass Boost   0 - 18 dB
• Signal-to-Noise Ratio   60 dB
• Fan Cooled   No
• Fuse Rating   25A x 2
• Warranty   2-year Authorized Manufacturer's

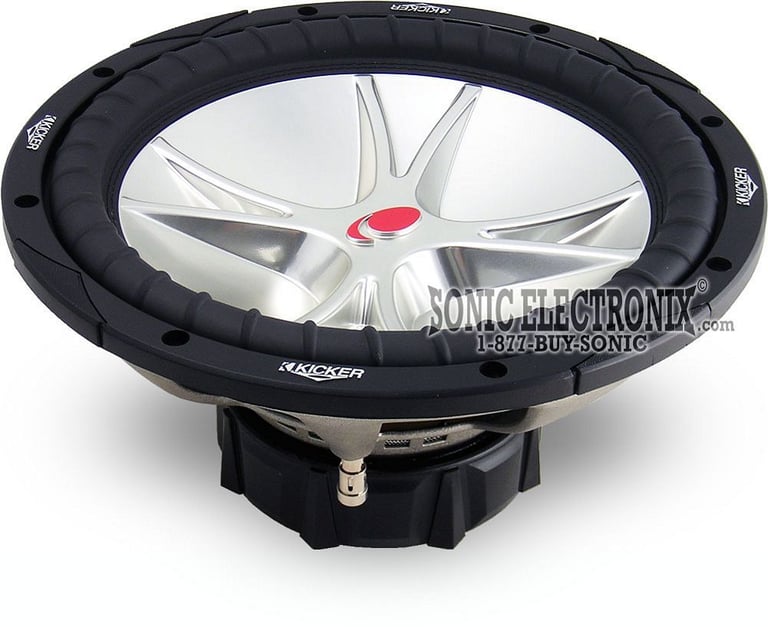

05CVR Sub Description:

• 12" CompVR Component Subwoofer
• Inverted Structural Dome Polymineral Injection Molded Cone: Remains rigid, and lowers distortion
• Rear Cone Brace: Offers unmatched strength and resistance to deformation
• Ribbed Santoprene Surround for Linear Cone Motion
• Silver-Coated Stamped Steel Basket
• Stitched Surround: Ensures the cone and surround won't seperate, even under the highest loads
• High-temp Polyimide Film Voice Coil Former
• Dual Ultra-Length Voice Coils
• Perimiter Venting
• Sleeved High-Power Tinsel Lead Wires
• Spring Loaded Nickel-Plated Terminals
• Authorized Internet Dealer

Grilles Not Included

05CVR124 Sub Specifications:

• Subwoofer Size   12"
• Impedance   4 ohm
• Dual Voice Coil   Yes
• Peak Power Handling   800 watts
• RMS Power Handling   400 watts
• Surround Material   Santoprene Rubber
• Sealed Box Volume   1.0 - 4.6 cu. ft.
• Ported Box Volume   1.75 - 2.25 cu. ft.
• Sensitivity   86.7 dB
• Frequency Response   25 - 500Hz
• Top Mount Depth   6-3/16"
• Cutout Diameter   11-1/8"
• Warranty   1-year Authorized Manufacturer's

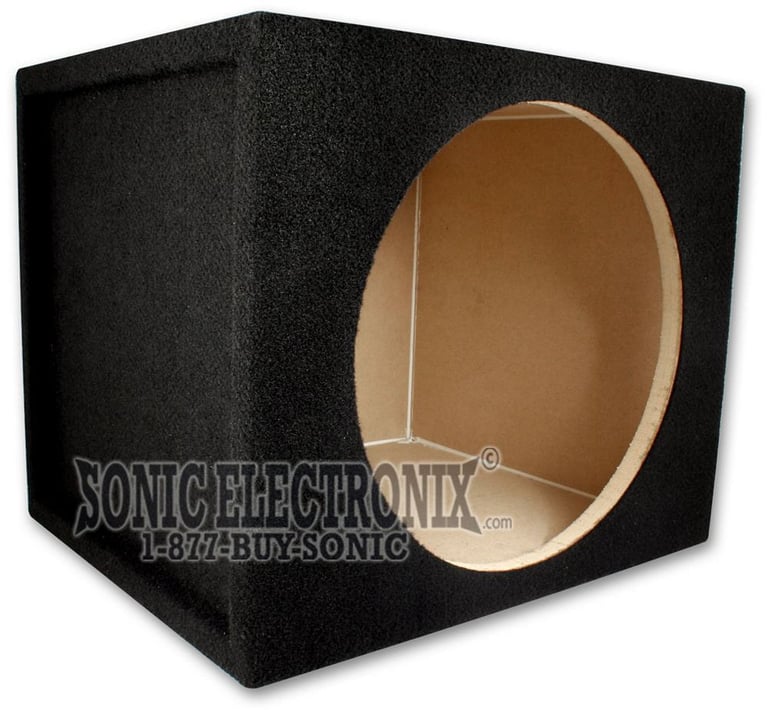

12" Box Features:

• Single Sealed 12" Enclosure
• 3/4" High Quality MDF Material machine-cut to perfection
• Professionally Sealed, caulked, and carpeted
• Internal Volume: 1.21 cubic feet
• Dimensions: 16-1/2"W x 13-1/2"H x 13-1/2"D
• Durable black carpeting
• Terminal cup installed with gold posts

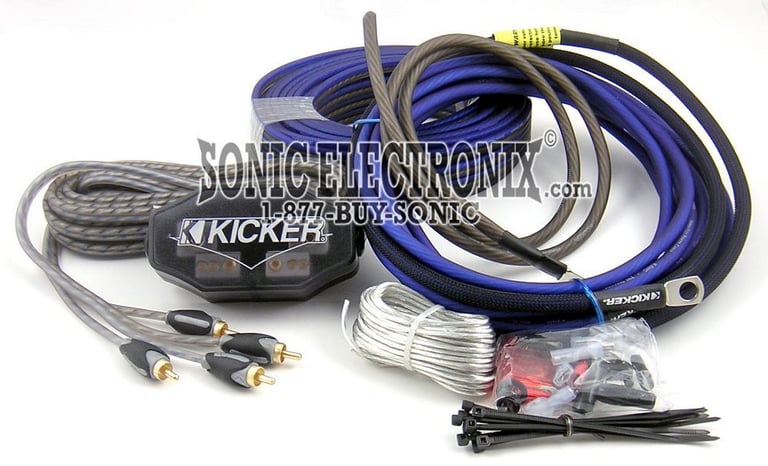

CK8 Amp Kit Description:

• 8 Gauge 2-Channel Complete Amplifier Kit
• 20 Ft. 8 AWG Power Wire
• 3 Ft. 8 AWG Ground Wire
• 20 Ft. 16 AWG Remote Lead
• 5M (16.5 Ft.) 2-Channel Signal Cable
• 40 Ft. 16AWG Super Twist Speaker Wire
• Fuse Holder
• 50A Maxi Fuse
• Direct Connect Engineering
• Authorized Internet Dealer
• Self-Adhesive Kicker Logo Badge Included!
