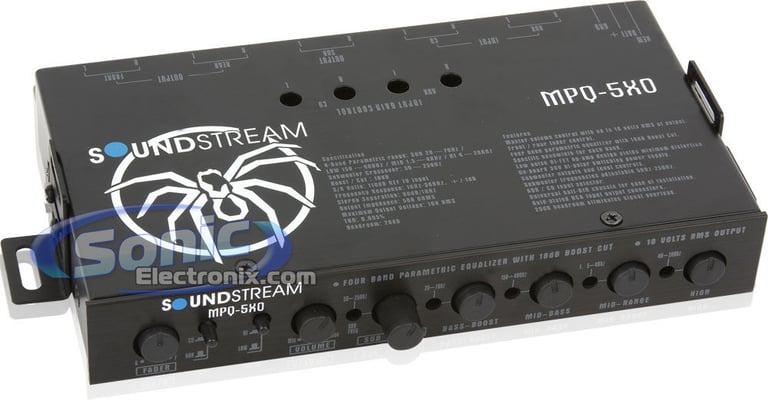

Soundstream MPQ-5XO

Parametric EQ w/ Crossover and Sub Volume

Product videos
highlight-star-icon

• 4-Band Parametric EQ w/Crossover and Sub Volume
• 2 Pair Line Inputs
• 3 Pair Line Outputs
• Adjustable Band Frequency
• 10V RMS Output
• Adjustable Input Sensitivity
• Low Noise BI-FET Op-Amp

Learn more about the mpq5xo

We apologize

This item has been discontinued


Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

95-8906HG main

Metra 95-8906HG Dash Kit

Install a new Double-DIN car stereo in select 2015-2019 Outback and Legacy (High Gloss Black)

-10.81%

$32.99

List price $36.99

SWRSU-38E main

Crux SWRSU-38E

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Amplifier, Backup Camera and Other Factory Features In select 2015-2017 Legacy and Forester and Outback

-35.71%

$125.55

List price $195.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-26.30%

$199.00

List price $270.00

iLX-F511 main

Alpine iLX-F511

11" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-16.67%

$1,699.95

List price $2040.00

Limited time!

JBL LEGEND 700 (JBLLEGEND700)

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

4
-30.53%

$263.95

List price $379.95

Product Highlights


• 4-Band Parametric EQ w/Crossover and Sub Volume
• 2 Pair Line Inputs
• 3 Pair Line Outputs
• Adjustable Band Frequency
• 10V RMS Output
• Adjustable Input Sensitivity
• Low Noise BI-FET Op-Amp

Description


Soundstream brand icon

Authorized dealer

General Features:

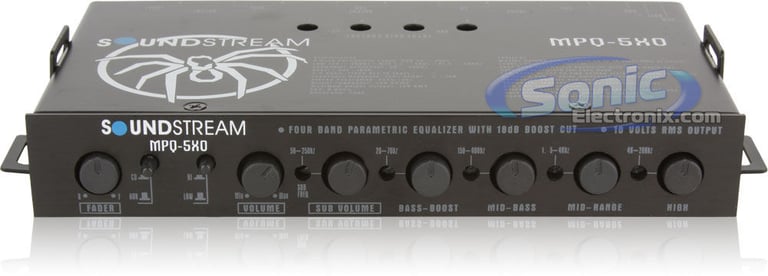

  • Four Band Parametric EQ w/ Crossover and Sub Volume
  • Master volume control with up to 10V RMS output
  • Front / rear fader control
  • Four band parametric qualizer with 18dB boost / cut
  • Specific bandwidth for each band
  • Low noise BI-FET op-amp design: Yields minimum distortion
  • On-board 30V bi-polar switching power supply
  • Subwoofer output and level control
  • Subwoofer frequencies adjustable: 50 - 250 Hz
  • AUX / CD input selector
  • Universal Half-DIN chassis size for easy installation
  • Gold plated RCA connectors
  • 20dB headroom: Eliminates signal overload

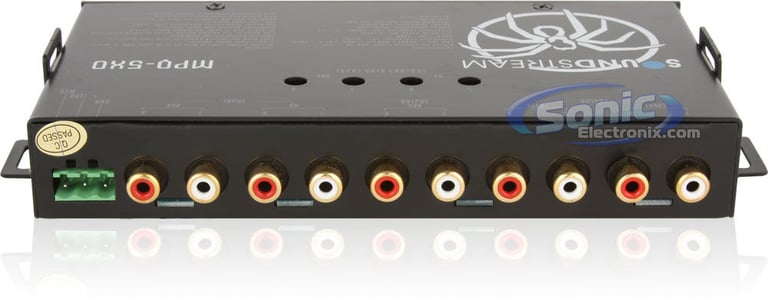

  • 2 Pair RCA Inputs
  • 3 Pair RCA Outputs
  • Adjustable input sensitivity
  • Adjustable parametric bands:
    • High: 4 - 20 kHz
    • Mid: 1.5 - 4 kHz
    • Low: 150 - 400 Hz
    • Sub: 20 - 70 Hz
  • THD +N: 0.005%
  • Frequency response: 10 Hz - 15 kHz
  • Signal-to-noise ratio: 110 dB
  • Stereo seperation: 82 dB / 1 kHz
  • Dimensions: 7-3/16" W x 1-1/2" H x 4-5/16" D
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

Specifications & Details


Equalizer Specifications
Equalizer Frequencies
Hi (4 - 20 kHz), Mid (1.5 - 4.0 kHz), Low (150 - 400 Hz), Sub (20 - 70 Hz)
Signal Boost/Cut
18 dB
Max Output Level
14V volts
Frequency Response
10 - 25000 Hz
THD (Total Harmonic Distortion)
0.005%
Signal-to-Noise Ratio
110 dB
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MPQ-5XO

Weight:

2.00lbs

Internal SKU:

mpq5xo

Internal Product ID:

5439

Product and How-to Videos
