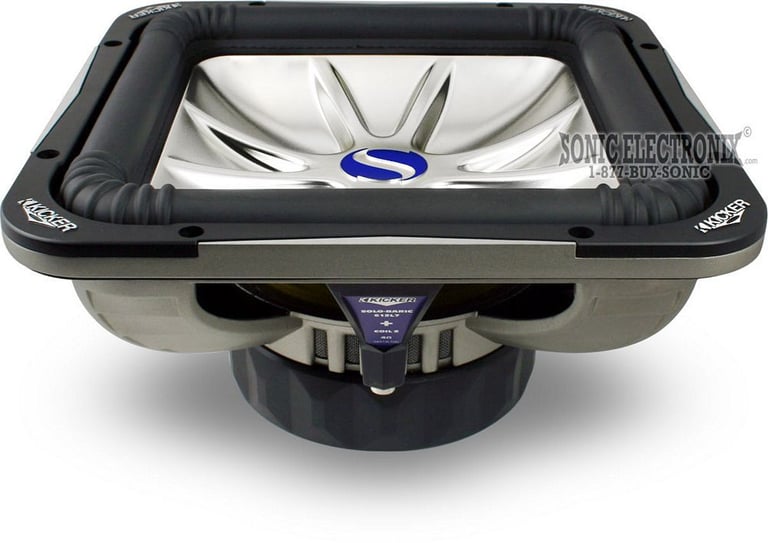

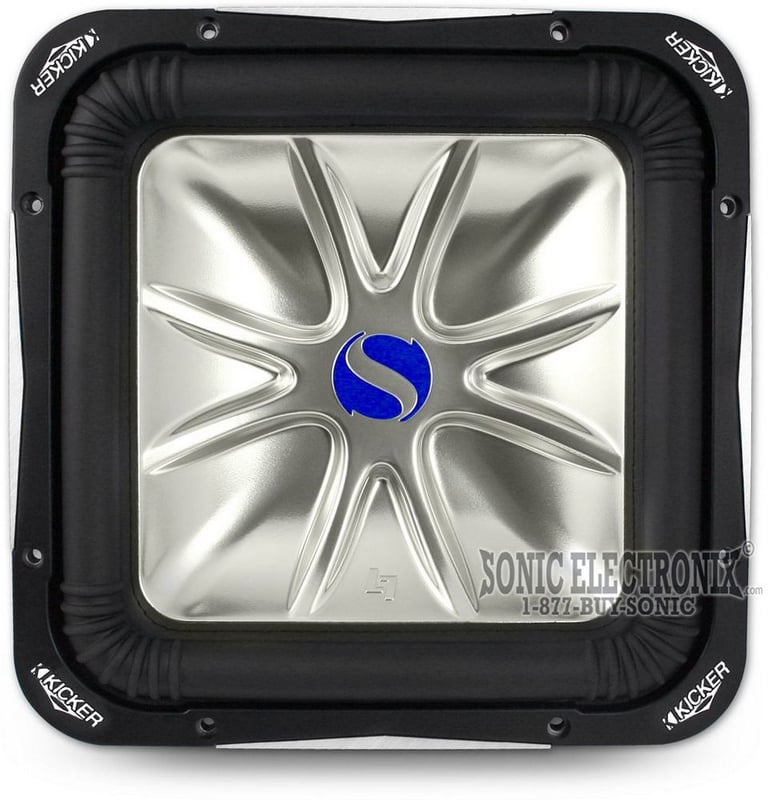

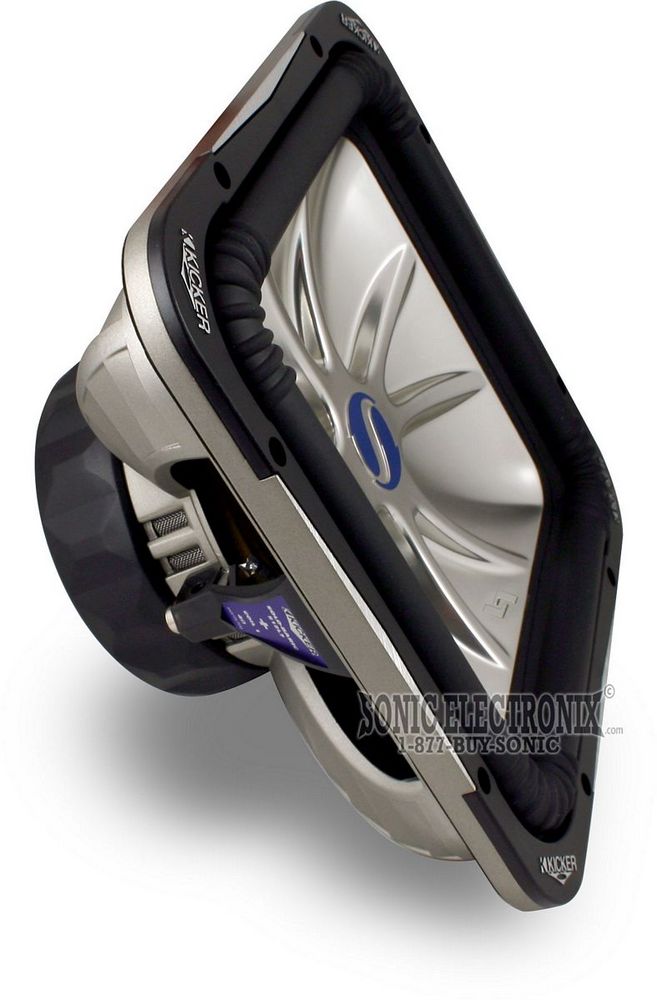

Kicker 04S12L74-1 (Factory Renewed 12" L7)

12" L7 Solo-Baric -- 4 Ohms DVC R/B

Kicker
Shop all Kicker
Product videos
highlight-star-icon

Dual 4 Ohms 12" Solo-Baric L7 • 750 watts RMS power handling • 1,500 watts peak power handling approx. • aluminum deposite cone • rubber surround

Learn more about the LS-04s12l74-RB

We apologize

This item has been discontinued

Product Highlights


Dual 4 Ohms 12" Solo-Baric L7 • 750 watts RMS power handling • 1,500 watts peak power handling approx. • aluminum deposite cone • rubber surround

Description


Kicker brand icon

Authorized dealer

  • Factory refurbished with 90 day Manufacturer's warranty included
  • dual 4 ohm voice coils for wiring flexibility (with a compatible amp)
  • aluminum deposit cone -- a beautiful look with less cone flex and less distortion
  • rear-cone brace for added strength to reduce cone flex under stress
  • Santoprene rubber surround
  • Massive surround radius provides increased excursion for low bass output and higher SPL

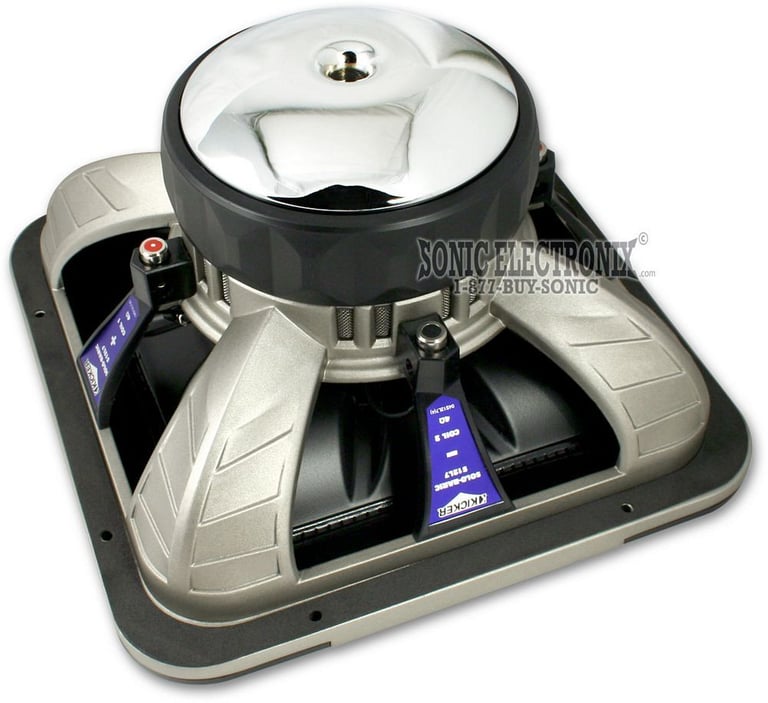

  • BAM (Basket and Motor) Enhanced Assembly: new for 2004 -- cast aluminum basket featuring low profile/open design that provides a solid anti-resonant foundation for the motor assembly
  • Perimeter venting which relieves pressure for a more linear response and aids in keeping the voice coils cool
  • Patent Pending Stitched Surround that aids in preventing cone/surround separation at high excursions
  • Sleeved high-power tinsel lead wires to resist lead breakage
  • Spring-loaded nickel plated terminals for solid connections with large gauge speaker wire
  • Authorized Internet Dealer

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 04S12L74-1 (Factory Renewed 12" L7) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 04S12L74-1 (Factory Renewed 12" L7) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 04S12L74-1 (Factory Renewed 12" L7) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker 04S12L74-1 (Factory Renewed 12" L7) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Frequency Response
20 - 100 Hz
Sensitivity
87.4 dB
Woofer Surround
Santoprene Rubber
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
11-3/16 x 11-3/16"
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

04S12L74-RB

Weight:

22.00lbs

Internal SKU:

LS-04s12l74-RB

Internal Product ID:

5564
