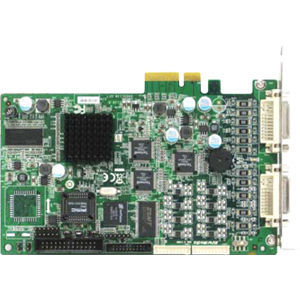

Aver Information, Inc. NV8416EX4

General Features:

• PCI Express Interface
• 4x (PCI Express-4x) interface offers high-speed video data transmission
• Video Inputs
• 16 analog inputs and BNC connectors, as well as 16 IP video inputs that support H.264 / MPEG-4 / MJPEG compression data streams
• Resolution and Frame-Rate
• With up to 1280 x 960 live video resolution, the card offers D1 record quality with real-time frame-rates. For analog cameras, the card supports recording frame-rates of up to 480 fps in CIF, VGA, half-D1, and D1 resolutions, while for IP cameras the frame-rate depends on the camera specifications
• iEnhance Feature
• Recorded video can be enhanced on various parameters such as brightness, contrast, sharpness, hue, saturation, gray scale, de-interlace, and noise reduction
• iStable Feature
• Minimizes undue blurring or shakes in recorded images caused by camera jerking, traffic vibration, or strong wind
• Night View Functionality
• View and record videos even in complete darkness
• Audio Input/Output
• 16 audio inputs and 1 audio output
• Alarms and Events
• Alarm Inputs/Relay Outputs
• 4 alarm inputs and 4 relay outputs for comprehensive event-managed surveillance
• Motion Detection
• Triggers an alarm when motion or a mass is sensed in the field-of-view. Specific areas can be selected for motion detection. The current image is continuously compared with a pre-selected image of the same area, and an alarm is triggered if any change is detected in the viewing area
• Alarm Notifications
• When an alarm is triggered video capture is initiated on multiple cameras, an alarm e-mail is sent, and the E-map is accessed. Additionally, video can be sent to the spot monitor, PTZ tracking can be started, a phone call can be made, warning tones can be sounded, and triggered video enlarged. Relay protocols can be linked to a sensor to perform functions such as locking the gates. You can reset alarms both locally as well as remotely
