Alpine SPX-137R

5-1/4" 2-way Type-X Series Component System

Alpine
Shop all Alpine
highlight-star-icon

5-1/4" 2-Way Component System • Power Handling 240 watts Peak / 60 watts RMS • Frequency Response: 40 Hz - 60 kHz • Sensitivity: 86 dB •

Learn more about the spx137r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

spx13ref thumbnail

Alpine SPX-13REF

OUR PRICE: $174.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3006 main

Metra 82-3006

6" to 6.75" Speaker Mounting Adapter for select 2003-2024 vehicles from Chevrolet, GMC, Cadillac

66
-50.01%

$16.99

List price $33.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

GMSB356 main

American International GMSB356

6.5" to 6.75" Speaker Mounting Adapters for select 1997-2020 vehicles from Chevrolet, GMC, Pontiac

33
-58.38%

$9.99

List price $24.00

GM1598B main

Scosche GM1598B / GM1598 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2014 vehicles from Chevrolet (Black)

52
-15.31%

$14.99

List price $17.70

GM40B main

Scosche GM40B Wiring Harness

Install a new car stereo in select 2004-2021 vehicles from GMC, Chevrolet, Pontiac

1
HRN-SR-GM5 main

iDataLink Maestro HRN-SR-GM5 Wiring Harness

Install a New Car Stereo in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac (Requires ADS-MSR Module)

-27.78%

$64.99

List price $89.99

72-4565 main

Metra 72-4565

Install New Speakers in select 1990-2017 vehicles from Dodge, Chrysler, Chevrolet

4
-26.68%

$10.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


Alpine brand icon

Authorized dealer

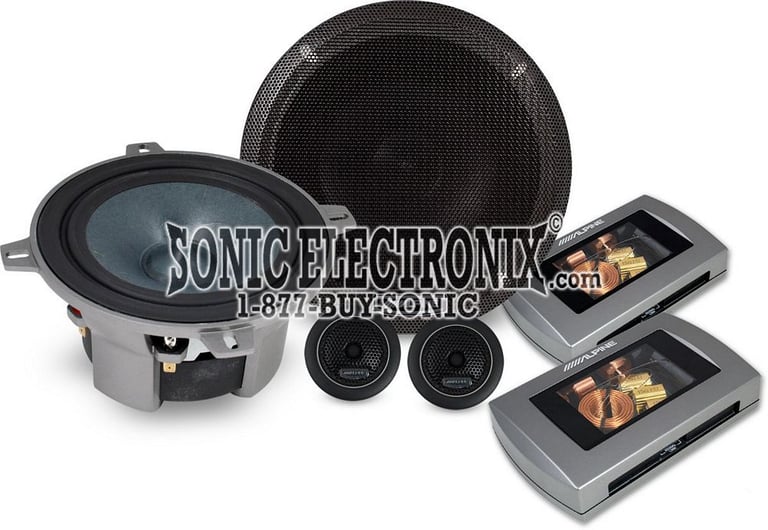

  • 5-1/4" 2-Way Component System
  • Power Handling 240 watts Peak / RMS 60 watts
  • Frequency Response: 40 Hz - 60 kHz
  • Sensitivity: 86 dB
  • Impedance: 4 Ohm
  • Custom Cast Aluminum Frame
  • Airflow Optimized Dual-Flare Pole Vent
  • Integrated Spider Landing & Heat Transfer Plate
  • Low Resonance Multi-Roll Surround
  • Wood Fiber Cone
  • Phase-Integrated Dustcap
  • Ultra High Quality 2-way Crossover
  • On/Off Axis Compensation
  • Bi-Wire Input and Selectable Tweeter Attenuation
  • 1-year SonicElectronix.com warranty

Crossover

  • 3-Way/Dual Midbass Ready
  • Bi-Amp/Bi-Wire Capable
  • Gold Plated Terminals and Connection Jumpers
  • Integrated Level /Axis Adjustment
  • Phase Coherent Design
  • Tweeter Protection Circuit
  • Ultra-High Grade Passive Components

Tweeter

  • 19mm Voice Coil, Copper Clad Aluminum Wire on Aluminum Bobbin
  • Low Distortion Motor Structure with High Grade Neodymium Magnets and Copper Shorting Cap
  • Periphery Venting System into Cast Aluminum Tuned Chamber with Integrated Heatsink
  • Twist Lock Installation Ring with Compact Swivel System (Swivel-Flush, Swivel-Surface, Semi-Flush Angle Tweeter Mounting)

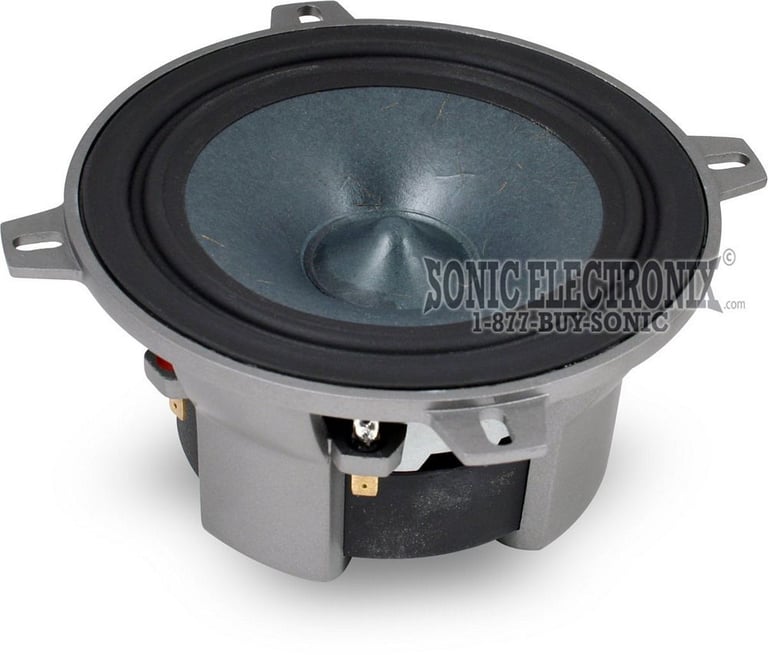

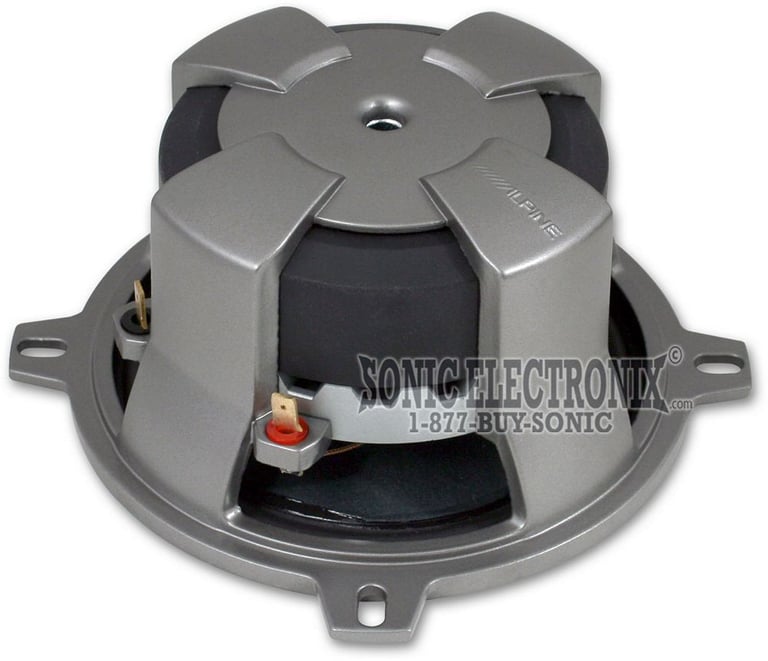

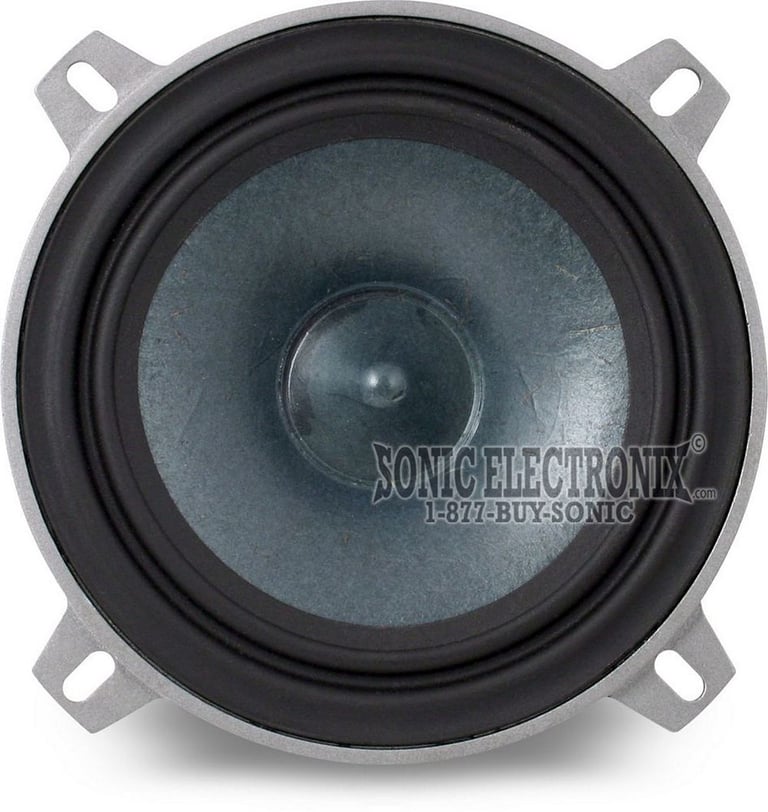

Woofer

  • 4-Layer Copper Clad Aluminum Wire on Glass Fiber Bobbin
  • Airflow Optimized Dual-Flare Pole Vent
  • Braided Low-DCR Tinsel Leads
  • Custom Cast Aluminum Frame
  • Gold Plated Terminals
  • High Grade Strontium Ferrite Magnet
  • High Quality Synthetic Black Spider
  • Low Resonance Multi-Roll Surround

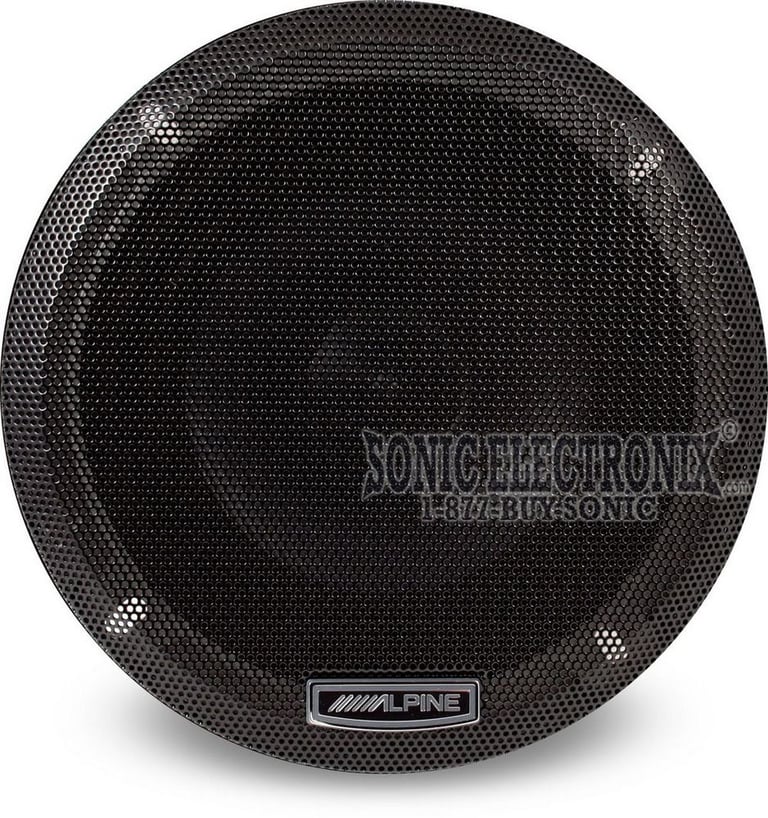

  • Semi-Flush Grille
  • Single Voice Coil Design
  • Wood Fiber Cone & Phase Integrated Dust Cap

Priced Per Pair

Product history:

Alpine SPX-13REF thumbnail
(newest, current model)
Alpine SPX-137R thumbnail
(previous model, replaced by Alpine SPX-13REF)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

DSK 130.3 small

Hertz DSK 130.3

• 120 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Dome-Cone tweeters with high-energy neodymium magnets
• Water-repellent Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Composition
Aluminum
Woofer Composition
Wood Fiber
Woofer Surround
LRMS
Peak Power Handling
240 watts
RMS Power Handling
60 watts
Sensitivity
86 dB
Frequency Response
40 - 60000 Hz
Impedance (Per Voice Coil)
4 ohm
Bottom-Mount Depth
2.44" (62mm)
Cutout Dimensions
6.18"

Item Details


Manufacturer:

Model Number:

SPX-137R

Weight:

7.00lbs

Internal SKU:

spx137r

Internal Product ID:

6121
