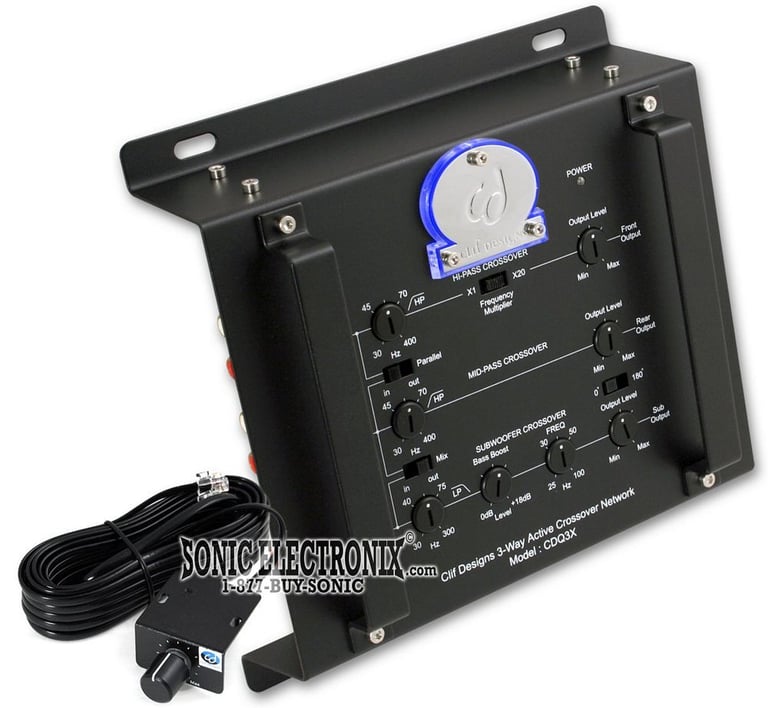

Clif Designs CDQ3X

3-way Active Crossover Network

Clif Designs
Shop all Clif Designs
highlight-star-icon

Crossover • Variable Subwoofer Frequency • Subwoofer Outputs and Level Control • 0-18dB Bass Boost

Learn more about the cdq3x

We apologize

This item has been discontinued

Description


Clif Designs brand icon

Authorized dealer

  • Frequency Response: 10 Hz - 30 kHz
  • Ground Loop Isolation Circuit
  • Front and Rear High Pass Frequency Adjustment
  • Front and Rear Output Level Control
  • Subwoofer Low Pass Frequency Adjustment
  • Subwoofer Bass Boost With Bass Frequency
  • Subwoofer Output Level Control

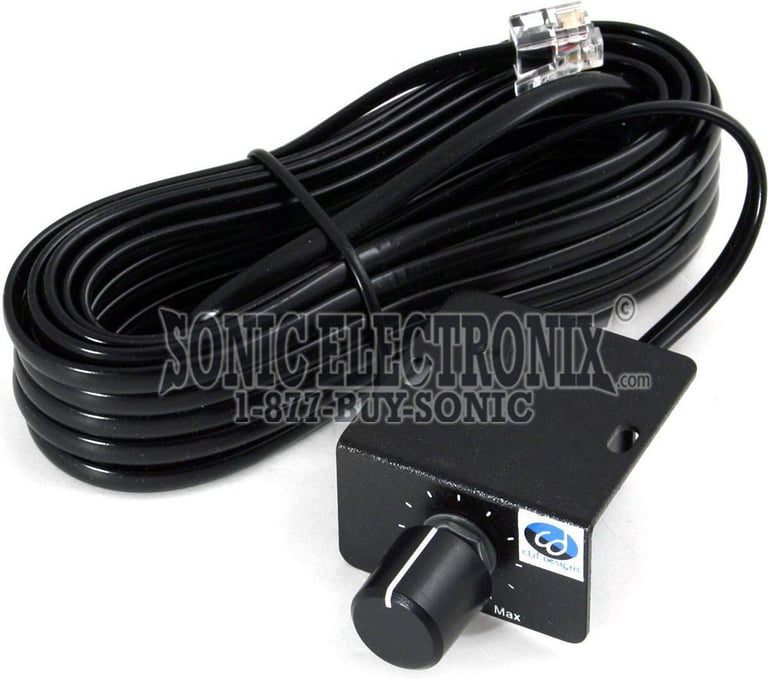

  • Remote Subwoofer Level Control
  • Remote Turn on Circuit
  • Power on LED with illuminated Clif Designs logo
  • Gold Plated Input/Output RCA Connectors
  • 200mV-2V Input Sensitivity
  • S/N Ration: >100dB
  • THD <0.01%
  • Subwoofer (Low-Pass)
  • Input Mix Switch (In, Out)
  • 30-300Hz Variable Frequency Control
  • 0-18dB Variable Bass Boost
  • 25-100 Hz Variable Bass Boost Frequency
  • Selectable 0 / 180Degree Phase Control
  • Independent Input Gain Control
  • Mid- Range (Mid-Pass)
  • 32-400 Hz Variable High Pass Crossover
  • Input Mix Switch (In, Out)
  • Independent Input Gain Control
  • Front & Rear High Pass
  • 32Hz - 400 Hz Variable Crossover
  • X1 or X20 Frequency Multiplier
  • Independent Input Gain Control
  • Dimensions: 7.55"L x 6.37"W x 1.81"H
  • 2-year Manufacturer's warranty

Best selling similar products

PNW-XN3 small

AudioControl PNW-XN3

• 3-way Passive Crossover Network
• Designed to expand a 2-way component system into a 3-way setup
• Ideal for adding a midrange driver to your 2-way component system
• Includes woofer, midrange and tweeter outputs
• Compatible with AudioControl PNW and Altitude Series speakers

(2)

$159.00

List price $179.00

XM3 small

DS18 XM3

• 3-Way active crossover with sub-level control
• Mixed input and output
• Level output knob with individual output
• Features front and rear high-pass filters
• Includes remote subwoofer level control
• Stereo or mono subwoofer mode selector

$124.95

List price $122.99

XM5 small

DS18 XM5

• 5-Way high-voltage active crossover
• (2) front and (2) rear/sub inputs
• High/mid, high/mid/low, and mid/low outputs
• Features clip indicators

$239.95

List price $287.99

HFXR small

Hifonics HFXR

• 2-Way/3-Way Electronic Crossover
• Bass boost (0-12dB @ 45Hz)
• Quasi-Parametric EQ
• 180-Degree Phase-Shift Switch
• Front/Rear Channel Frequency
• Front and Rear Adjustments
• RCA Pre-Amp Output

(17)

$59.99

List price $99.99

XOHV small

DS18 XOHV

• 2-Channel high-voltage external pre-amplifier with crossover
• Perfect for high-voltage amplifiers
• Selectable bass boost frequency
• Allows match of 2 or more amplifiers with same audio setting

$95.95

List price $115.99

Specifications & Details


Crossover Specifications
Built-in Crossover
Low-Pass (LP)
Built-in Bass Reconstruction
No
Frequency Response
10 - 30,000 Hz
THD (Total Harmonic Distortion)
0.01%
Signal-to-Noise Ratio
100 dB
Width
6-3/8"
Height
1-3/4"
Depth
7-1/2"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CDQ3X

Weight:

5.00lbs

Internal SKU:

cdq3x

Internal Product ID:

6323
