Turtle Beach Ear Force DXL1 (TBS-2122-01) Gaming Headset Stereo Headphones Open Box

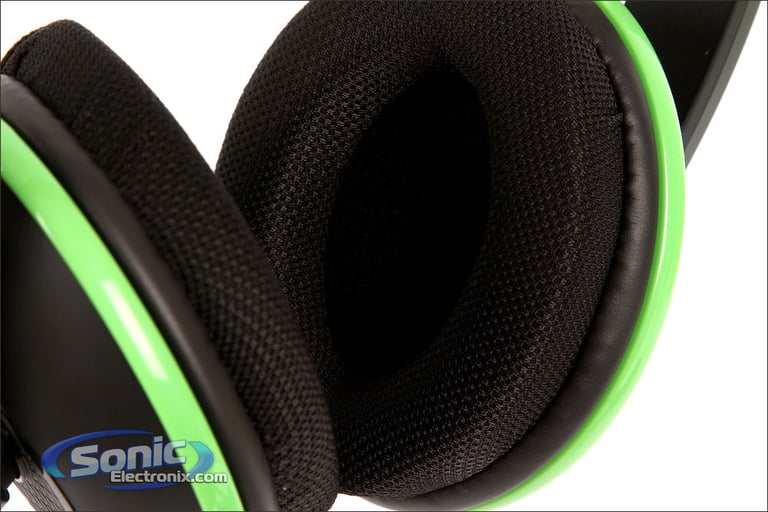

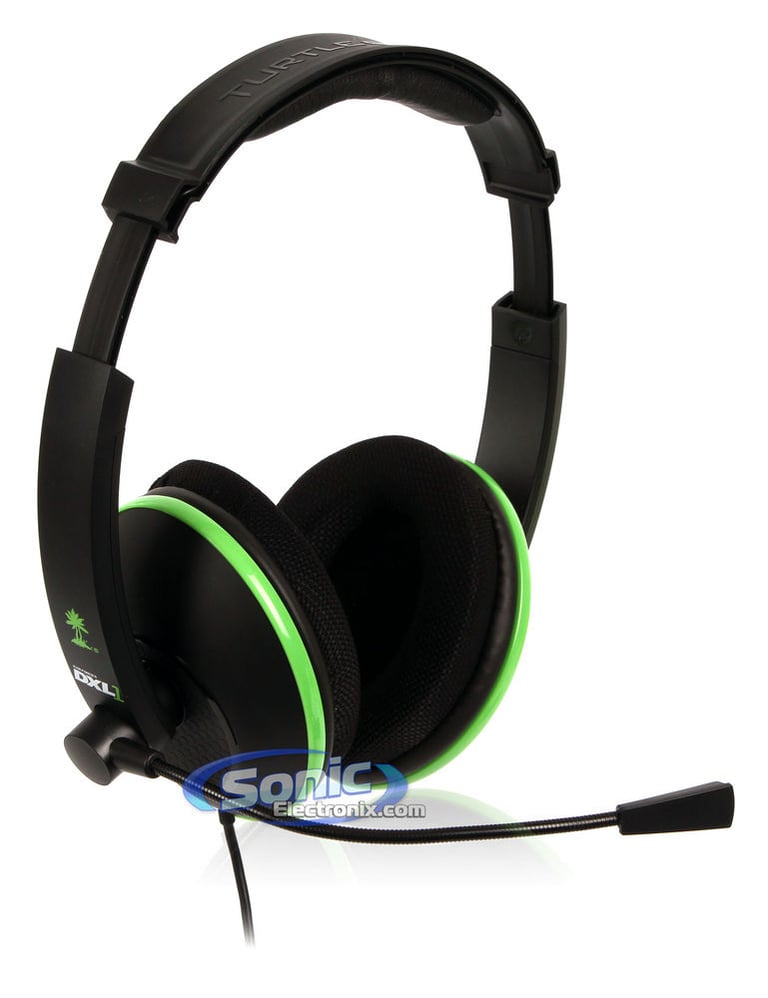

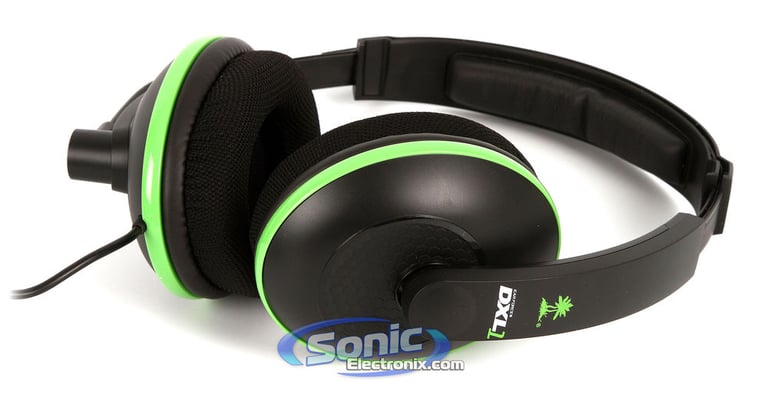

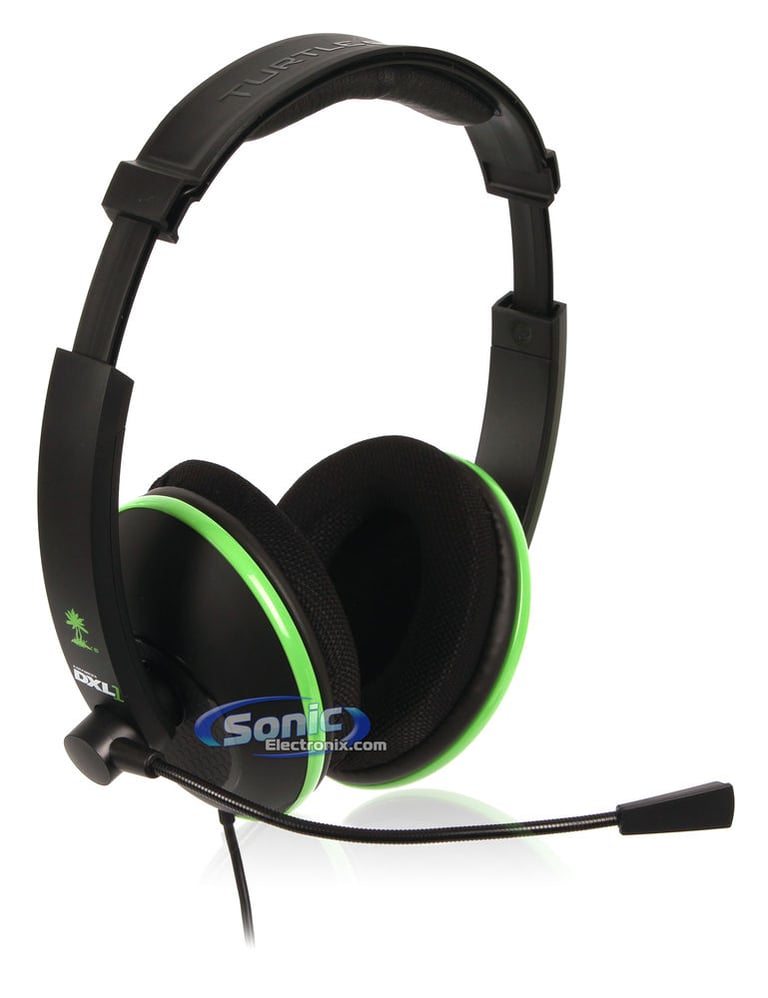

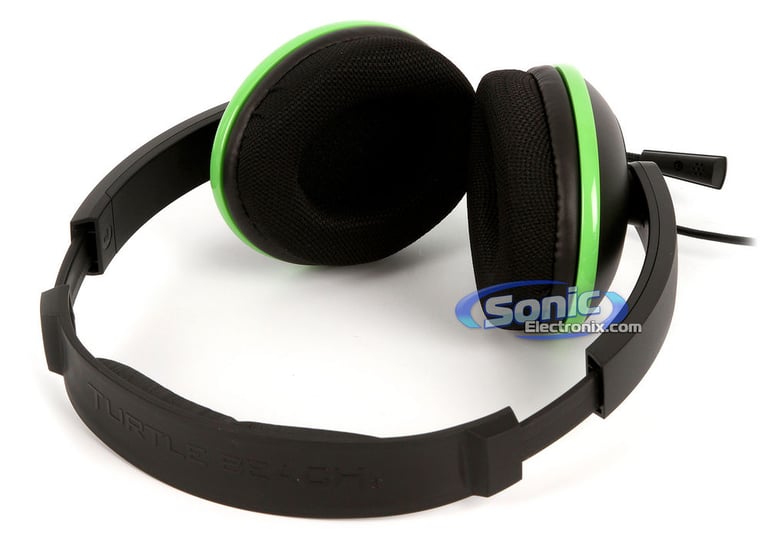

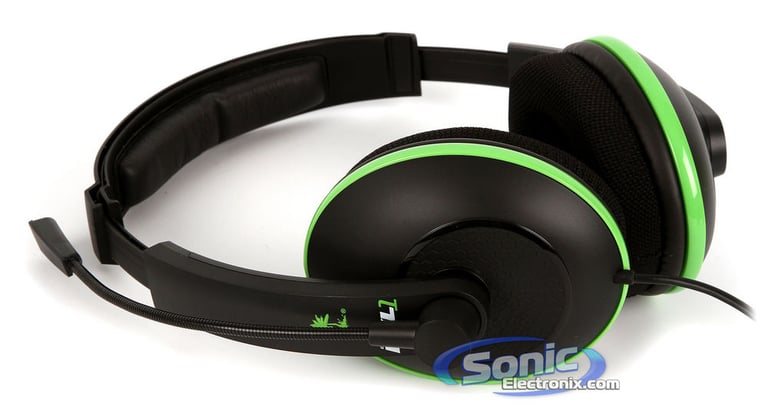

Headset:

• Dolby Surround Sound Gaming Headset for Xbox 360
• 50mm diameter speakers
• Speaker Frequency Response: 20Hz - 20kHz, >120dB SPL @ 1kHz
• Condenser Microphone Frequency Response: 50Hz - 15kHz
• Adjustable headband for comfortable listening sessions
• Cable length: 16 ft. (4.87m)
• Weight: 6.4 oz (181g)
• Also Found As: Tutle Beach DLX1 Green & Black (TBS-2122-01)
• 1-year Manufacturer's Warranty

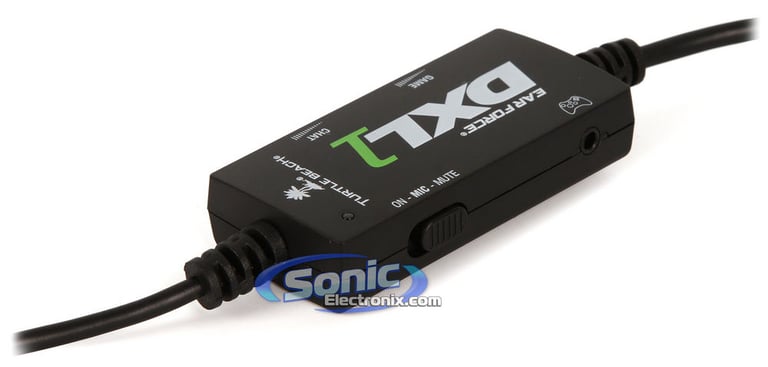

In-Line Amplifier:

• Headphone Amplifier: Stereo DC-coupled
• Total Harmonic Distortion: <1%
• Frequency Response: DC - 30kHz
• Fixed Bass Boost fixed: +9dB @ 150Hz
• Mic mute switch
• Chat volume control
• Game volume control
• Maximum analog input level with volume control on maximum setting: 2Vpp (700mV rms)
• 2.5mm XBOX 360® controller input jack
• USB connector for power (5VDC @ <60mA max)

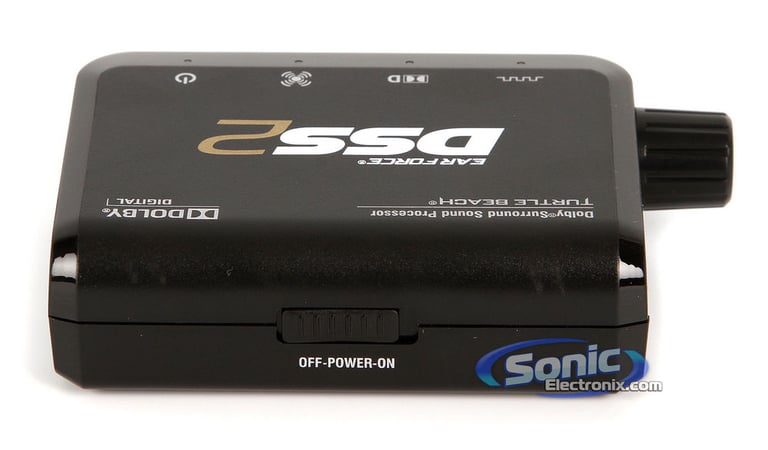

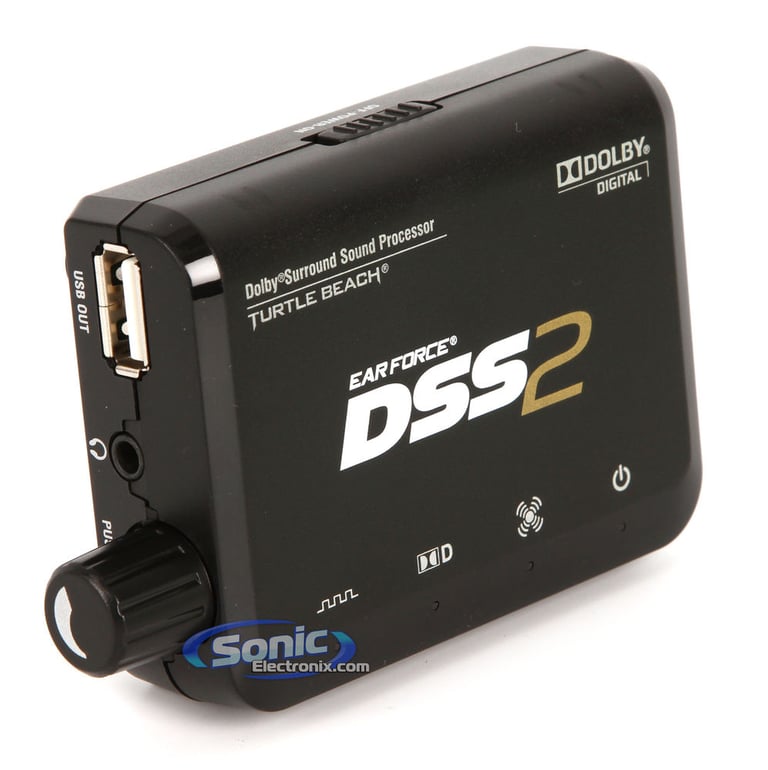

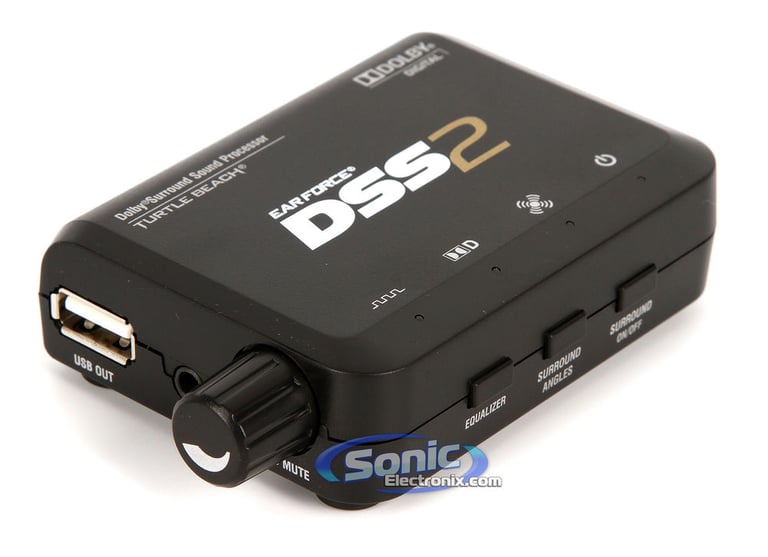

Processor:

• Frequency Response: 20Hz - 20kHz

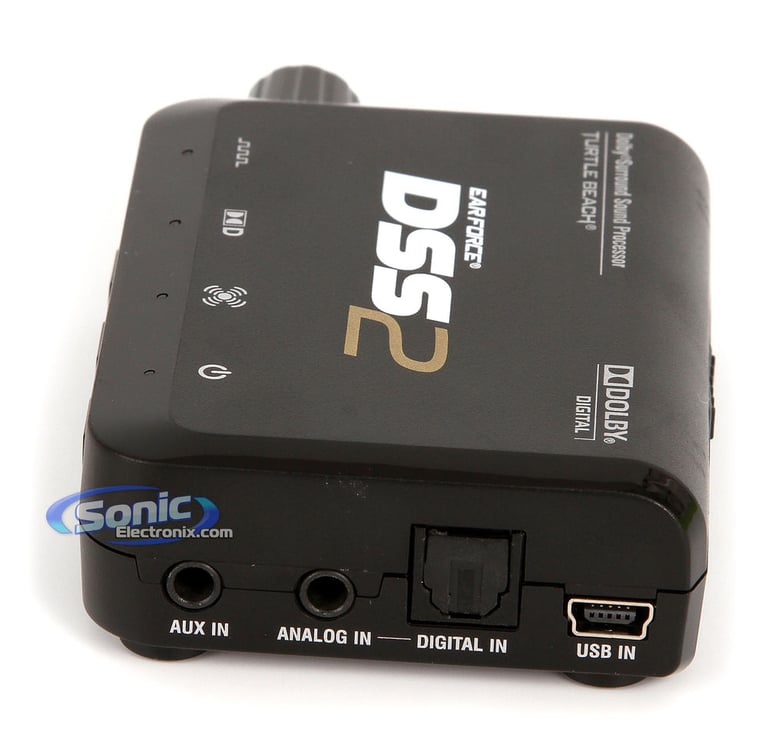

• Game Audio Input: digital optical (required for Dolby surround sound)
• Auxiliary Input: 3.5mm ( bypasses by DSP processing for listening to external music source)
• Analog Input: 3.5mm (processed by DSP for virtual surround sound with stereo source)
• Power: USB (200mA @5v)
• USB Pass-through: provides power and data for external devices
• Headphone Output: 3.5mm (90mW@16 ohm)
• Speaker angles: select between 6 different surround sound speaker angles
• Equalizer: select between flat, bass boost, aggressive bass boost, treble boost, aggressive treble, boost, bass & treble boost, midrange boost and aggressive midrange boost
• Bypass: Disables surround sound processing to produce stereo sound.
• Dimensions: 2" X 3.25" ( 5.08 cm X 8.26 cm )
• Weight: 9 oz. ( 25.5 g )

System Requirements:

• Xbox 360®: console with optical audio output or AV cable to support optical output:
• HDMI audio adapter cable
• Advanced SCART AV cable
• Composite AV cable with optical output
• Available USB port

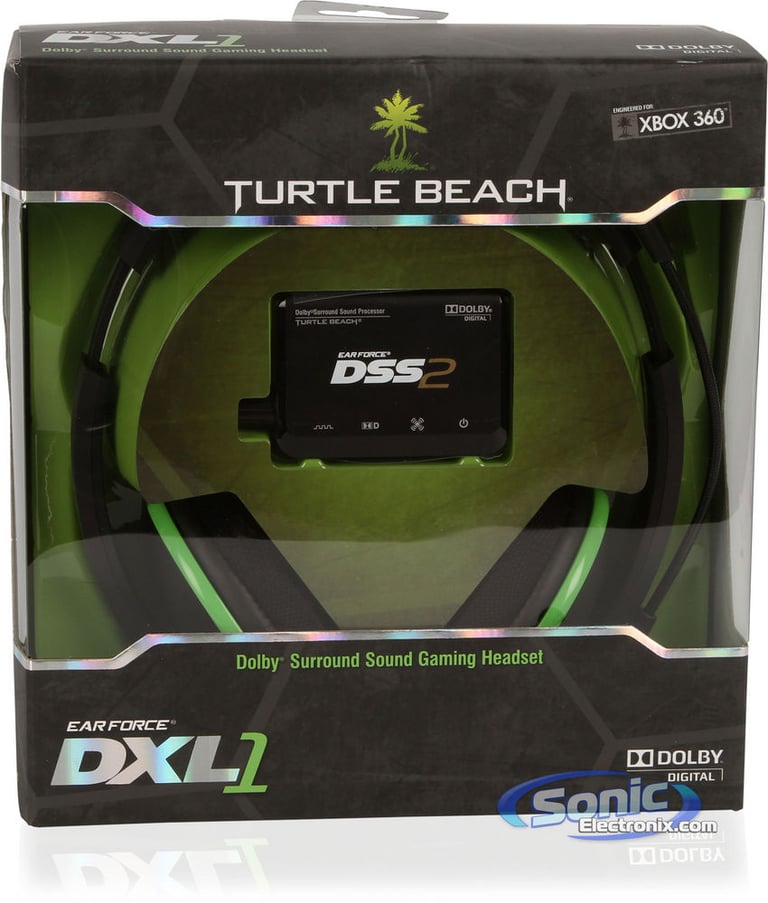

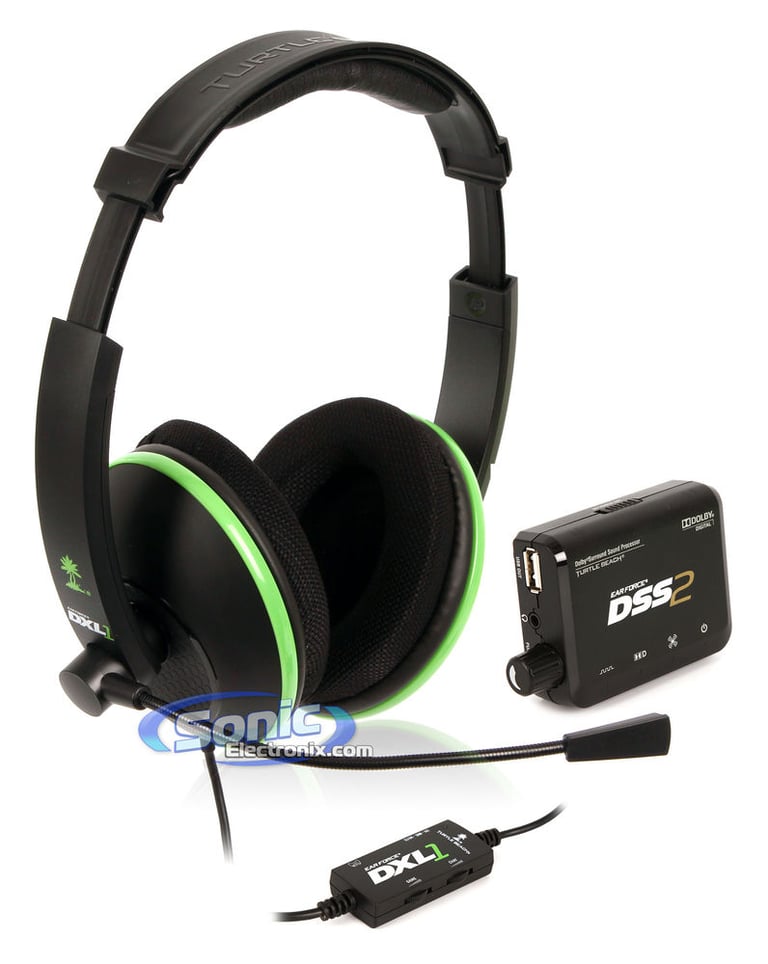

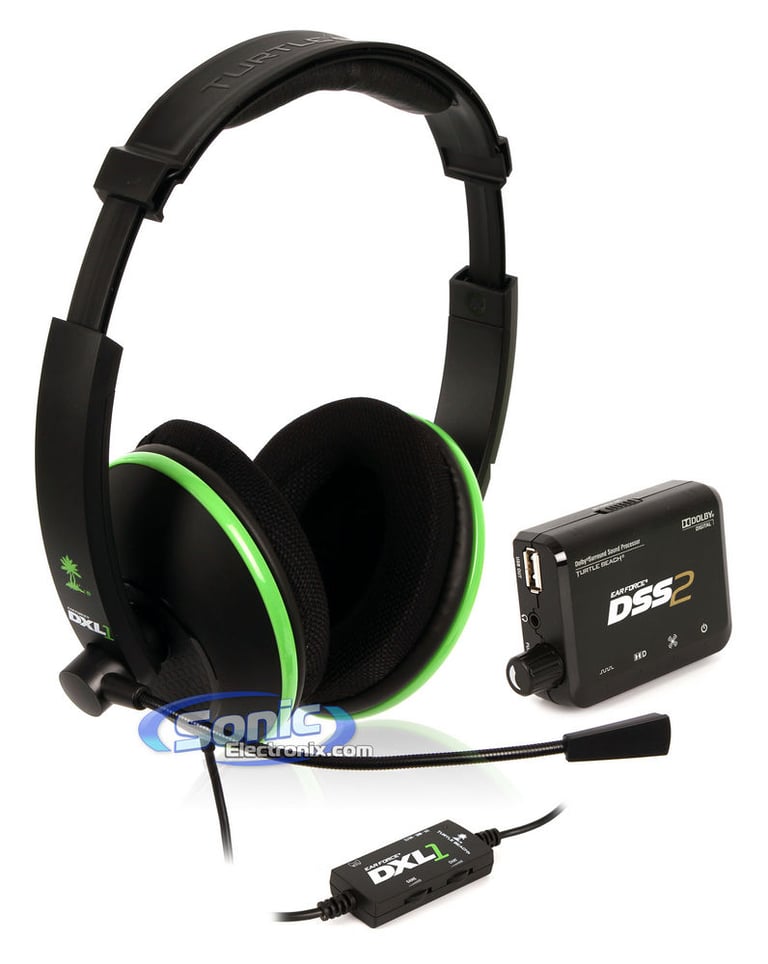

Package Contents:

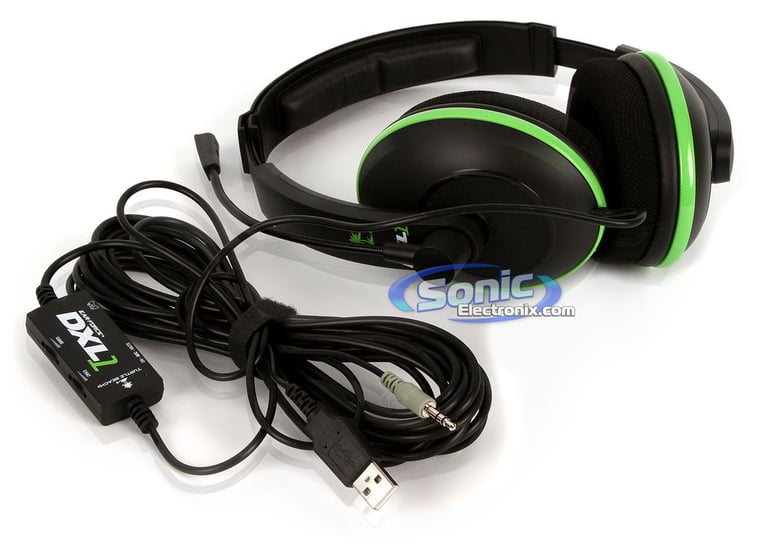

• DXL1 Headset with In-line Amplifier
• DSS2 Surround Sound Processor
• USB cable
• Xbox 360 Talkback Cable
• Turtle Beach Sticker
• User's Guide
