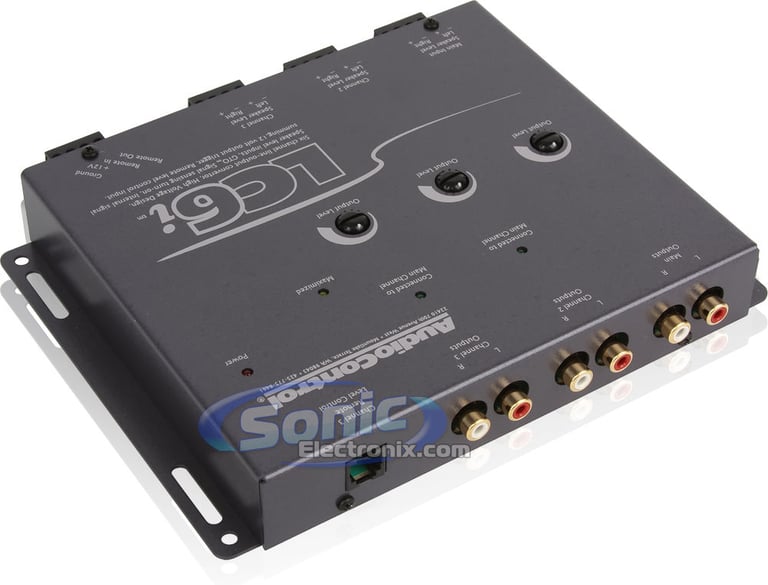

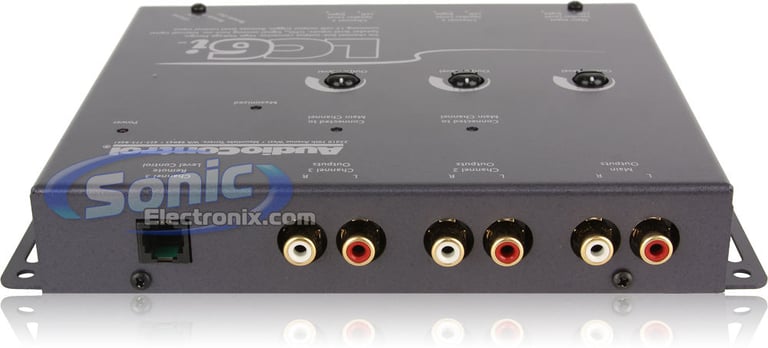

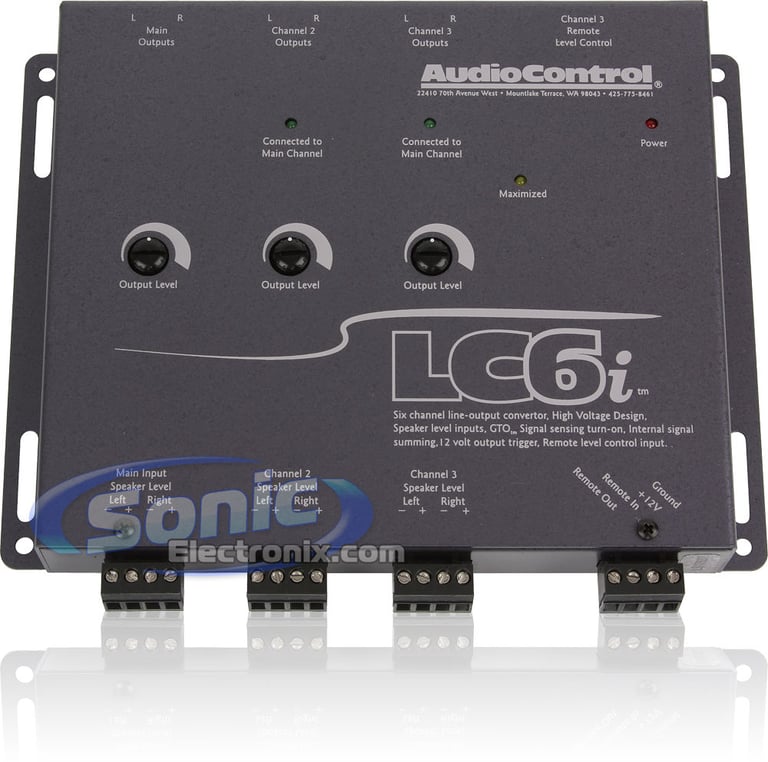

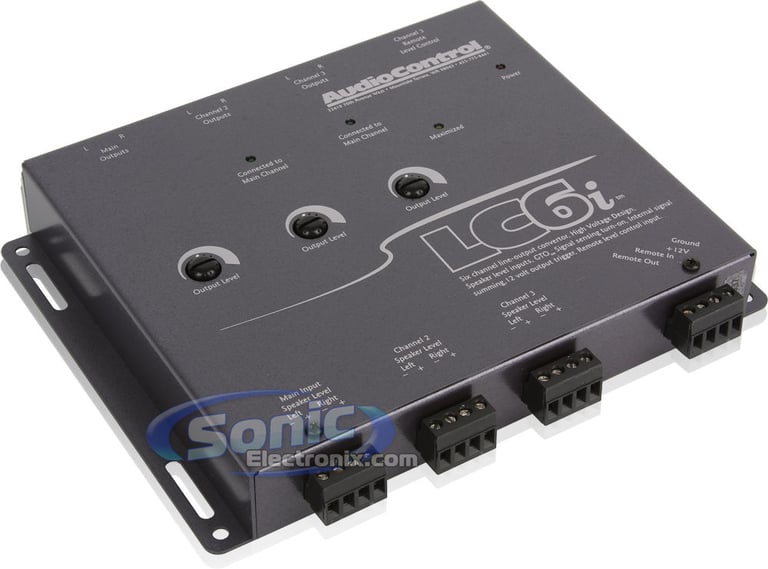

AudioControl LC6i Open Box Complete

• A part that is fully functional but shows no sign of use outside of installation.

General Features:

• Six Input and Output Channels
• 6 Speaker Level Inputs - Can Accept 400 Watt Signals!
• Signal sensing inputs
• Internal Channel Summing
• AutoMode inputs
• Level matching controls
• 12 volt trigger output
• Line Output Converter:
• A device for converting a powered (or amplified) signal into a pre-amp line level (or non-powered) signal
• Input for optional subwoofer level control: AudioControl ACR-1
• Color: Salmon Gray
• Also available in Sierra White: AudioControl LC6I White
• Weight: 3.5 lbs
• Size: 8.00" W x 6.00" D x 1.20" H
• Authorized Dealer
• 1-year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

LC6i Specifications:

• Maximum speaker-level input: 400 watts @ 4 ohm
• Maximum output level: 9.5Vrms
• Output gain: +/-12 dB
• Frequency response: 10Hz-22kHz
• Total harmonic distortion: 0.01%
• Input Impedance: 20 Kohm
• Power supply: High headroom PWM switching
• Power draw: 200mA
• Recommended fuse rating: 1 Amp
• Remote Trigger Ouput Current: 1 Amp
