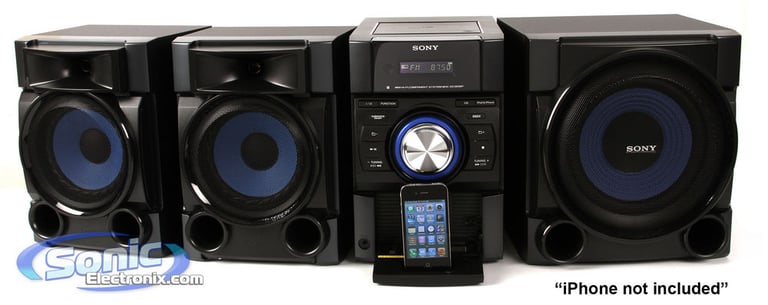

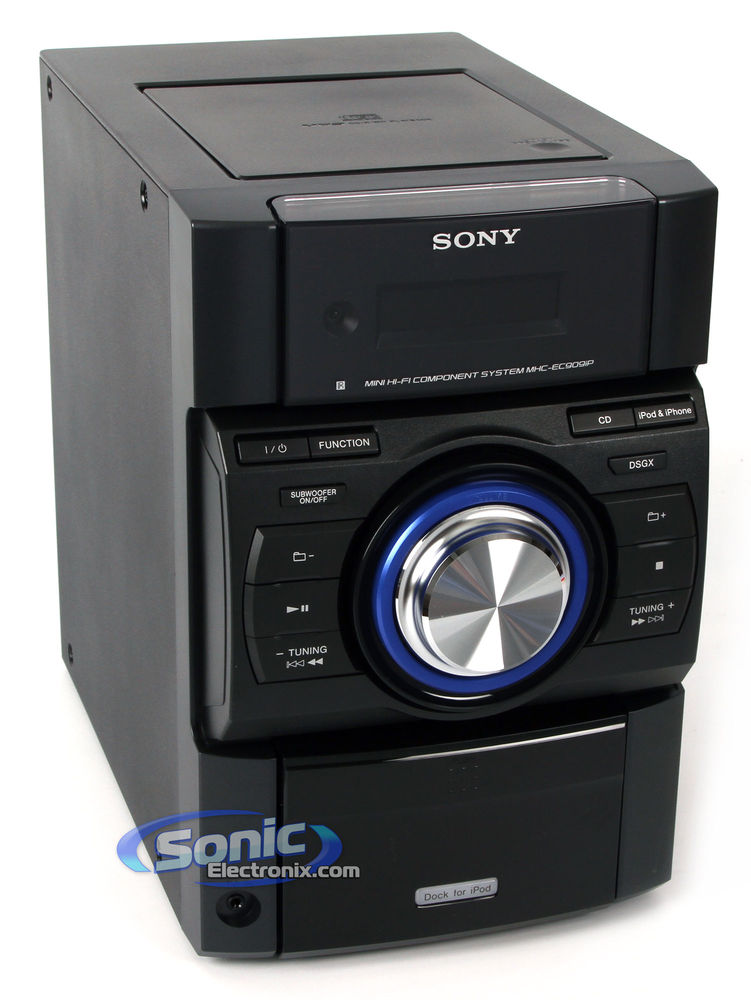

Sony MHC-EC909iP

General Features:

• Powerful 540 Watt RMS Hi-Fi Home Stereo Music System
• Charge and Play your iPod or iPhone with the built-in dock
• Single disc MP3 CD Player with CD-R/RW Playback
• Enjoy easy, accurate, drift-free tuning of your favorite AM and FM radio with 30 Station Presets
• Two-Way Bass Reflex Speaker System with Ported Speaker Cabinets
• Powerful Cone Type Midrange Drivers for Full, Powerful Sound
• Detailed Horn Tweeters for Accurate Sound Reproduction
• Dedicated 7.9” Bass Reflex Sub-Woofer provides deep bass
• DSGX Bass Boost for enhanced bass for a richer, fuller sound
• Clock, alarm and sleep timer; allows you to wake or fall asleep to your favorite music
• EQ Creates enhanced sound modes with Seven different Settings for music, such as rock and pop
• Bright White LCD Backlight Screen Displays Clock, Station, and Track Details
• ID3Tag Ver. 1.1
• ID3Tag Ver. 2.0
• MP3 File name
• Charges the iPhone as it plays

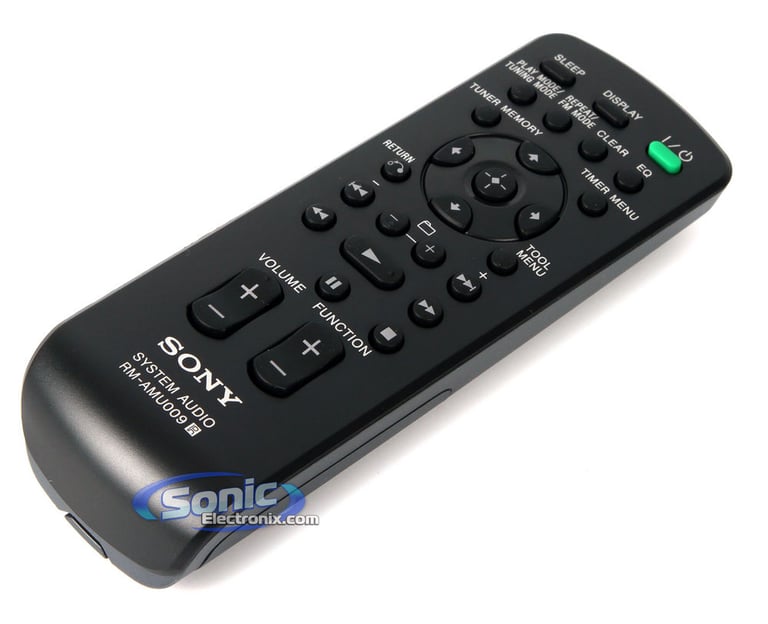

• Remote control included
• Primary Color Tone: Black & Blue
• Manufacturer Part Number: Sony MHC-EC909iP
• Also Found As: Sony MHCEC909iP, Sony MHC-EC609
• 1-Year Manufacturer's Warranty

Speaker Specifications:

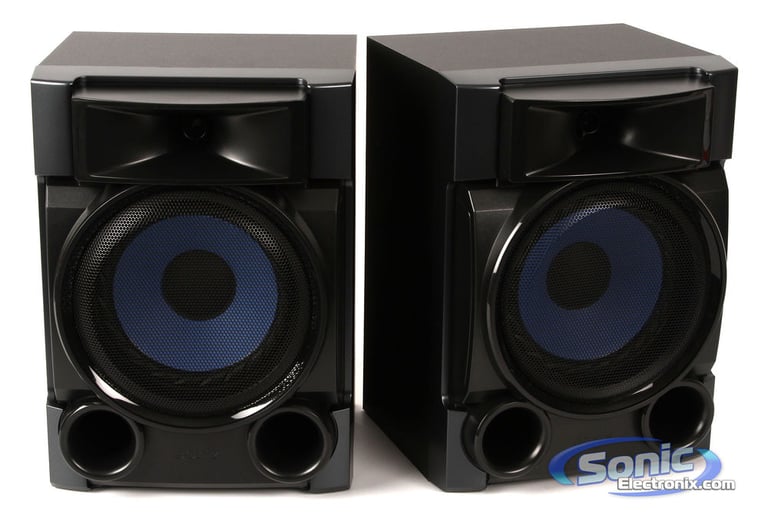

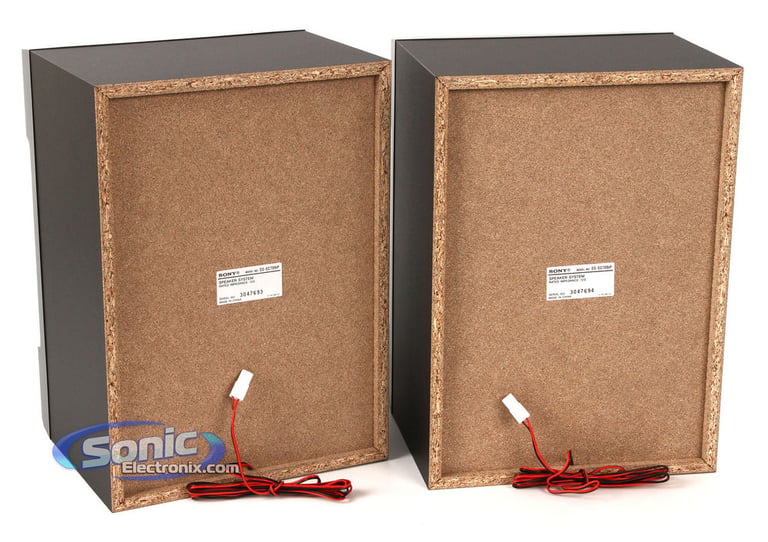

• Speakers SS-EC709iP:
• Tweeter Design: Horn Type (x2)
• Tweeter Size (Each): 1.57" (40mm)
• Midrange Woofer Type: Cone Type (x2)
• Midrange Woofer Size (Each): 6.3" (160mm)
• Speaker Impedance: 12 Ohm
• Speaker Cabinet Dimensions (Each): 12.05"H x 8.7"W x 8.47"D (306 mm x 221 mm x 215 mm)
• Speaker Cabinet Weight (Each): 6.13 Pounds (2.8 Kg.)

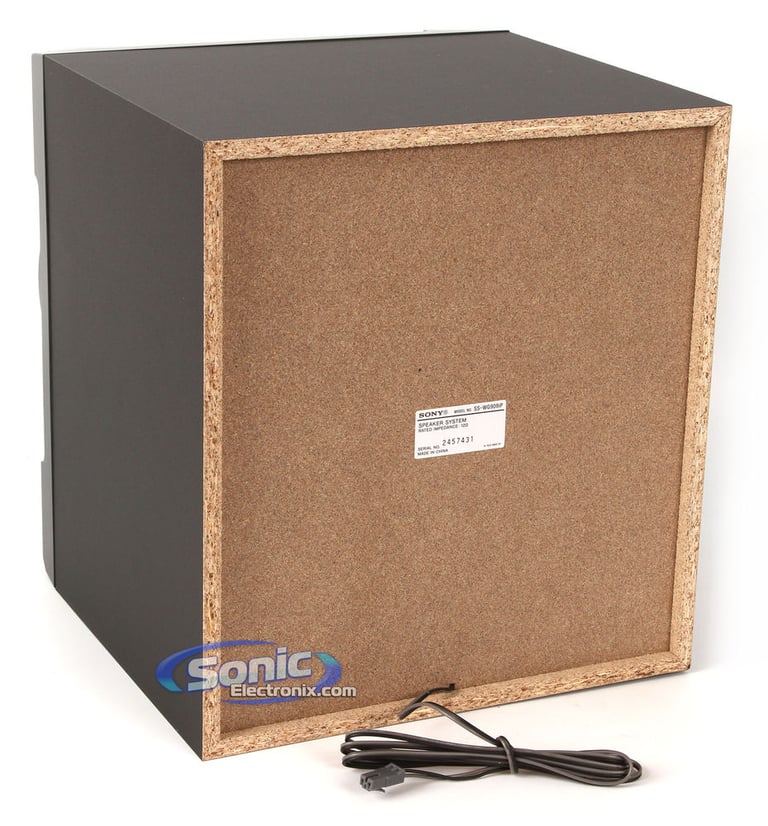

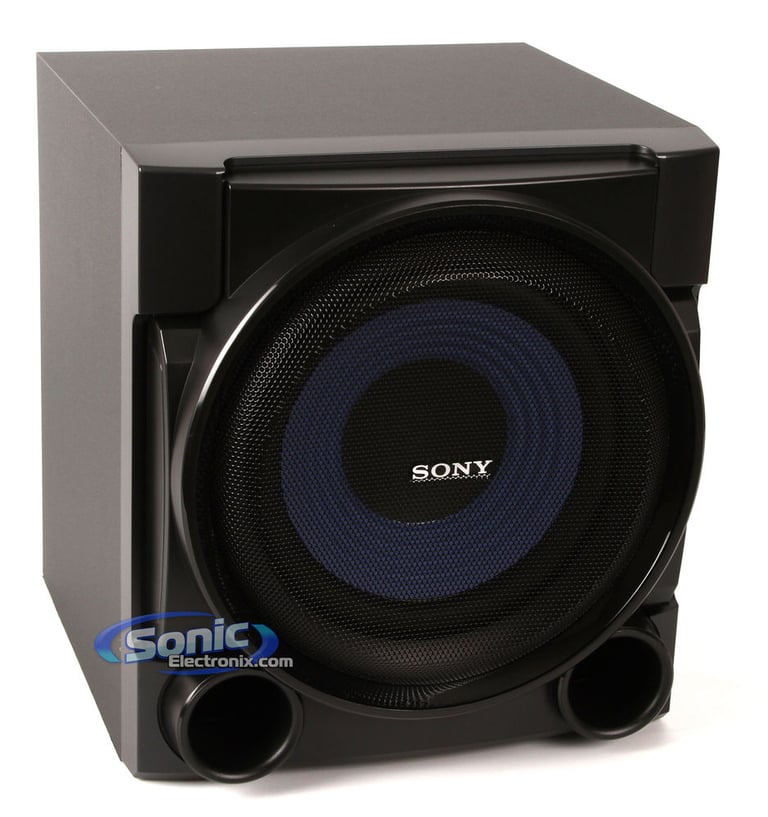

• Subwoofer SS-WG909iP:
• Subwoofer Design: Ported Bass Reflex Dynamic Driver
• Midrange Woofer Size: 7.9" (200mm)
• Subwoofer Impedance: 12 Ohm
• Subwoofer Cabinet Dimensions (Each): 12.05"H x 11.11"W x 12.01"D (306 mm x 282 mm x 305 mm)
• Subwoofer Cabinet Weight (Each): 12.13 Pounds (5.5 Kg.)
• Sound Output:
• Speaker Output: 180 Watts RMS (Each)
• Subwoofer Output: 180 Watts RMS
• Total RMS Output: 540 Watts
• Frequency Response: 120 Hz - 10,000 Hz

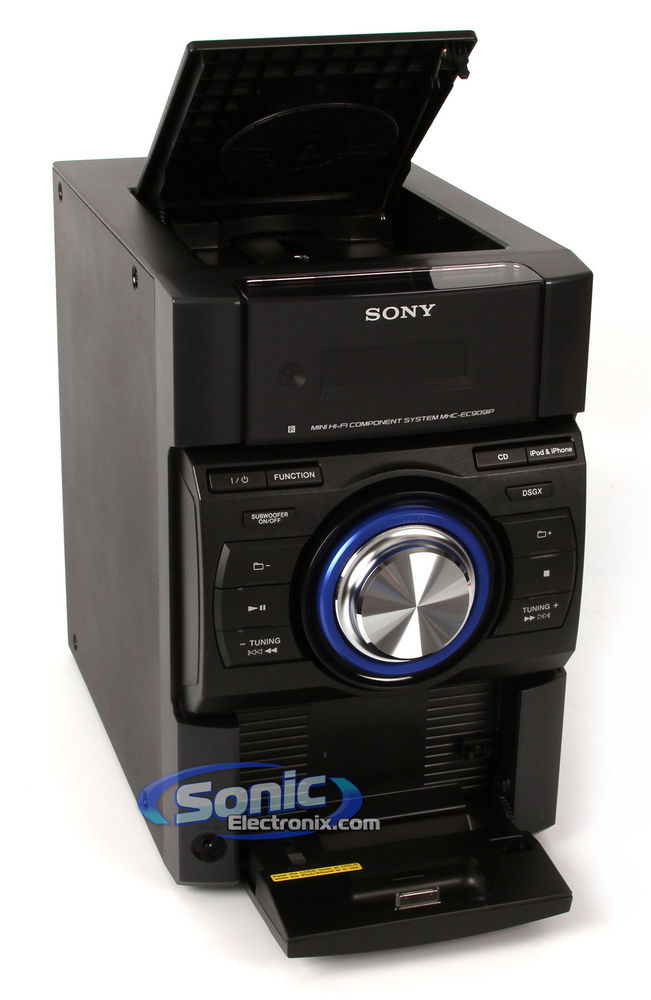

Amplifier/CD Console Specifications:

• CD Player:
• Number of Trays: Single Disc
• Laser Diode Emission Duration: Continuous
• Laser Diode Output: Less Than 44.6 µW
• Frequency Response: 20 Hz - 20,000 Hz
• Signal-to-Noise Ratio: More than 90 dB
• Dynamic Range: More than 88 dB
• D/A Converter: 44.1kHz/24bit
• Radio:
• AM Radio:

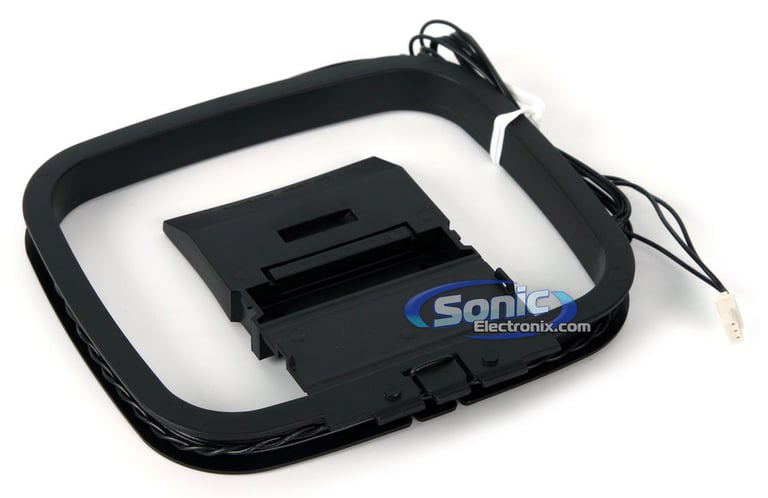

• Antenna Type: Loop Antenna
• Channel Presets: 10 AM Presets
• Tuning Range: 530 kHz - 1710 kHz (10 kHz Step)
• Tuning Range: 531 kHz - 1710 kHz (9 kHz Step)
• FM Radio
• Antenna Type: Wire Antenna
• Channel Presets: 20 FM Presets
• Tuning Range: 87.5 MHz - 108.0 MHz (100 kHz Step)
• Connectivity:
• Audio Line IN: 3.5mm
• Analog Audio Input: 3.5mm

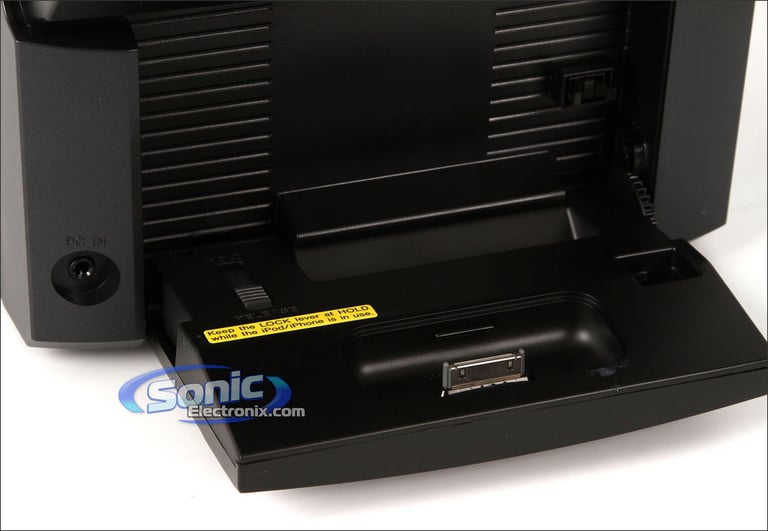

• iPod/iPhone Input: 30-Pin Dock

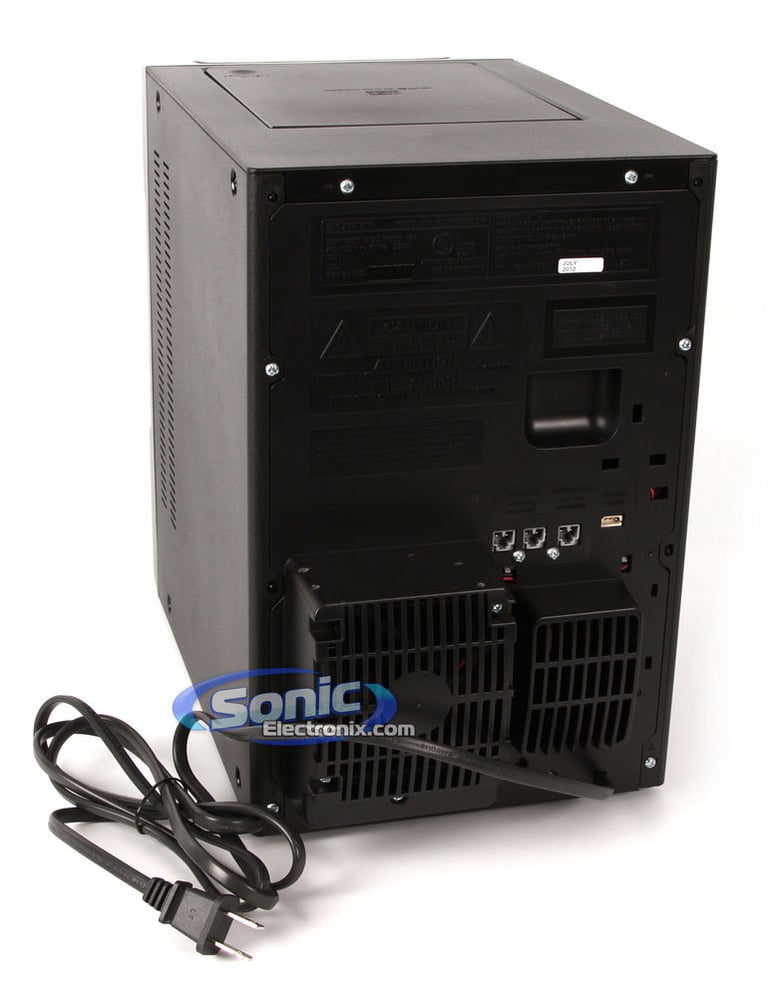

• Amplifier Console Dimensions: 12.05"H x 7.88"W x 15.31"D (308 mm x 200 mm x 389 mm)
• Amplifier Console Weight: 12.57 Pounds (5.7 Kg.)

General Specifications:

• Power:
• Requirements: 120 V, 60 Hz
• Consumption:
• Standby Mode: 0.5 W
• Operating: 250 W
• Approximate Product Dimensions (Including Speakers & Subwoofer): 12.05"H x 36.39"W x 15.31"D
• Approximate Product Weight: 36.96 Pounds
