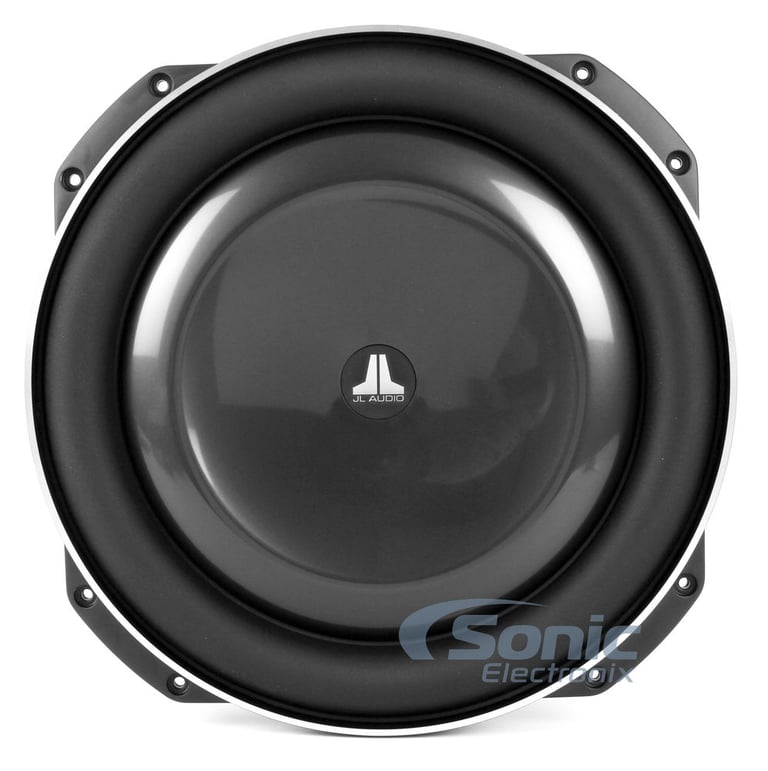

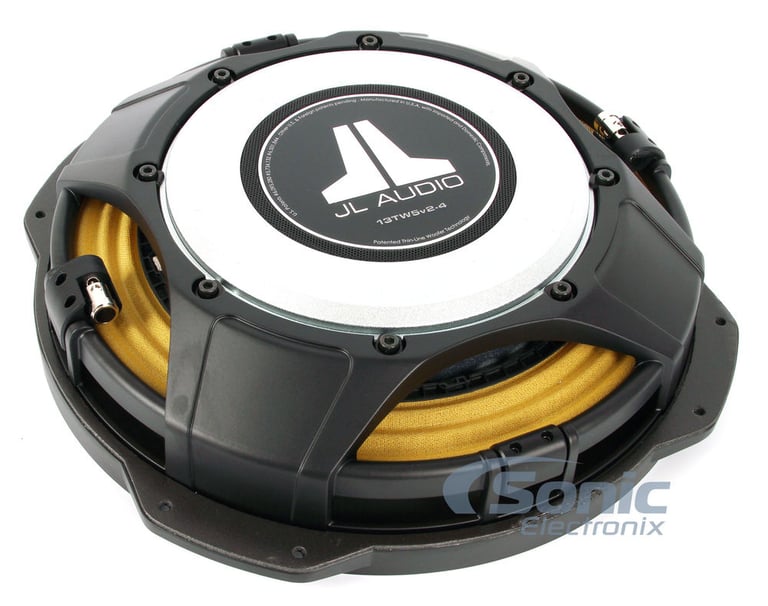

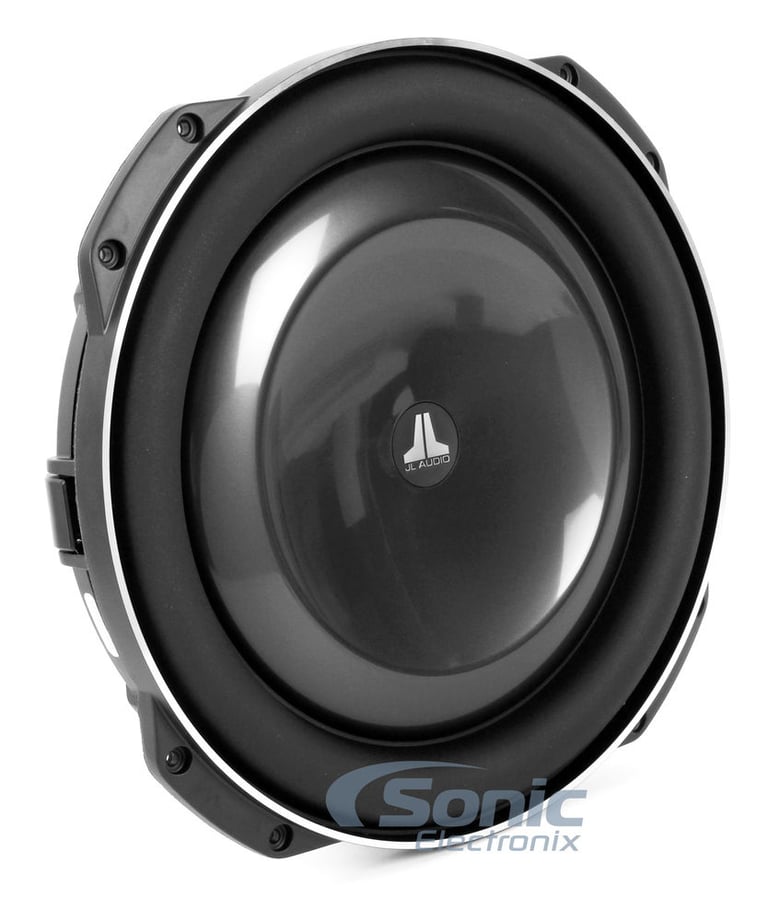

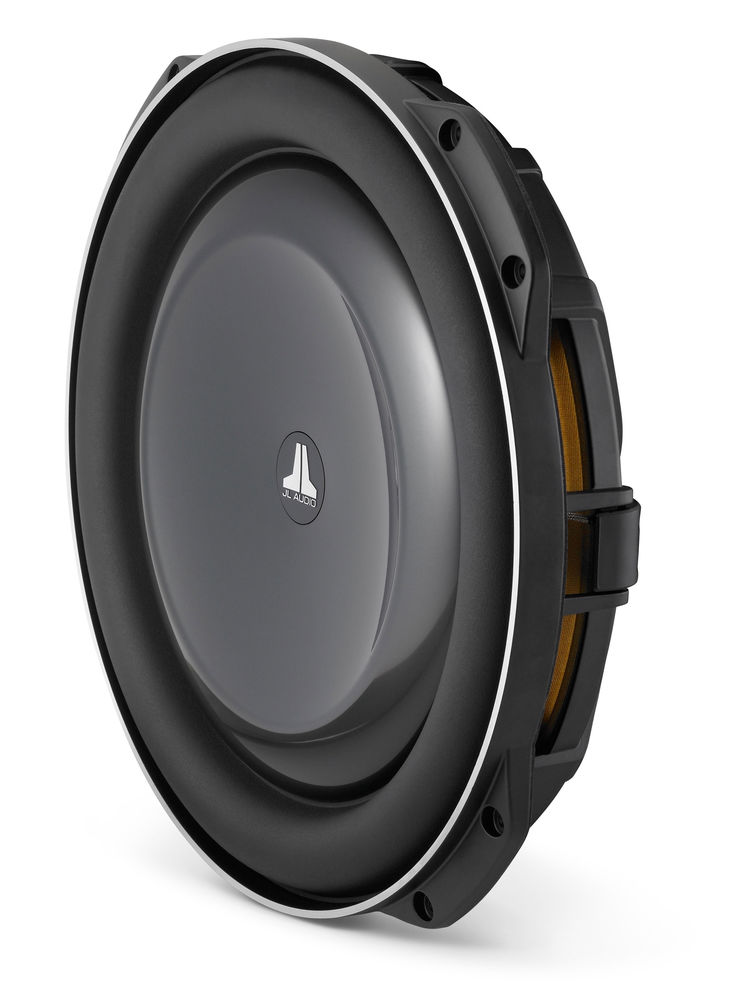

JL Audio 13TW5v2-4 (Open Box, Like New)

600W RMS 13.5" TW5v2 Series Single 4-ohm Shallow Car Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

Learn more about the 13tw5v24_obn

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


JL Audio 13TW5v2-4

In keeping with its “tight-spaces” mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 10-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer. The 13TW5v2 is best used with amplifier power in the 250W - 600W range and is optimized to operate in a 0.80 cu. ft. (22.7 liters) sealed enclosure.


JL Audio 13TW5v2-4

600W RMS 13.5" TW5v2 Series Single 4-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

  • 13.5" Single 4 ohm TW5 Shallow Mount Series Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Santoprene Rubber Surround
  • Cast alloy basket
  • 7-inch diameter voice coil
  • Unique design allows for small airspace requirements
  • Requires only 0.8 cubic feet of airspace
  • 13% greater linear excursion capability over previous model
  • Redesigned motor features an annular vent
  • DMA-optimized motor designs
  • 11 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 27.61 Hz
  • Sensitivity: 85.63 dB
  • Recommended sealed box volume: 0.80 cubic feet

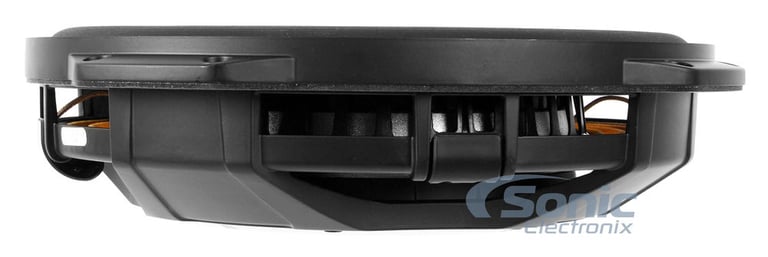

  • Top-mount depth: 2.625"
  • Cutout diameter: 12.50"
  • Authorized Internet Dealer
  • JL Audio SGRU13 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 13TW5v2-4 (Open Box, Like New) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 13TW5v2-4 (Open Box, Like New) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 13TW5v2-4 (Open Box, Like New) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 13TW5v2-4 (Open Box, Like New) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
TW5 Shallow Mount Series
Subwoofer Size
13.5"
RMS Power Handling
600 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
7"
Sensitivity
85.63 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Santoprene Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.80 cubic feet
Top-Mount Depth (Mounting Depth)
2.625"
Cutout Diameter
12.50"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
27.61 Hz
Equivalent Compliance (Vas)
60.31 liters
Total Speaker Q Value (Qts)
0.526
Electrical Q Value (Qes)
0.553
Electrical Resistance of Voice Coil (Re)
3.513 ohm
Mechanical Q Value (Qms)
10.692
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

13TW5V24_OBN

Weight:

23.15lbs

Internal SKU:

13tw5v24_obn

Internal Product ID:

224007

Customer Ratings & Reviews


JL Audio 13TW5v2-4 (Open Box, Like New) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.2
Features
4.6
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great sub

The following review is for 13TW5v2-4, which is a part of the bundle you are viewing.

Classic JL Audio subwoofer. Does what it is designed to do. I'm only running 1 in my vehicle and although it would be nice to have 2, I don't need two.

By James on September 17, 2013

62 found this helpful


JL is still the best!

The following review is for 13TW5v2-4, which is a part of the bundle you are viewing.

I got 1 of these on a Slash 1000/1 running at 4ohms which is why I wanted the Slash for its regulated power supply. According to the power rating for this sub I am overpowering it (I'm definitely voiding my warranty) but I can tell you undoubtedly the 7" VC can handle it. I'm at 3/4 of the IS and I have not clipped once and after a little bit of tuning it is up there w/ some of the best single sub setups I've ever heard. I read a lot of reviews saying it has trouble with lower notes but I think people were tuning it like a normal sub. I set my low pass medium lower and tuned out the junk and I can tell the difference big time. I think most people are missing the low frequency on their subsonic and just think think it's not capable. Once I got my amp set I can't tell you how happy I've been w/ the sound and the quality of my equipment. I have always been a JL but for good reason. No other sub IMO is more complete w/ such a robust sound. I'm not just amazed with the capability of this sub but the fact it was designed and engineered completely from the ground up and it still has that distinct JL sound up and down. It's quite amazing a sub less than 3" deep could even compare to a W6 but it does. The cost was high but if you want the best you have to pay for it and you'll be glad you did. I don't recommend putting a 1000w to it but at least you know it can take it.

By Anonymous on August 20, 2018

56 found this helpful


great sub small box

The following review is for 13TW5v2-4, which is a part of the bundle you are viewing.

Got two of these subs because i needed more room and the 13w7 was taking up to much. I love the big sound and the small size.. not like the w7 but still a good clean sound.

By dave m on June 28, 2013

57 found this helpful


The following review is for 13TW5v2-4, which is a part of the bundle you are viewing.
By Anonymous Shopper on November 28, 2023

17 found this helpful


It will rock you

The following review is for 13TW5v2-4, which is a part of the bundle you are viewing.

O man, where to start, this sup is just amazing clean clear, bass i have never heard a sub sound so good, the way it hits is just crazy, love love love, the only problem I had and has nothing to do with sub, is sonic put a signature required when they shipped it, fedex did not want to let me pick it up, as they said we will try again tomorrow, I said I would t be there tomorrow because I work are the next day are the next day after that, but In the end I was able to pick it up,

By Christopher on September 6, 2025 Checkmark Icon Verified purchase
