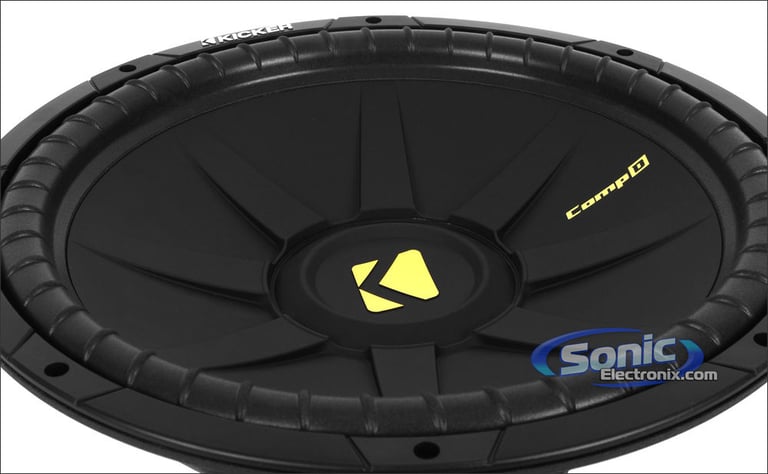

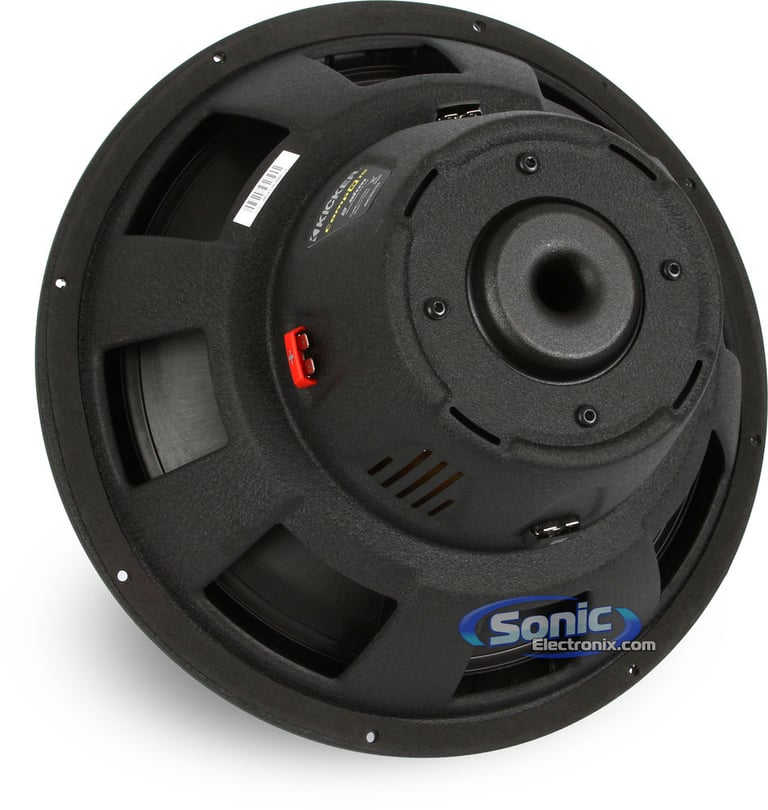

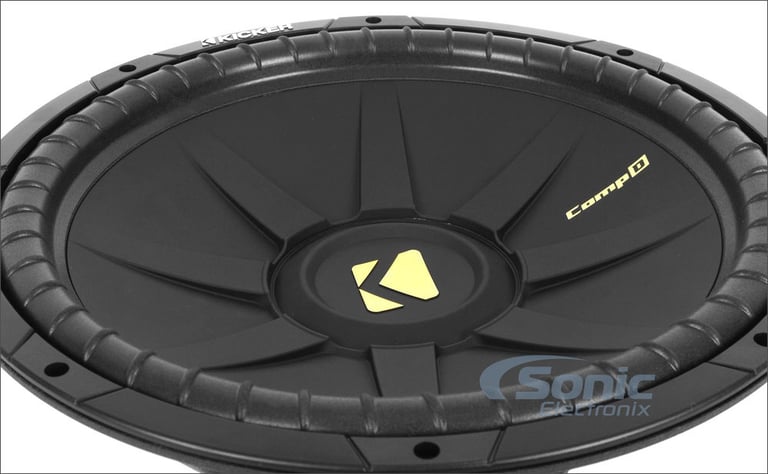

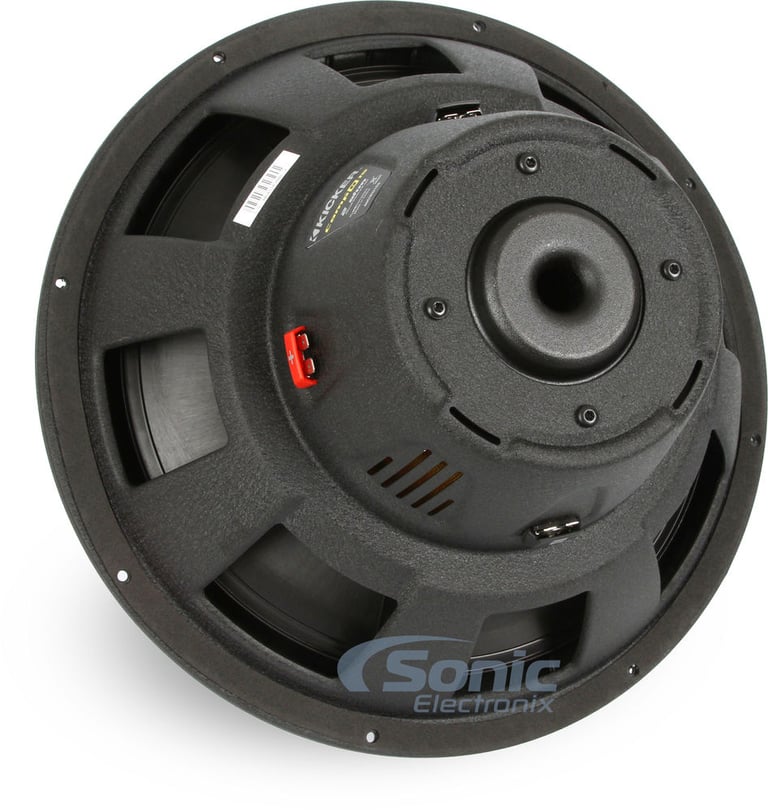

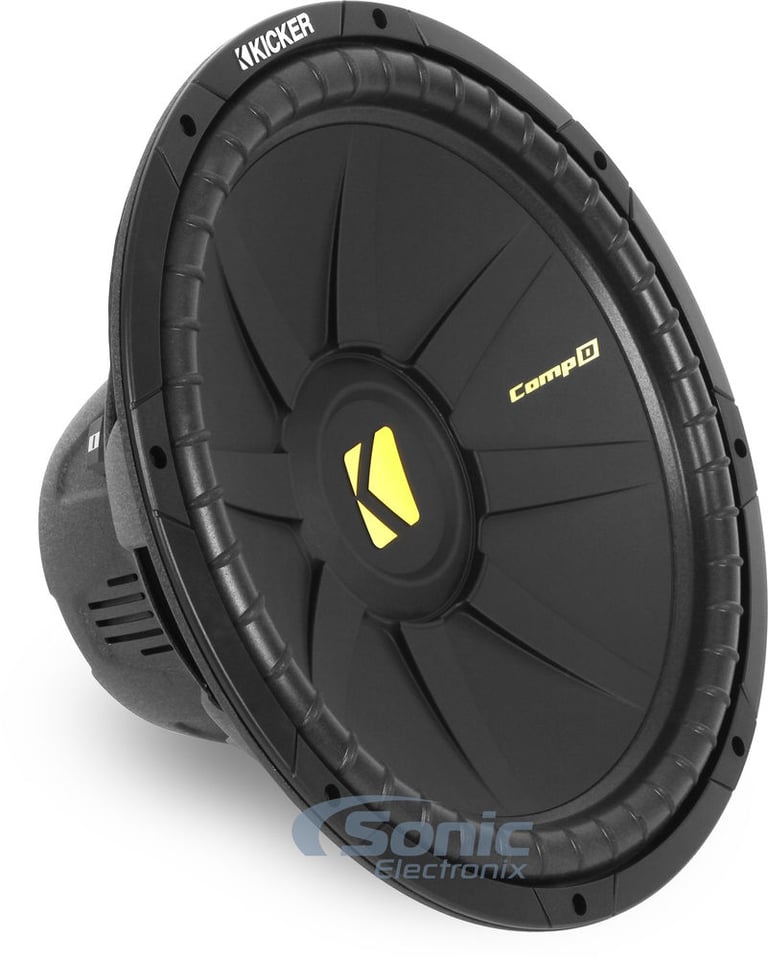

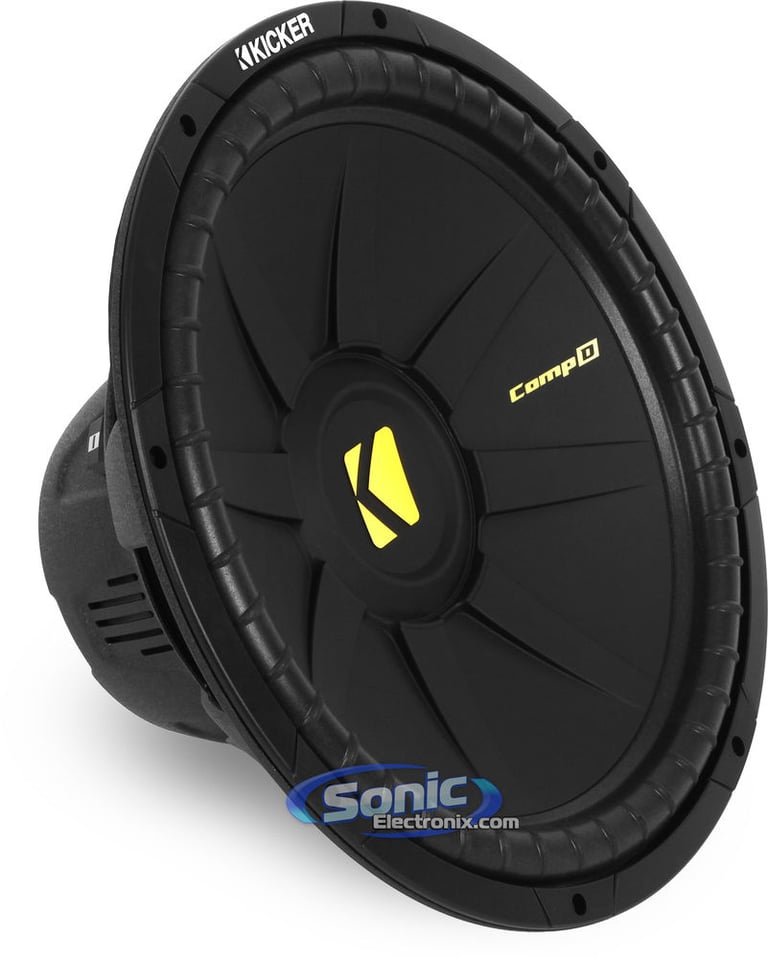

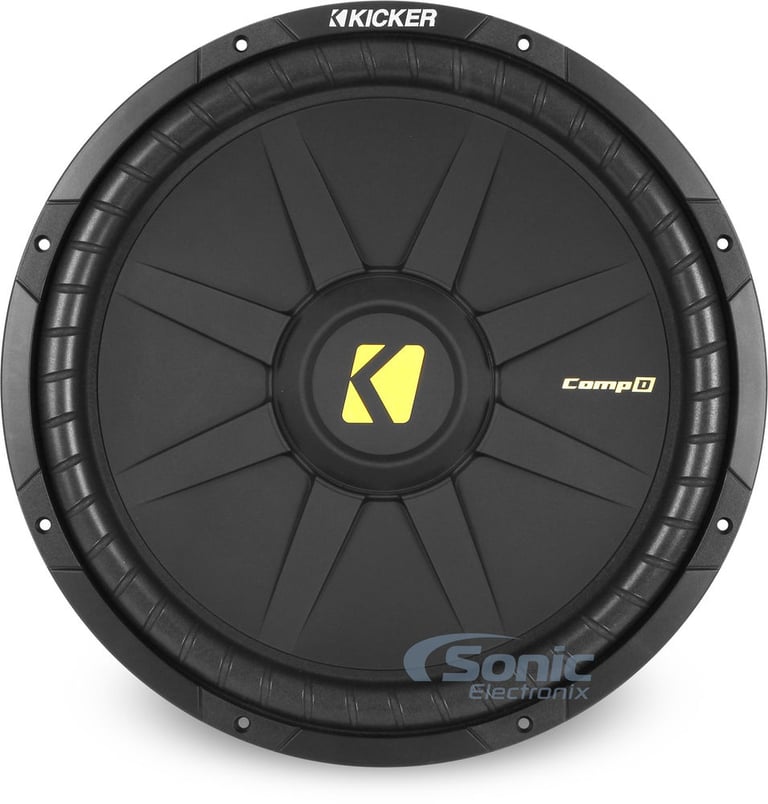

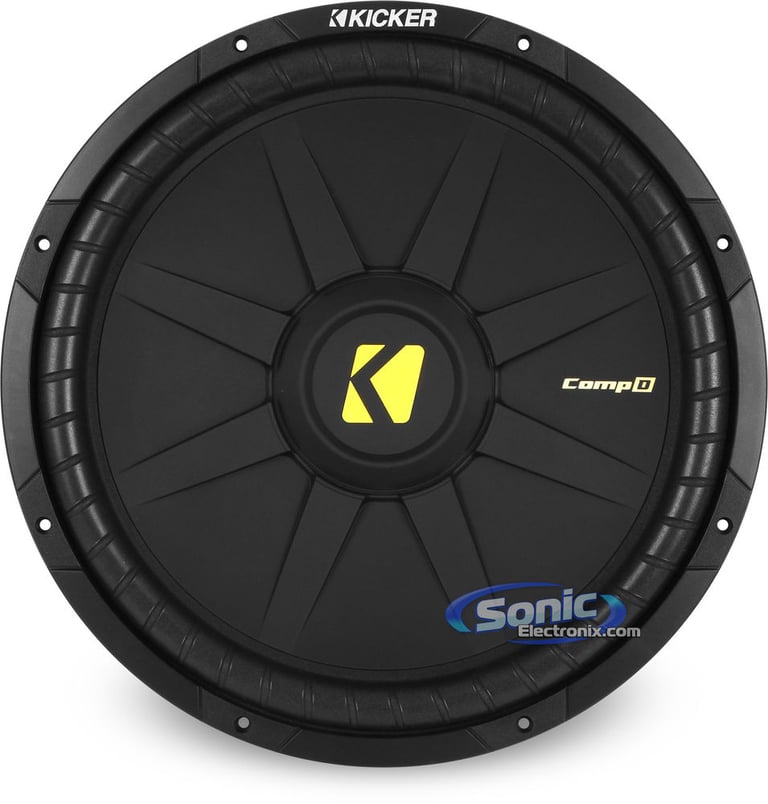

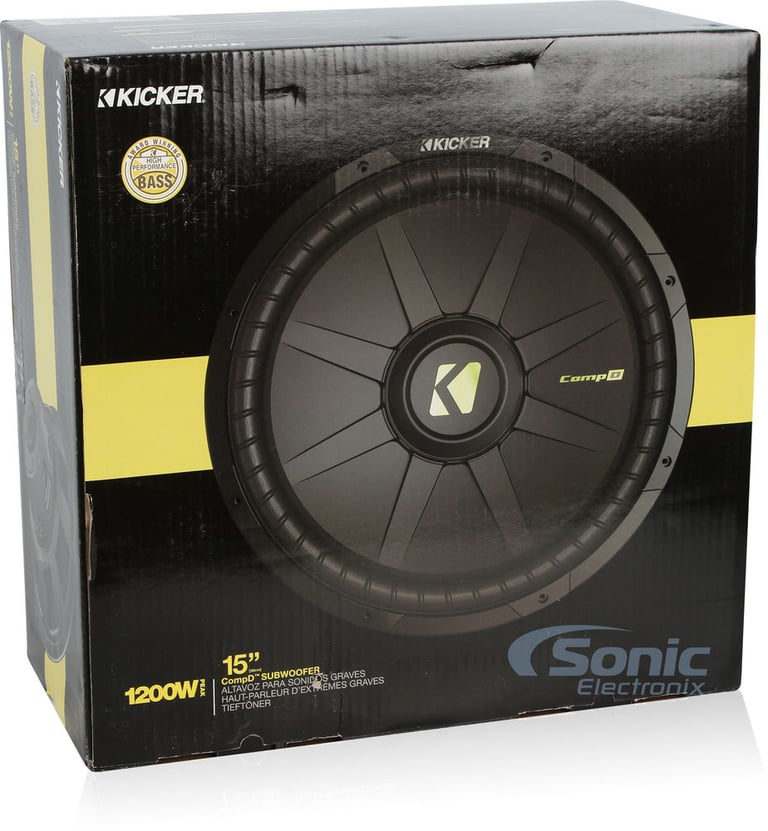

Kicker 40CWD154 (CompD154)- OPEN BOX

600W 15" Comp-D Series Dual 4-Ohm Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

• 1200W Peak
• 600W RMS
• Dual 4-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Learn more about the LS-40cwd154-OB

We apologize

This item has been discontinued

Product Highlights


• 1200W Peak
• 600W RMS
• Dual 4-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Description


Kicker brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Legendary Kicker Bass

KICKER continues to offer the greatest balance between high value and high performance with the legendary single-voice-coil CompS Subwoofer. Equipped with proven KICKER construction, the CompS utilizes elite innovations for world-class KICKER power, durability and hard-hitting, high-performance bass.

CompS Subwoofers is founded on engineering that is tried and true, building upon the success of the KICKER’s original Competition Series from 1986. It’s available in four sizes (15, 12, 10, 8) and in either 2- or 4-Ohm impedances.

CompS Subwoofers is ideal for vented or sealed enclosures, or even in free-air applications, and handles more power than any previous Comp Series generation. It is equipped with a lightweight, injection-molded polypropylene cone and tough, ribbed polyurethane surround for eliminating flex and distortion. The heavy-duty motor structure includes a rip-resistant, large-diameter spider and high-strength Spiralead tinsel leads for max signal transfer. High-temp coil wire winding around a vented pole piece and innovative Quad Venting slots contribute to the woofer’s efficient cooling attributes and durability.

Its full-coverage, steel basket is shallower than previous Comp baskets, fitting into more applications, and it incorporates 1/4-inch, heavy-duty spade connections. The CompS provides the most intense bass for the buck and leave every music lover with enough money to throw toward a powerful KICKER Amplifier, resulting in an incredible musical experience.

General Features:

  • 15" Dual 4-Ohm CompD Series Subwoofer
  • Product is Open Box
    • Missing Beauty Box
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Injection-Molded Polypropylene Cone
  • Ribbed polyurethane surround
  • Large-diameter spider
  • High-strength Spiralead tinsel leads
  • Frequency response: 25-500 Hz
  • Resonance Frequency (Fs): 23 Hz
  • Top-mount depth: 7"
  • Sensitivity: 90.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Also Found As: 40-CWD154, 40CWD15-4, CWD15-4, CWD154, 40 CWD154, 40CW154, CWD15, Comp D 154, Comp D154, CompD 154, CompD15, Comp-D154, CompD15-4 2011 Kicker Authorized Online Dealer and eBay Seller

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 40CWD154 (CompD154)- OPEN BOX Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 40CWD154 (CompD154)- OPEN BOX Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 40CWD154 (CompD154)- OPEN BOX Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker 40CWD154 (CompD154)- OPEN BOX Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
CompD Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 500 Hz
Sensitivity
90.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Ribbed Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.25 cubic feet
Maximum Sealed Box Volume
5.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
13-3/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23 Hz
Equivalent Compliance (Vas)
226.14 liters
Total Speaker Q Value (Qts)
.404
Electrical Q Value (Qes)
.422
Electrical Resistance of Voice Coil (Re)
3.32 ohm
Mechanical Q Value (Qms)
9.607
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CWD154-2

Weight:

17.00lbs

Internal SKU:

LS-40cwd154-OB

Internal Product ID:

95194
